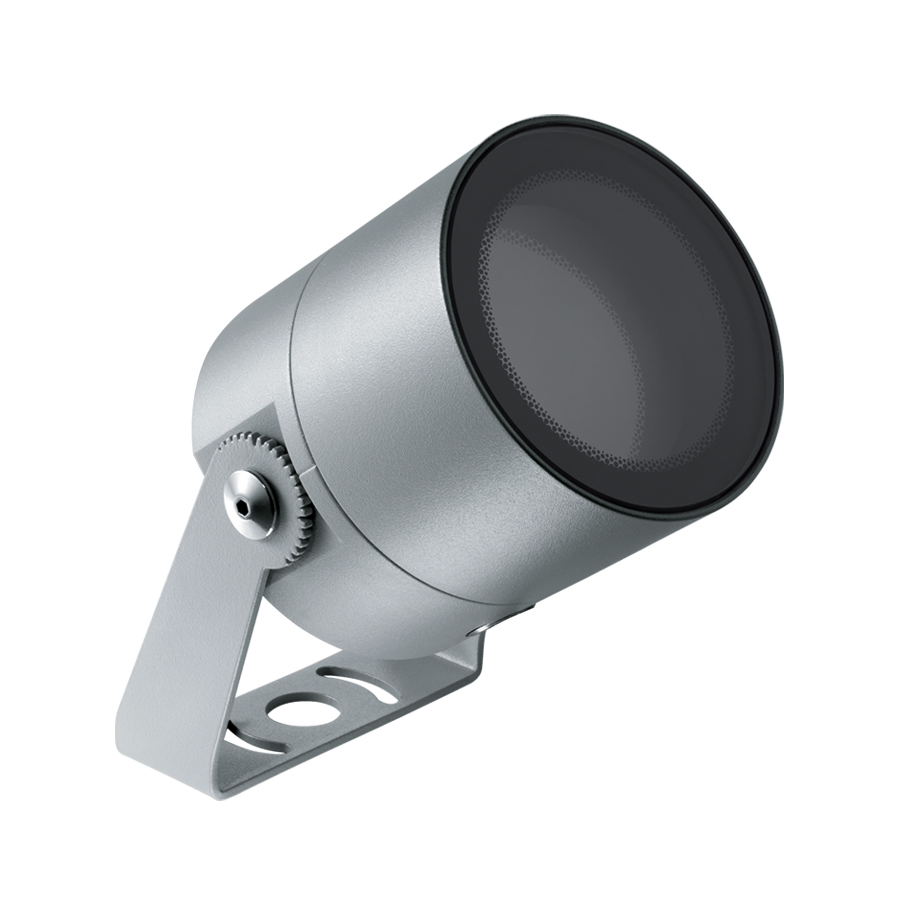

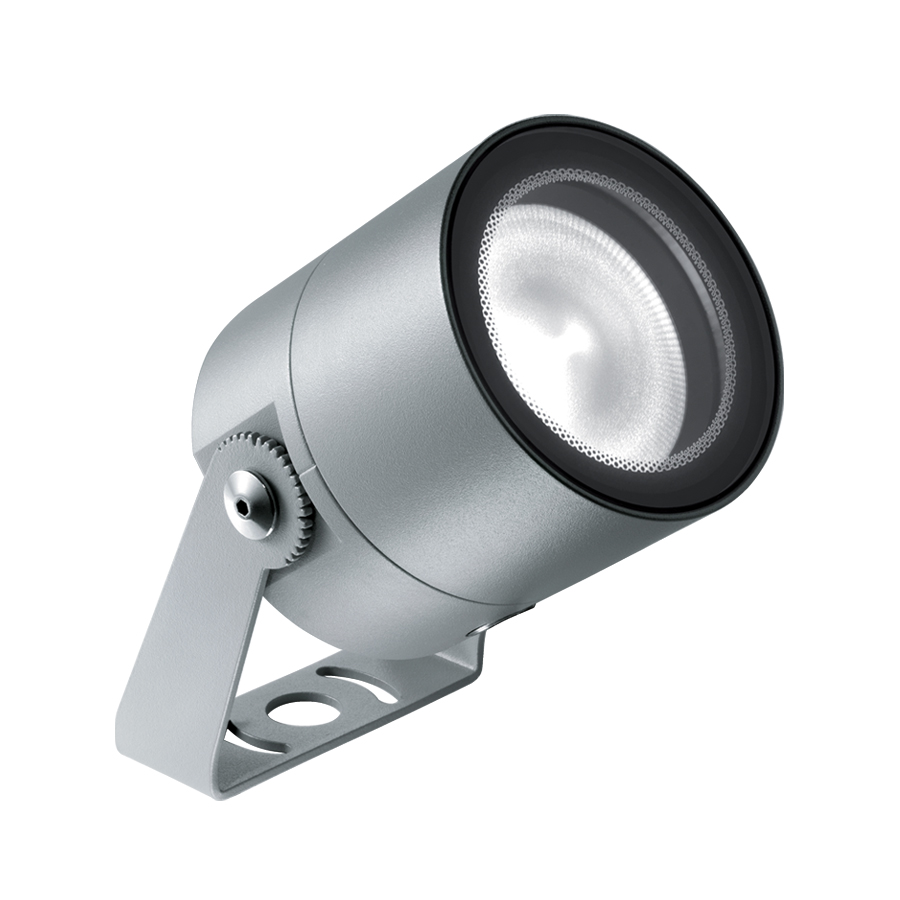

Ginko 3.0

10W / 15W 24Vdc
12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided (patent pending)
Ø84x88 mm

  • IF Design Award 2019
  • Patent pending

Generate code

Technical data

Print technical data

Updated to GN300105WF

  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 1,04
  • IP66
  • IP69K
  • IK09
  • IPS
  • RAL finish on request
  • A/A+/A++
Installation projector for outdoor applications
Power 15W
Power supply 24Vdc
Lumen output at source 1662 lm (3000K, 15W, CRI 80)
Delivered lumen output 1162 lm (3000K, 42°, 15W, CRI 80)
Datasheet

Copied

Mounting surface mounted (ceiling, wall, ground, spike)
Number and type of LED 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour 3000K
Optics adjustable 12°x64°
CRI 80
Body material body in anticorodal aluminium,
AISI 316L stainless steel bracket
Screen material screen in tempered, transparent extra-clear glass
Finishes grey
Power supply unit power supply unit not included
Power cables includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
Ingress protection IP66, IP69K
Impact resistance IK09
Features 12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided
Status Available

Read more

Close

Accessories and power supply units

Accessories (12)

Power supply units (15)

Power supply units for product code GN300105WF

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc 16W
350mA 19W 1-15 LEDs
500mA 20W 1-10 LEDs
700mA 20W 1-7 LEDs
Power16W
DimmeringON/OFF
Power supply unit IPIP20

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-13 LEDs
500mA 24W 1-13 LEDs
700mA 32W 1-13 LEDs
DimmeringON/OFF
Power supply unit IPIP20

AD020DALIT1

dimmable power supply unit

Output24Vdc 16W
350mA 15W 1-10 LEDs
500mA 20W 1-9 LEDs
700mA 20W 1-6 LEDs
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-11 LEDs
500mA 24W 1-11 LEDs
700mA 32W 1-11 LEDs
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 15W 1-12 LEDs
500mA 22W 1-12 LEDs
700mA 25W 1-8 LEDs
Dimmering1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input12-24-48Vdc
Output12Vdc 144W
24Vdc 288W
48Vdc 576W
Dimmering1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 320W
DimmeringON/OFF
Power supply unit IPIP67
