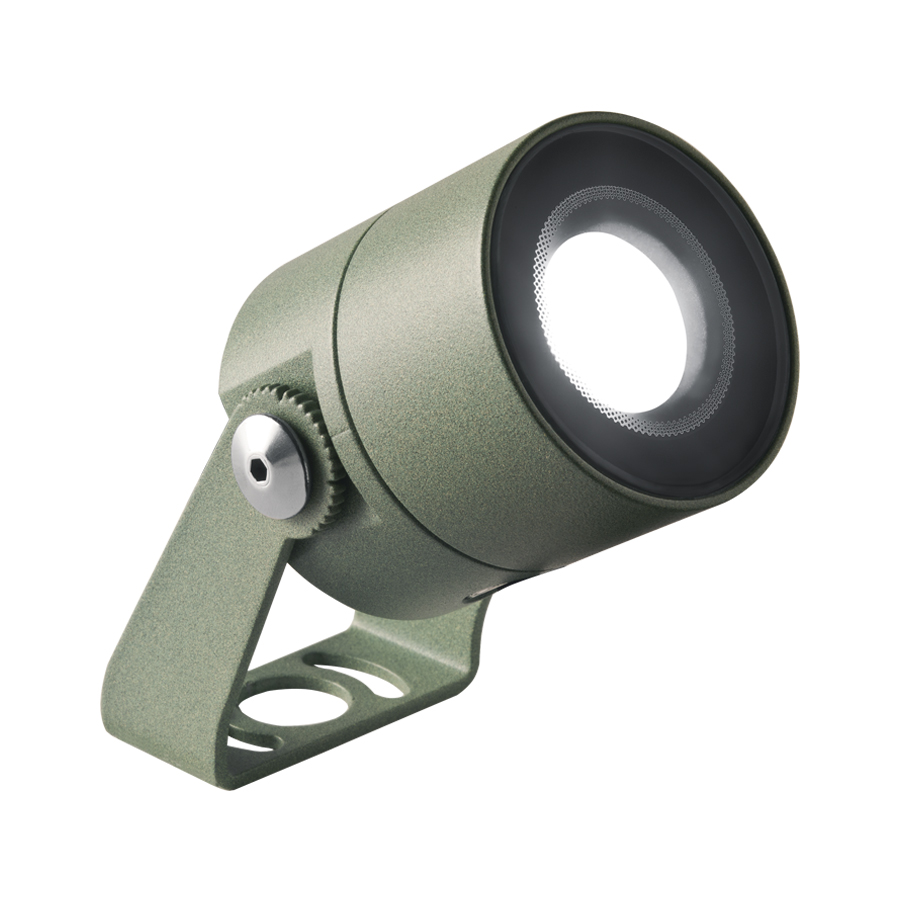

Ginko 2.0

3.5W / 5W / 7W - 24Vdc - Ø54x58 mm

Technical data

Print technical data

kg 0,38
IP66
IP69K
IK07

Installation	projector for outdoor applications
Power consumption	3,5W (5° optics), 5W, 7W
Power supply	24Vdc
Lumen output at source	452 lm (3000K, 5W, CRI >90), 488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80)
Delivered lumen output	284 lm (3000K, 34°, 5W, CRI >90), 352 lm (3000K, 34°, 5W, CRI 80), 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80)
Datasheet	Ginko 2.0 projector for outdoor applications; Awards: Muuuz International Awards 2019; surface mounted (ceiling, wall, ground, spike); Power consumption: 3,5W (5° optics), 5W, 7W; Power supply: 24Vdc; Lumen output at source: 452 lm (3000K, 5W, CRI >90), 488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80); Delivered lumen output: 284 lm (3000K, 34°, 5W, CRI >90), 352 lm (3000K, 34°, 5W, CRI 80), 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80); 1 power LED High Intensity; 1 power LED (5° optics), 1/4 ANSI BIN (5° optics), 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 5°, 8°, 17°, 13°x52°, 54°x15°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 11°, 34°, 45°, 47°, 68°: optical system consisting of a high-efficiency TIR lens, sharp 21°, sharp 61°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter; CRI Colour Rendering Index: 80, >90; Body material: body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version); Finishes: finish that provides corrosion resistance of more than 3000 hours of salt spray, making it possible to use the product even in extremely severe atmospheric conditions, black finish obtained by electro-colouring, which offers the product better heat dissipation and provides corrosion resistance of more than 1500 hours of salt spray, cor-ten finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, jasper green finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, anthracite finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; Ingress protection: IP66, IP69K; Impact resistance: IK07; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 55°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 380 g; Dimensions: Ø54x58 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WB80125 Standard snoot - jasper green, WB8012E Standard snoot - white, WB8012F Standard snoot - grey, WB8012H Standard snoot - anthracite, WB8012N Standard snoot - black anodized, WB8012T Standard snoot - cor-ten, WB80225 Asymmetrical snoot - jasper green, WB8022E Asymmetrical snoot - white, WB8022F Asymmetrical snoot - grey, WB8022H Asymmetrical snoot - anthracite, WB8022N Asymmetrical snoot - black anodized, WB8022T Asymmetrical snoot - cor-ten, WF3301 Flexible cable-protection tube - 15 cm, WF8505 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8510 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8515 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8520 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8605 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8610 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8615 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8620 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8705 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8710 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8715 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8720 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WH0201 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1006F Spike with bracket for in-ground installation - h 500 mm - grey, WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite, WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel, WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green, WP1007E Spike with bracket for in-ground installation - h 800 mm - white, WP1007F Spike with bracket for in-ground installation - h 800 mm - grey, WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite, WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel, WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionGinko 2.0 projector for outdoor applications Awards: Muuuz International Awards 2019 surface mounted (ceiling, wall, ground, spike) Power consumption: 3,5W (5° optics), 5W, 7W Power supply: 24Vdc Lumen output at source: 452 lm (3000K, 5W, CRI >90), 488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80) Delivered lumen output: 284 lm (3000K, 34°, 5W, CRI >90), 352 lm (3000K, 34°, 5W, CRI 80), 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80) 1 power LED High Intensity; 1 power LED (5° optics), 1/4 ANSI BIN (5° optics), 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 5°, 8°, 17°, 13°x52°, 54°x15°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 11°, 34°, 45°, 47°, 68°: optical system consisting of a high-efficiency TIR lens, sharp 21°, sharp 61°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter CRI Colour Rendering Index: 80, >90 Body material: body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version) Finishes: finish that provides corrosion resistance of more than 3000 hours of salt spray, making it possible to use the product even in extremely severe atmospheric conditions, black finish obtained by electro-colouring, which offers the product better heat dissipation and provides corrosion resistance of more than 1500 hours of salt spray, cor-ten finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, jasper green finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, anthracite finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches power supply unit not included includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm Ingress protection: IP66, IP69K Impact resistance: IK07 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 55°C (Ta 25°C) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 380 g Dimensions: Ø54x58 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WB80125 Standard snoot - jasper green, WB8012E Standard snoot - white, WB8012F Standard snoot - grey, WB8012H Standard snoot - anthracite, WB8012N Standard snoot - black anodized, WB8012T Standard snoot - cor-ten, WB80225 Asymmetrical snoot - jasper green, WB8022E Asymmetrical snoot - white, WB8022F Asymmetrical snoot - grey, WB8022H Asymmetrical snoot - anthracite, WB8022N Asymmetrical snoot - black anodized, WB8022T Asymmetrical snoot - cor-ten, WF3301 Flexible cable-protection tube - 15 cm, WF8505 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8510 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8515 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8520 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8605 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8610 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8615 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8620 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8705 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8710 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8715 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8720 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WH0201 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1006F Spike with bracket for in-ground installation - h 500 mm - grey, WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite, WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel, WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green, WP1007E Spike with bracket for in-ground installation - h 800 mm - white, WP1007F Spike with bracket for in-ground installation - h 800 mm - grey, WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite, WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel, WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	1 power LED High Intensity; 1 power LED (5° optics), 1/4 ANSI BIN (5° optics), 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	5°, 8°, 11°, 17°, sharp 21°, 34°, 45°, 47°, sharp 61°, 68°, 13°x52°, 54°x15°
CRI Colour Rendering Index	80, >90
Body material	body in AISI 316L stainless steel, AISI 316L stainless steel bracket, body in anticorodal aluminium, AISI 316L stainless steel bracket
Screen material	screen in serigraphed, transparent and tempered extra-clear glass
Finishes	stainless steel, anodized black, cor-ten, jasper green, white, grey, anthracite
Power supply unit	power supply unit not included
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
Ingress protection	IP66, IP69K
Impact resistance	IK07
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file
IES Photometric file
Energy label Language
- Italiano
- English
- Deutsch
- Español
- Russian
- Polski
- Nederlands
- Czech
- Slovak
- Portugues
- Français

Gallery

Accessories and power supply units

Accessories (40)

Spikes and arms

WP0100 Spike for in-ground installation	WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green
WP1006E Spike with bracket for in-ground installation - h 500 mm - white	WP1006F Spike with bracket for in-ground installation - h 500 mm - grey
WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite	WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel
WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten	WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green
WP1007E Spike with bracket for in-ground installation - h 800 mm - white	WP1007F Spike with bracket for in-ground installation - h 800 mm - grey
WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite	WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel
WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten

Honeycomb louvre

WH0201

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics, except for sharp optics

Order together with the lighting fixture.

Snoots

WB80125 Standard snoot - jasper green	WB8012E Standard snoot - white
WB8012F Standard snoot - grey	WB8012H Standard snoot - anthracite
WB8012N Standard snoot - black anodized	WB8012T Standard snoot - cor-ten
WB80225 Asymmetrical snoot - jasper green	WB8022E Asymmetrical snoot - white
WB8022F Asymmetrical snoot - grey	WB8022H Asymmetrical snoot - anthracite
WB8022N Asymmetrical snoot - black anodized	WB8022T Asymmetrical snoot - cor-ten

Various accessories

WF3301

Flexible cable-protection tube - 15 cm

Order together with the lighting fixture.

WP1004

Fastener strap - 5 m

Cables

WF8505 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 5W Order together with the lighting fixture.	WF8510 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 5W Order together with the lighting fixture.
WF8515 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 5W Order together with the lighting fixture.	WF8520 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 5W Order together with the lighting fixture.
WF8605 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 7W Order together with the lighting fixture.	WF8610 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 7W Order together with the lighting fixture.
WF8615 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 7W Order together with the lighting fixture.	WF8620 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 7W Order together with the lighting fixture.
WF8705 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 3,5W Order together with the lighting fixture.	WF8710 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 3,5W Order together with the lighting fixture.
WF8715 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 3,5W Order together with the lighting fixture.	WF8720 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS 3,5W Order together with the lighting fixture.

Power supply units (16)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc 16W 350mA 19W 500mA 20W 700mA 20W
Power	16W
Dimmering	ON/OFF
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	12Vdc 10W 24Vdc 20W 350mA 17W 500mA 24W 700mA 32W
Dimmering	ON/OFF
Power supply unit IP	IP20

AD020DALIT1

dimmable power supply unit

Output	24Vdc 16W 350mA 15W 500mA 20W 700mA 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc 10W 24Vdc 20W 350mA 17W 500mA 24W 700mA 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc 10W 24Vdc 20W 350mA 15W 500mA 22W 700mA 25W
Dimmering	1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (1)

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input	12-24-48Vdc
Output	With input 12Vdc: 12Vdc 144W With input 24Vdc: 24Vdc 288W With input 48Vdc: 48Vdc 576W
Dimmering	1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
