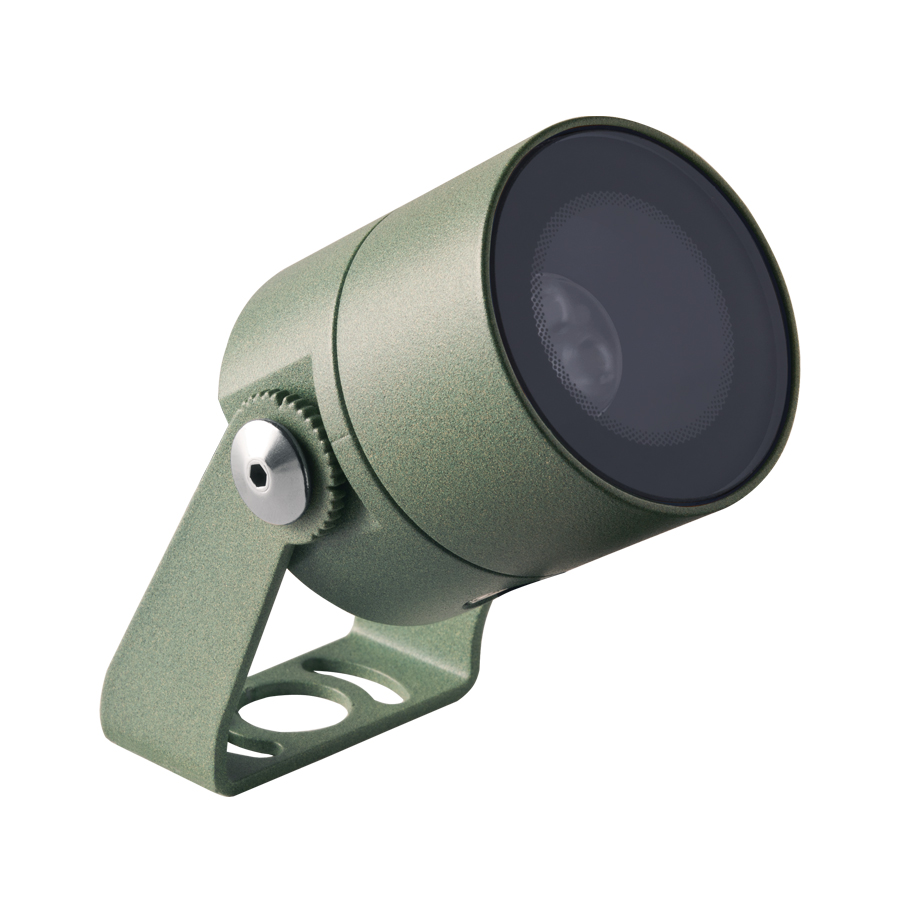

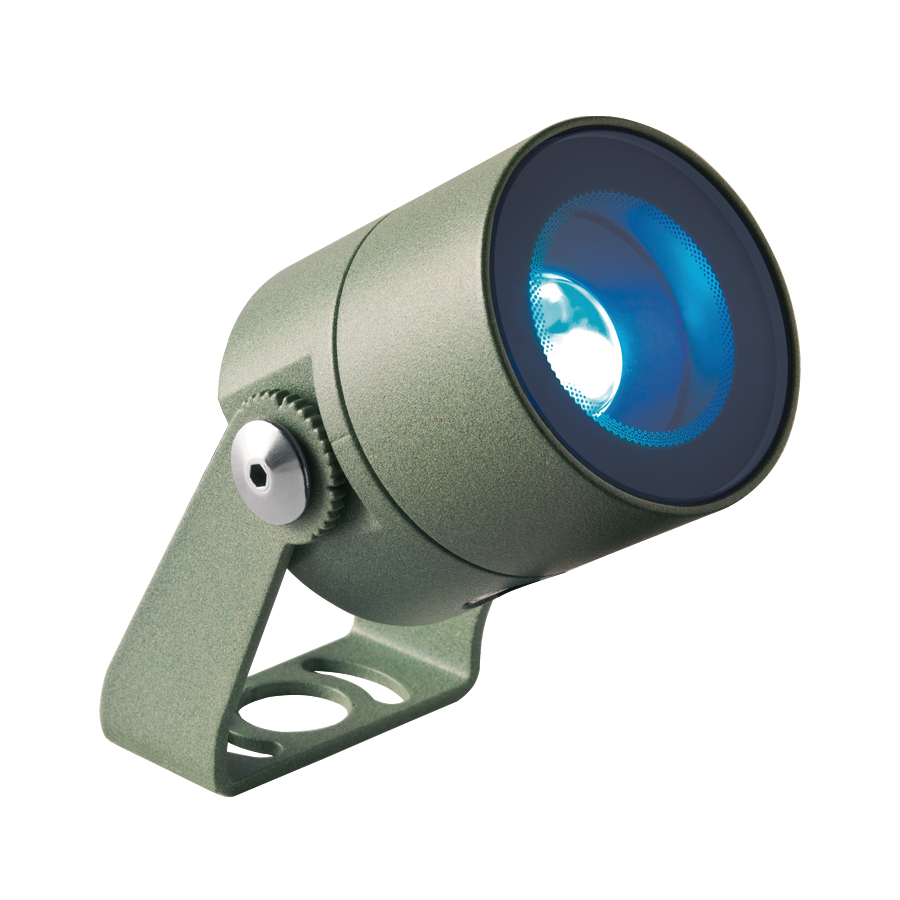

Ginko 2.2

Projectors for outdoor applications

projector for outdoor applications - max 5W max 500mA - Ø54x58 mm - RGB

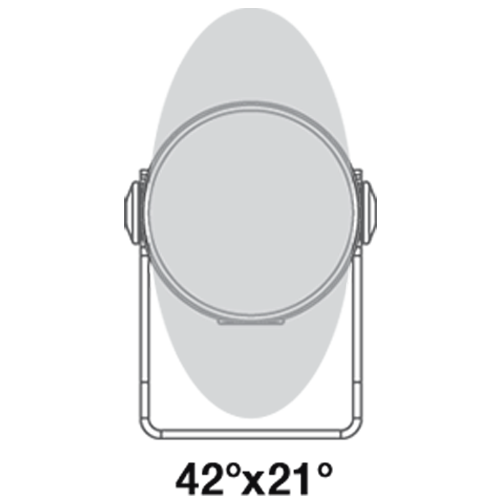

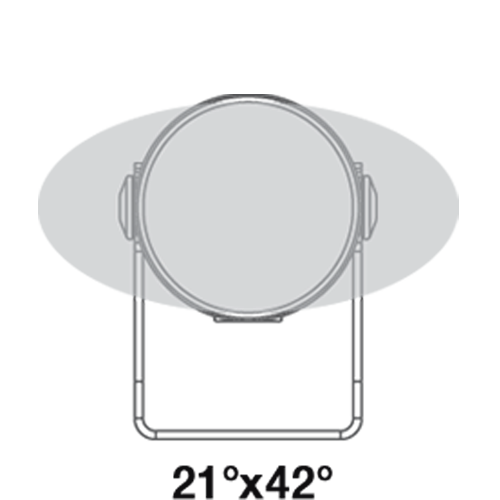

Technical data

Print technical data

kg 0,45
IP66
IP69K
IK07

Installation	projector for outdoor applications
Power consumption	max 5W
Power supply	max 500mA
Lumen output at source	253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA)
Delivered lumen output	191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°)
Datasheet	Ginko 2.2 projector for outdoor applications; Awards: Muuuz International Awards 2019; surface mounted (ceiling, wall, ground, spike); Power consumption: max 5W; Power supply: max 500mA; Lumen output at source: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA); Delivered lumen output: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°); 3 power LEDs, 50000h L90 B10 (Ta 25°C); LED colour: RGB; Optics: 20°, 34°, 21°x42°, 42°x21°: optical system consisting of 3 high-efficiency TIR microlenses (RGB), 45°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter; Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version), body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version); Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, black finish obtained by electro-colouring, which offers the product better heat dissipation and provides corrosion resistance of more than 1500 hours of salt spray, finish that provides corrosion resistance of more than 3000 hours of salt spray, making it possible to use the product even in extremely severe atmospheric conditions, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; power supply unit not included; Wiring: series; includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm; Ingress protection: IP66, IP69K; Impact resistance: IK07; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 450 g; Dimensions: Ø54x58 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WB80125 Standard snoot - jasper green, WB8012E Standard snoot - white, WB8012F Standard snoot - grey, WB8012H Standard snoot - anthracite, WB8012N Standard snoot - black anodized, WB8012T Standard snoot - cor-ten, WB80225 Asymmetrical snoot - jasper green, WB8022E Asymmetrical snoot - white, WB8022F Asymmetrical snoot - grey, WB8022H Asymmetrical snoot - anthracite, WB8022N Asymmetrical snoot - black anodized, WB8022T Asymmetrical snoot - cor-ten, WF3301 Flexible cable-protection tube - 15 cm, WH0201 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1006F Spike with bracket for in-ground installation - h 500 mm - grey, WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite, WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel, WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green, WP1007E Spike with bracket for in-ground installation - h 800 mm - white, WP1007F Spike with bracket for in-ground installation - h 800 mm - grey, WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite, WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel, WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionGinko 2.2 projector for outdoor applications Awards: Muuuz International Awards 2019 surface mounted (ceiling, wall, ground, spike) Power consumption: max 5W Power supply: max 500mA Lumen output at source: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA) Delivered lumen output: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°) 3 power LEDs, 50000h L90 B10 (Ta 25°C) LED colour: RGB Optics: 20°, 34°, 21°x42°, 42°x21°: optical system consisting of 3 high-efficiency TIR microlenses (RGB), 45°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version), body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version) Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, black finish obtained by electro-colouring, which offers the product better heat dissipation and provides corrosion resistance of more than 1500 hours of salt spray, finish that provides corrosion resistance of more than 3000 hours of salt spray, making it possible to use the product even in extremely severe atmospheric conditions, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches power supply unit not included Wiring: series includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm Ingress protection: IP66, IP69K Impact resistance: IK07 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 450 g Dimensions: Ø54x58 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WB80125 Standard snoot - jasper green, WB8012E Standard snoot - white, WB8012F Standard snoot - grey, WB8012H Standard snoot - anthracite, WB8012N Standard snoot - black anodized, WB8012T Standard snoot - cor-ten, WB80225 Asymmetrical snoot - jasper green, WB8022E Asymmetrical snoot - white, WB8022F Asymmetrical snoot - grey, WB8022H Asymmetrical snoot - anthracite, WB8022N Asymmetrical snoot - black anodized, WB8022T Asymmetrical snoot - cor-ten, WF3301 Flexible cable-protection tube - 15 cm, WH0201 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1006F Spike with bracket for in-ground installation - h 500 mm - grey, WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite, WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel, WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green, WP1007E Spike with bracket for in-ground installation - h 800 mm - white, WP1007F Spike with bracket for in-ground installation - h 800 mm - grey, WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite, WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel, WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	3 power LEDs, 50000h L90 B10 (Ta 25°C)
LED colour	RGB
Optics	20°, 34°, 45°, 21°x42°, 42°x21°
Body material	body in anticorodal aluminium, AISI 316L stainless steel bracket, body in AISI 316L stainless steel, AISI 316L stainless steel bracket
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	grey, white, anthracite, jasper green, anodized black, stainless steel, cor-ten
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
Ingress protection	IP66, IP69K
Impact resistance	IK07
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (28)

Spikes and arms

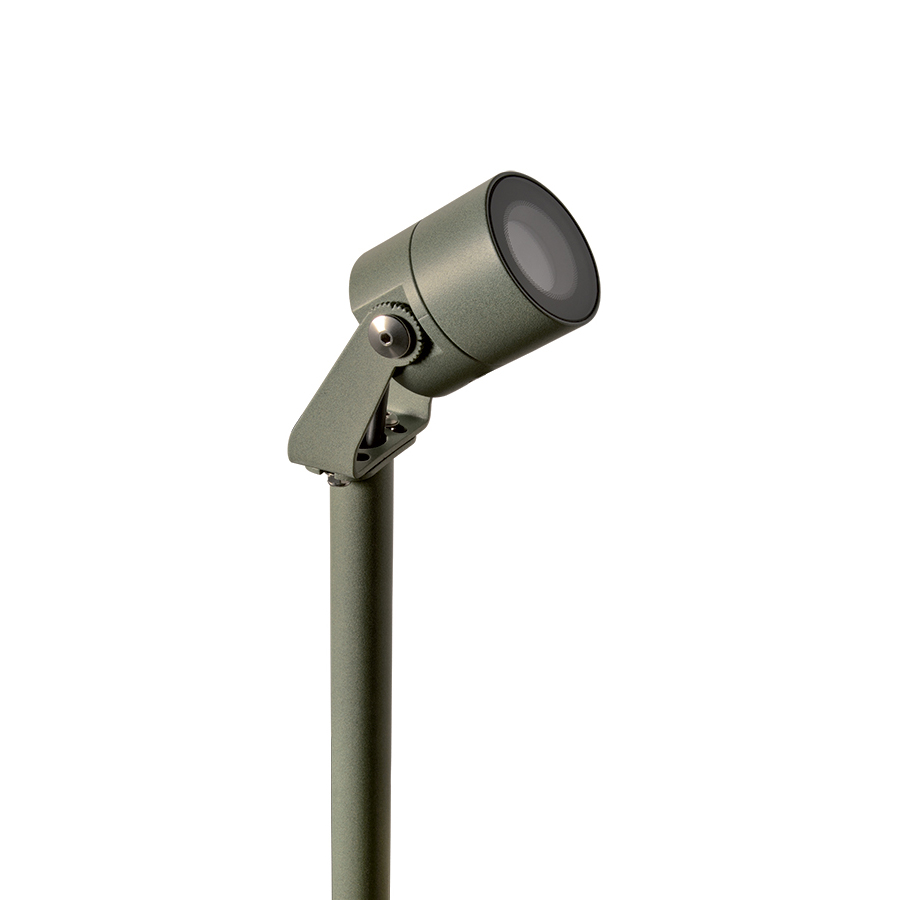

WP0100 Spike for in-ground installation	WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green
WP1006E Spike with bracket for in-ground installation - h 500 mm - white	WP1006F Spike with bracket for in-ground installation - h 500 mm - grey
WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite	WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel
WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten	WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green
WP1007E Spike with bracket for in-ground installation - h 800 mm - white	WP1007F Spike with bracket for in-ground installation - h 800 mm - grey
WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite	WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel
WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten

Honeycomb louvre

Order together with the lighting fixture.

WH0201

Honeycomb louvre

built into the lighting fixture

Snoots

WB80125 Standard snoot - jasper green	WB8012E Standard snoot - white
WB8012F Standard snoot - grey	WB8012H Standard snoot - anthracite
WB8012N Standard snoot - black anodized	WB8012T Standard snoot - cor-ten
WB80225 Asymmetrical snoot - jasper green	WB8022E Asymmetrical snoot - white
WB8022F Asymmetrical snoot - grey	WB8022H Asymmetrical snoot - anthracite
WB8022N Asymmetrical snoot - black anodized	WB8022T Asymmetrical snoot - cor-ten

Various accessories

Order together with the lighting fixture.

WF3301

Flexible cable-protection tube - 15 cm

WP1004

Fastener strap - 5 m

Cables

Choose the power cable in the code generator

Power supply units (30)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV36060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	36Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	48Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV48150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (12)

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,5W With 24 Vdc input:; 350mA constant current; max 25W With 48 Vdc input:; 350mA constant current; max 50W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 48 Vdc input:; 500mA constant current; max 72W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARCUNID2

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU
output values apply to 48Vdc

Input	12-24-48Vdc
Output	3 channels 350mA constant current; max 50,4W 500mA constant current; max 72W 4 channels 350mA constant current; max 67,2W 500mA constant current; max 96W 1 channel 350mA constant current; max 16,8W 500mA constant current; max 24W 700mA constant current; max 33,6W 3 channels 700mA constant current; max 100,8W 4 channels 700mA constant current; max 134,4W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA)

for CASAMBI. White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	3 channels 350mA constant current; max 12,6W 350mA constant current; max 25,2W 4 channels 350mA constant current; max 16,8W 350mA constant current; max 33,6W 1 channel 350mA constant current; max 4,2W 350mA constant current; max 8,4W 2 channels 350mA constant current; max 16,8W 350mA constant current; max 8,4W
Dimmering	PUSH
Power supply unit IP	IP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA)

for CASAMBI. White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	3 channels 500mA constant current; max 18W 500mA constant current; max 36W 4 channels 500mA constant current; max 24W 500mA constant current; max 48W 1 channel 500mA constant current; max 12W 500mA constant current; max 6W 2 channels 500mA constant current; max 12W 500mA constant current; max 24W
Dimmering	PUSH
Power supply unit IP	IP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input	12-24-48Vdc
Output	350mA constant current; max 67,2W 1050mA constant current; max 201,6W 700mA constant current; max 134,4W
Dimmering	Radio frequency
Power supply unit IP	IP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 350mA constant current; max 25,2W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 350mA constant current; max 37,8W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W With 36 Vdc input:; 350mA constant current; max 37,8W With 12 Vdc input:; 700mA constant current; max 25,2W With 24 Vdc input:; 700mA constant current; max 50,4W With 36 Vdc input:; 700mA constant current; max 75,6W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W With 36 Vdc input:; 350mA constant current; max 37,8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

Control input (10)

EC0TIM12840020

Timer

for CASAMBI

Input	12-24-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm
Cutout dimensions	Ø51 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm

TOUCH02L1

Touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

Touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW

Projects

Historical buildings & cultural venues
Hypogeum of Santa Maria in Stelle
Verona, Italy

Versions
