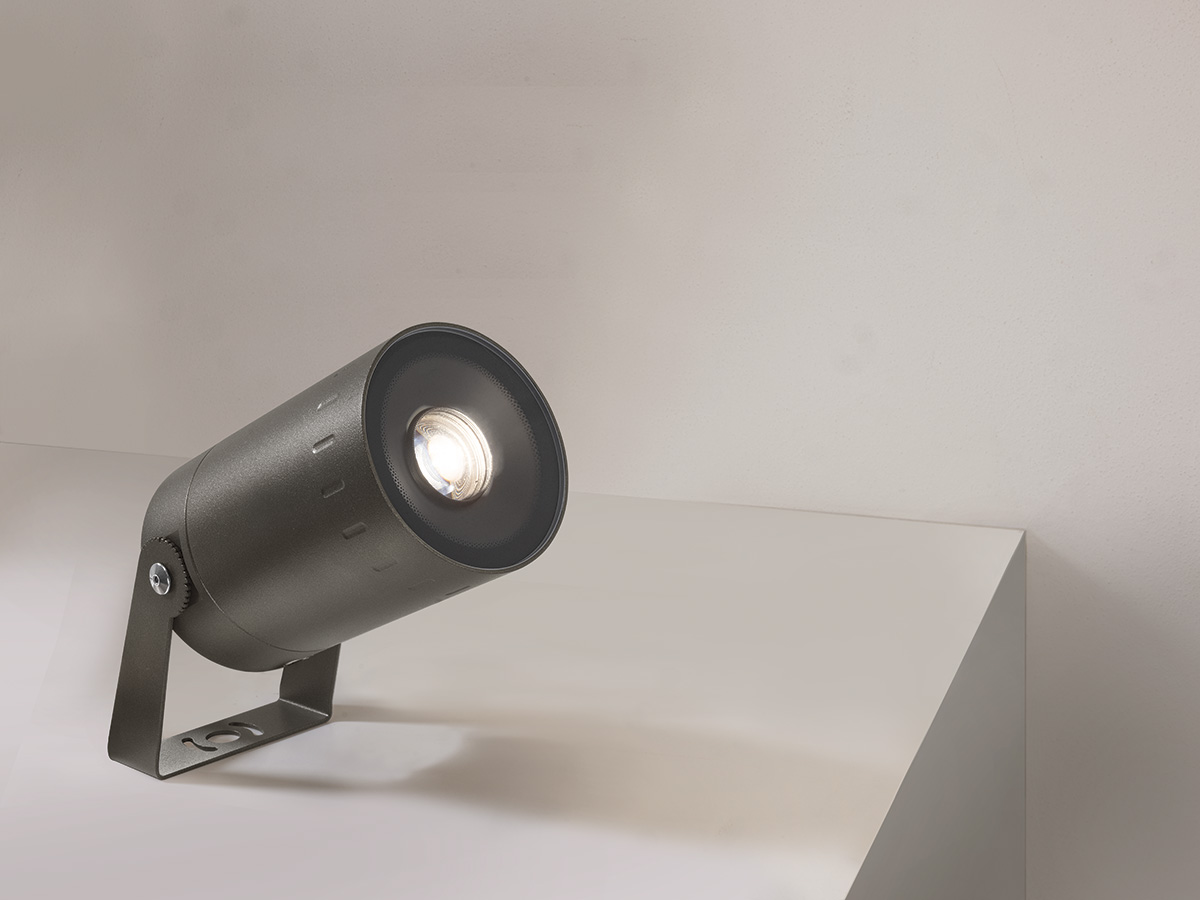

Ginko 4.5

projector for outdoor applications - 25W 24Vdc - Light Shaper optics / Light Shaper Zoom - ø109x252 mm

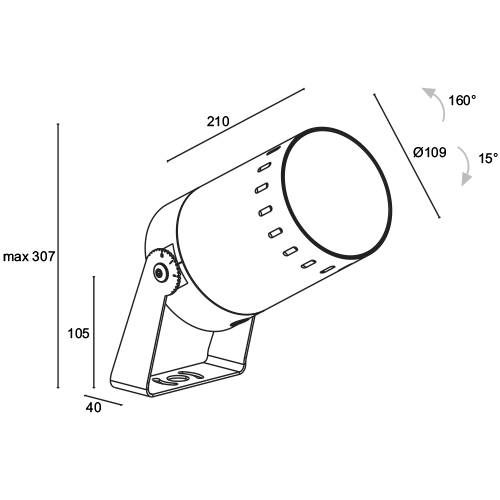

Technical data

Print technical data

kg 3,35 - kg 3,50
IP66
IK08

Installation	projector for outdoor applications
Power consumption	25W
Power supply	24Vdc
Lumen output at source	1800 lm (3000K)
Delivered lumen output	1113 lm (3000K, Light Shaper)
Datasheet	Ginko 4.5 projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 1800 lm (3000K); Delivered lumen output: 1113 lm (3000K, Light Shaper); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: Light Shaper: optical system consisting of multiple lenses with focus adjustment, and movable fins to adjust the projected shape (from circle through to irregular quadrilaterals), Light Shaper Zoom: Optical system composed of multiple lenses with focus and focal length adjustment, equipped with movable shutters for shaping the projected form (from circular to irregular quadrilaterals).; CRI Colour Rendering Index: >90; Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version); Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003); RAL finish on request; Screen material: 5-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with RAL 7015 grey vitrified serigraphy around the edge; Installation: body can be tilted along the horizontal axis by 190°; power supply unit not included; includes 1.50/10/20 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm; Ingress protection: IP66; Impact resistance: IK08; version with bracket in customized height available on request; version available on request with customized gobo to project logos and words onto walls; Operating temperature: -20°C — +50°C; Glow wire test: 960°C; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 3.35 g, 3.50 g; Dimensions: Ø109x252x159 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB11015 Standard snoot - jasper green, WB1101E Standard snoot - white, WB1101H Standard snoot - anthracite, WB1101T Standard snoot - cor-ten, WB11025 Asymmetrical snoot - jasper green, WB1102E Asymmetrical snoot - white, WB1102H Asymmetrical snoot - anthracite, WB1102T Asymmetrical snoot - cor-ten, WP0300 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionGinko 4.5 projector for outdoor applications surface mounted (ceiling, wall, ground, spike) Power consumption: 25W Power supply: 24Vdc Lumen output at source: 1800 lm (3000K) Delivered lumen output: 1113 lm (3000K, Light Shaper) 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: Light Shaper: optical system consisting of multiple lenses with focus adjustment, and movable fins to adjust the projected shape (from circle through to irregular quadrilaterals), Light Shaper Zoom: Optical system composed of multiple lenses with focus and focal length adjustment, equipped with movable shutters for shaping the projected form (from circular to irregular quadrilaterals). CRI Colour Rendering Index: >90 Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version) Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003) RAL finish on request Screen material: 5-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with RAL 7015 grey vitrified serigraphy around the edge Installation: body can be tilted along the horizontal axis by 190° power supply unit not included includes 1.50/10/20 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm Ingress protection: IP66 Impact resistance: IK08 version with bracket in customized height available on request; version available on request with customized gobo to project logos and words onto walls Operating temperature: -20°C — +50°C Glow wire test: 960°C Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 3.35 g, 3.50 g Dimensions: Ø109x252x159 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB11015 Standard snoot - jasper green, WB1101E Standard snoot - white, WB1101H Standard snoot - anthracite, WB1101T Standard snoot - cor-ten, WB11025 Asymmetrical snoot - jasper green, WB1102E Asymmetrical snoot - white, WB1102H Asymmetrical snoot - anthracite, WB1102T Asymmetrical snoot - cor-ten, WP0300 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

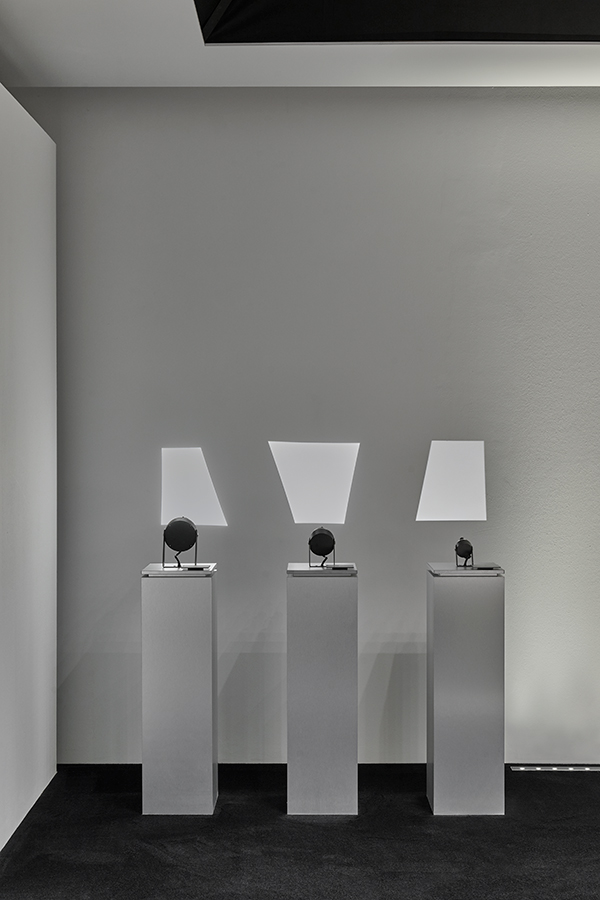

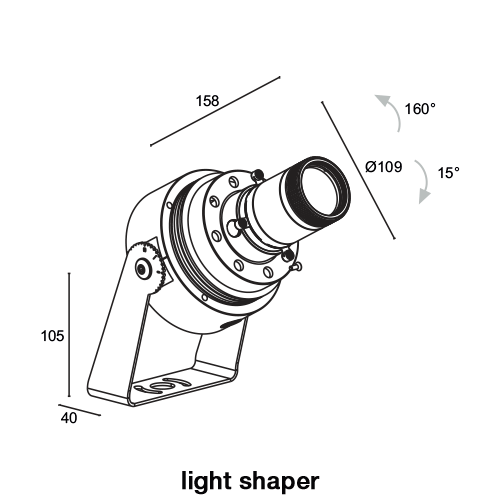

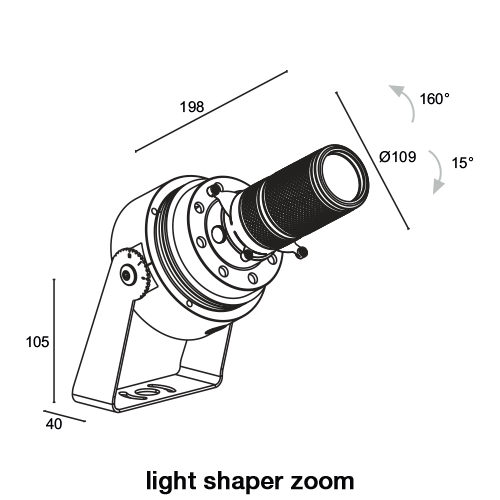

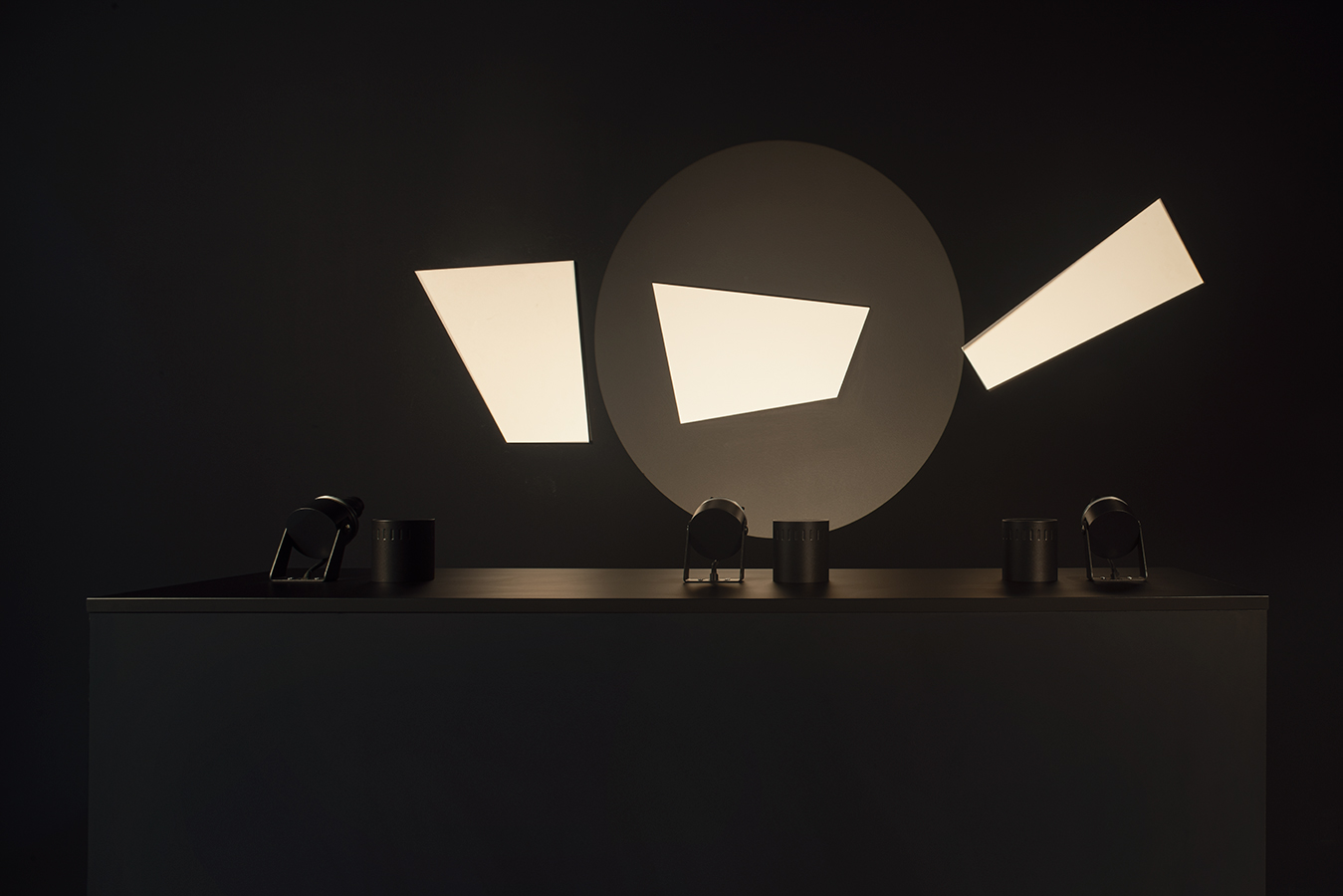

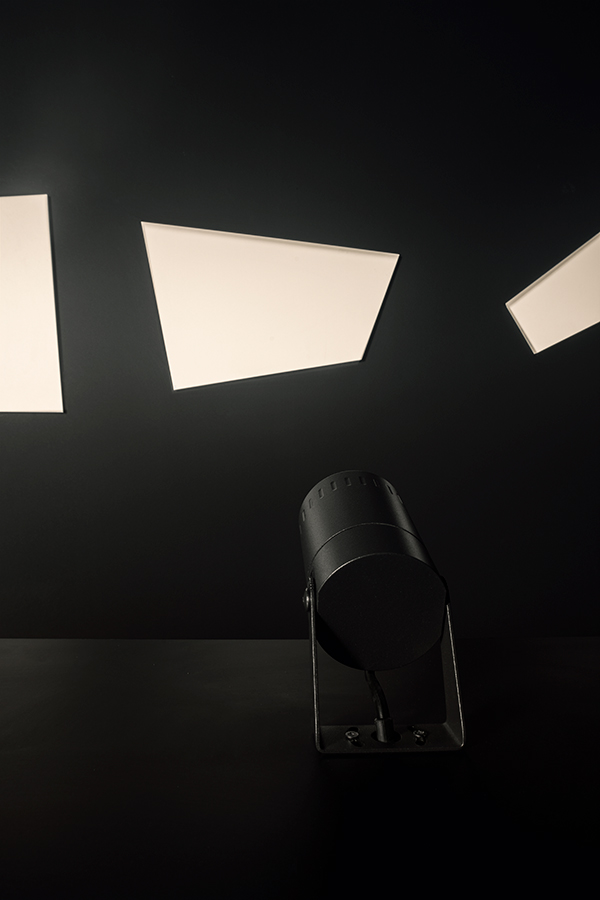

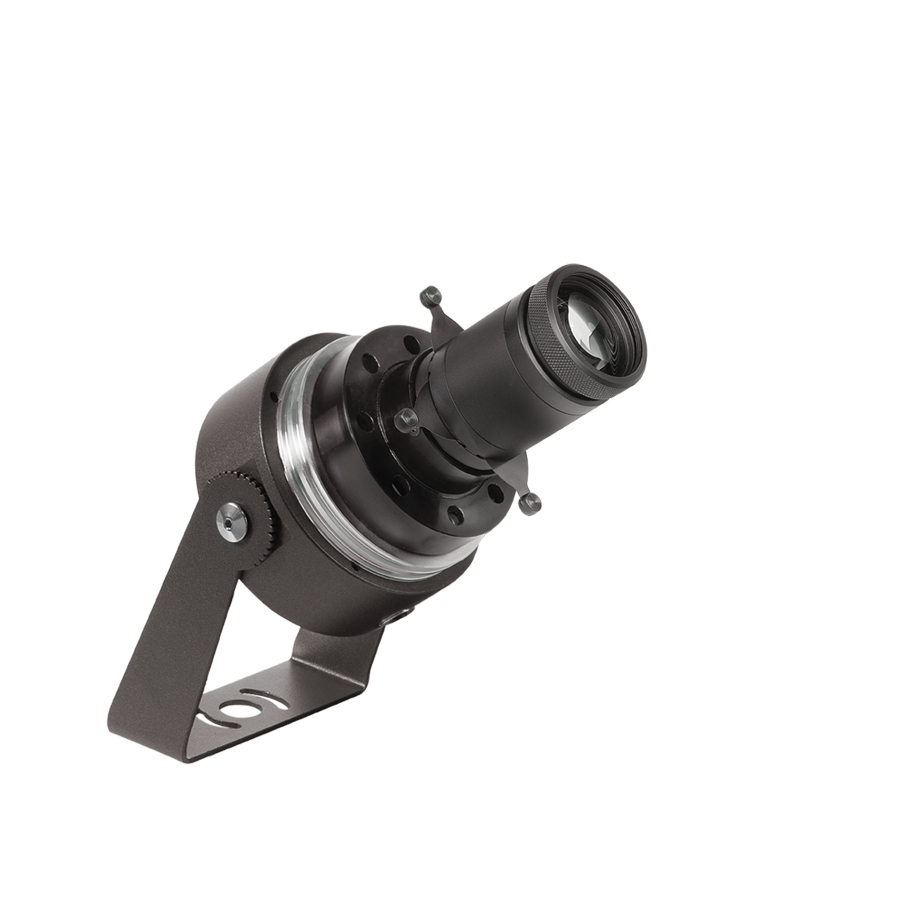

Optics	Light Shaper, Light Shaper Zoom
CRI Colour Rendering Index	>90
Body material	body in anticorodal aluminium, AISI 316L stainless steel bracket
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	anthracite, jasper green, cor-ten, white
Power supply unit	power supply unit not included
Power cables	includes 1.50/10/20 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
Ingress protection	IP66
Impact resistance	IK08

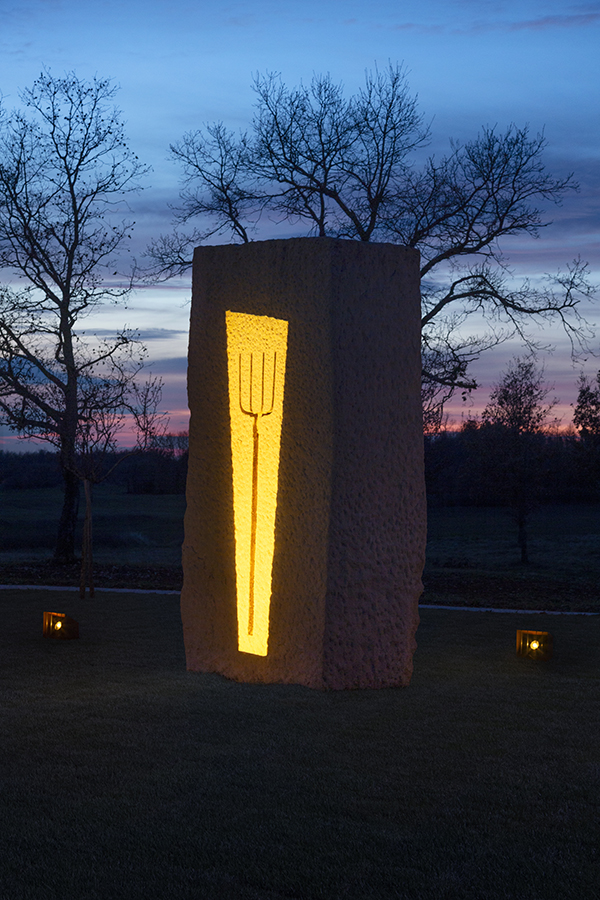

Notes	version with bracket in customized height available on request; version available on request with customized gobo to project logos and words onto walls
Status	Available

Display all

Close

Download

See all downloads

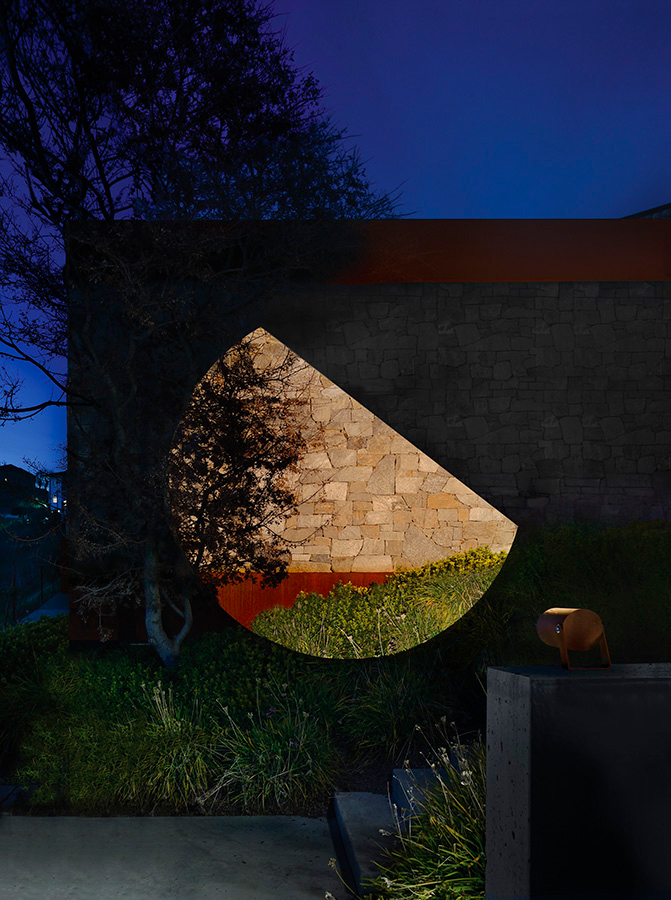

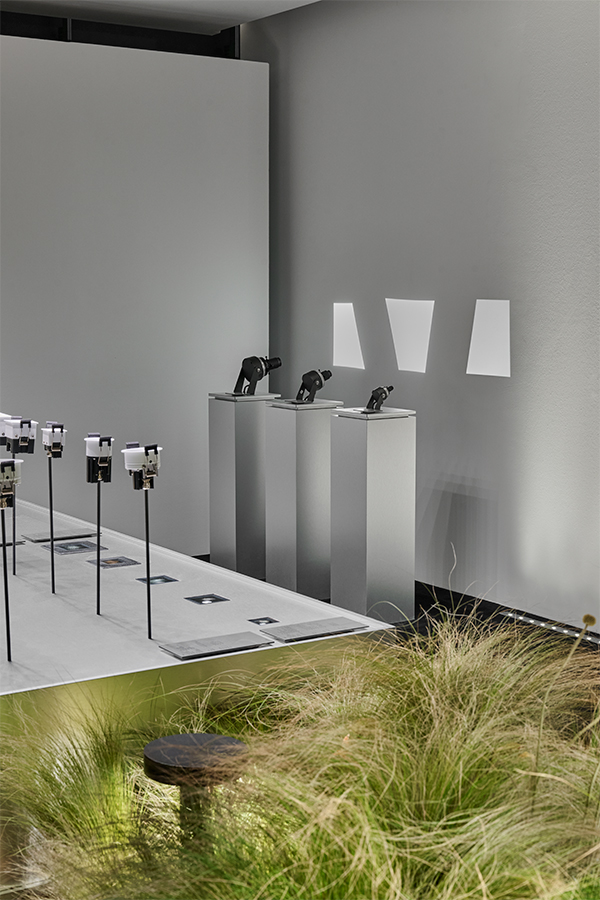

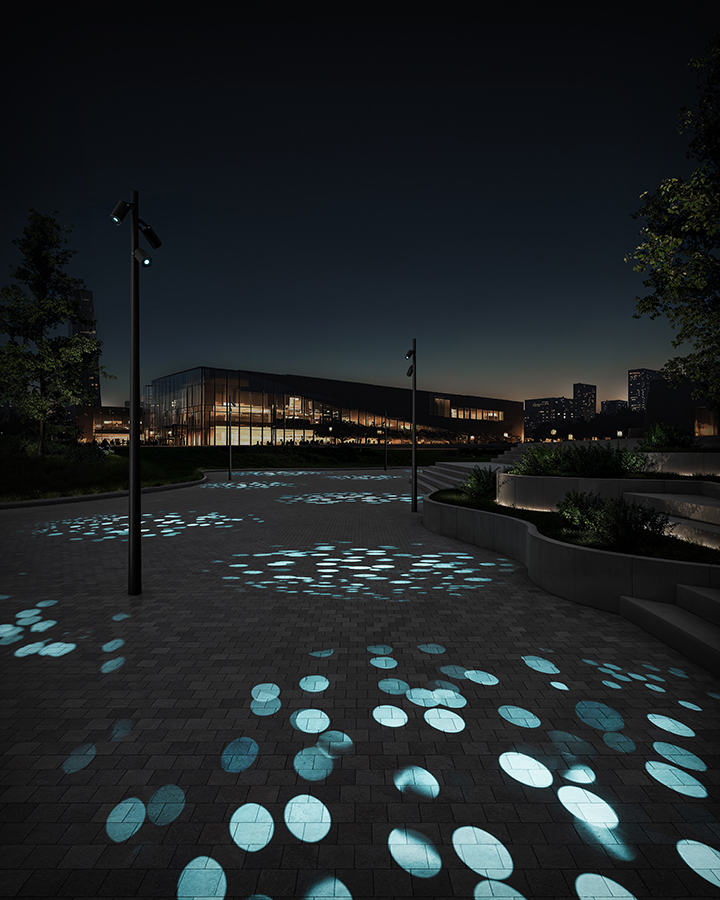

Gallery

Accessories and power supply units

Accessories (9)

Spikes and arms

WP0300

Spike for in-ground installation

Snoots

WB11015 Standard snoot - jasper green	WB1101E Standard snoot - white
WB1101H Standard snoot - anthracite	WB1101T Standard snoot - cor-ten
WB11025 Asymmetrical snoot - jasper green	WB1102E Asymmetrical snoot - white
WB1102H Asymmetrical snoot - anthracite	WB1102T Asymmetrical snoot - cor-ten

Cables

Choose the power cable in the code generator

Power supply units (17)

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (0)

No control inputs
