Power supply units and controllers

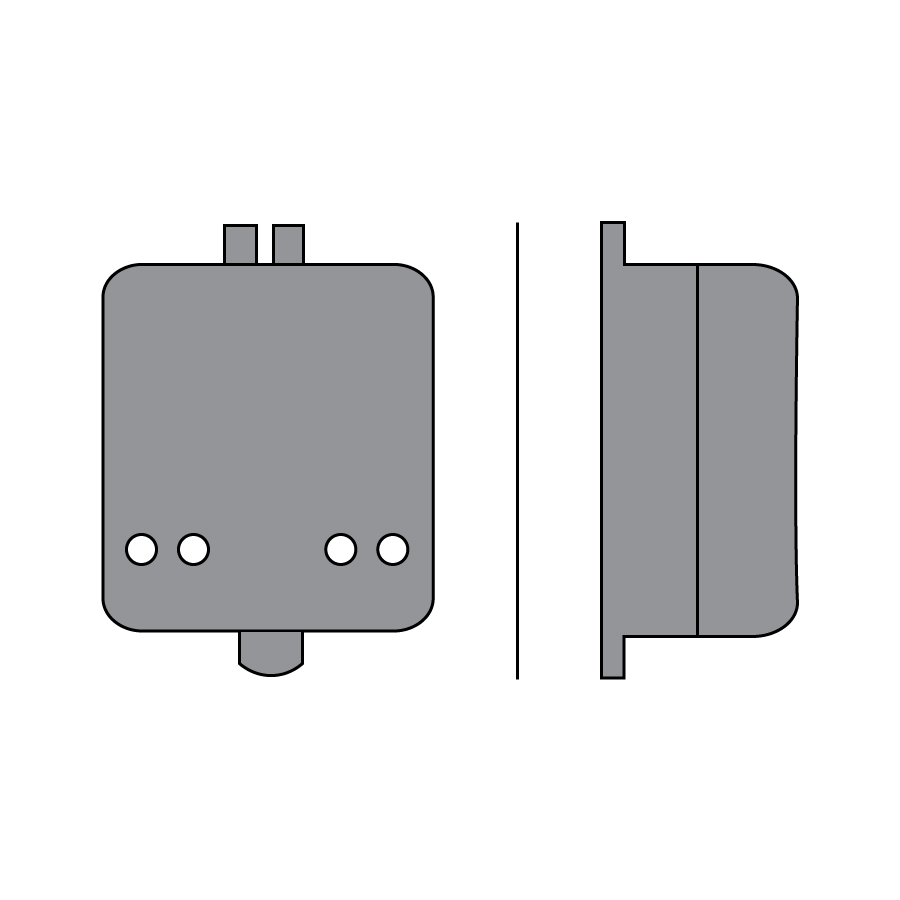

A13350VL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA 4W 1-3 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP20

A13350VL12/24

low-voltage converter
to be used with a constant-voltage power supply unit

Input12-24Vdc
9-24Vdc
9-18Vac 50-60 Hz
Output350mA 3-6 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP20

A13500TC

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA 6W 1-3 LEDs
Power6W
DimmeringCannot be dimmed
Power supply unit IPIP20

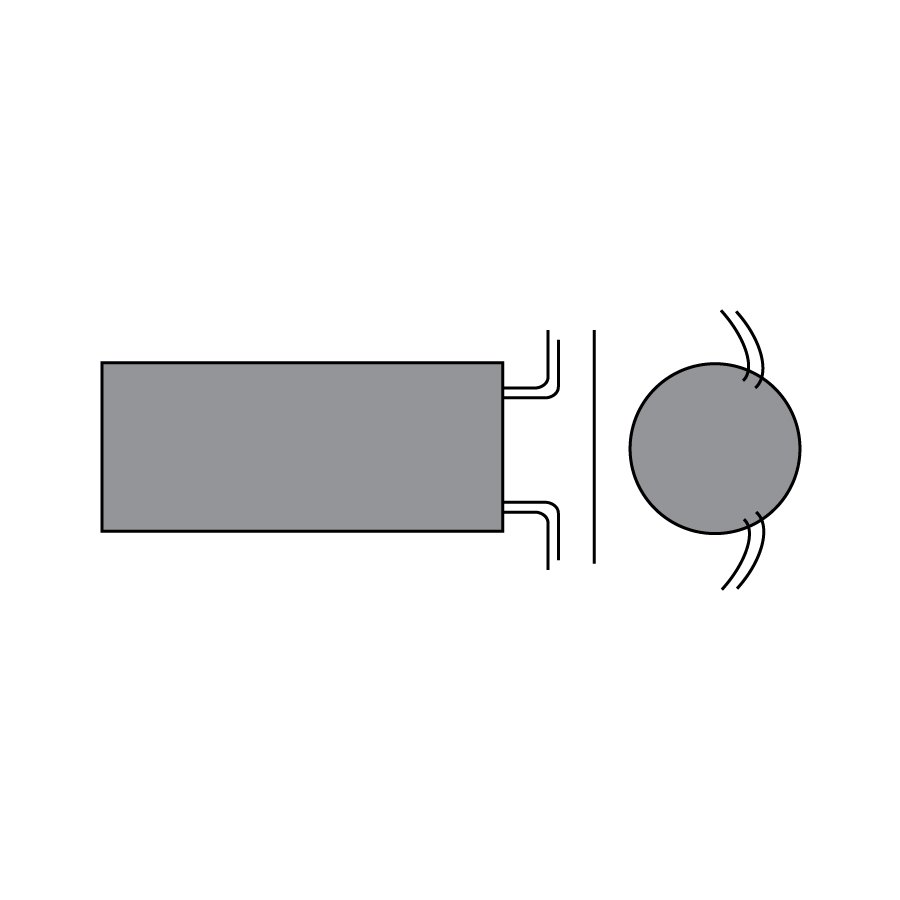

A13700IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output700mA 12W 1-4 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP67

A13700QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output700mA 12W 1-3 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP20

A14500IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA 12W 1-4 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP67

A15500QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA 12W 1-6 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP20

A16350IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA 11W 1-6 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP67

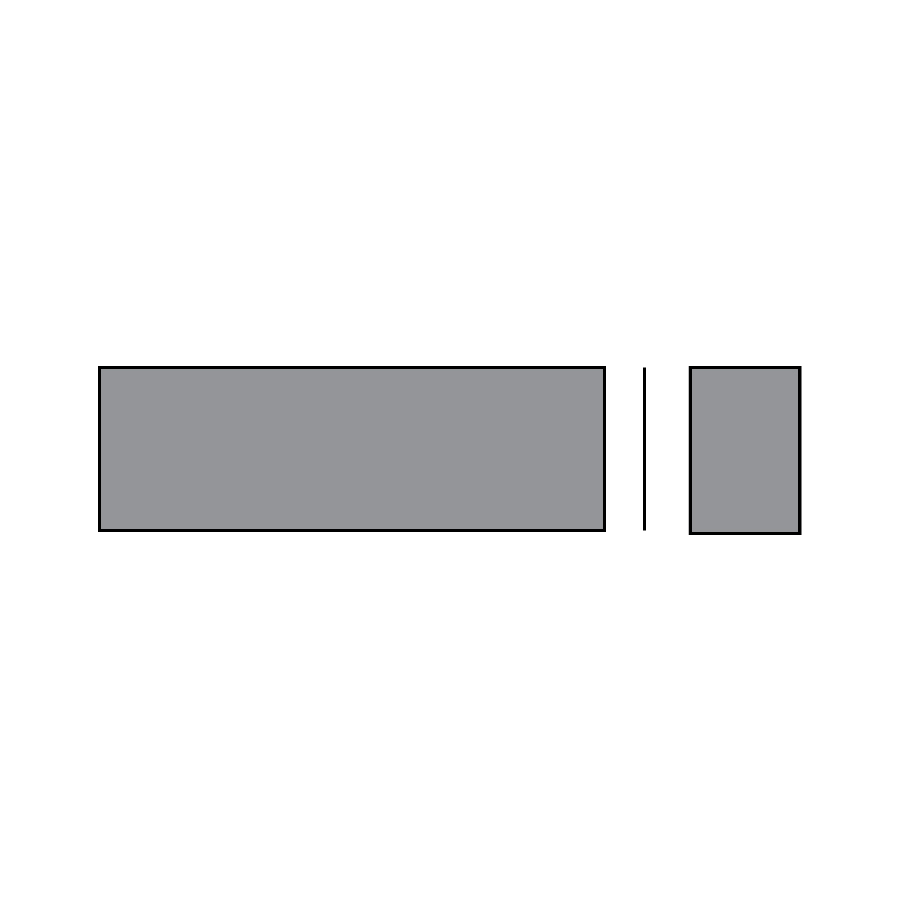

A19220TC

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output220mA 15W 1-10 LEDs
350mA 15W 1-11 LEDs
DimmeringON/OFF
Power supply unit IPIP20

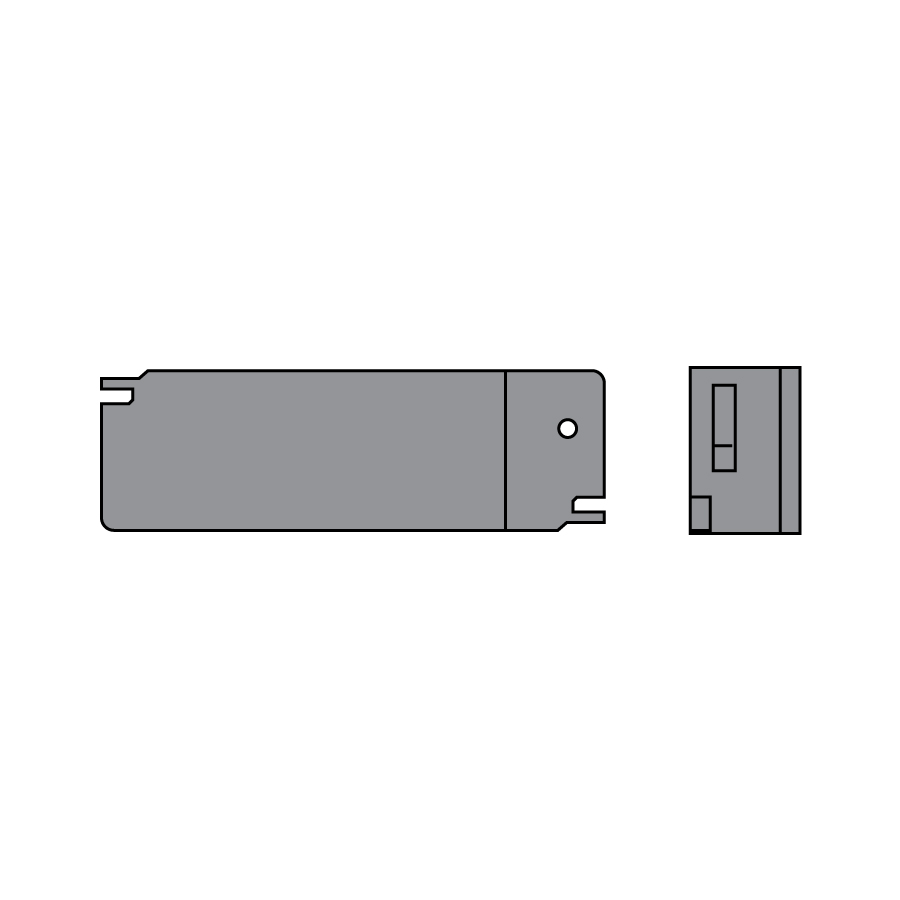

A19350QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA 15W 1-9 LEDs
DimmeringON/OFF
Power supply unit IPIP20

A310500IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA 20W 1-10 LEDs
DimmeringON/OFF
Power supply unit IPIP67

A310500QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA 20W 1-10 LEDs
DimmeringON/OFF
Power supply unit IPIP20

A312350IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA 17W 1-12 LEDs
DimmeringON/OFF
Power supply unit IPIP67

A312350QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA 17W 1-12 LEDs
DimmeringON/OFF
Power supply unit IPIP20

A39700IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output700mA 20W 1-9 LEDs
DimmeringON/OFF
Power supply unit IPIP67

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc 16W
350mA 19W 1-15 LEDs
500mA 20W 1-10 LEDs
700mA 20W 1-7 LEDs
Power16W
DimmeringON/OFF
Power supply unit IPIP20

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-13 LEDs
500mA 24W 1-13 LEDs
700mA 32W 1-13 LEDs
DimmeringON/OFF
Power supply unit IPIP20

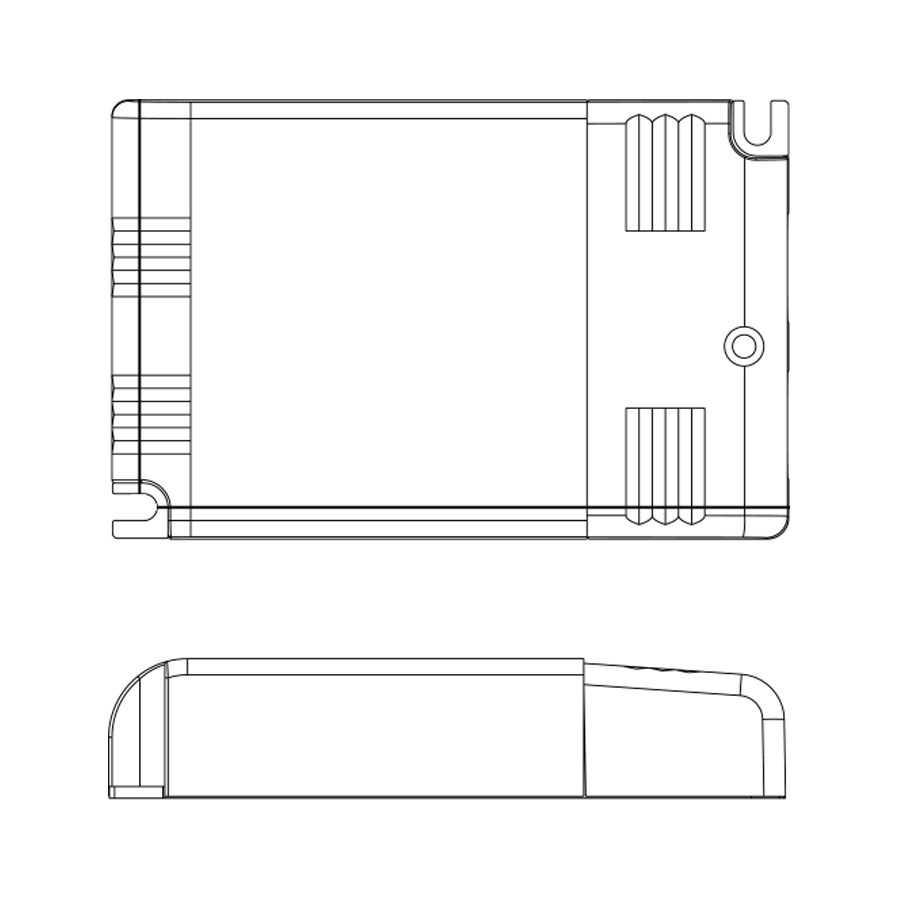

ACUNI039T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output1050mA 39W 1-9 LEDs
350mA 15W 1-11 LEDs
500mA 21W 1-11 LEDs
700mA 29W 1-11 LEDs
DimmeringCannot be dimmed
Power supply unit IPIP20

AD018350TLT1

dimmable power supply unit with mains dimming

Input230Vac 50-60 Hz
Output350mA 18W 9-12 LEDs
DimmeringMains dimming, ON/OFF
Power supply unit IPIP20

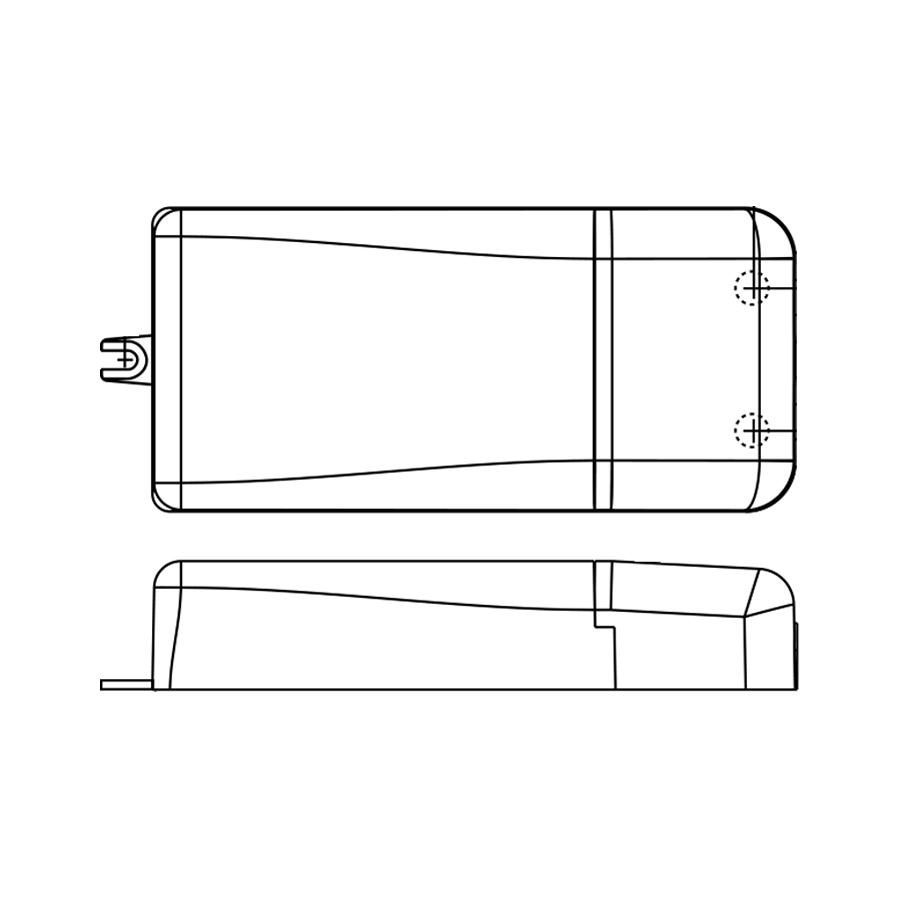

AD020500TLT1

dimmable power supply unit with mains dimming

Input230Vac 50-60 Hz
Output500mA 21W 6-10 LEDs
DimmeringMains dimming, ON/OFF
Power supply unit IPIP20

AD020DALIT1

dimmable power supply unit

Output24Vdc 16W
350mA 15W 1-10 LEDs
500mA 20W 1-9 LEDs
700mA 20W 1-6 LEDs
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD030DALIT1

dimmable power supply unit

Input230Vac 50-60 Hz
Output350mA 18W 1-12 LEDs
500mA 1-15 LEDs
700mA 30W 1-10 LEDs
DimmeringPUSH, DALI
Power supply unit IPIP20

AD032TLT1

dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-11 LEDs
500mA 24W 1-11 LEDs
700mA 32W 1-11 LEDs
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

AD050DALIT1

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output1050mA 50W 1-11 LEDs
350mA 25W 1-17 LEDs
500mA 35W 1-17 LEDs
700mA 50W 1-16 LEDs
Dimmering1-10V, PUSH, DALI, ON/OFF
Power supply unit IPIP20

AD050PUSHT1

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output1050mA 50W 1-11 LEDs
350mA 25W 1-17 LEDs
500mA 35W 1-17 LEDs
700mA 50W 1-17 LEDs
Dimmering1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADUNITC

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 15W 1-12 LEDs
500mA 22W 1-12 LEDs
700mA 25W 1-8 LEDs
Dimmering1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input12-24-48Vdc
Output12Vdc 144W
24Vdc 288W
48Vdc 576W
Dimmering1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AR330350TC

Input230Vac 50-60 Hz
Output350mA 36W 1-30 LEDs
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AR330500TC

Input230Vac 50-60 Hz
Output500mA 36W 1-18 LEDs
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

ARC336350D1

Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 350mA 1-9 LEDs
With input 24Vdc: 350mA 1-18 LEDs
With input 48Vdc: 350mA 1-36 LEDs
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336500D1

Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 500mA 1-9 LEDs
With input 24Vdc: 500mA 1-18 LEDs
With input 48Vdc: 500mA 1-36 LEDs
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336700D1

Low-voltage 3-channel controller with 700mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 700mA 1-9 LEDs
With input 24Vdc: 700mA 1-18 LEDs
With input 48Vdc: 700mA 36W 1-12 LEDs
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARCUNID2

Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 350mA 1-12 LEDs
With input 12Vdc: 350mA 1-9 LEDs
With input 24Vdc: 500mA 1-18 LEDs
With input 24Vdc: 500mA 1-24 LEDs
With input 48Vdc: 700mA 1-36 LEDs
With input 48Vdc: 700mA 1-48 LEDs
Power123W
Dimmering1-10V, 0-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, RDM
Power supply unit IPIP20

ARV230PD1

Low-voltage 3-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 12Vdc 90W
With input 24Vdc: 24Vdc 180W
With input 48Vdc: 48Vdc 360W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARVUNID2

Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24Vdc
OutputWith input 12Vdc: 12Vdc 180W
With input 12Vdc: 12Vdc 180W
With input 12Vdc: 12Vdc 192W
With input 24Vdc: 24Vdc 360W
With input 24Vdc: 24Vdc 360W
With input 24Vdc: 24Vdc 384W
With input 24Vdc: 24Vdc 480W
Dimmering1-10V, 0-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, Stand alone
Power supply unit IPIP20

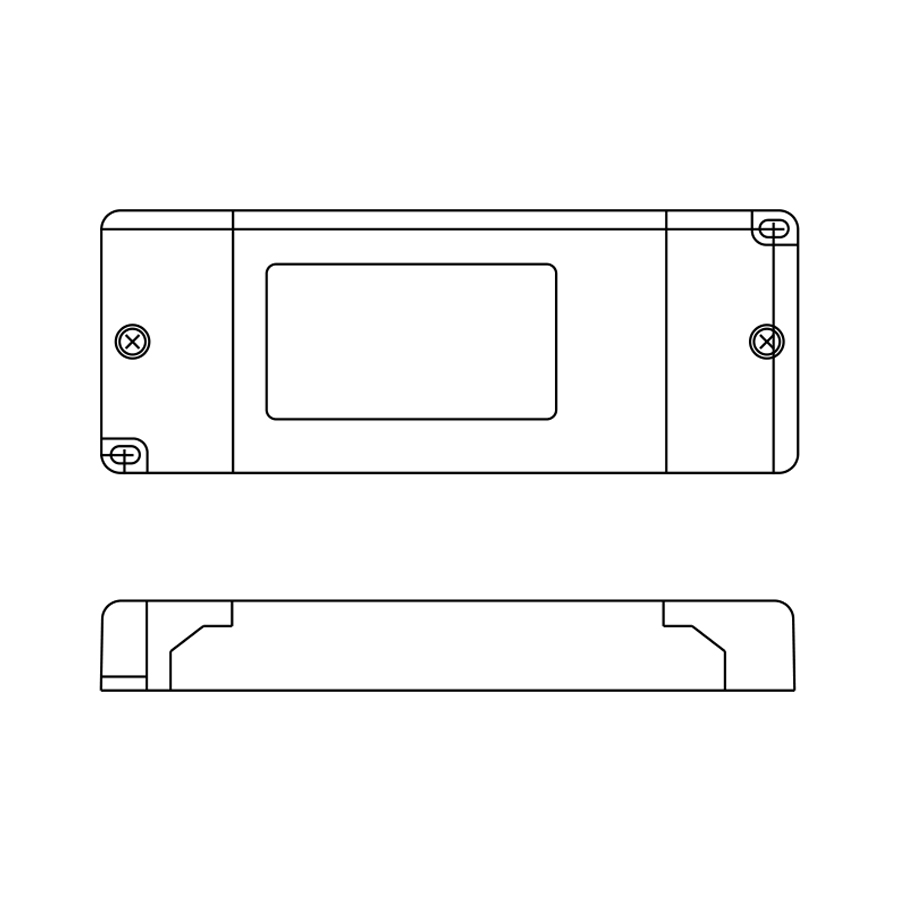

AV12020IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output12Vdc 20W
DimmeringON/OFF
Power supply unit IPIP20

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

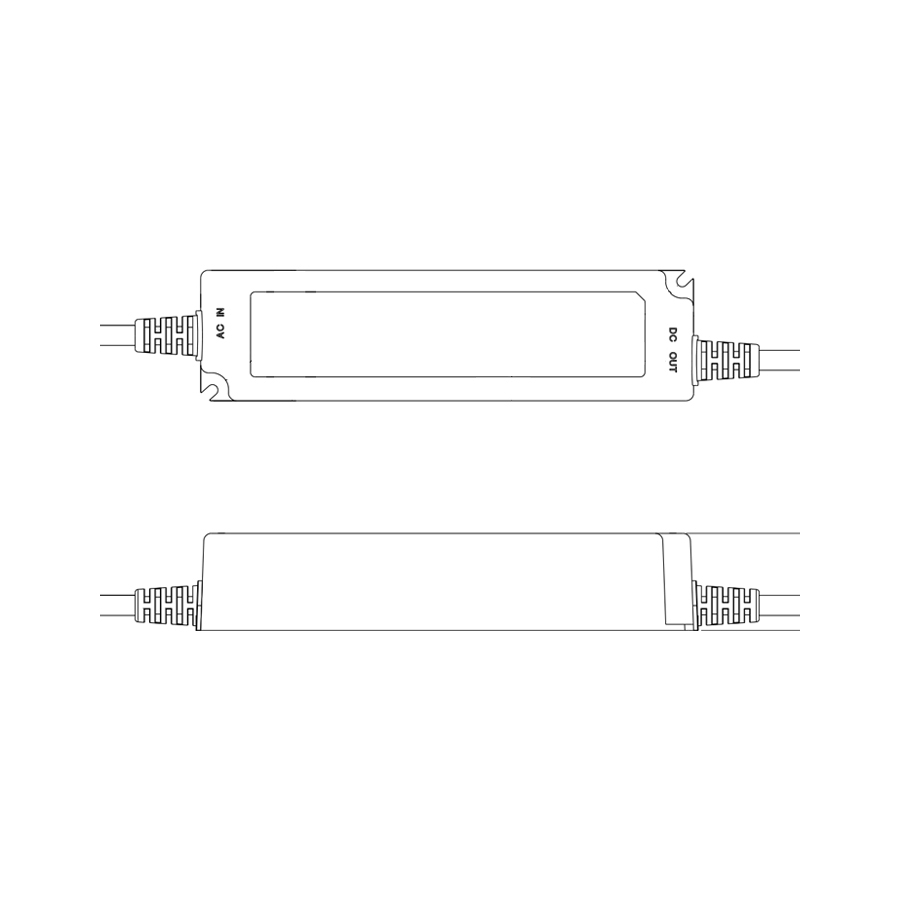

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc 60W
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 192W
DimmeringON/OFF
Power supply unit IPIP67

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 320W
DimmeringON/OFF
Power supply unit IPIP67

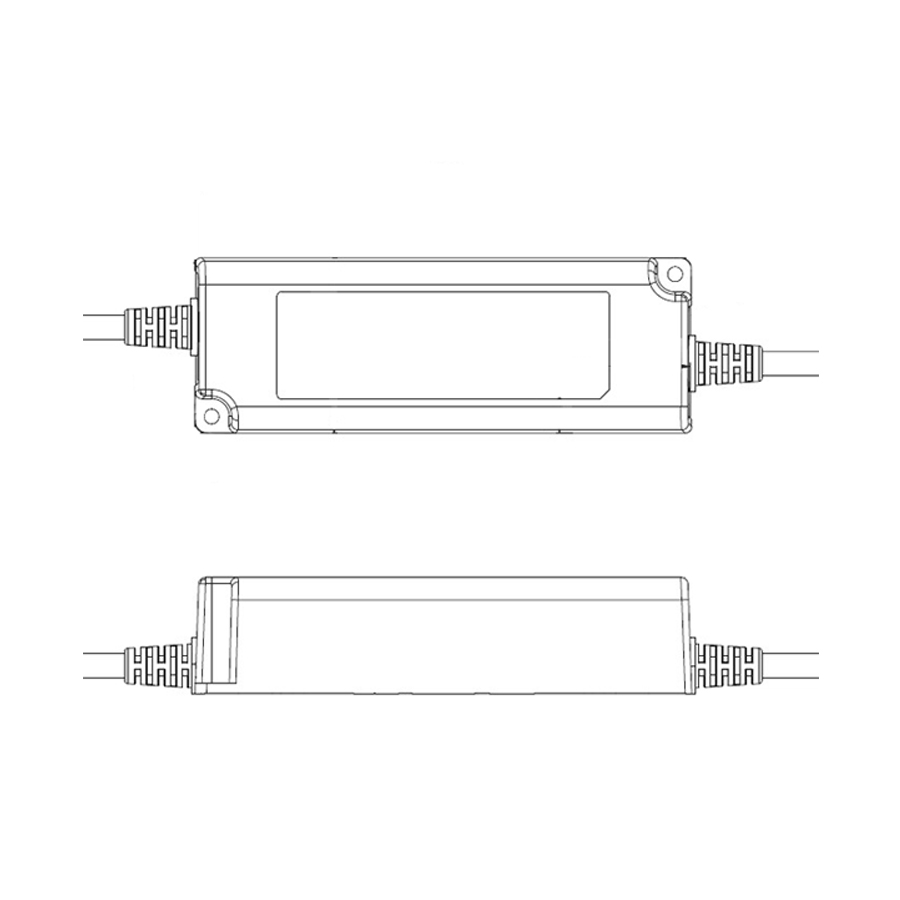

AV36060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output36Vdc 60W
DimmeringON/OFF
Power supply unit IPIP67

AV48060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

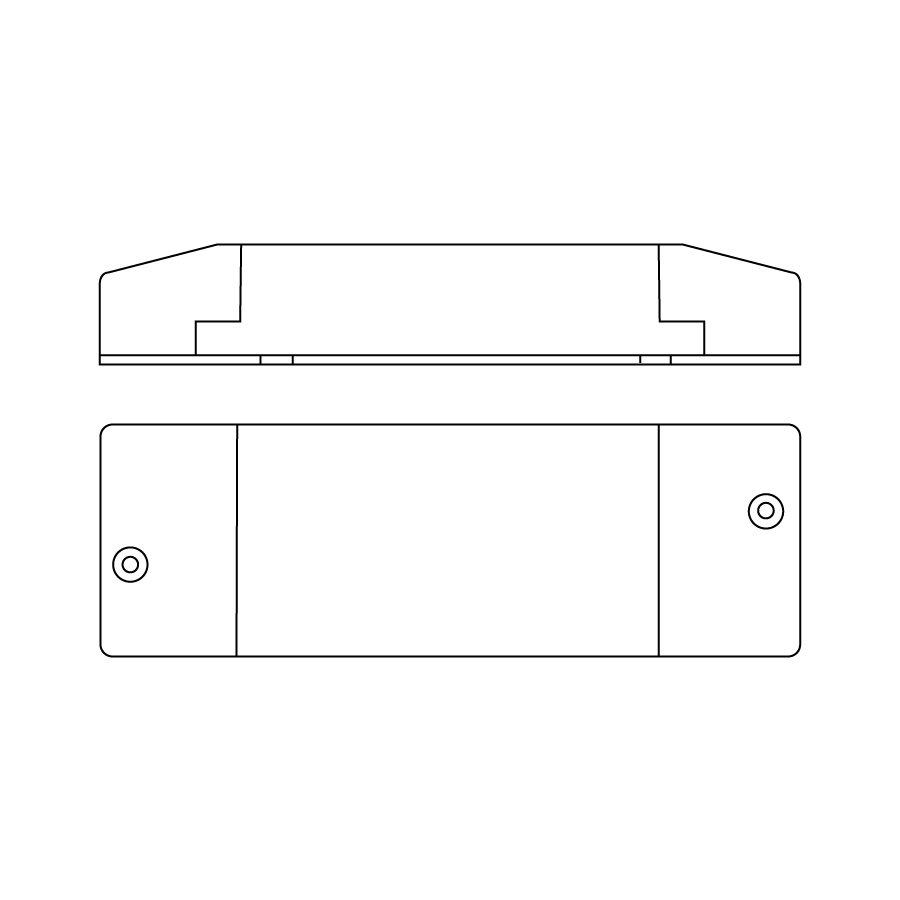

AV48150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output48Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

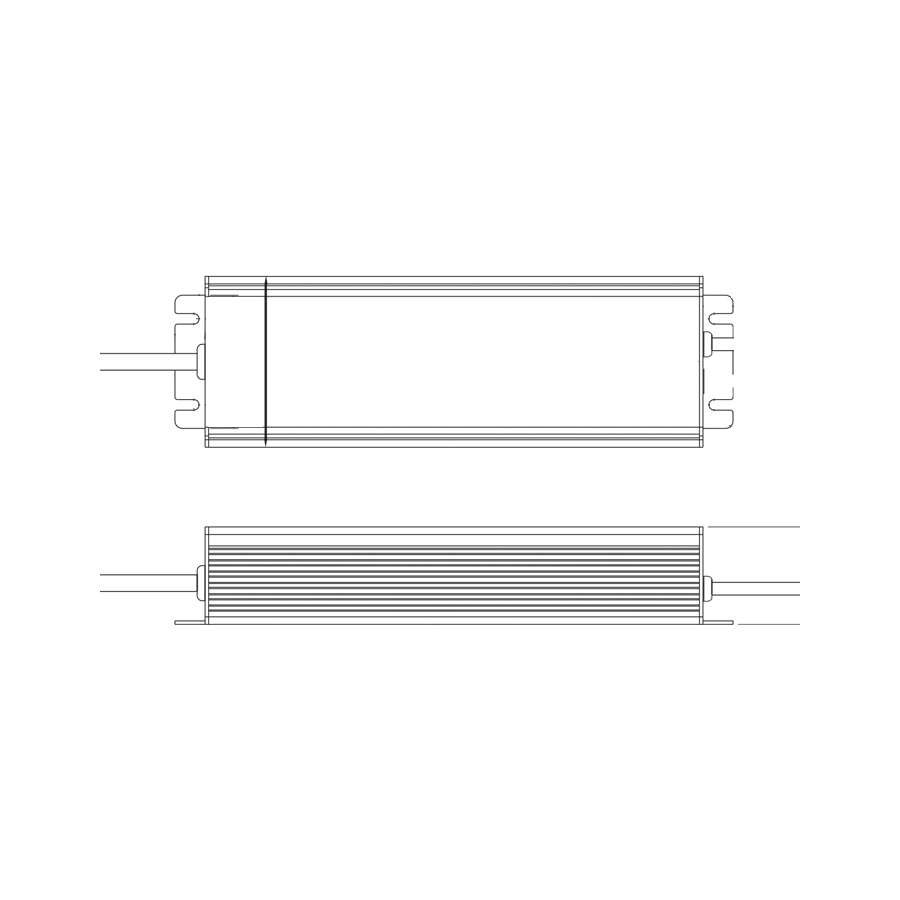

AV48150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV48240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67
