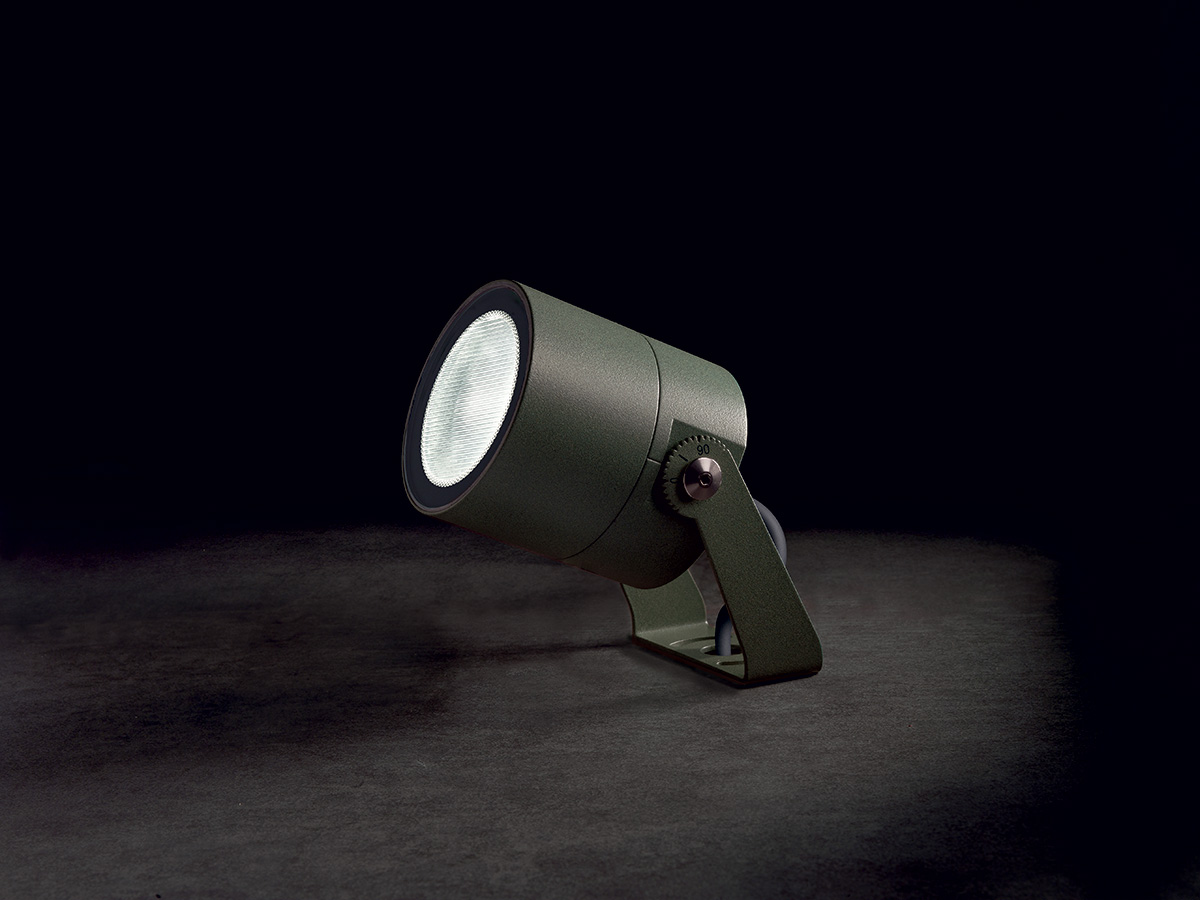

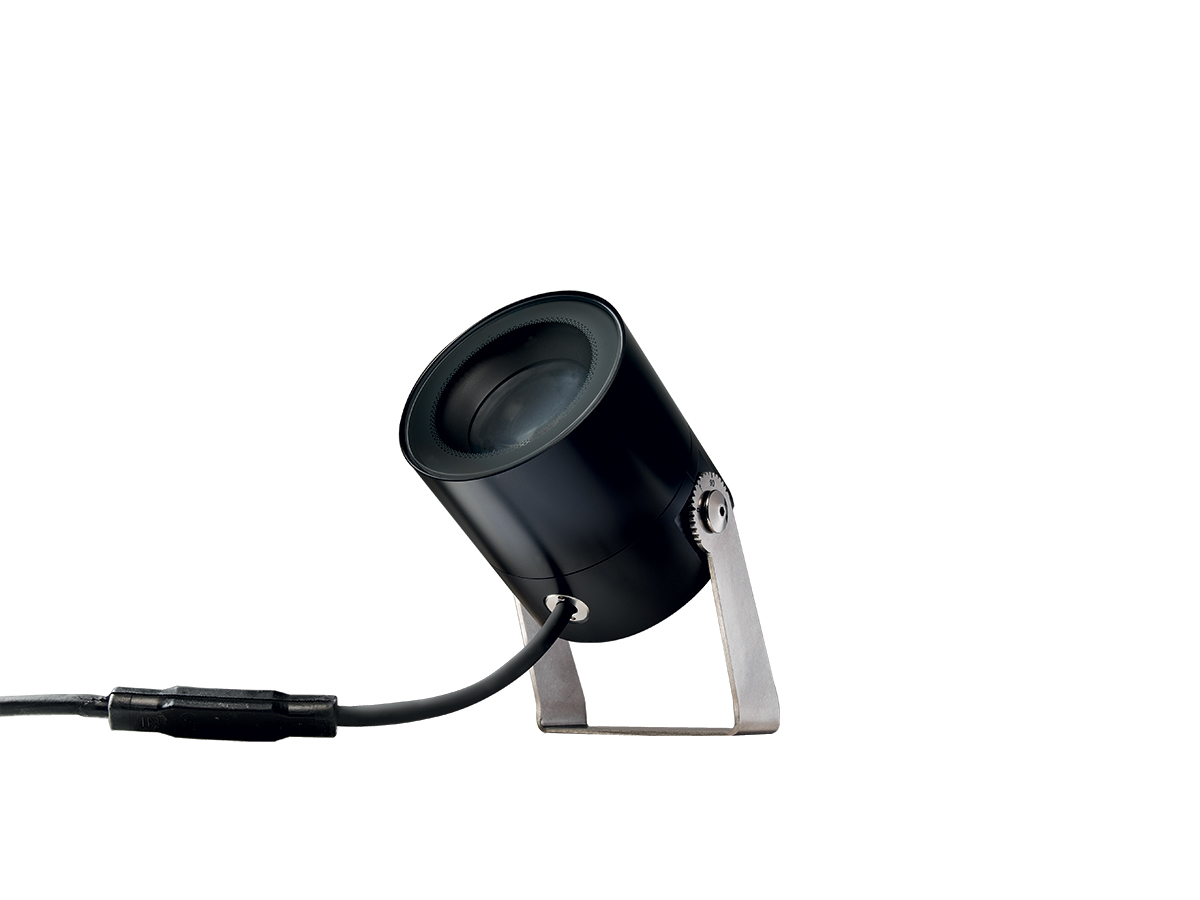

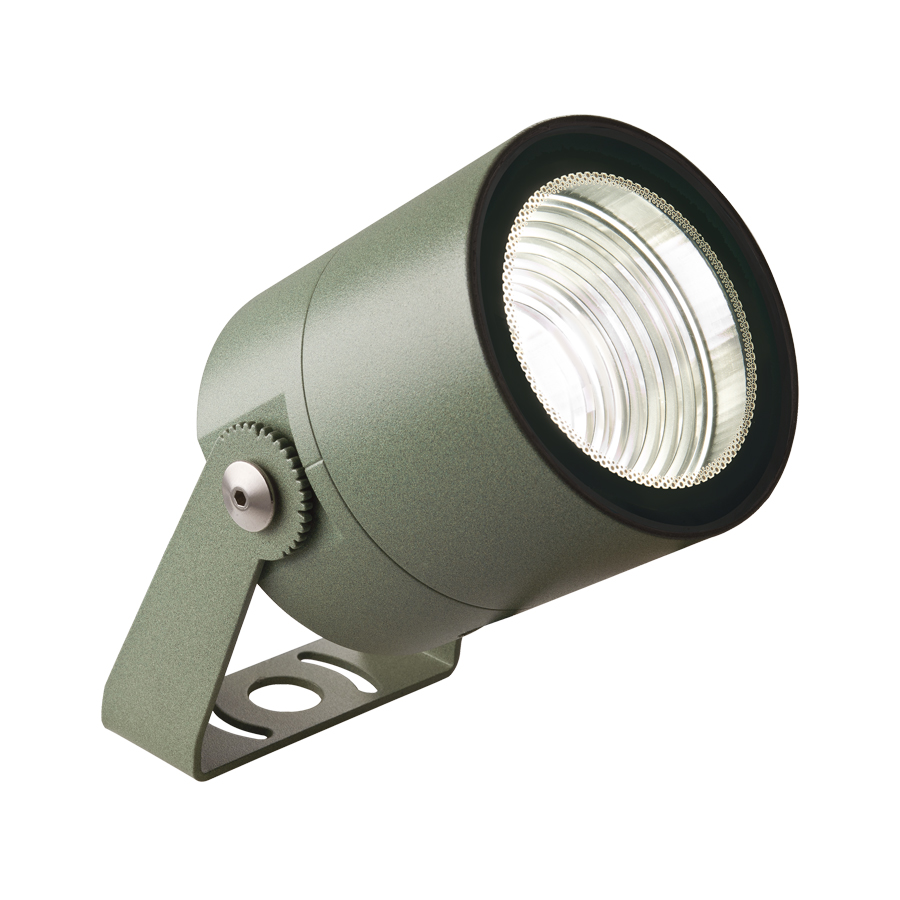

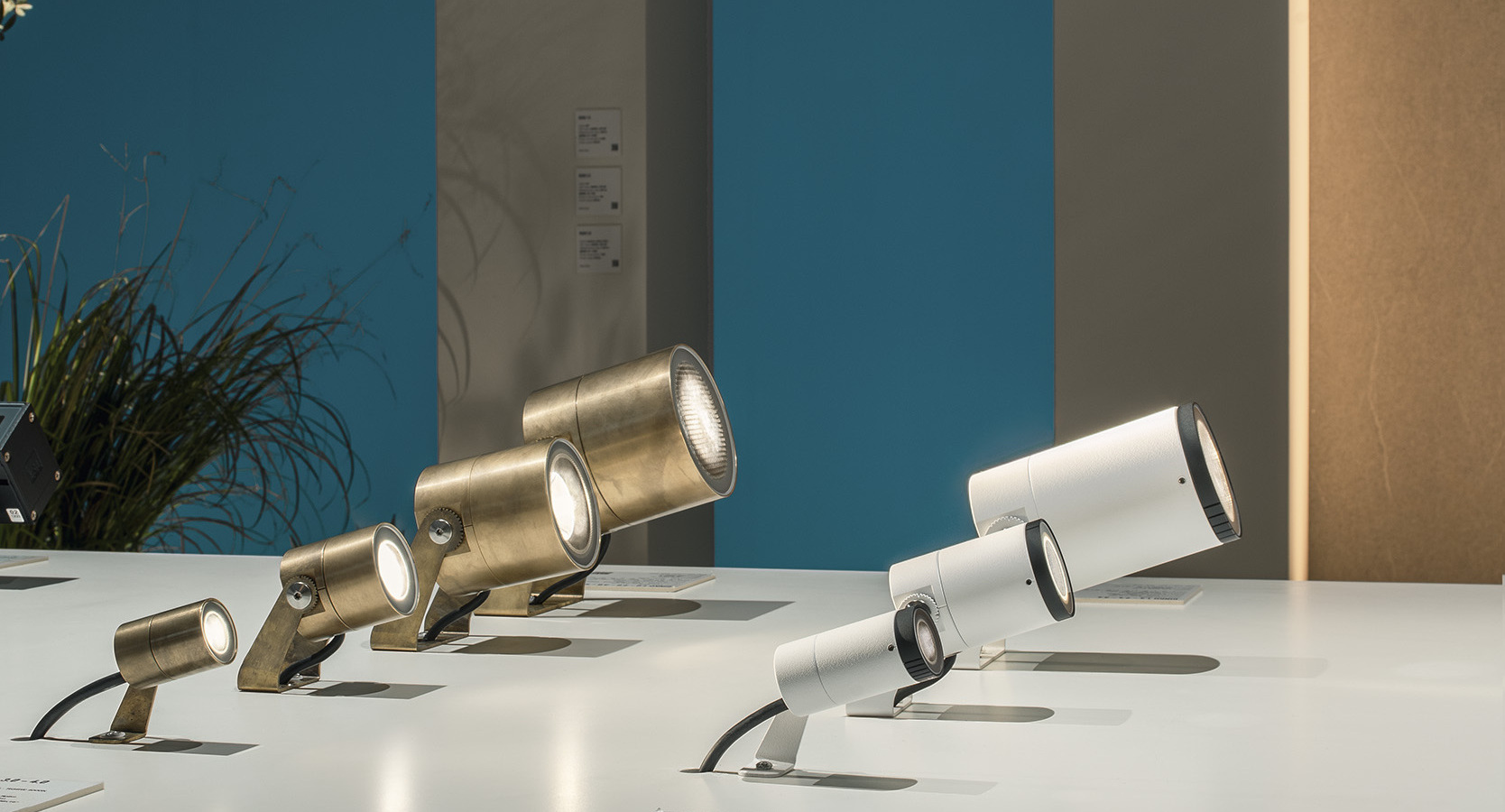

Ginko 3.0

Projectors for outdoor applications

projector for outdoor applications - 10W / 15W 24Vdc - 12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided (patented) - ø84x88 mm

Technical data

Print technical data

kg 1,25 - 2,41
IP66
IP69K
IK09

Installation	projector for outdoor applications
Power consumption	10W, 15W
Power supply	24Vdc
Lumen output at source	1096 lm (3000K, 10W, CRI 80), 1343 lm (3000K, 15W, CRI >90), 1662 lm (3000K, 15W, CRI 80), 886 lm (3000K, 10W, CRI >90)
Delivered lumen output	1162 lm (3000K, 42°, 15W, CRI 80), 609 lm (3000K, 42°, 10W, CRI >90), 750 lm (3000K, 42°, 10W, CRI 80), 945 lm (3000K, 42°, 15W, CRI >90)
Datasheet	Ginko 3.0 projector for outdoor applications; Awards: German Design Award 2020, IF Design Award 2019, Muuuz International Awards 2019; surface mounted (ceiling, wall, ground, spike); Power consumption: 10W, 15W; Power supply: 24Vdc; Lumen output at source: 1096 lm (3000K, 10W, CRI 80), 1343 lm (3000K, 15W, CRI >90), 1662 lm (3000K, 15W, CRI 80), 886 lm (3000K, 10W, CRI >90); Delivered lumen output: 1162 lm (3000K, 42°, 15W, CRI 80), 609 lm (3000K, 42°, 10W, CRI >90), 750 lm (3000K, 42°, 10W, CRI 80), 945 lm (3000K, 42°, 15W, CRI >90); 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°, 30°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 42°, 58°: optical system consisting of a high-efficiency TIR lens, sharp 48°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter, adjustable 12°x64°, adjustable 28°x72°: optical system consisting of a high-efficiency TIR lens combined with a high-quality elliptical technical filter and integrated with magnetic material for adjusting the ellipsis (patented); CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version); Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), finish that provides corrosion resistance of more than 3000 hours of salt spray, making it possible to use the product even in extremely severe atmospheric conditions, black finish obtained by electro-colouring, which offers the product better heat dissipation and provides corrosion resistance of more than 1500 hours of salt spray, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; Ingress protection: IP66, IP69K; Impact resistance: IK09; 12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided; version with RGBW LED colour (10W, 24Vdc) and version with bracket in customized height available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 1250 g, stainless steel: 2405 g; Dimensions: Ø84x88 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WB80105 Standard snoot - jasper green, WB8010E Standard snoot - white, WB8010F Standard snoot - grey, WB8010H Standard snoot - anthracite, WB8010N Standard snoot - black anodized, WB8010T Standard snoot - cor-ten, WB80205 Asymmetrical snoot - jasper green, WB8020E Asymmetrical snoot - white, WB8020F Asymmetrical snoot - grey, WB8020H Asymmetrical snoot - anthracite, WB8020T Asymmetrical snoot - cor-ten, WE0201 Magnet for adjustable optics and zoom lens, WH8000 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1006F Spike with bracket for in-ground installation - h 500 mm - grey, WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite, WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel, WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green, WP1007E Spike with bracket for in-ground installation - h 800 mm - white, WP1007F Spike with bracket for in-ground installation - h 800 mm - grey, WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite, WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel, WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten, WR8000 Shadow-effect filter; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionGinko 3.0 projector for outdoor applications Awards: German Design Award 2020, IF Design Award 2019, Muuuz International Awards 2019 surface mounted (ceiling, wall, ground, spike) Power consumption: 10W, 15W Power supply: 24Vdc Lumen output at source: 1096 lm (3000K, 10W, CRI 80), 1343 lm (3000K, 15W, CRI >90), 1662 lm (3000K, 15W, CRI 80), 886 lm (3000K, 10W, CRI >90) Delivered lumen output: 1162 lm (3000K, 42°, 15W, CRI 80), 609 lm (3000K, 42°, 10W, CRI >90), 750 lm (3000K, 42°, 10W, CRI 80), 945 lm (3000K, 42°, 15W, CRI >90) 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 13°, 30°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 42°, 58°: optical system consisting of a high-efficiency TIR lens, sharp 48°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter, adjustable 12°x64°, adjustable 28°x72°: optical system consisting of a high-efficiency TIR lens combined with a high-quality elliptical technical filter and integrated with magnetic material for adjusting the ellipsis (patented) CRI Colour Rendering Index: 80, >90 Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version) Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), finish that provides corrosion resistance of more than 3000 hours of salt spray, making it possible to use the product even in extremely severe atmospheric conditions, black finish obtained by electro-colouring, which offers the product better heat dissipation and provides corrosion resistance of more than 1500 hours of salt spray, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches power supply unit not included includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm Ingress protection: IP66, IP69K Impact resistance: IK09 12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided version with RGBW LED colour (10W, 24Vdc) and version with bracket in customized height available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 1250 g, stainless steel: 2405 g Dimensions: Ø84x88 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WB80105 Standard snoot - jasper green, WB8010E Standard snoot - white, WB8010F Standard snoot - grey, WB8010H Standard snoot - anthracite, WB8010N Standard snoot - black anodized, WB8010T Standard snoot - cor-ten, WB80205 Asymmetrical snoot - jasper green, WB8020E Asymmetrical snoot - white, WB8020F Asymmetrical snoot - grey, WB8020H Asymmetrical snoot - anthracite, WB8020T Asymmetrical snoot - cor-ten, WE0201 Magnet for adjustable optics and zoom lens, WH8000 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1006F Spike with bracket for in-ground installation - h 500 mm - grey, WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite, WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel, WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green, WP1007E Spike with bracket for in-ground installation - h 800 mm - white, WP1007F Spike with bracket for in-ground installation - h 800 mm - grey, WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite, WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel, WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten, WR8000 Shadow-effect filter tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	13°, 30°, 42°, sharp 48°, 58°, adjustable 12°x64°, adjustable 28°x72°
CRI Colour Rendering Index	80, >90
Body material	body in anticorodal aluminium, AISI 316L stainless steel bracket, body in AISI 316L stainless steel, AISI 316L stainless steel bracket
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	grey, cor-ten, anthracite, white, stainless steel, anodized black, jasper green
Power supply unit	power supply unit not included
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
Ingress protection	IP66, IP69K
Impact resistance	IK09

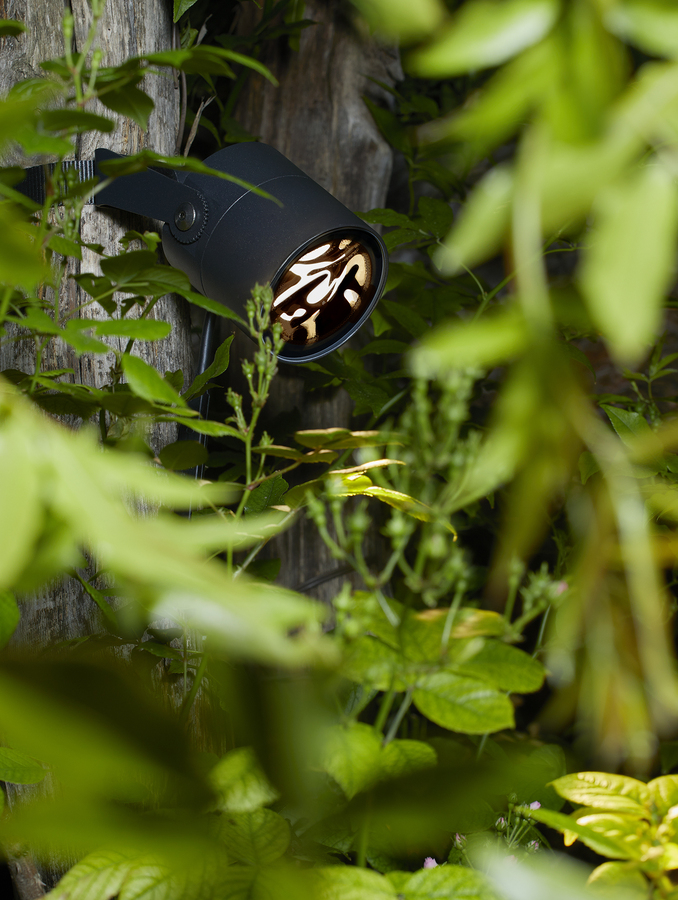

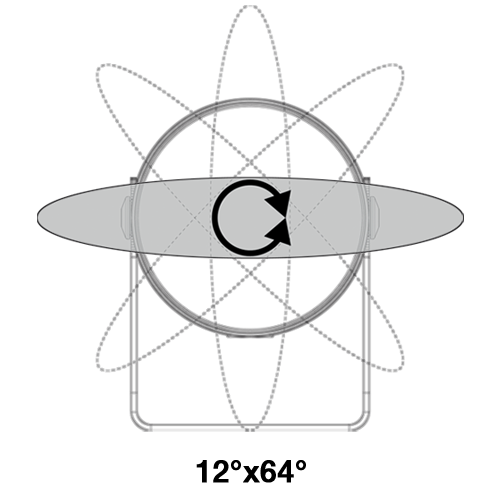

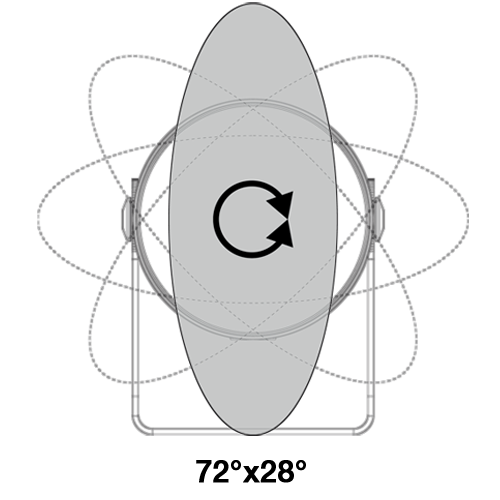

Features	12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided
Notes	version with RGBW LED colour (10W, 24Vdc) and version with bracket in customized height available on request
Status	Available

Read more

Close

Download

See all downloads

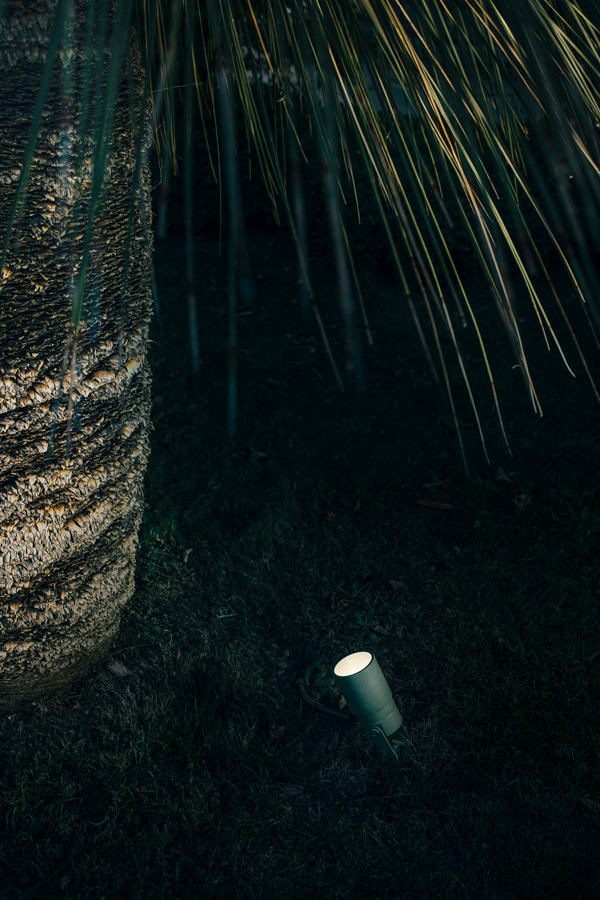

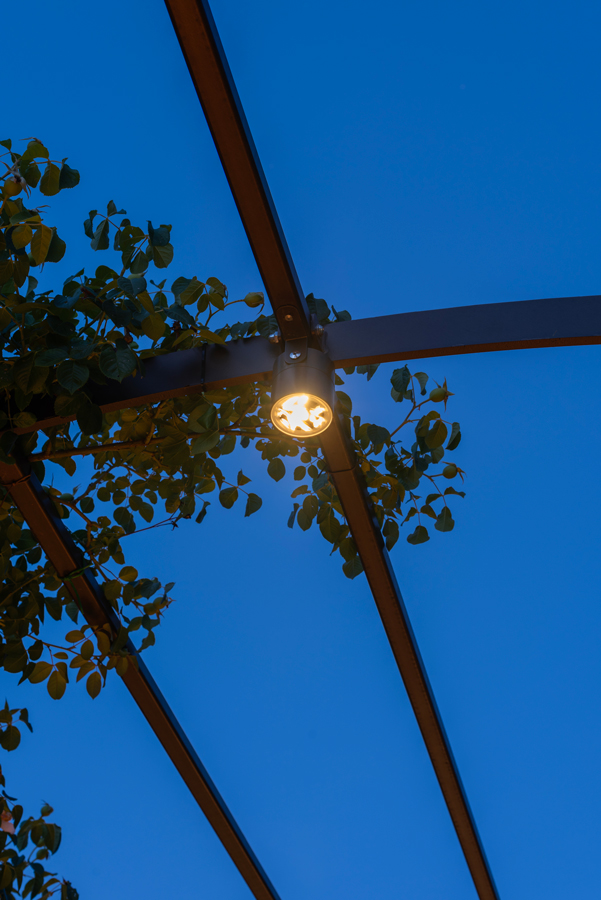

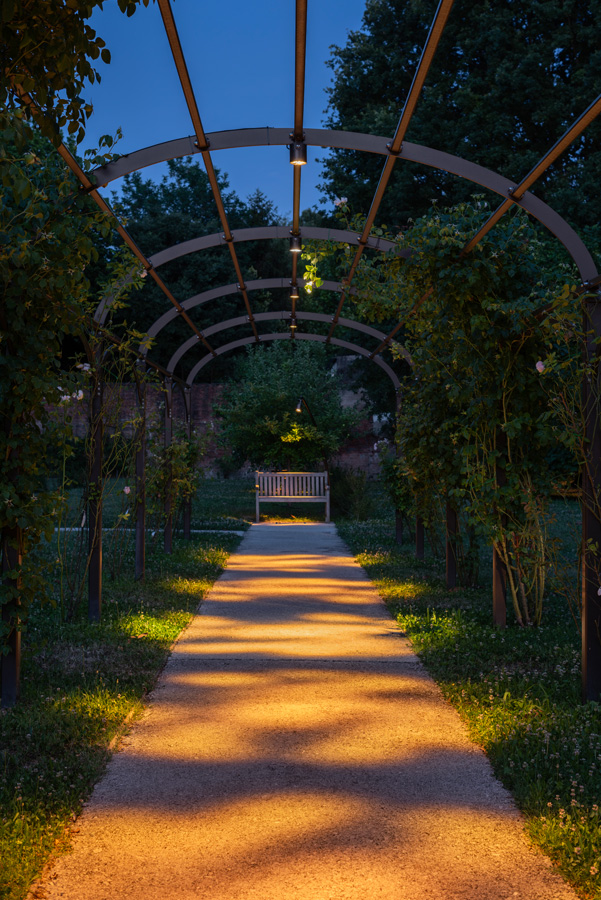

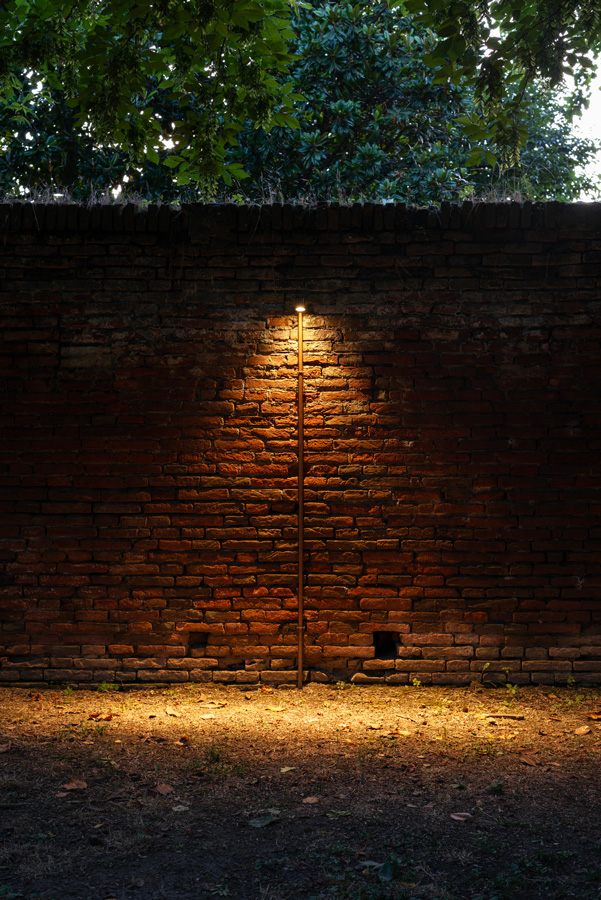

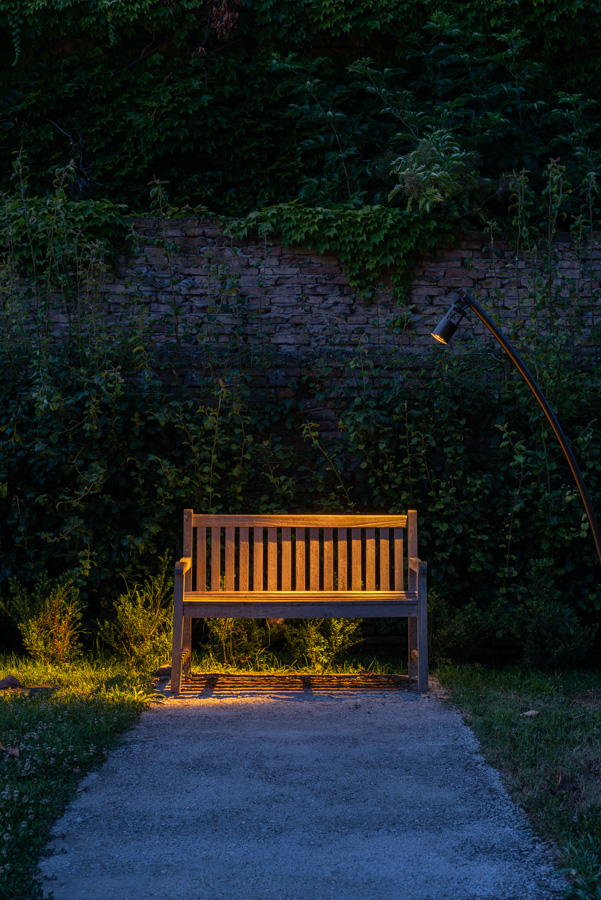

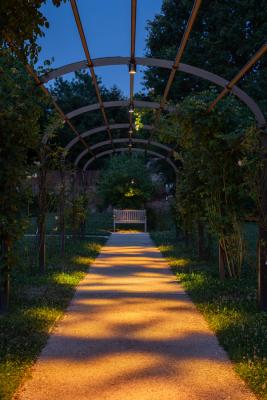

Gallery

Accessories and power supply units

Accessories (28)

Spikes and arms

WP0100 Spike for in-ground installation	WP10065 Spike with bracket for in-ground installation - h 500 mm - jasper green
WP1006E Spike with bracket for in-ground installation - h 500 mm - white	WP1006F Spike with bracket for in-ground installation - h 500 mm - grey
WP1006H Spike with bracket for in-ground installation - h 500 mm - anthracite	WP1006I Spike with bracket for in-ground installation - h 500 mm - stainless steel
WP1006T Spike with bracket for in-ground installation - h 500 mm - cor-ten	WP10075 Spike with bracket for in-ground installation - h 800 mm - jasper green
WP1007E Spike with bracket for in-ground installation - h 800 mm - white	WP1007F Spike with bracket for in-ground installation - h 800 mm - grey
WP1007H Spike with bracket for in-ground installation - h 800 mm - anthracite	WP1007I Spike with bracket for in-ground installation - h 800 mm - stainless steel
WP1007T Spike with bracket for in-ground installation - h 800 mm - cor-ten

Honeycomb louvre

Order together with the lighting fixture.

WH8000

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics, except for 48° sharp, 12°x64°, 28°x72° optics

Snoots

WB80105 Standard snoot - jasper green	WB8010E Standard snoot - white
WB8010F Standard snoot - grey	WB8010H Standard snoot - anthracite
WB8010N Standard snoot - black anodized	WB8010T Standard snoot - cor-ten
WB80205 Asymmetrical snoot - jasper green	WB8020E Asymmetrical snoot - white
WB8020F Asymmetrical snoot - grey	WB8020H Asymmetrical snoot - anthracite
WB8020T Asymmetrical snoot - cor-ten

Filters

WR8000

Shadow-effect filter

built into the lighting fixture

the shadow-effect filter can be fitted to the 48° sharp optics

Various accessories

WP1004

Fastener strap - 5 m

Spare parts

WE0201

Magnet for adjustable optics and zoom lens

Cables

Choose the power cable in the code generator

Power supply units (17)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 11W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 24 Vdc input:; 24Vdc; 288W With 12 Vdc input:; 12Vdc; 144W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W 2 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output

for CASAMBI. White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer

for CASAMBI
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 24 Vdc input:; 24Vdc; 240W With 12 Vdc input:; 12Vdc; 120W
Dimmering	PUSH
Power supply unit IP	IP20

Control input (2)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer

for CASAMBI

Input	12-24-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm
Cutout dimensions	Ø51 mm
