Ginko 4.0
Projectors for outdoor applications

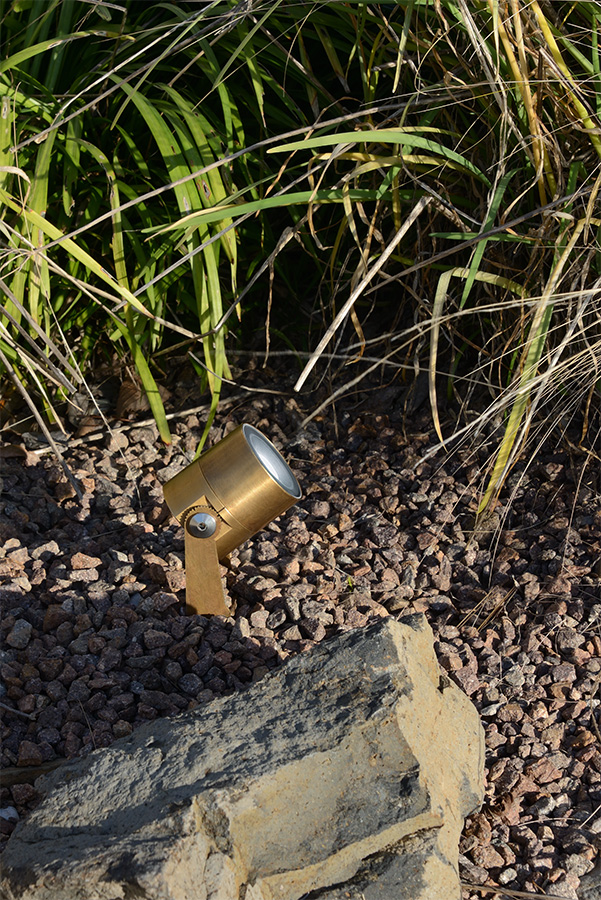

projector for outdoor applications - 25W 24Vdc - 13°x65°, 24°x69° optics adjustable through 360° using the magnet provided (patented) - ø109x110 mm
Projectors for outdoor applications
projector for outdoor applications - 25W 24Vdc - 13°x65°, 24°x69° optics adjustable through 360° using the magnet provided (patented) - ø109x110 mm
Updated to GN40001001F0L5
Installation | projector for outdoor applications |
---|---|
Power consumption | 25W |
Power supply | 24Vdc |
Lumen output at source | 1860 lm (3000K, CRI >90) |
Delivered lumen output | 1724 lm (3000K, 12°, CRI >90) |
Datasheet | Copied |
Mounting | surface mounted (ceiling, wall, ground, spike) |
---|---|
Number and type of LED | 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C) |
LED colour | 2700K |
Optics | 34° |
CRI Colour Rendering Index | >90 |
Body material | body in anticorodal aluminium, AISI 316L stainless steel bracket |
Screen material | screen in serigraphed-grey and transparent, tempered extra-clear glass |
Finishes | jasper green |
Power supply unit | power supply unit not included |
Power cables | includes 1.50 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm |
Ingress protection | IP66, IP69 |
Impact resistance | IK08 |
Features | 13°x65°, 24°x69° optics adjustable through 360° using the magnet provided |
Notes | version with bracket in customized height available on request |
Status | Available |
This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.
Accessories for product code GN40001001F0L5
WP0300Spike for in-ground installation |
Add the optical accessory in the code generatorhoneycomb louvrebuilt into the lighting fixture The honeycomb louvre can be fitted on all optics, except for 38° sharp, 13°x65°, 24°x69° optics |
WB11015Standard snoot - jasper green |
WB1101NStandard snoot - black |
WB11025Asymmetrical snoot - jasper green |
WB1102NAsymmetrical snoot - black |
Power supply units for product code GN40001001F0L5
Control gear for product code GN40001001F0L5
ADV576DALIN1Low-voltage dimmerorder in addition to PSU
|
ARVUNID2-01Universal sequencer - Low-voltage 4-channel controller with constant-voltage outputorder in addition to PSU
|
||||||||||||||||
EC0CEN12445A20Low-voltage 4-channel controller with constant-voltage output for CASAMBIWhite, dynamic white, RGB, RGBW, RGB+W
|
EC0CEN1244DA20Low-voltage dimmer for CASAMBIorder in addition to PSU
|
