Bollards for outdoor applications

Plin

Lighting for paths and passageways

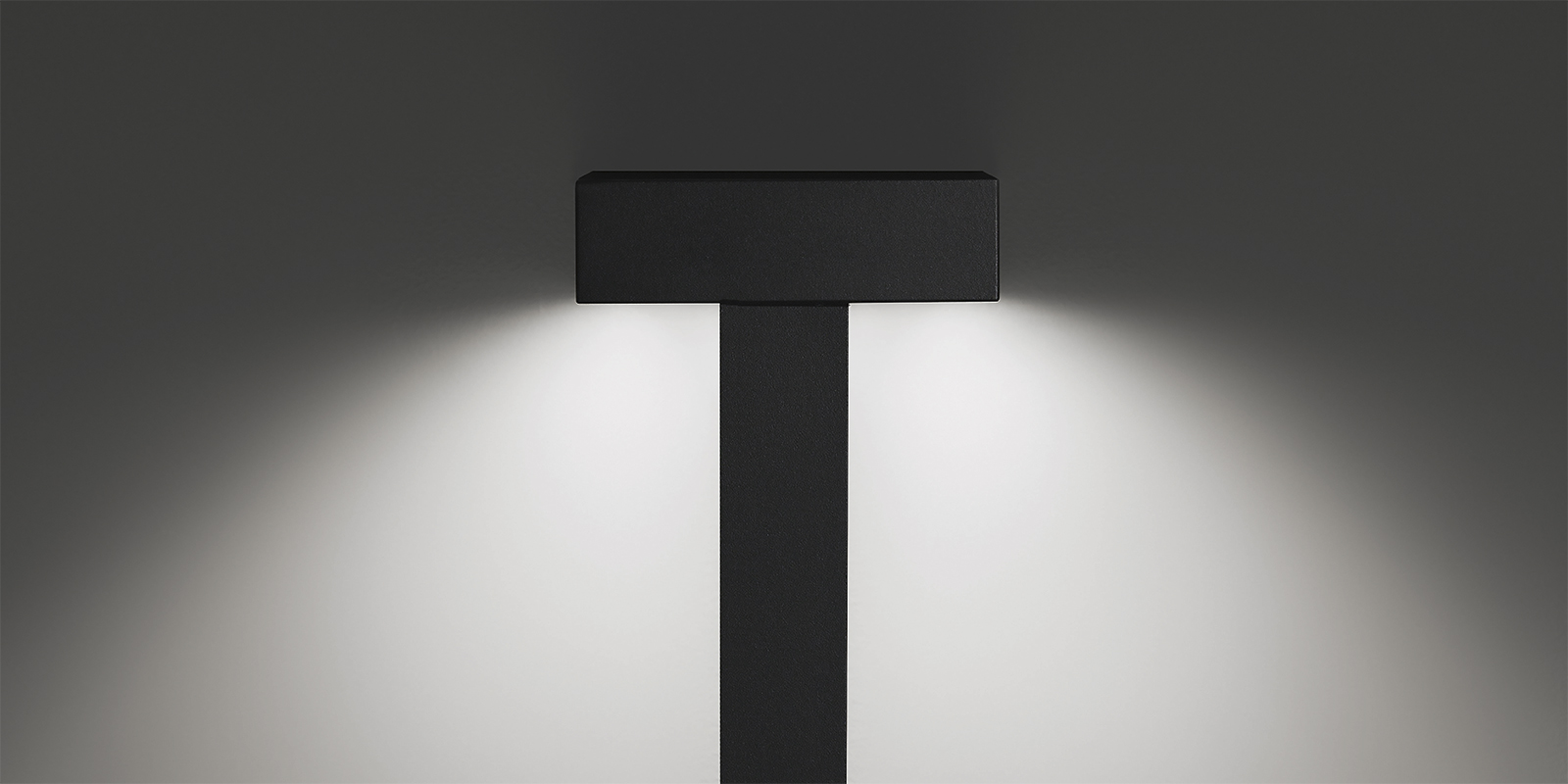

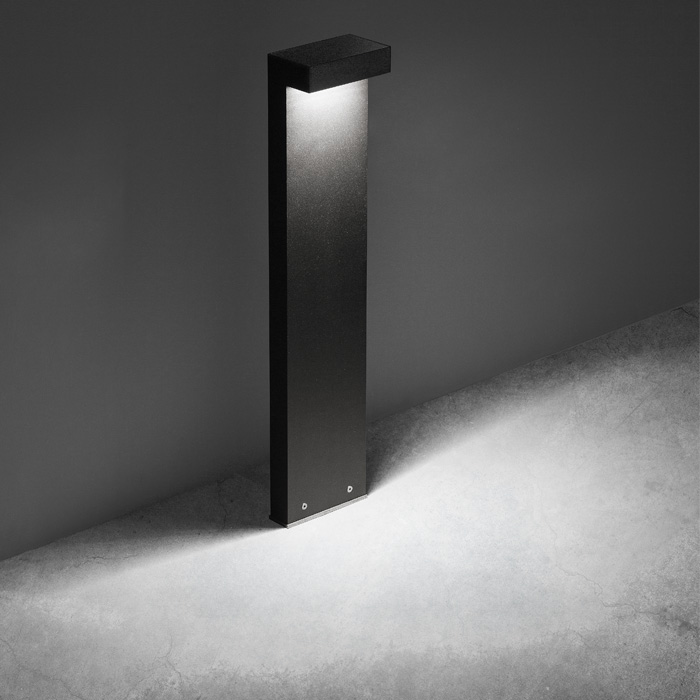

Plin is a line of outdoor bollards with built-in power supply, available in three different heights and with either a single or a double beam. Characterized by a minimalist design made up of square lines, with the light source incorporated into the fixture’s head, Plin is available with diffuse or asymmetrical optics, depending on the version.

The standard finishes include white, grey, anthracite and corten, as well as the new version with a body made of teak sourced from FSC®-certified plantations, paired with a head and base in an anthracite-finish aluminium.

Plin 2 was awarded the German Design Award 2019.

  • Plin 1

    Version HeightPowerPower supplyEmission
    Plin 1.0300 mm12W230Vacsingle beam, diffuse opticsDetails
    Plin 1.1600 mm12W230Vacsingle beam, diffuse opticsDetails
    Plin 1.2800 mm12W230Vacsingle beam, diffuse opticsDetails

    Plin 1

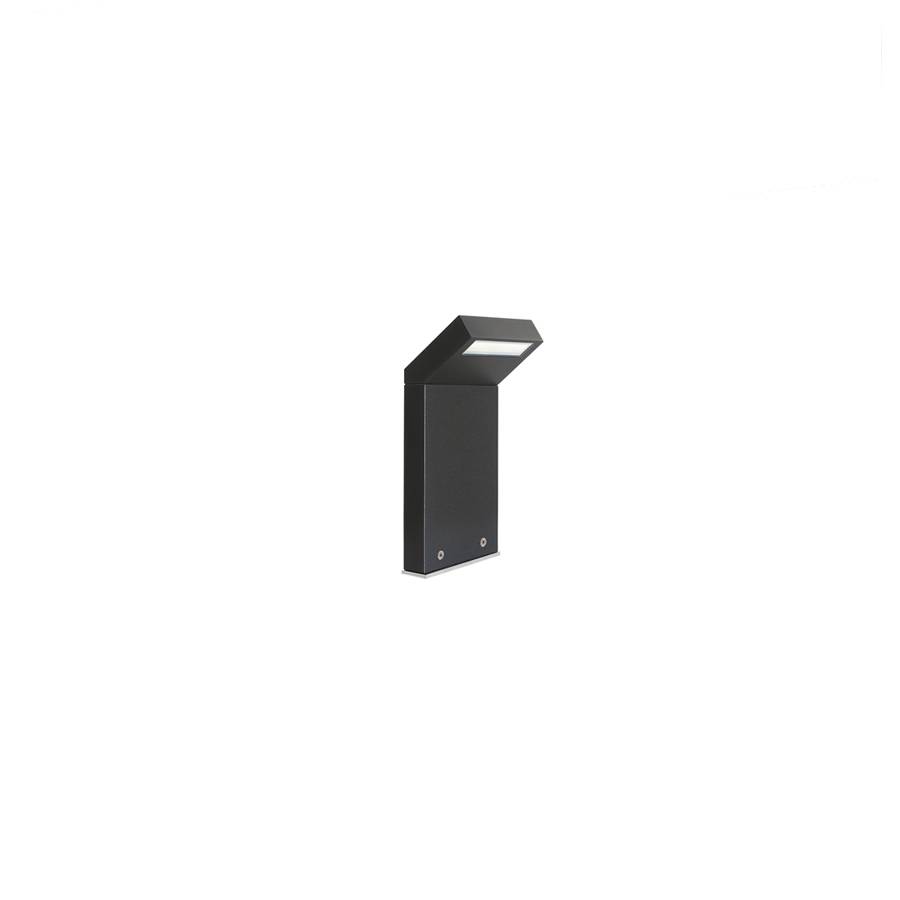

    • VersionPlin 1.0
    • Dimensions120x30x300 mm
    • Power12W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

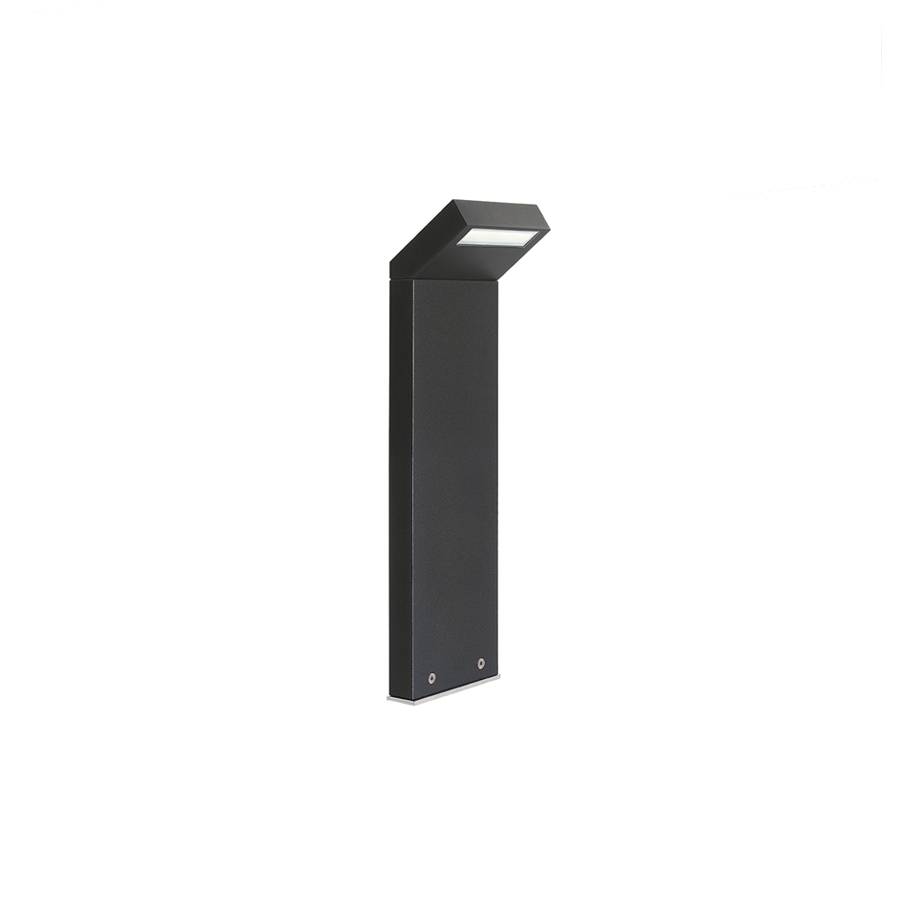

    • VersionPlin 1.1
    • Dimensions120x30x600 mm
    • Power12W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

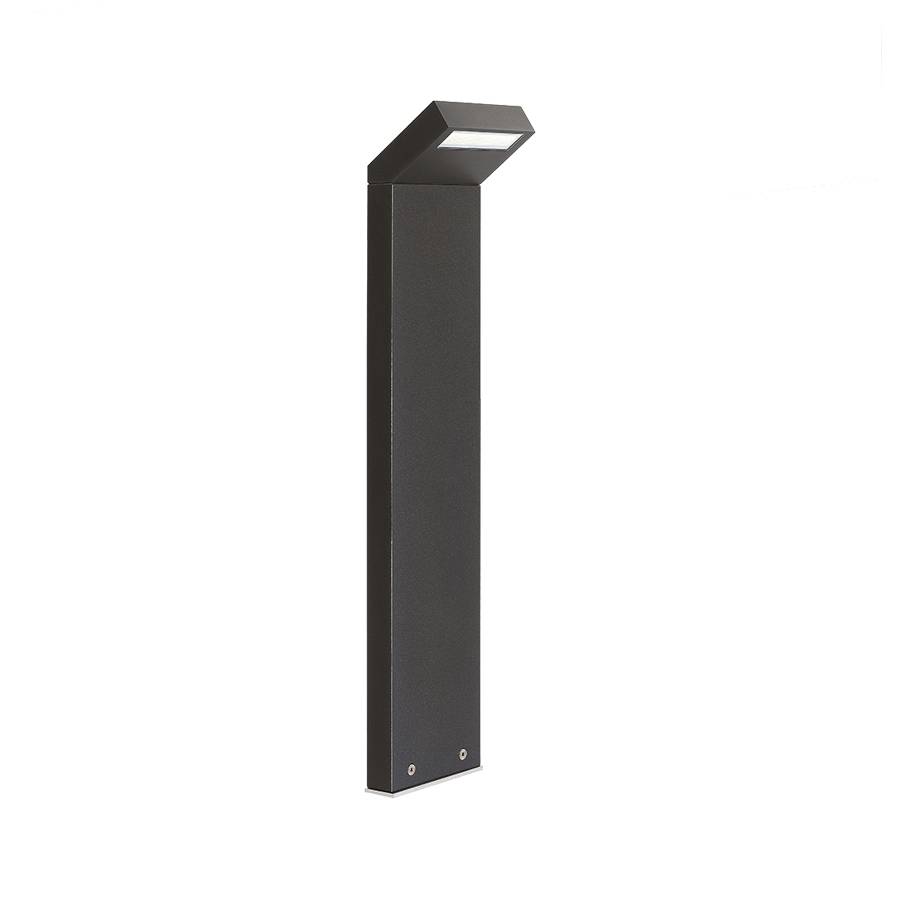

    • VersionPlin 1.2
    • Dimensions120x30x800 mm
    • Power12W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
  • Plin 2

    Version HeightPowerPower supplyEmission
    Plin 2.0260 mm12W230Vacsingle beam, diffuse asymmetrical opticsDetails
    Plin 2.1560 mm12W230Vacsingle beam, diffuse asymmetrical opticsDetails
    Plin 2.2760 mm12W230Vacsingle beam, diffuse asymmetrical opticsDetails

    Plin 2

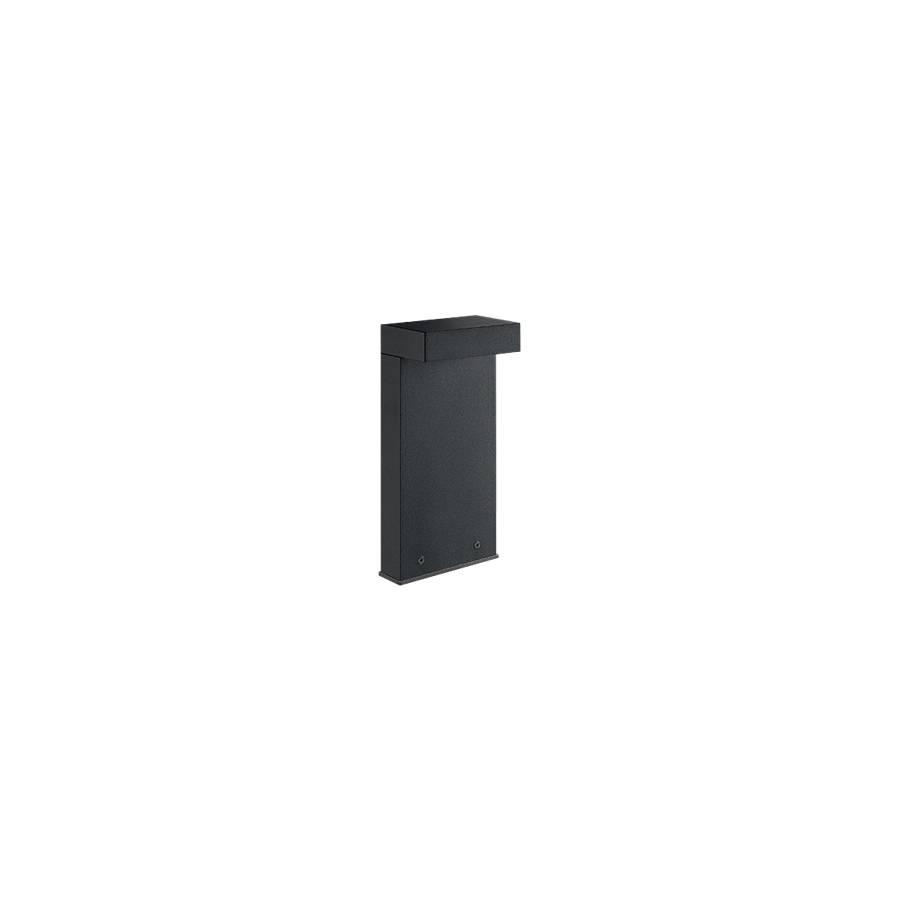

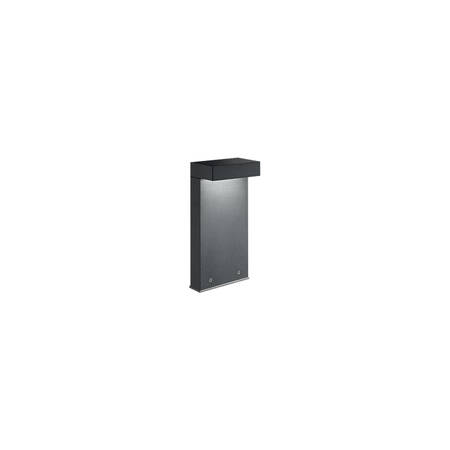

    • VersionPlin 2.0
    • Dimensions124x67x260 mm
    • Power12W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

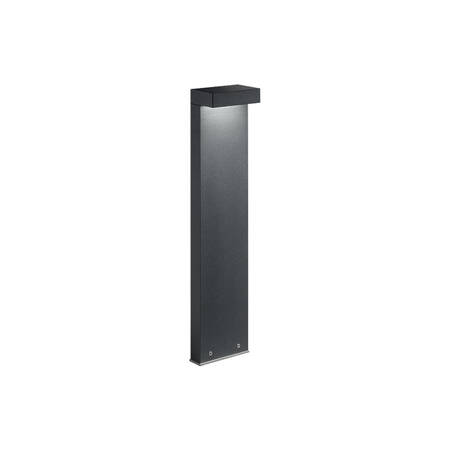

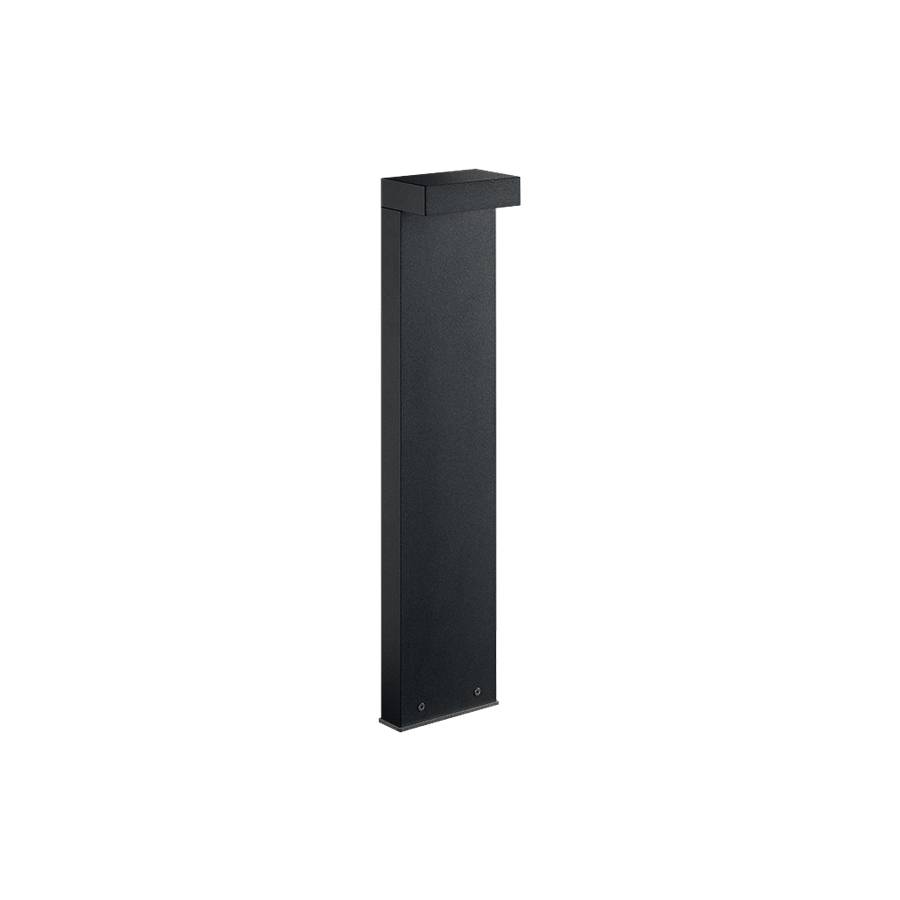

    • VersionPlin 2.1
    • Dimensions124x67x560 mm
    • Power12W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

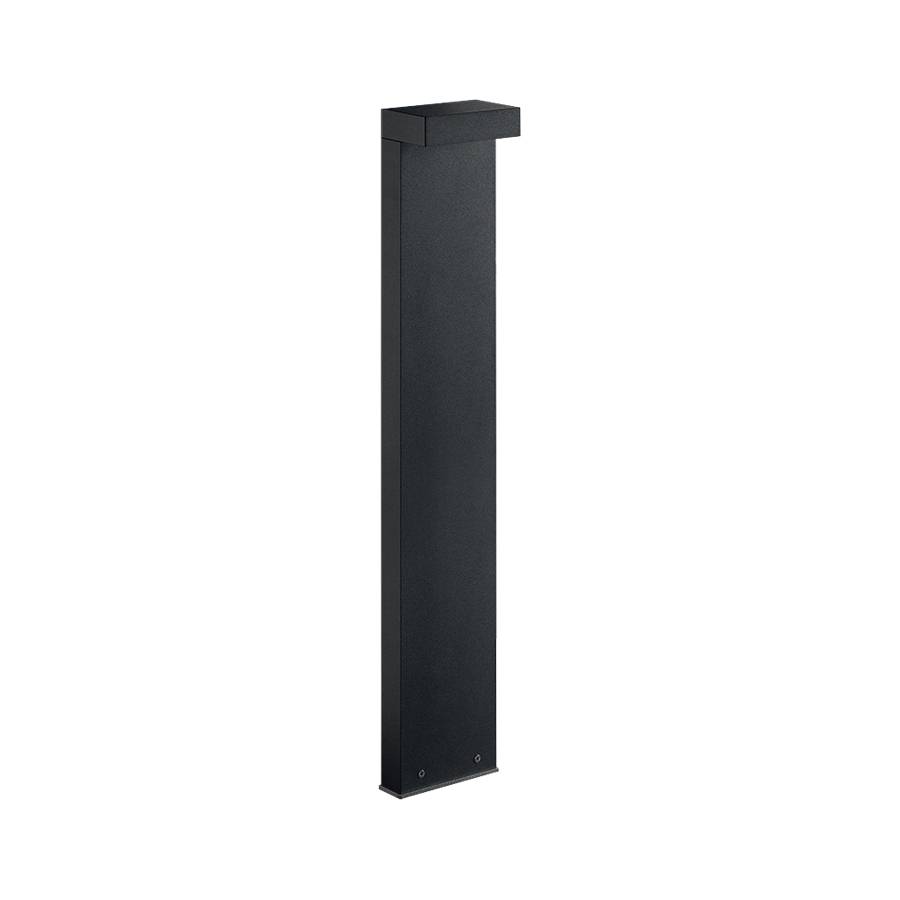

    • VersionPlin 2.2
    • Dimensions124x67x760 mm
    • Power12W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
  • Plin 3

    Version HeightPowerPower supplyEmission
    Plin 3.0260 mm24W230Vacdouble beam, diffuse asymmetrical opticsDetails
    Plin 3.1560 mm24W230Vacdouble beam, diffuse asymmetrical opticsDetails
    Plin 3.2760 mm24W230Vacdouble beam, diffuse asymmetrical opticsDetails

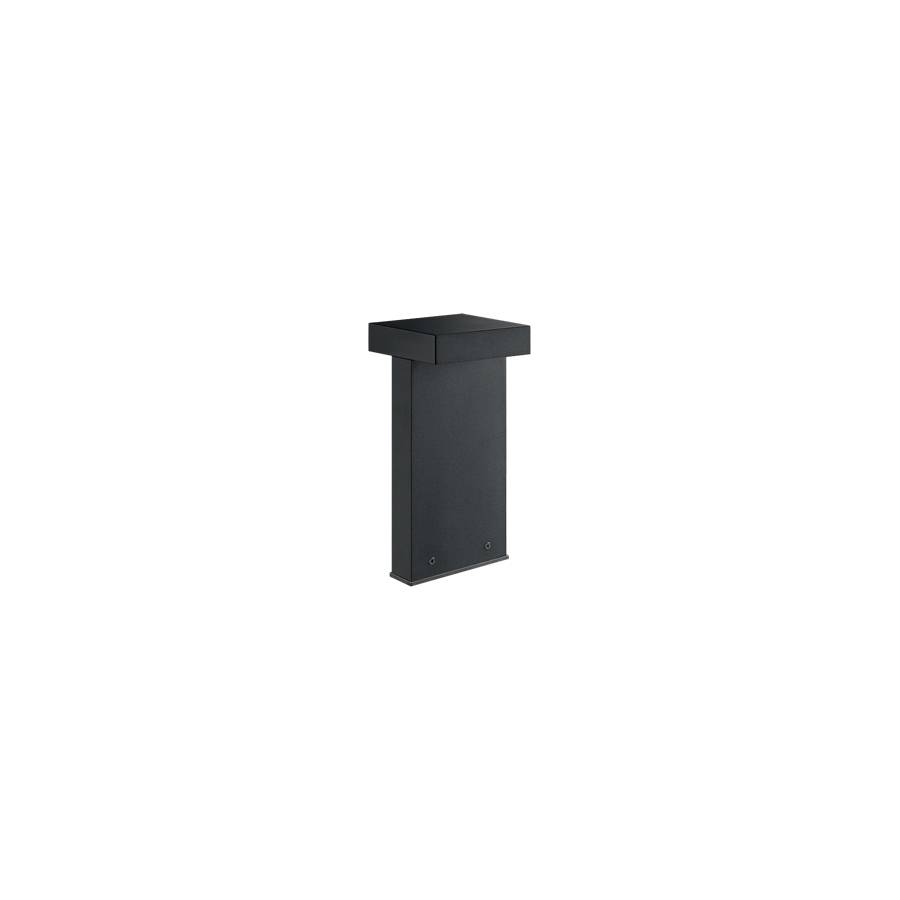

    Plin 3

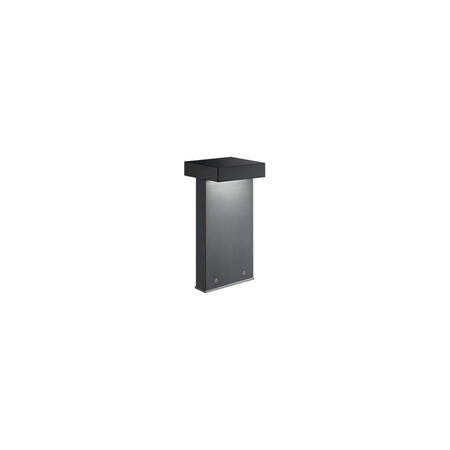

    • VersionPlin 3.0
    • Dimensions124x103x260 mm
    • Power24W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

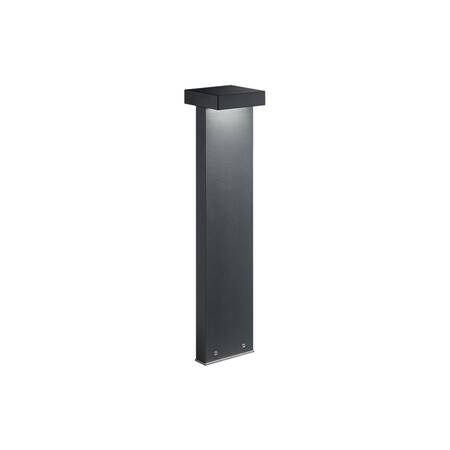

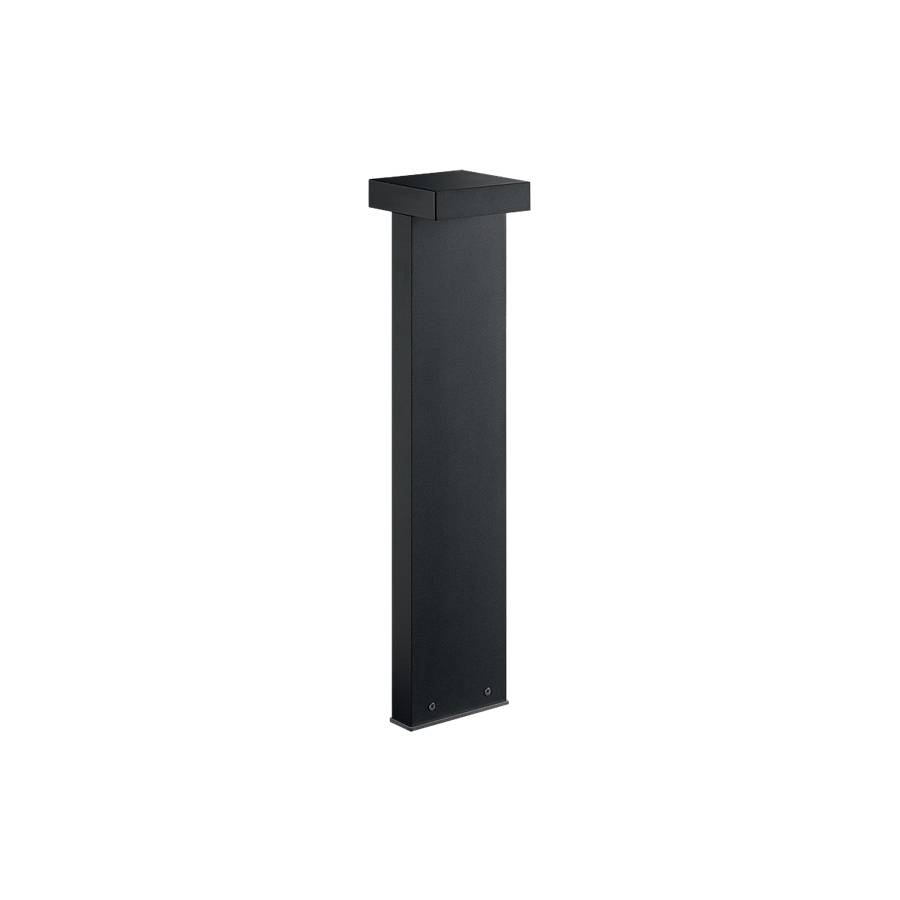

    • VersionPlin 3.1
    • Dimensions124x103x560 mm
    • Power24W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

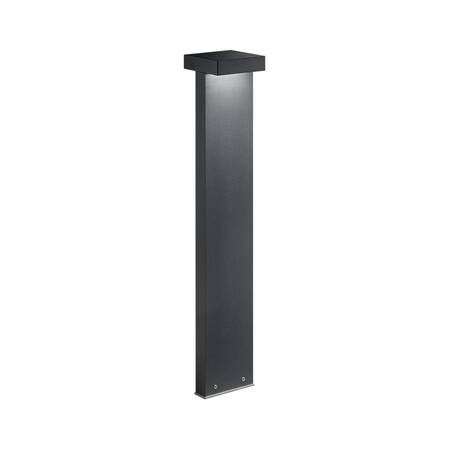

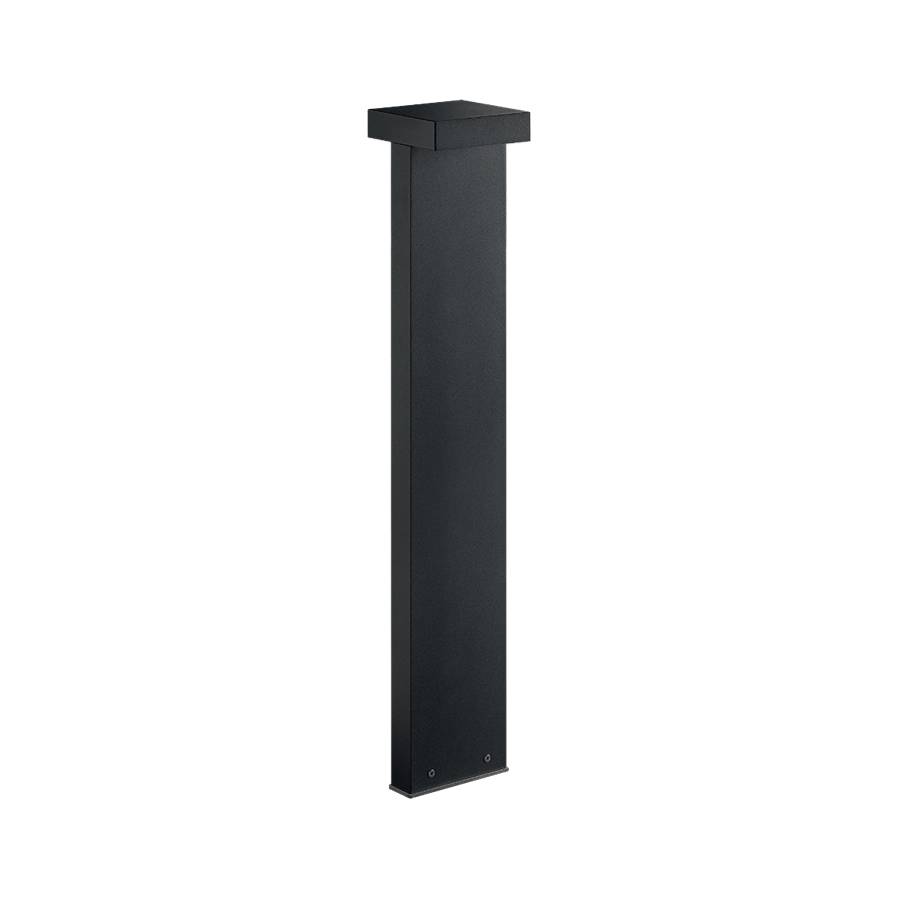

    • VersionPlin 3.2
    • Dimensions124x103x760 mm
    • Power24W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

Unique Selling Points

screen in serigraphed, tempered extra-clear glass

head made of ANTICORODAL 6082 aluminium alloy, made entirely on a CNC lathe

5-step material protection, and oxidation and corrosion resistance
- Preparation for painting
- Epoxy paint
- Polyester paint
- Paints compliant with Qualicoat automotive coating standard
- Tested in saline mist (over 1500 hours)

  • Suitable for outdoor installations

  • RAL finish on request
