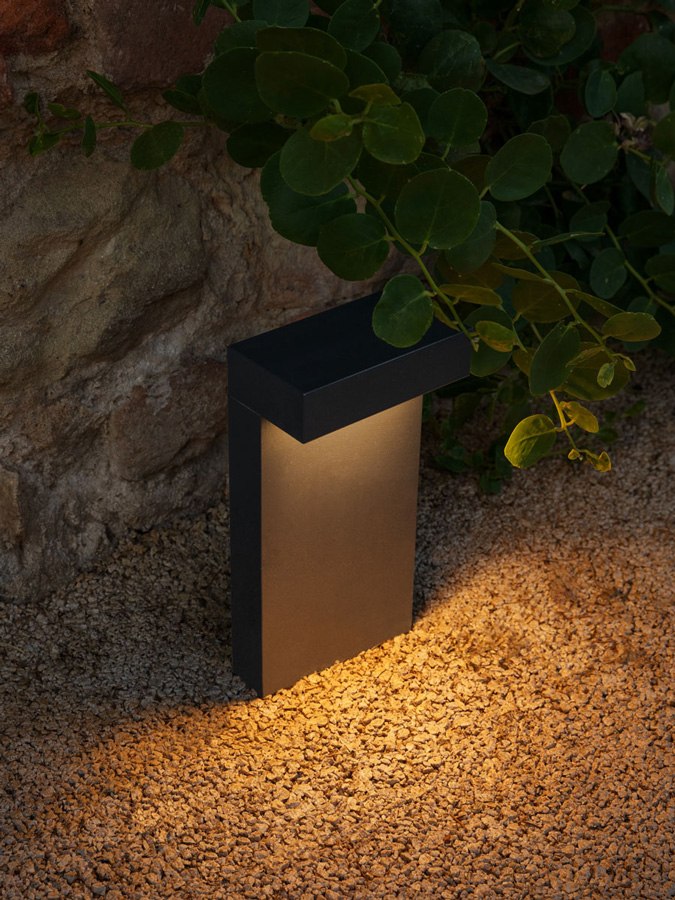

Plin 1.0

Bollards for outdoor applications

bollard for outdoor applications - 12W 230Vac - diffuse optics - h 300 mm

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • gross weight
    kg 1,30
  • IP65
  • IK08
  • RAL finish on request
  • F
Installation bollard for outdoor applications
Power consumption 12W
Power supply 230Vac
Lumen output at source 1242 lm (3000K)
Delivered lumen output 558 lm (3000K)
Datasheet

Copied

Mounting surface mounted (floor)
Number and type of LED 18 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics diffuse
CRI Colour Rendering Index 80
Body material head in die-cast aluminium, column in aluminium
Screen material screen in serigraphed, tempered, extra-clear microprismatic glass
Finishes anthracite, cor-ten, grey, white
Power supply unit built-in power supply unit
Ingress protection IP65
Impact resistance IK08
Notes non-standard heights available on request,
Casambi-compatible version, controllable with the Casambi app, available on request
Status Available

Read more

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Built-in DALI control
