Plin 2.0

Bollards for outdoor applications

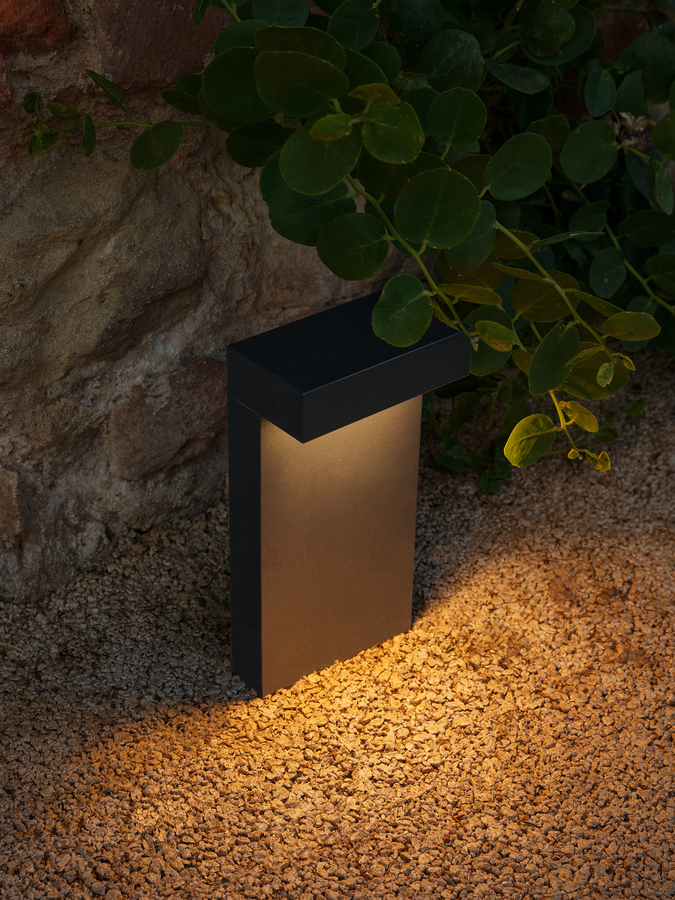

bollard for outdoor applications - 12W 230Vac - single beam - diffuse, asymmetrical optics - h 260 mm

  • German Design Award 2019

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • gross weight
    kg 1,40
  • IP65
  • IK08
  • RAL finish on request
  • F
Installation bollard for outdoor applications, single beam
Power consumption 12W
Power supply 230Vac
Lumen output at source 1242 lm (3000K)
Delivered lumen output 492 lm (3000K)


Mounting surface mounted (floor)
Number and type of LED 18 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics diffuse, asymmetrical
CRI Colour Rendering Index 80
Body material head and column in aluminium
Screen material screen in serigraphed, transparent, tempered extra-clear glass
Finishes grey, cor-ten, white, anthracite
Power supply unit built-in power supply unit
Ingress protection IP65
Impact resistance IK08
Notes non-standard heights available on request,
Casambi-compatible version, controllable with the Casambi app, available on request
Status Available
