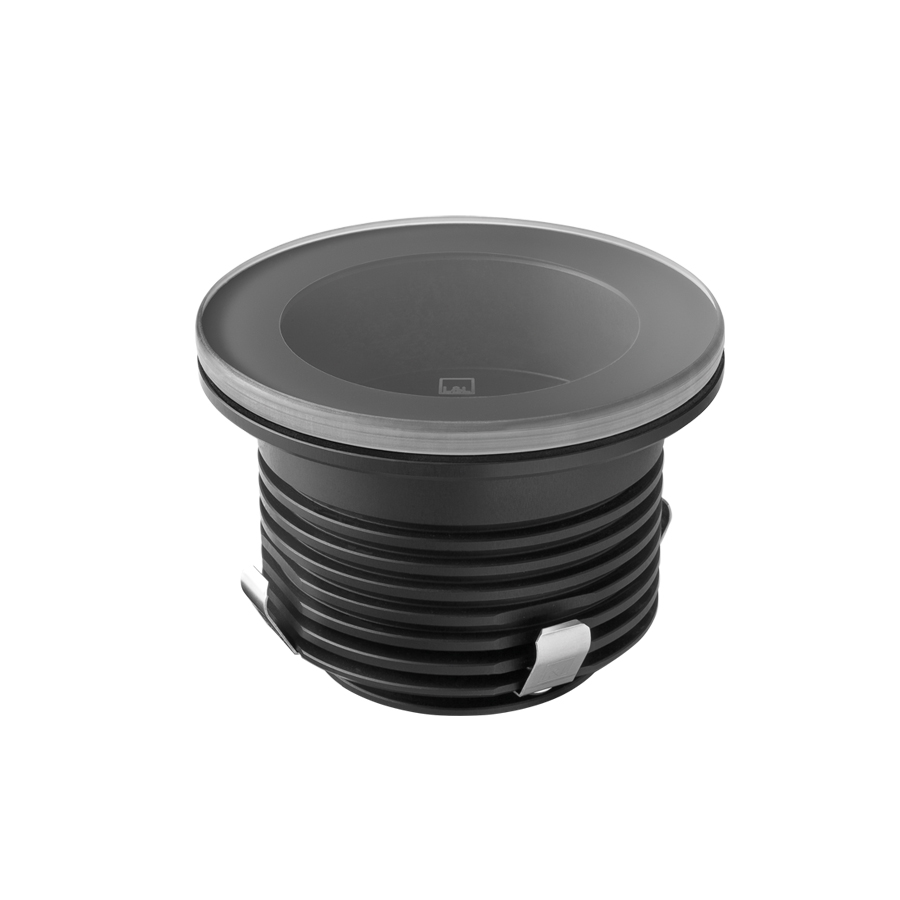

Litus 5.6

3.5W / 5W / 7W 24Vdc, RGB: max 7W, max 700mA - tiltable optics ±15° - ø96 mm - RGB

Generate code

Technical data

Print technical data
  • RGB
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • drive-over fixture
    kg 1000 - kN 10
  • gross weight
    kg 0,70
  • IP67
  • IK08
  • IPS
  • PID
  • maximum device temperature40°C
  • A/A+/A++
Installation recessed for outdoor applications
Power consumption 3.5W (5° optics), 5W, 7W; RGB: max 7W
Power supply 24Vdc; RGB: max 700mA
Lumen output at source 452 lm (3000K, 5W, CRI >90),
488 lm (3000K, 5W, CRI 80),
608 lm (3000K, 7W, CRI >90),
657 lm (3000K, 7W, CRI 80),
RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA)
Delivered lumen output 284 lm (3000K, 34°, 5W, CRI >90),
352 lm (3000K, 34°, 5W, CRI 80),
374 lm (3000K, 34°, 7W, CRI >90),
463 lm (3000K, 34°, 7W, CRI 80),
RGB: 253 lm, R: 98 lm G: 114 lm B: 41 lm (700mA, 34°)
Datasheet

Copied

Mounting recessed (ceiling, wall, floor)
Number and type of LED 1 high-intensity power LED, 3-step MacAdam;
RGB: 3 power LEDs
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGB

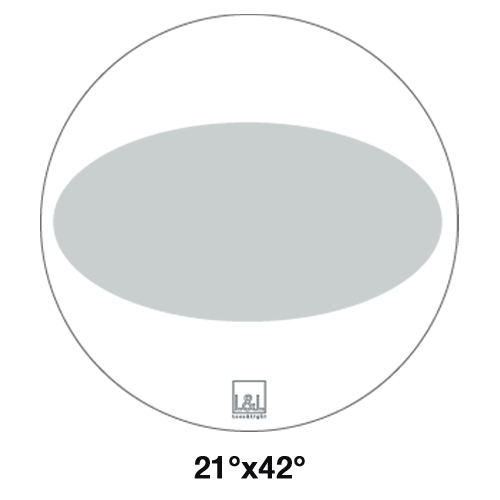

Optics 5° tiltable ±15°, 8° tiltable ±15°, 11° tiltable ±15°, 17° tiltable ±15°, 20° tiltable ±15°, sharp 21° tiltable ±15°, 34° tiltable ±15°, 45° tiltable ±15°, sharp 61° tiltable ±15°, 13°x52° tiltable ±15°, 21°x42° tiltable ±15°
CRI Colour Rendering Index 80, >90
Body material body in black-anodized anticorodal aluminium
Screen material screen in tempered, serigraphed-grey and transparent extra-clear glass
Power supply unit power supply unit not included
Wiring parallel; RGB: series
Power cables includes 1.5 m neoprene cable, H05RN-F 2x0.75/0.75 Ø6.3 mm;
RGB: includes 1.5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0.50/0.50 Ø6.3 mm
Ingress protection IP67
Impact resistance IK08
Notes version with 5° optics and 3.5W: 4000K only CRI 80,
version with screen in serigraphed-white glass available on request
Status Available

Read more

Close

Accessories and power supply units

Accessories (4)

Power supply units (28)

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc 16W
350mA 19W
500mA 20W
700mA 20W
Power16W
DimmeringON/OFF
Power supply unit IPIP20

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W
500mA 24W
700mA 32W
DimmeringON/OFF
Power supply unit IPIP20

AD020DALIT1

dimmable power supply unit

Output24Vdc 16W
350mA 15W
500mA 20W
700mA 20W
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W
500mA 24W
700mA 32W
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 15W
500mA 22W
700mA 25W
Dimmering1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AR330350TC

Input230Vac 50-60 Hz
Output350mA 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AR330500TC

Input230Vac 50-60 Hz
Output500mA 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AV12020IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output12Vdc 20W
DimmeringON/OFF
Power supply unit IPIP20

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc 60W
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 192W
DimmeringON/OFF
Power supply unit IPIP67

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 320W
DimmeringON/OFF
Power supply unit IPIP67

AV36060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output36Vdc 60W
DimmeringON/OFF
Power supply unit IPIP67

AV48060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV48150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output48Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV48150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV48240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (11)

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 12Vdc 144W
With input 24Vdc: 24Vdc 288W
With input 48Vdc: 48Vdc 576W
Dimmering1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AR330350TC

Input230Vac 50-60 Hz
Output350mA 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AR330500TC

Input230Vac 50-60 Hz
Output500mA 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

ARC336350D1

Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 350mA
With input 24Vdc: 350mA
With input 48Vdc: 350mA
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336500D1

Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 500mA
With input 24Vdc: 500mA
With input 48Vdc: 500mA
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336700D1

Low-voltage 3-channel controller with 700mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 700mA
With input 24Vdc: 700mA
With input 48Vdc: 700mA 36W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARCUNID2

Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input12-24-48Vdc
Output

3 channels

With input 12Vdc: 350mA
With input 24Vdc: 500mA
With input 48Vdc: 700mA

4 channels

With input 12Vdc: 350mA
With input 24Vdc: 500mA
With input 48Vdc: 700mA
Power123W
Dimmering1-10V, 0-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IPIP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith input 12Vdc: 350mA 10W
With input 12Vdc: 500mA 15W
With input 24Vdc: 350mA 20W
With input 24Vdc: 500mA 30W
With input 36Vdc: 350mA 30W
With input 36Vdc: 500mA 45W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith input 12Vdc: 350mA 10W
With input 12Vdc: 700mA 20W
With input 24Vdc: 350mA 20W
With input 24Vdc: 700mA 40W
With input 36Vdc: 350mA 30W
With input 36Vdc: 700mA 60W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith input 12Vdc: 350mA 10W
With input 12Vdc: 700mA 20W
With input 24Vdc: 350mA 20W
With input 24Vdc: 700mA 40W
With input 36Vdc: 350mA 30W
With input 36Vdc: 700mA 60W
DimmeringCannot be dimmed
Power supply unit IPIP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith input 12Vdc: 500mA 15W
With input 12Vdc: 900mA
With input 24Vdc: 500mA 30W
With input 24Vdc: 900mA
With input 36Vdc: 500mA 45W
With input 36Vdc: 900mA
DimmeringCannot be dimmed
Power supply unit IPIP20

Control input (4)
