Litus 5.4

Recessed for outdoor applications

recessed for outdoor applications - 10W / 13W 24Vdc - fixed optics - 16°x69° optics adjustable through 360° using the magnet provided (patented) - ø96 mm

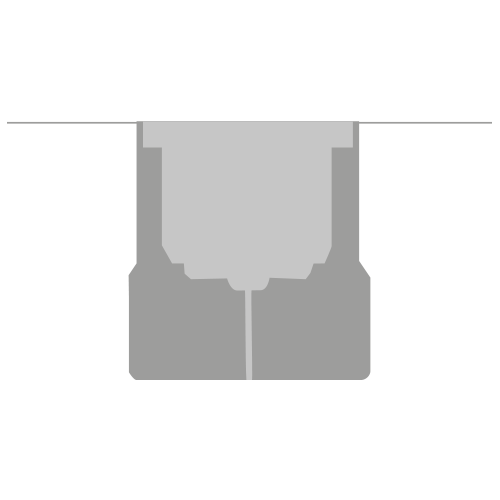

Technical data

Print technical data

kg 1000 - kN 10
kg 0,60
IP67
IK08

Installation	recessed for outdoor applications
Power consumption	10W, 13W
Power supply	24Vdc
Lumen output at source	1115 lm (3000K, 10W, CRI 80), 1200 lm (3000K, 13W, CRI >90), 1485 lm (3000K, 13W, CRI 80), 900 lm (3000K, 10W, CRI >90)
Delivered lumen output	1065 lm (3000K, 38°, 13W, CRI 80), 645 lm (3000K, 38°, 10W, CRI >90), 800 lm (3000K, 38°, 10W, CRI 80), 860 lm (3000K, 38°, 13W, CRI >90)
Datasheet	Litus 5.4 recessed for outdoor applications; drive-over up to 1000 kg; recessed (ceiling, wall, floor); Power consumption: 10W, 13W; Power supply: 24Vdc; Lumen output at source: 1115 lm (3000K, 10W, CRI 80), 1200 lm (3000K, 13W, CRI >90), 1485 lm (3000K, 13W, CRI 80), 900 lm (3000K, 10W, CRI >90); Delivered lumen output: 1065 lm (3000K, 38°, 13W, CRI 80), 645 lm (3000K, 38°, 10W, CRI >90), 800 lm (3000K, 38°, 10W, CRI 80), 860 lm (3000K, 38°, 13W, CRI >90); 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 16°, 21°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 38°, 55°: optical system consisting of a high-efficiency TIR lens, sharp 58°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter, 16°x69° adjustable through 360°: optical system consisting of a high-efficiency TIR lens combined with a high-quality elliptical technical filter and integrated with magnetic material for adjusting the ellipsis (patented), diffuse: optical system consisting of 4-mm-thick tempered extra-clear glass seal with an RAL 7015 signal white serigraphed border, resistant to knocks and scratches and high transmittance to eliminate chromatic alteration; CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL 6082 aluminium alloy, made entirely on a CNC lathe and then electro-coloured black; Screen material: screen in tempered, serigraphed-grey and transparent extra-clear glass (diffuse version), 6-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 7015 signal grey serigraphed border (optics version); power supply unit not included; includes 1.5 m neoprene cable, H05RN-F 2x0.75/0.75 Ø6.3 mm; Ingress protection: IP67; Impact resistance: IK08; 16°x69° optics adjustable through 360° using the magnet provided (patented); version with screen in serigraphed-white glass available on request, version with 8º optics and 10W power available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 600 g; Dimensions: Ø96x70 mm; Volume of thermal heatsink: Ø180x180 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC4050 Outer casing, WE0201 Magnet for adjustable optics and zoom lens, WE0604S Anti-glare screen, half transparent and half serigraphed black, WH0204 Honeycomb louvre , WL0500 Suction cup; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionLitus 5.4 recessed for outdoor applications drive-over up to 1000 kg recessed (ceiling, wall, floor) Power consumption: 10W, 13W Power supply: 24Vdc Lumen output at source: 1115 lm (3000K, 10W, CRI 80), 1200 lm (3000K, 13W, CRI >90), 1485 lm (3000K, 13W, CRI 80), 900 lm (3000K, 10W, CRI >90) Delivered lumen output: 1065 lm (3000K, 38°, 13W, CRI 80), 645 lm (3000K, 38°, 10W, CRI >90), 800 lm (3000K, 38°, 10W, CRI 80), 860 lm (3000K, 38°, 13W, CRI >90) 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 16°, 21°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 38°, 55°: optical system consisting of a high-efficiency TIR lens, sharp 58°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter, 16°x69° adjustable through 360°: optical system consisting of a high-efficiency TIR lens combined with a high-quality elliptical technical filter and integrated with magnetic material for adjusting the ellipsis (patented), diffuse: optical system consisting of 4-mm-thick tempered extra-clear glass seal with an RAL 7015 signal white serigraphed border, resistant to knocks and scratches and high transmittance to eliminate chromatic alteration CRI Colour Rendering Index: 80, >90 Body material: body made of ANTICORODAL 6082 aluminium alloy, made entirely on a CNC lathe and then electro-coloured black Screen material: screen in tempered, serigraphed-grey and transparent extra-clear glass (diffuse version), 6-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 7015 signal grey serigraphed border (optics version) power supply unit not included includes 1.5 m neoprene cable, H05RN-F 2x0.75/0.75 Ø6.3 mm Ingress protection: IP67 Impact resistance: IK08 16°x69° optics adjustable through 360° using the magnet provided (patented) version with screen in serigraphed-white glass available on request, version with 8º optics and 10W power available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 600 g Dimensions: Ø96x70 mm Volume of thermal heatsink: Ø180x180 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC4050 Outer casing, WE0201 Magnet for adjustable optics and zoom lens, WE0604S Anti-glare screen, half transparent and half serigraphed black, WH0204 Honeycomb louvre , WL0500 Suction cup tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling, wall, floor)
Number and type of LED	1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	16°, 21°, 38°, 55°, sharp 58°, 16°x69° adjustable through 360°, diffuse
CRI Colour Rendering Index	80, >90
Body material	body in black-anodized anticorodal aluminium
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Power supply unit	power supply unit not included
Power cables	includes 1.5 m neoprene cable, H05RN-F 2x0.75/0.75 Ø6.3 mm
Ingress protection	IP67
Impact resistance	IK08

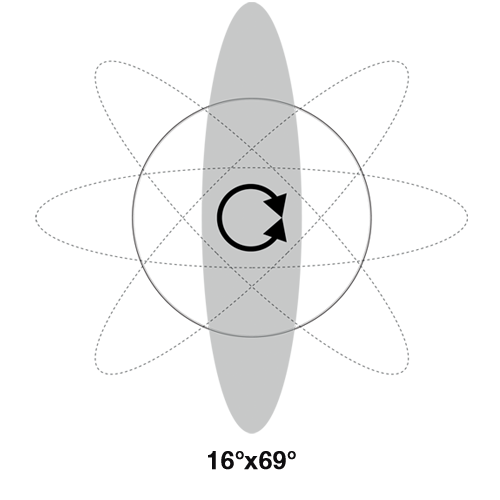

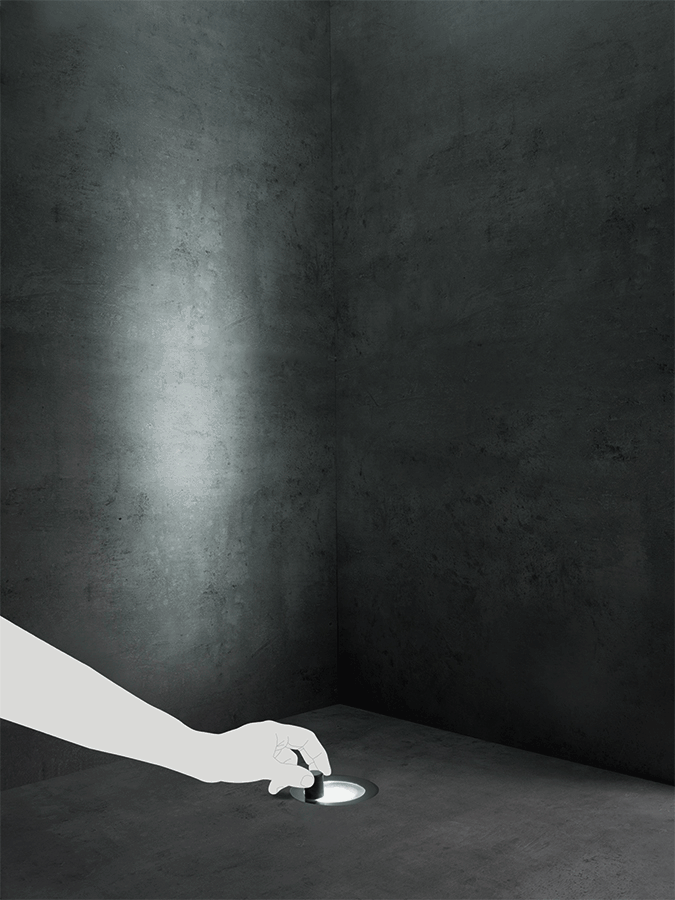

Features	16°x69° optics adjustable through 360° using the magnet provided (patented)
Notes	version with screen in serigraphed-white glass available on request, version with 8º optics and 10W power available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (5)

Outer casings

WC4050

Outer casing

Honeycomb louvre

Order together with the lighting fixture.

WH0204

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics except for sharp, diffuse and 16°x69° adjustable optics

Screens

Order together with the lighting fixture.

WE0604S

Anti-glare screen, half transparent and half serigraphed black

built into the lighting fixture

Various accessories

WL0500

Suction cup

Spare parts

WE0201

Magnet for adjustable optics and zoom lens

Cables

Choose the power cable in the code generator

Power supply units (17)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 11W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 24 Vdc input:; 24Vdc; 288W With 12 Vdc input:; 12Vdc; 144W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 24 Vdc input:; 24Vdc; 240W With 12 Vdc input:; 12Vdc; 120W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (1)

EC0TIM12840020

Timer for CASAMBI

Input	12-24-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm
Cutout dimensions	Ø51 mm
