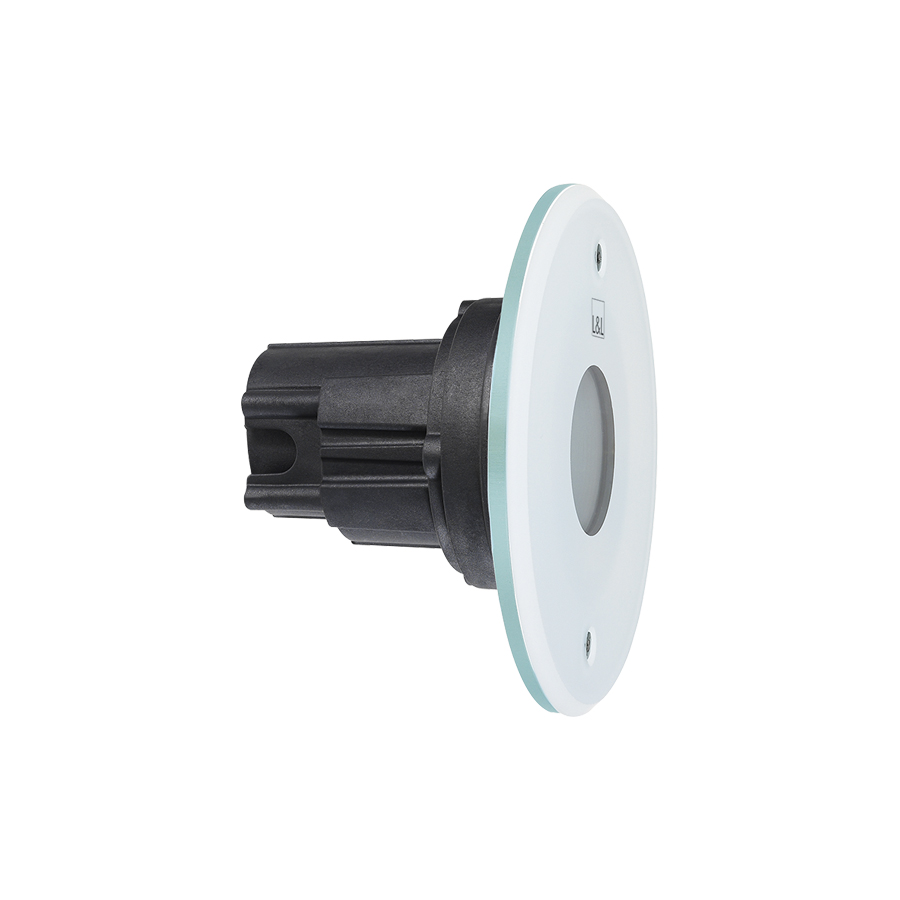

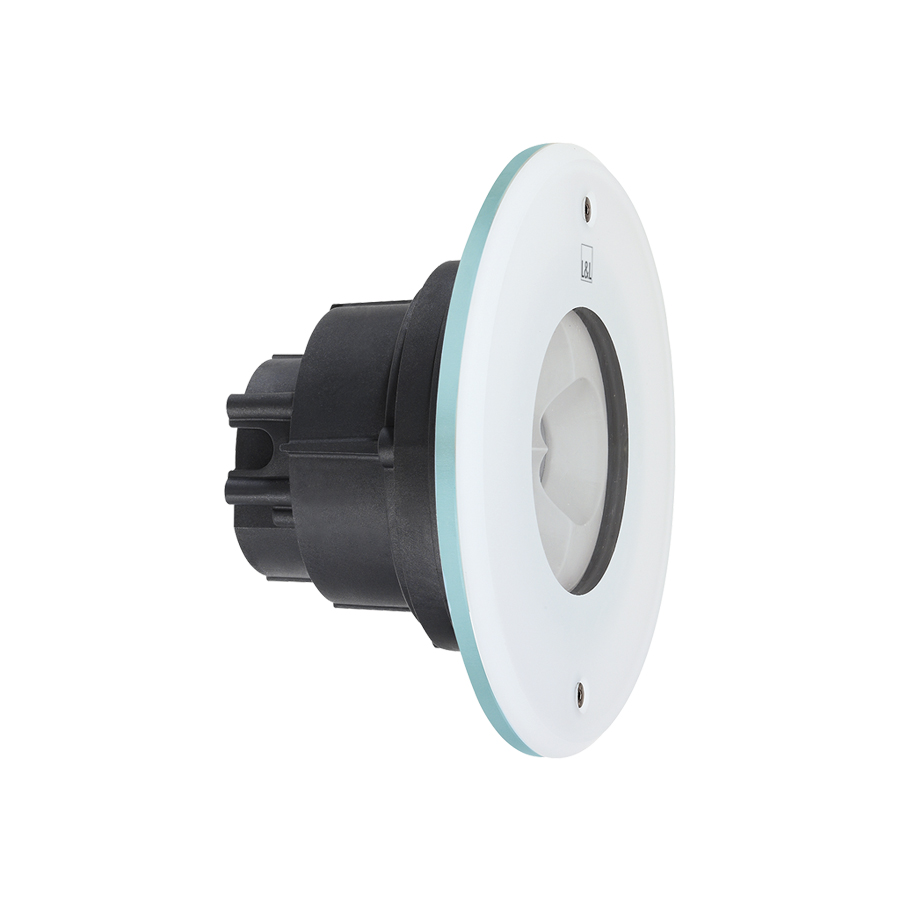

Moby 3.1

recessed for underwater applications - 30W - 24Vdc - Ø270 mm -  glass cover

Generate code

Technical data

Print technical data
  • RGBW
  • shades of cyan
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 3,00
  • IP68
  • IK10
  • IPS
  • NTC
  • A/A+/A++
Installation recessed for underwater applications (suitable for underwater applications in salt water, only suitable for underwater applications)
Power consumption 30W
Power supply 24Vdc
Lumen output at source 2537 lm (3000K),
RGBW: 1474 lm, R: 231 lm G: 432 lm B: 118 lm W: 693 lm (4000K),
cyan: 1303 lm
Delivered lumen output 1876 lm (3000K, 34°),
RGBW: 1090 lm, R: 171 lm G: 319 lm B: 87 lm W: 513 lm (4000K, 34°),
cyan: 961 lm (34°)
Datasheet

Copied

Mounting recessed (wall), max depth 10 m
Number and type of LED 5 power LEDs groups, 2-step MacAdam (white LED colour);
RGBW: 5 RGBW LEDs groups;
Cyan: 5 Cyan LEDs groups
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGBW, shades of cyan
Optics 22°, 34°, 62°, 31°x64°
CRI Colour Rendering Index 80
Body material body in thermally conductive plastic
Screen material glass cover with vitrified serigraphy
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm;
RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection IP68
Impact resistance IK10
Status Available

Read more

Close

Accessories and power supply units

Accessories (2)

Outer casings

WC5203

Outer casing

Honeycomb louvre

Order together with the lighting fixture.

WH0403

Honeycomb louvre

built into the lighting fixture

Power supply units (12)

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 132W
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 192W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67

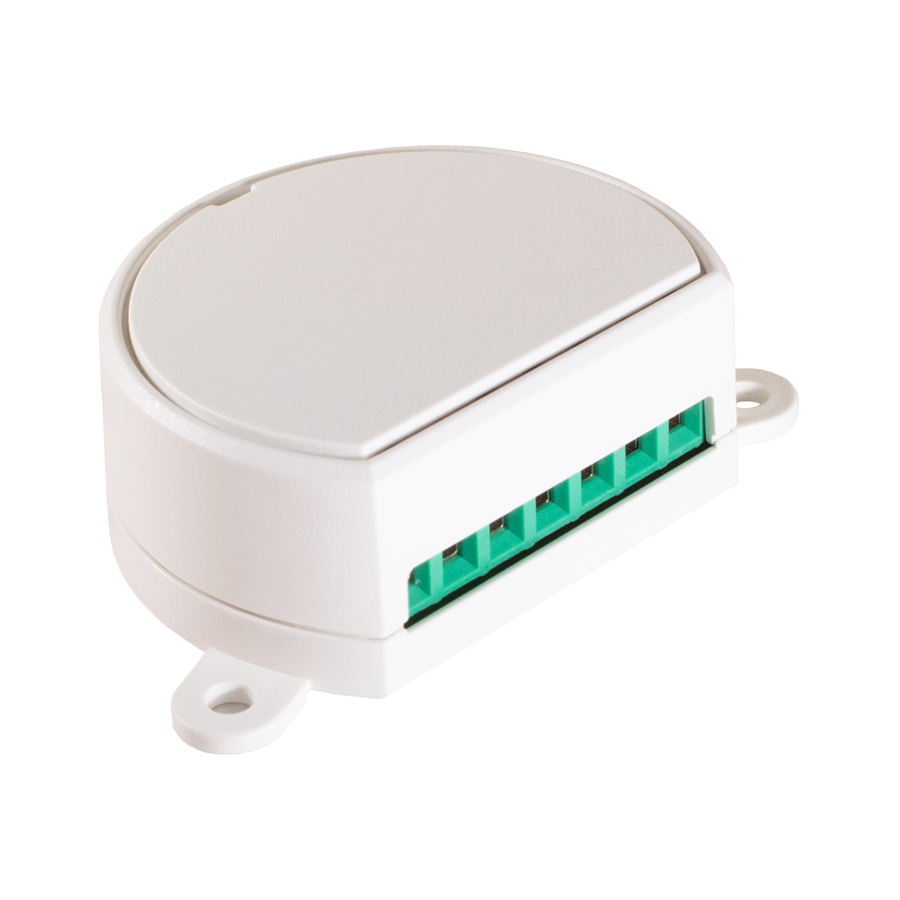

Control gear (4)

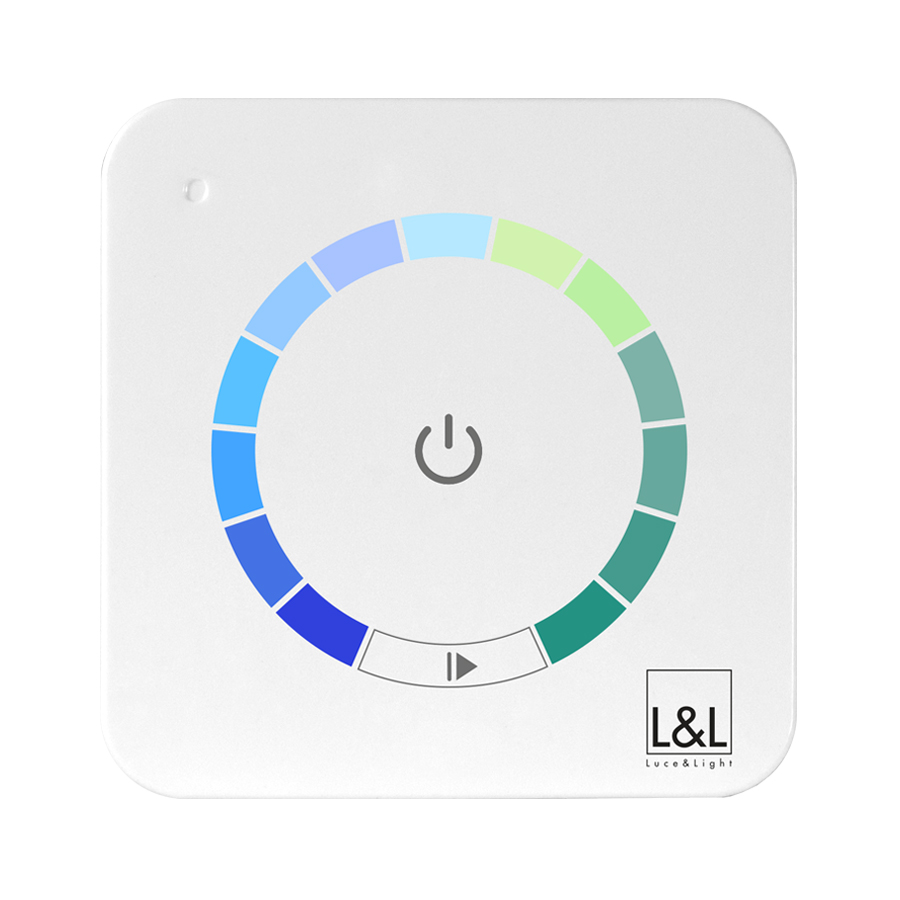

Control input (5)
