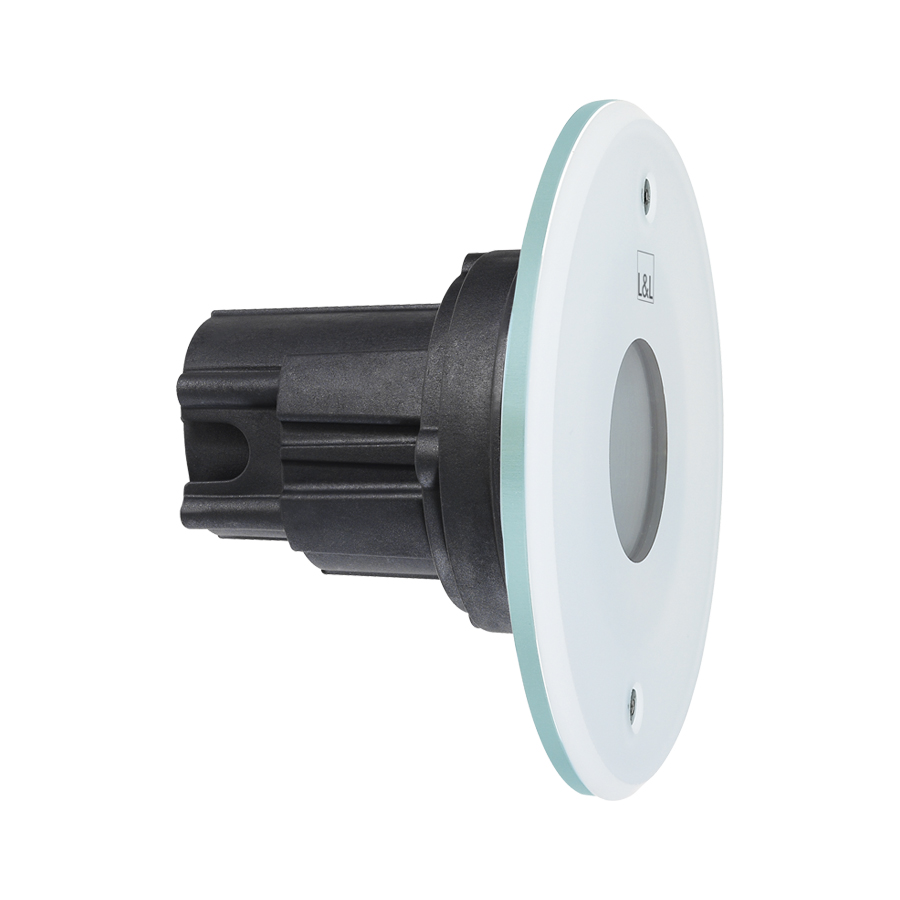

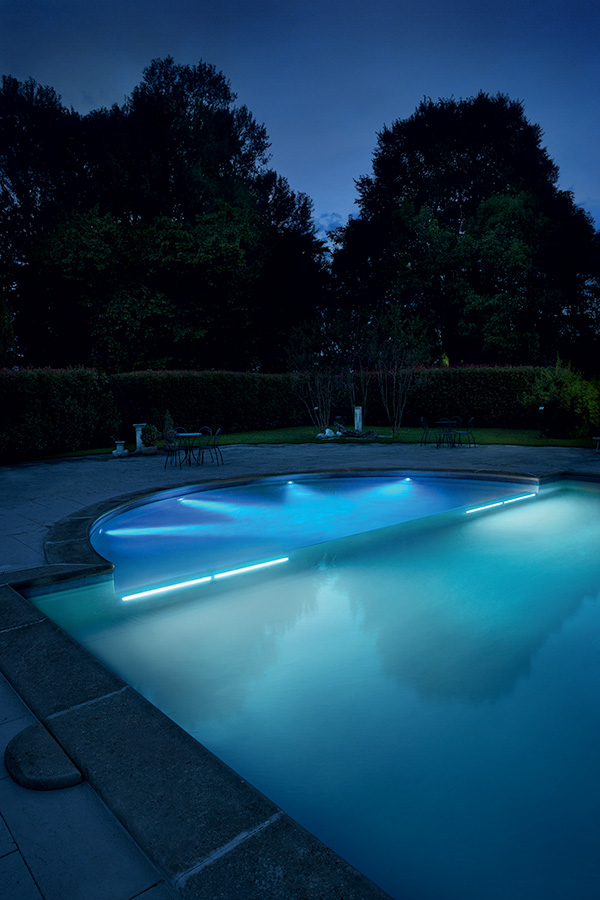

Moby 1.1

recessed for underwater applications - 9W - 24Vdc - Ø180 mm - glass cover

Technical data

Print technical data

kg 1,42
IP68
IK10

Installation	recessed for underwater applications (suitable for underwater applications in salt water, only suitable for underwater applications)
Power consumption	9W
Power supply	24Vdc
Lumen output at source	507 lm (3000K), RGBW: 295 lm, R: 47 lm G: 85 lm B: 24 lm W: 139 lm (4000K), cyan: 260 lm
Delivered lumen output	359 lm (3000K, 34°), RGBW: 208 lm, R: 33 lm G: 61 lm B: 16 lm W: 98 lm (4000K, 34°), cyan: 184 lm (34°)
Datasheet	Moby 1.1 recessed for underwater applications (suitable for underwater applications in salt water, only suitable for underwater applications); recessed (wall), max depth 10 m; Power consumption: 9W; Power supply: 24Vdc; Lumen output at source: 507 lm (3000K), RGBW: 295 lm, R: 47 lm G: 85 lm B: 24 lm W: 139 lm (4000K), cyan: 260 lm; Delivered lumen output: 359 lm (3000K, 34°), RGBW: 208 lm, R: 33 lm G: 61 lm B: 16 lm W: 98 lm (4000K, 34°), cyan: 184 lm (34°); 1 power LED group, 2-step MacAdam (white LED colour); RGBW: 1 power LED RGBW group, Cyan: 1 power LED Cyan group 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan; Optics: 22°, 34°, 62°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, 31°x64°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality elliptical technical filter.; CRI Colour Rendering Index: 80; Body material: body in thermally conductive plastic; Screen material: glass cover in 12-mm-thick, tempered extra-clear glass with vitrified serigraphy suitable for installations in seawater and guaranteeing resistance to corrosion and to knocks and scratches. Mixing chamber to ensure the light's chromatic uniformity.; power supply unit not included; includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm; Ingress protection: IP68; Impact resistance: IK10; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; This is an NTC thermistor mounted on the LED board to protect the lighting fixture against overheating. Should the product function at an operating temperature greater than the maximum temperature at which it can operate correctly, the protection is activated and gradually reduces the power. The NTC causes the integrated electronic parts to cool down to avoid the lighting fixture instantly switching itself off. When the operating temperature is again within normal range, the NTC automatically restores the lighting fixture’s original operating conditions; Operating temperature: 0°C — +45°C (installation underwater); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 1420 g; Dimensions: Ø180x134 mm; Cutout dimensions: Ø200 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WC5201 Outer casing, WH0401 Honeycomb louvre ; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionMoby 1.1 recessed for underwater applications (suitable for underwater applications in salt water, only suitable for underwater applications) recessed (wall), max depth 10 m Power consumption: 9W Power supply: 24Vdc Lumen output at source: 507 lm (3000K), RGBW: 295 lm, R: 47 lm G: 85 lm B: 24 lm W: 139 lm (4000K), cyan: 260 lm Delivered lumen output: 359 lm (3000K, 34°), RGBW: 208 lm, R: 33 lm G: 61 lm B: 16 lm W: 98 lm (4000K, 34°), cyan: 184 lm (34°) 1 power LED group, 2-step MacAdam (white LED colour); RGBW: 1 power LED RGBW group, Cyan: 1 power LED Cyan group 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan Optics: 22°, 34°, 62°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, 31°x64°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality elliptical technical filter. CRI Colour Rendering Index: 80 Body material: body in thermally conductive plastic Screen material: glass cover in 12-mm-thick, tempered extra-clear glass with vitrified serigraphy suitable for installations in seawater and guaranteeing resistance to corrosion and to knocks and scratches. Mixing chamber to ensure the light's chromatic uniformity. power supply unit not included includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm Ingress protection: IP68 Impact resistance: IK10 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; This is an NTC thermistor mounted on the LED board to protect the lighting fixture against overheating. Should the product function at an operating temperature greater than the maximum temperature at which it can operate correctly, the protection is activated and gradually reduces the power. The NTC causes the integrated electronic parts to cool down to avoid the lighting fixture instantly switching itself off. When the operating temperature is again within normal range, the NTC automatically restores the lighting fixture’s original operating conditions Operating temperature: 0°C — +45°C (installation underwater) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 1420 g Dimensions: Ø180x134 mm Cutout dimensions: Ø200 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WC5201 Outer casing, WH0401 Honeycomb louvre tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall), max depth 10 m
Number and type of LED	1 power LED group, 2-step MacAdam (white LED colour); RGBW: 1 power LED RGBW group, Cyan: 1 power LED Cyan group 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, RGBW, shades of cyan

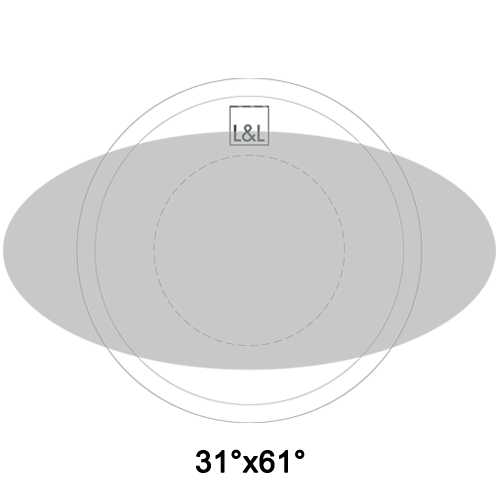

Optics	22°, 34°, 62°, 31°x64°
CRI Colour Rendering Index	80
Body material	body in thermally conductive plastic
Screen material	glass cover with vitrified serigraphy
Power supply unit	power supply unit not included
Power cables	includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection	IP68
Impact resistance	IK10
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file
IES Photometric file
Energy label Language
- Italiano
- English
- Deutsch
- Español
- Russian
- Polski
- Nederlands
- Czech
- Slovak
- Portugues
- Français

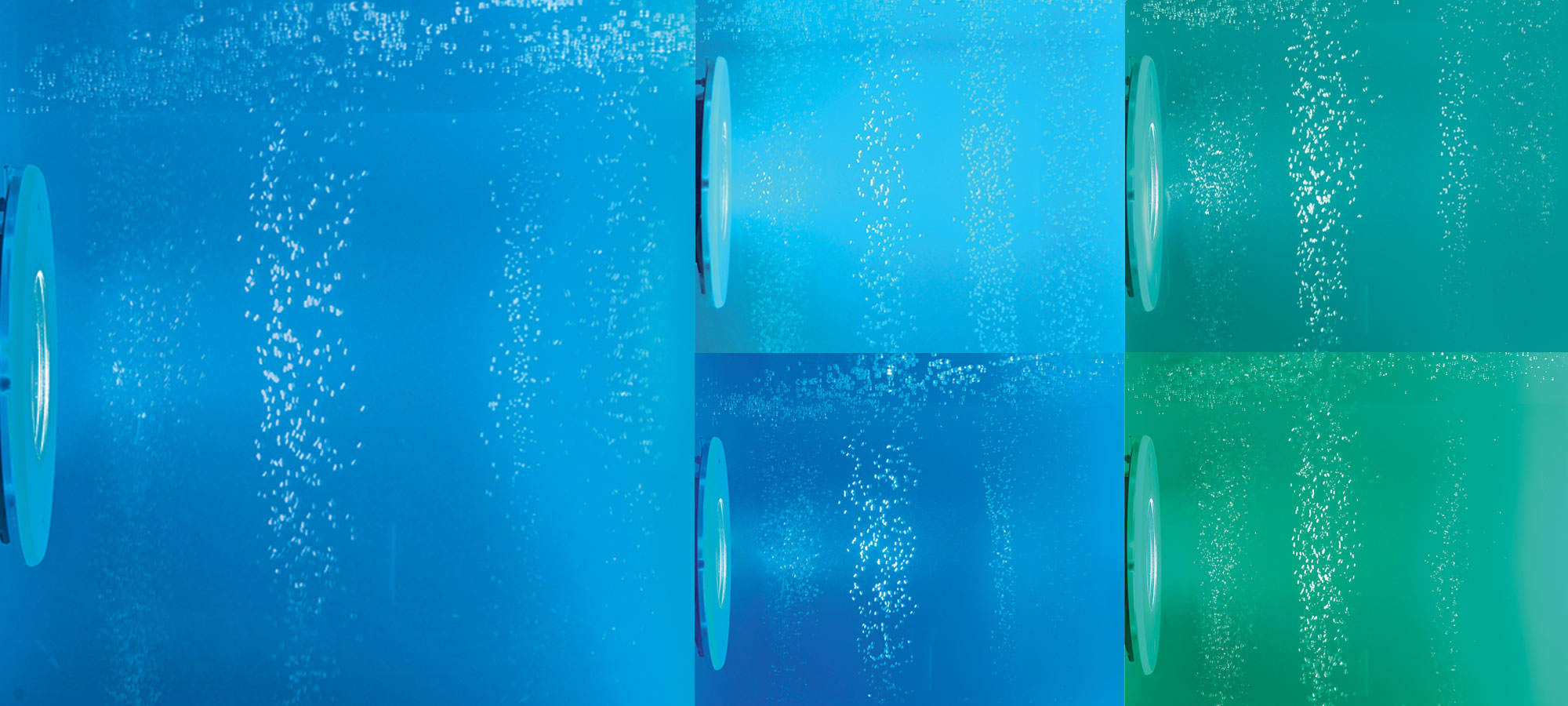

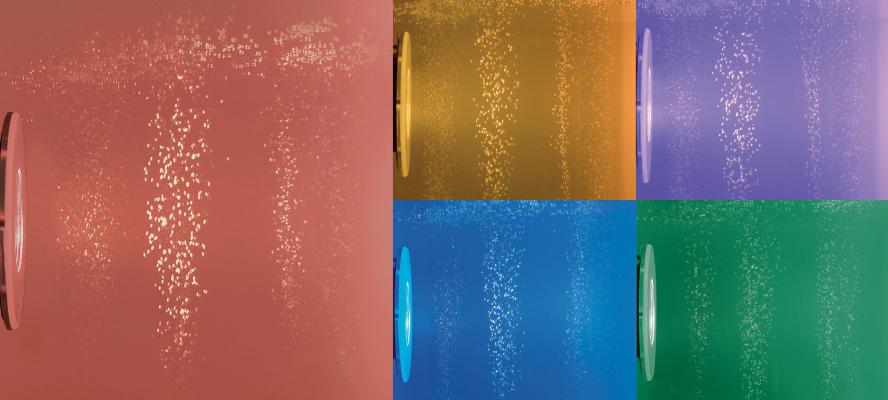

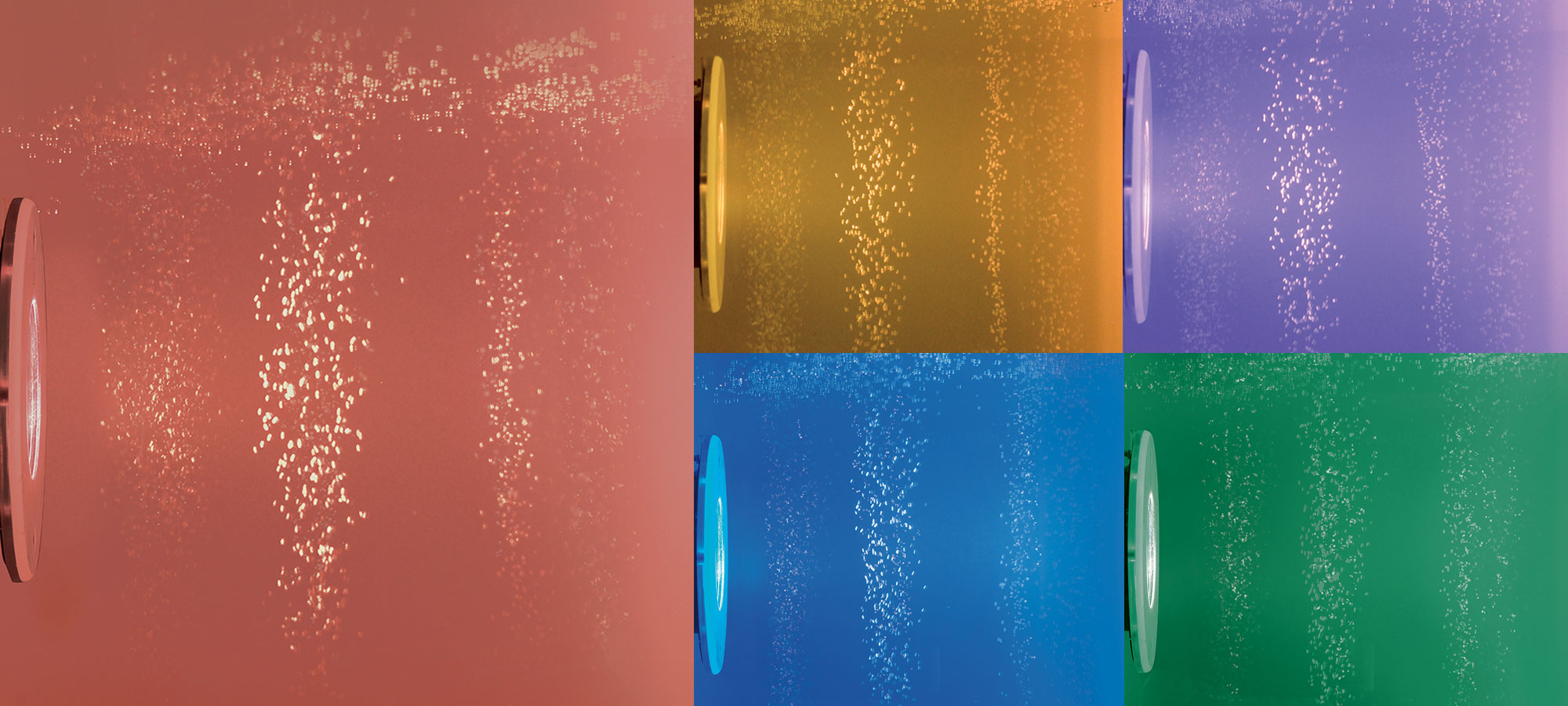

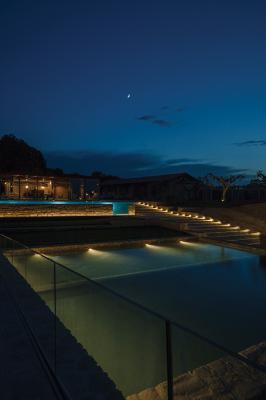

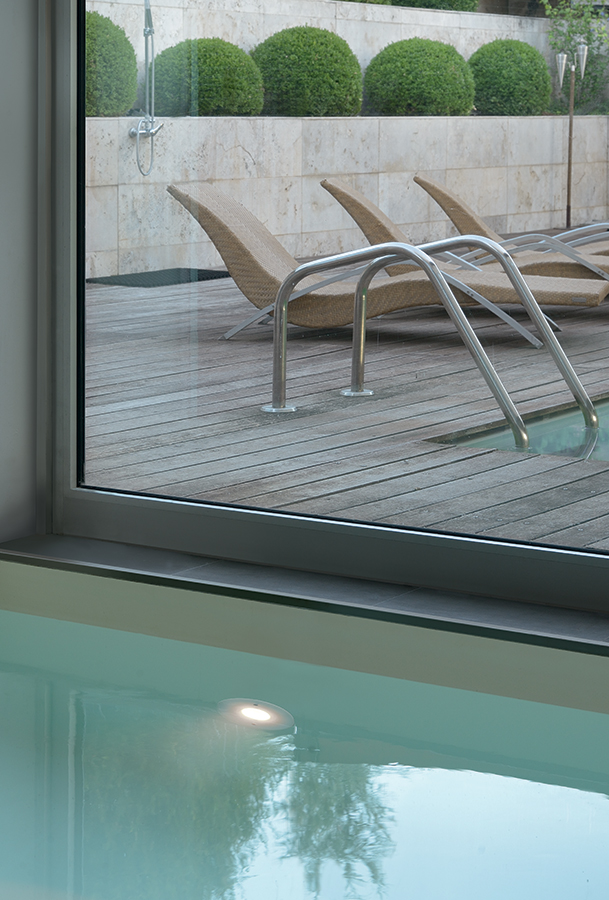

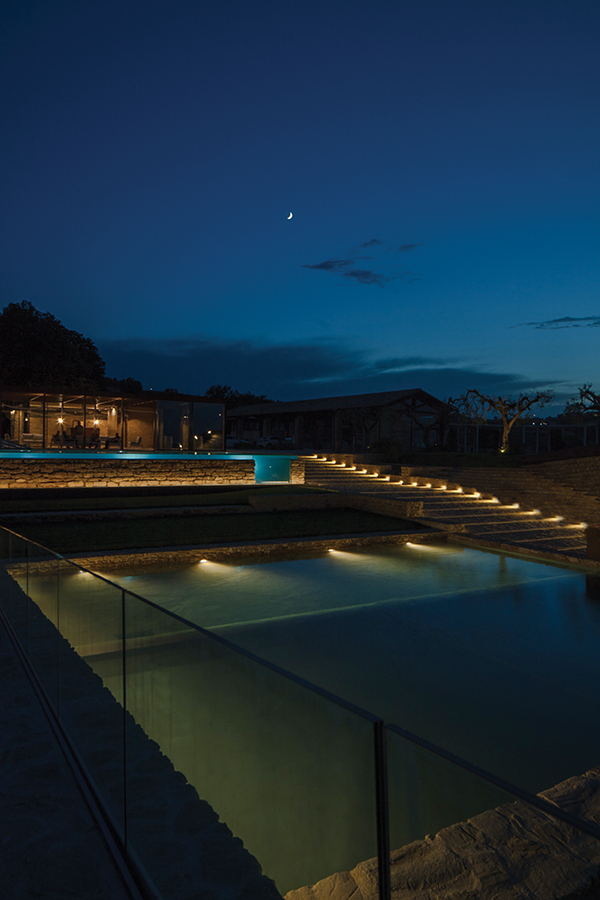

Gallery

Accessories and power supply units

Accessories (2)

Outer casings

WC5201

Outer casing

Honeycomb louvre

Order together with the lighting fixture.

WH0401

Honeycomb louvre

built into the lighting fixture

Power supply units (15)

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input	12-24-48Vdc
Output	With 24 Vdc input:; 24Vdc; 288W With 12 Vdc input:; 12Vdc; 144W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2

Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24Vdc
Output	2 channels With 24 Vdc input:; 24Vdc; 384W 4 channels With 24 Vdc input:; 24Vdc; 384W 2 channels With 12 Vdc input:; 12Vdc; 192W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W 4 channels With 12 Vdc input:; 12Vdc; 192W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

TLR02

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU

Input	12-24Vdc
Output	4 channels 24Vdc; 240W 3 channels 12Vdc; 90W 24Vdc; 180W 4 channels 12Vdc; 120W
Dimmering	Stand alone
Power supply unit IP	IP20

TLR03

Cyan colour controller with integrated 2-channel receiver

order in addition to PSU

Input	12-24Vdc
Output	24Vdc; 192W 12Vdc; 96W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

Control input (5)

TLC08

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC10

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TOUCH02L1

Touch-screen device. Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

Touch-screen device. Required outer casing not included WC0302.

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW
