Moby 1.0

9W - 24Vdc - Ø182 mm - trim in AISI 316L stainless steel

Generate code

Technical data

Print technical data
  • RGBW
  • shades of cyan
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 1,20
  • IP68
  • IK10
  • IPS
  • NTC
  • A/A+/A++

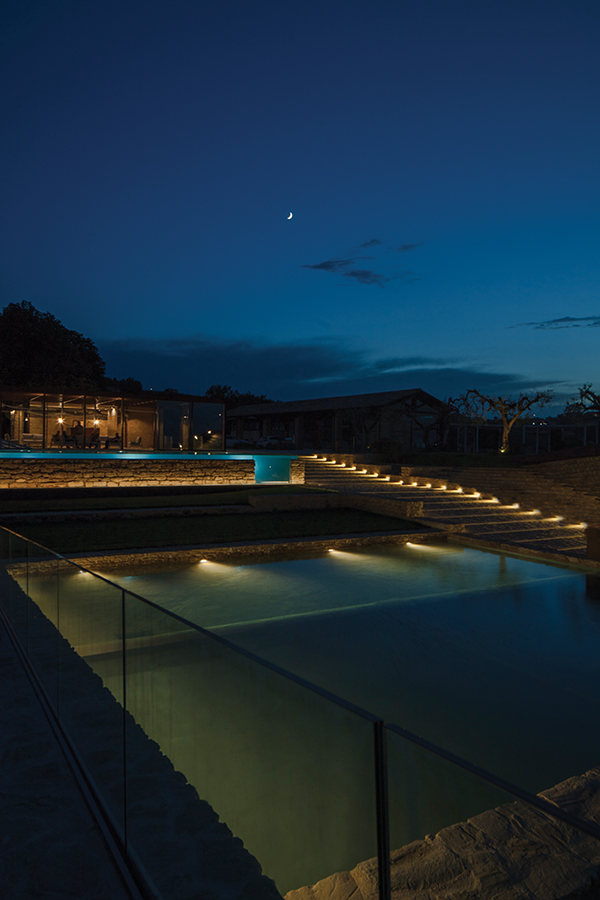

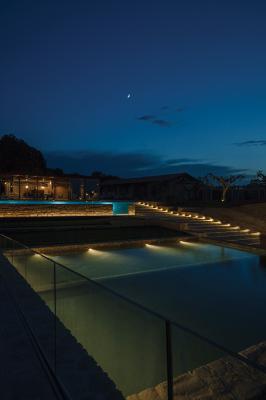

Installation recessed for underwater applications (not suitable for underwater applications in salt water, only suitable for underwater applications)
Power 9W
Power supply 24Vdc
Lumen output at source 507 lm (3000K),
RGBW: 295 lm, R: 47 lm G: 85 lm B: 24 lm W: 139 lm (4000K),
cyan: 260 lm
Delivered lumen output 359 lm (3000K, 34°);
RGBW: 208 lm, R: 33 lm, G: 61 lm, B: 16 lm, W: 98 lm (4000K, 34°);
cyan: 184 lm (34°)
Datasheet

Copied

Mounting recessed (wall), max depth 10 m
Number and type of LED 1 power LED group, 2-step MacAdam (white LED colour);
RGBW: 1 power LED RGBW group;
Cyan: 1 power LED Cyan group
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGBW, shades of cyan

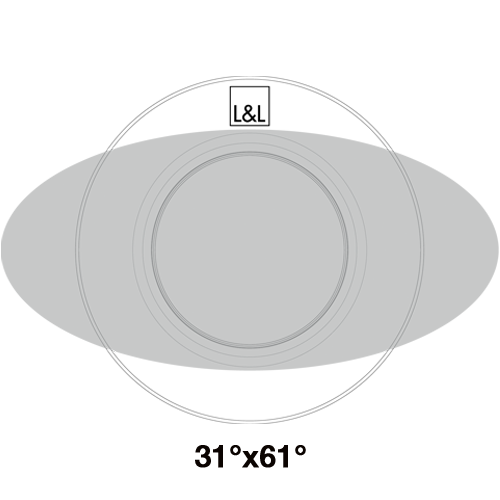

Optics 22°, 34°, 62°, 31°x64°
Body material body in thermally conductive plastic, trim in AISI 316L stainless steel
Screen material screen in tempered, transparent extra-clear glass
Finishes micro-blasted stainless steel
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm;
RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection IP68
Impact resistance IK10
Status Available

Read more

Close

Accessories and power supply units

Accessories (3)

Outer casings

WC5201

Outer casing

Honeycomb louvre

WH0401

Honeycomb louvre

built into the lighting fixture

Order together with the lighting fixture.

Various accessories

WC5301

Accessory for PVC liner

Power supply units (10)

Control gear (3)

Control input (5)
