Moby 2.1

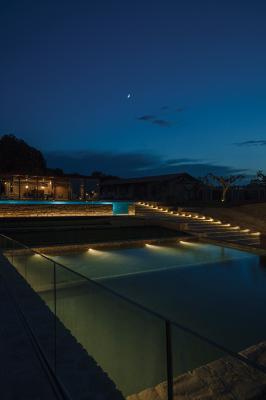

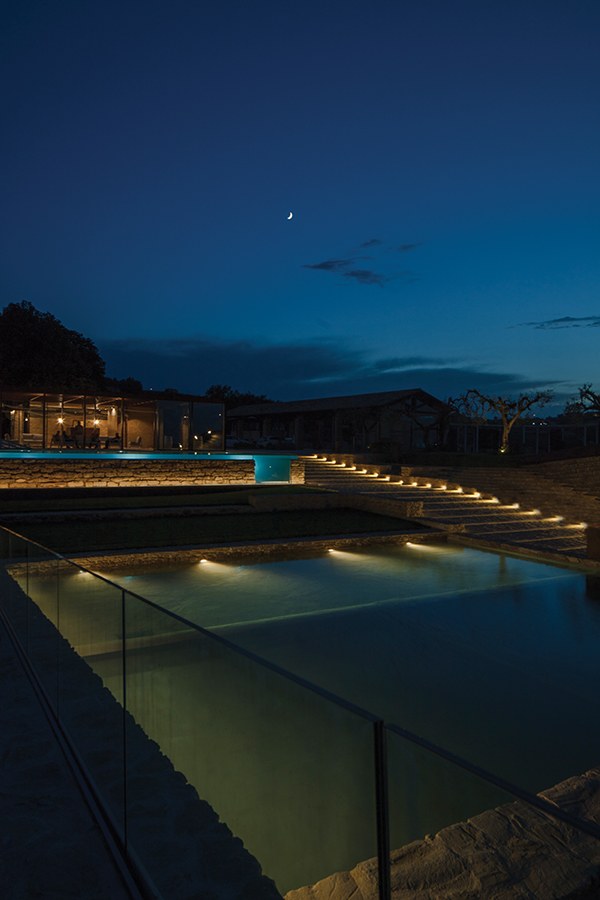

recessed for underwater applications - 20W - 24Vdc - Ø232 mm -  glass cover

  • German Design Award 2019

Generate code

Technical data

Print technical data
  • RGBW
  • shades of cyan
  • complies with the European standard EN 60598-1
  • EAC
  • BIS R-41105201
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 2,20
  • IP68
  • IK10
  • IPS
  • NTC
  • A/A+/A++
Installation recessed for underwater applications (suitable for use in seawater, only suitable for underwater applications)
Power consumption 20W
Power supply 24Vdc
Lumen output at source 1522 lm (3000K),
RGBW: 884 lm, R: 138 lm G: 259 lm B: 69 lm W: 418 lm (4000K),
cyan: 782 lm
Delivered lumen output 1078 lm (3000K, 34°),
RGBW: 626 lm, R: 97 lm G: 184 lm B: 48 lm W: 297 lm (4000K, 34°),
cyan: 552 lm (34°)
Datasheet

Copied

Mounting recessed (wall), max depth 10 m
Number and type of LED 3 power LEDs groups, 2-step MacAdam (white LED colour);
RGBW: 3 RGBW LEDs groups;
Cyan: 3 Cyan LEDs groups
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGBW, shades of cyan
Optics 22°, 34°, 62°, 31°x64°
CRI Colour Rendering Index 80
Body material body in thermally conductive plastic
Screen material glass cover with vitrified serigraphy
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm;
RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection IP68
Impact resistance IK10
Status Available

Read more

Close

Accessories and power supply units

Accessories (2)

Outer casings

WC5202

Outer casing

Honeycomb louvre

Order together with the lighting fixture.

WH0402

Honeycomb louvre

built into the lighting fixture

Power supply units (11)

Control gear (6)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 24 Vdc input:; 24Vdc; 288W
With 12 Vdc input:; 12Vdc; 144W ⚠
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARVUNID2

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W

2 channels

With 24 Vdc input:; 24Vdc; 384W

4 channels

With 24 Vdc input:; 24Vdc; 384W

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 192W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
Dimmering0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IPIP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 384W
With 12 Vdc input:; 12Vdc; 192W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 480W
With 12 Vdc input:; 12Vdc; 240W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR02

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
Required TLC08 or TLC09 remote control, not included

Input12-24Vdc
Output

4 channels

With 24 Vdc input:; 24Vdc; 240W

3 channels

With 12 Vdc input:; 12Vdc; 90W ⚠
With 24 Vdc input:; 24Vdc; 180W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringStand alone
Power supply unit IPIP20

TLR03

Cyan colour controller with integrated 2-channel receiver

order in addition to PSU
Required TLC10 remote control, not included

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 192W
With 12 Vdc input:; 12Vdc; 96W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20
