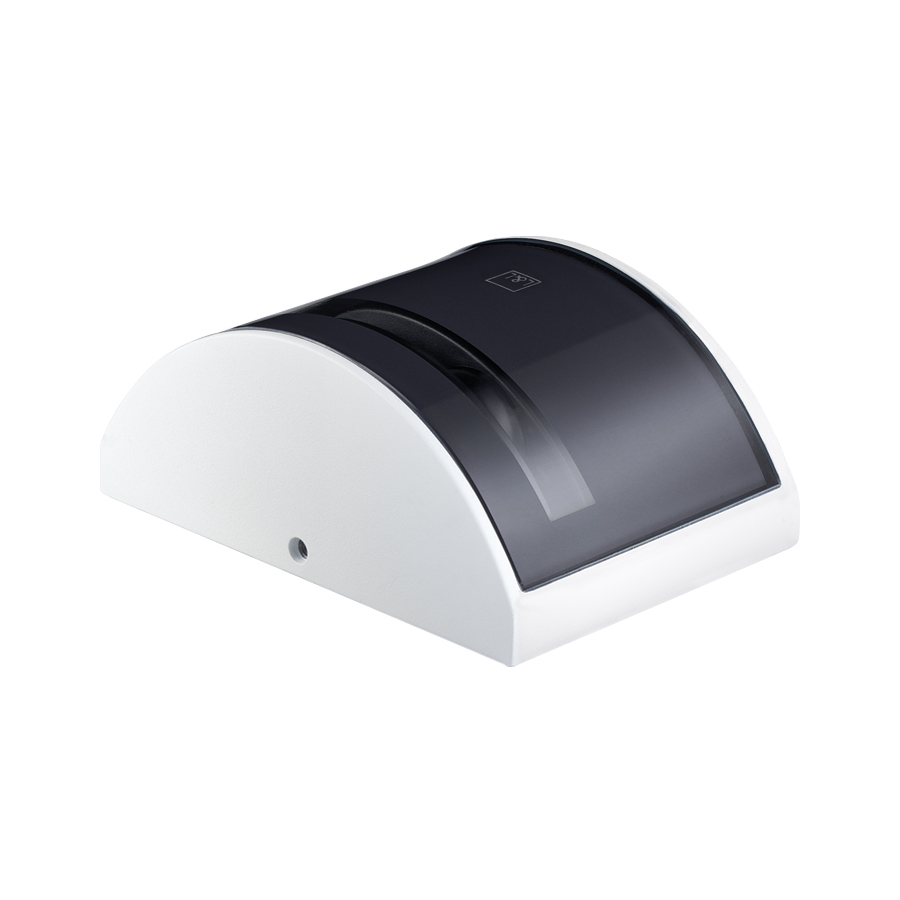

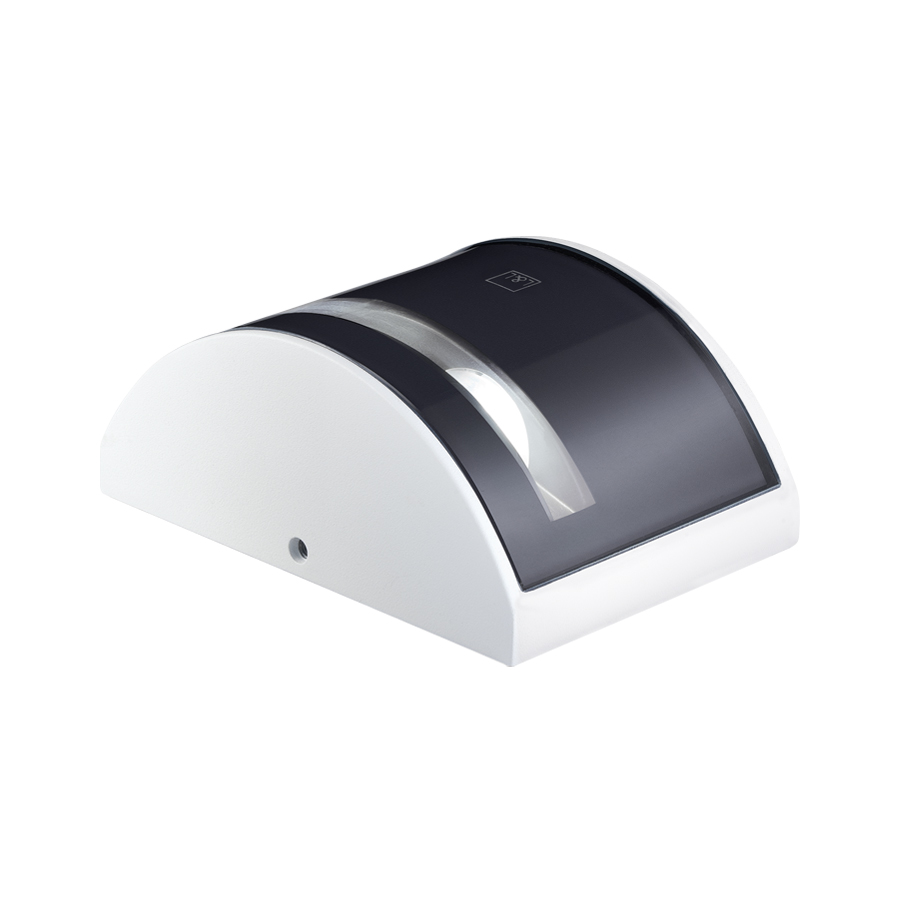

Lyss 1.0

projector for outdoor applications - 5/7W 230Vac - clear 10°x180° and satin 20°x180° optics

Generate code

Technical data

Print technical data

Updated to LY10119YE

  • complies with the European standard EN 60598-1
  • CB
  • CMIM
  • lighting fixture with LED technology
  • gross weight
    kg 0,79
  • IP65
  • IK05
  • PID
  • RAL finish on request
  • A/A+/A++
Installation projector for outdoor applications
Power consumption 7W
Power supply 230Vac
Lumen output at source 530 lm (3000K, 7W)
Delivered lumen output 170 lm (3000K, 20°x180°, 7W)
Datasheet

Copied

Mounting surface mounted (windowsill, arch)
Number and type of LED 2 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C)
LED colour 4000K
Optics satin 20°x180°
CRI Colour Rendering Index 80
Body material body in die-cast aluminium
Screen material screen in serigraphed extra-clear glass
Finishes white
Power supply unit built-in power supply unit
Power cables includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection IP65
Impact resistance IK05
Status Available
