Lyss 1.0

Projectors for outdoor applications

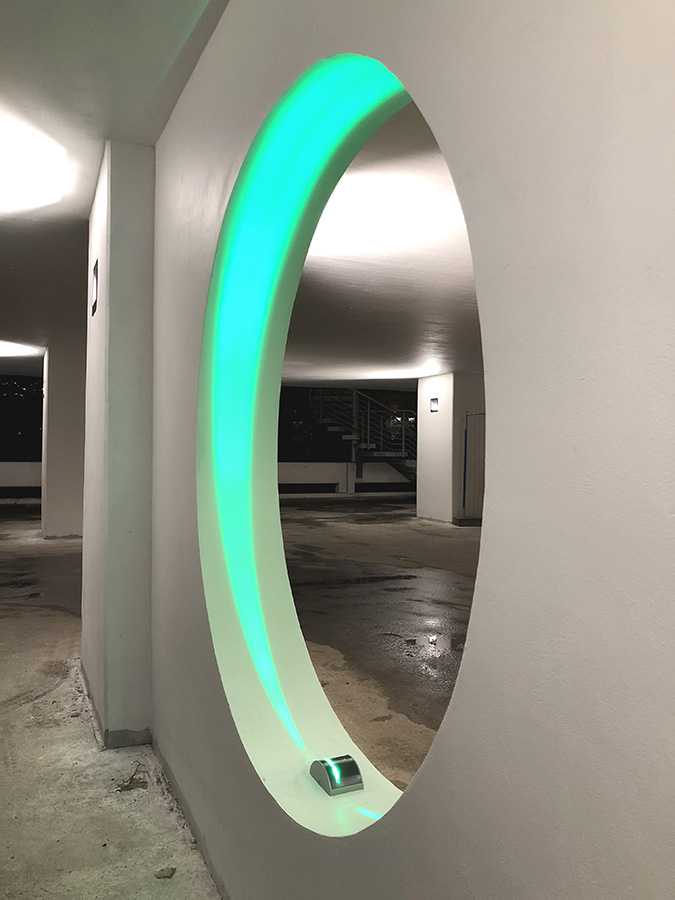

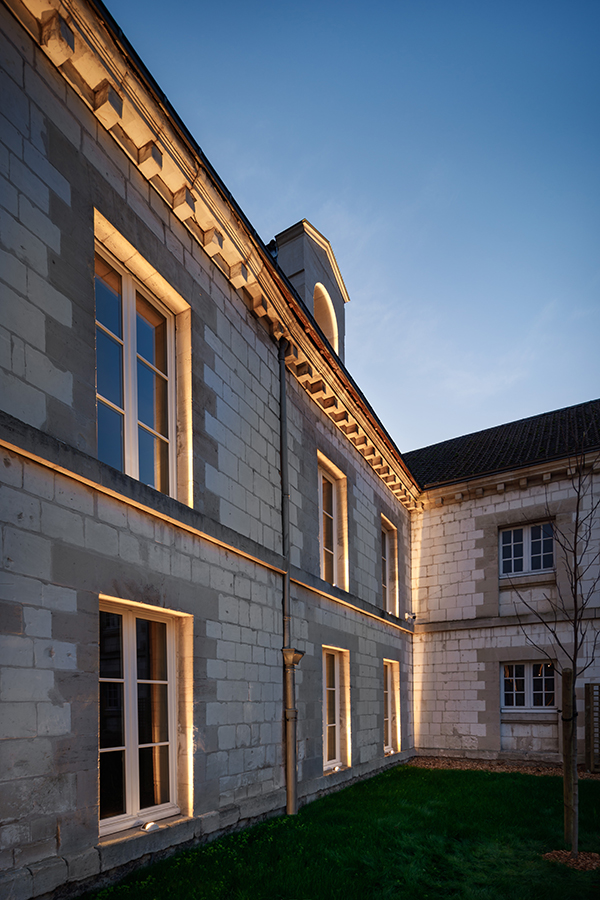

projector for outdoor applications - 5/7W 230Vac - clear 10°x180° and satin 20°x180° optics

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

RAL finishes
Casambi-compatible version, controllable with the Casambi app

Technical data

Print technical data

kg 0,79
IP65
IK05

Installation	projector for outdoor applications
Power consumption	7W, 5W
Power supply	230Vac
Lumen output at source	347 lm (3000K, 5W), 530 lm (3000K, 7W)
Delivered lumen output	109 lm (3000K, 20°x180°, 5W), 170 lm (3000K, 20°x180°, 7W)
Datasheet	Lyss 1.0 projector for outdoor applications; surface mounted (windowsill, arch); Power consumption: 7W, 5W; Power supply: 230Vac; Lumen output at source: 347 lm (3000K, 5W), 530 lm (3000K, 7W); Delivered lumen output: 109 lm (3000K, 20°x180°, 5W), 170 lm (3000K, 20°x180°, 7W); 2 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, blue; Optics: clear 10°x180°: optical system consisting of a clear TIR lens combined with a shielding element to obtain a clear and aberration-free semicircular light beam, satin 20°x180°: optical system consisting of satin TIR lens combined with a shielding element to obtain a soft and aberration-free semicircular light beam; CRI Colour Rendering Index: 80; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion; Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: screen made of 4-mm curved extra-clear glass, printed inside with ceramic paint and serigraphed, with excellent resistance to scratches; built-in power supply unit; includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP65; Impact resistance: IK05; Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 790 g; Dimensions: 130x92x54 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC0301 Outer casing, WD0500E Connection housing - white, WD0500F Connection housing - grey, WD0500H Connection housing - anthracite, WD0500T Connection housing - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionLyss 1.0 projector for outdoor applications surface mounted (windowsill, arch) Power consumption: 7W, 5W Power supply: 230Vac Lumen output at source: 347 lm (3000K, 5W), 530 lm (3000K, 7W) Delivered lumen output: 109 lm (3000K, 20°x180°, 5W), 170 lm (3000K, 20°x180°, 7W) 2 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L95 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, blue Optics: clear 10°x180°: optical system consisting of a clear TIR lens combined with a shielding element to obtain a clear and aberration-free semicircular light beam, satin 20°x180°: optical system consisting of satin TIR lens combined with a shielding element to obtain a soft and aberration-free semicircular light beam CRI Colour Rendering Index: 80 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: screen made of 4-mm curved extra-clear glass, printed inside with ceramic paint and serigraphed, with excellent resistance to scratches built-in power supply unit includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm Ingress protection: IP65 Impact resistance: IK05 Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 790 g Dimensions: 130x92x54 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC0301 Outer casing, WD0500E Connection housing - white, WD0500F Connection housing - grey, WD0500H Connection housing - anthracite, WD0500T Connection housing - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

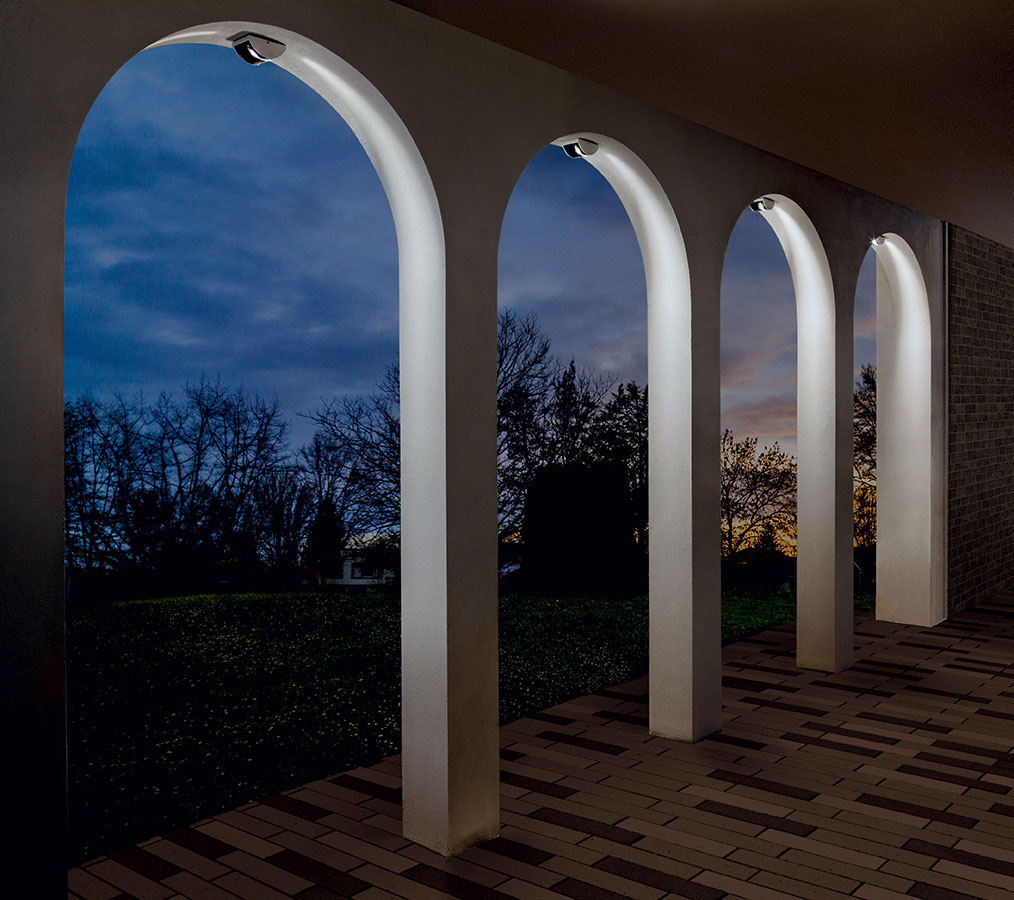

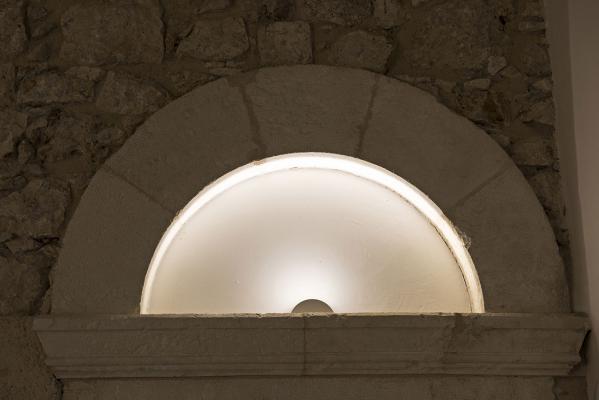

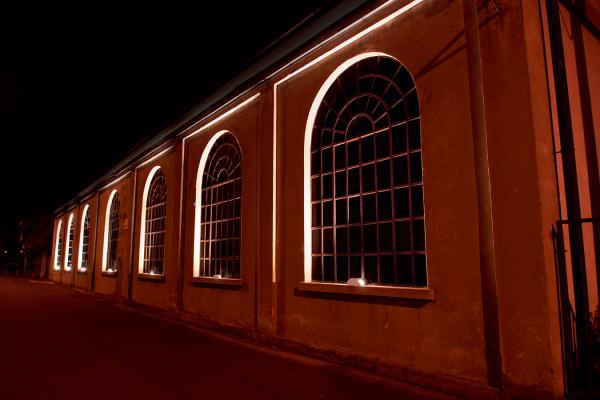

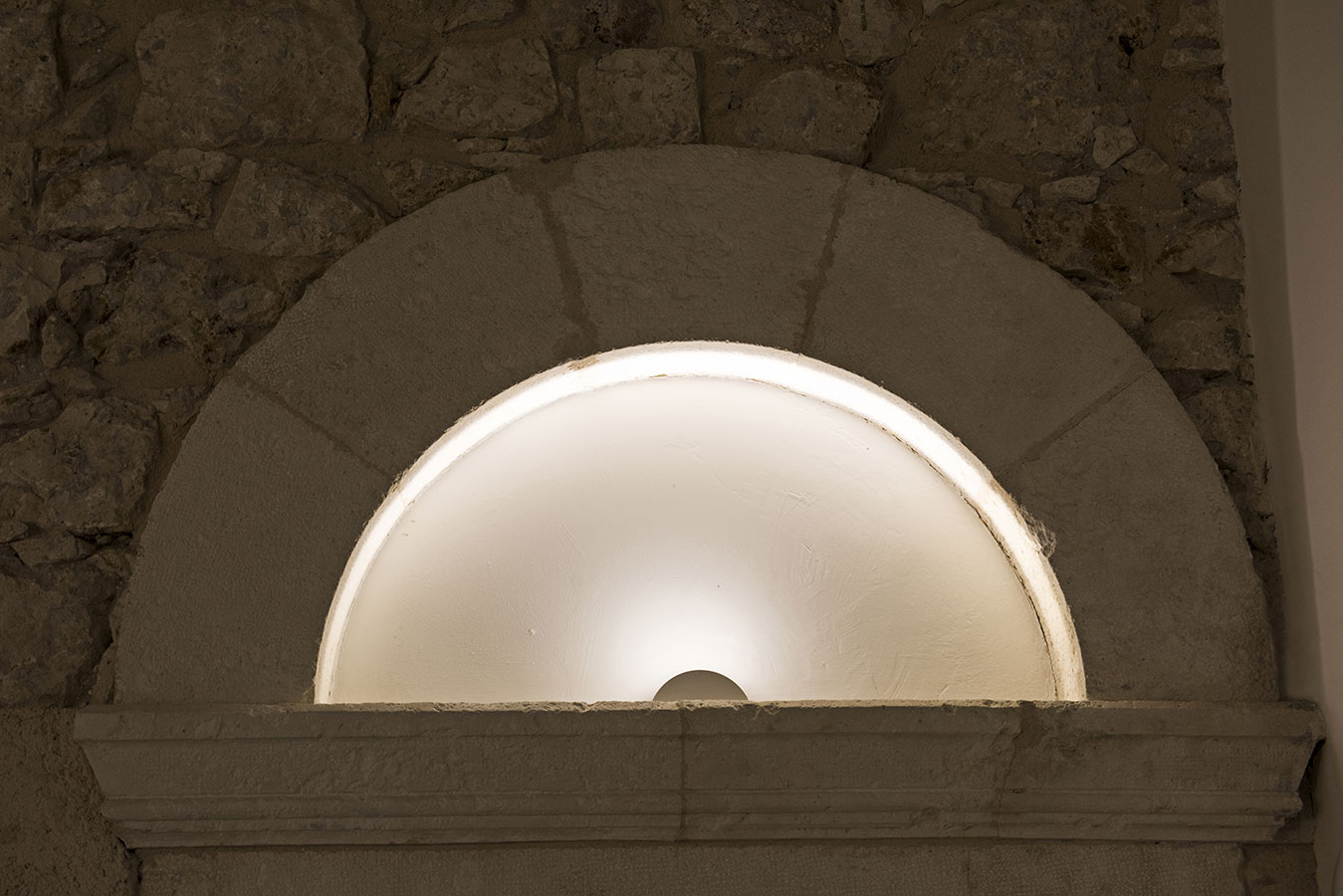

Mounting	surface mounted (windowsill, arch)
Number and type of LED	2 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L95 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, blue

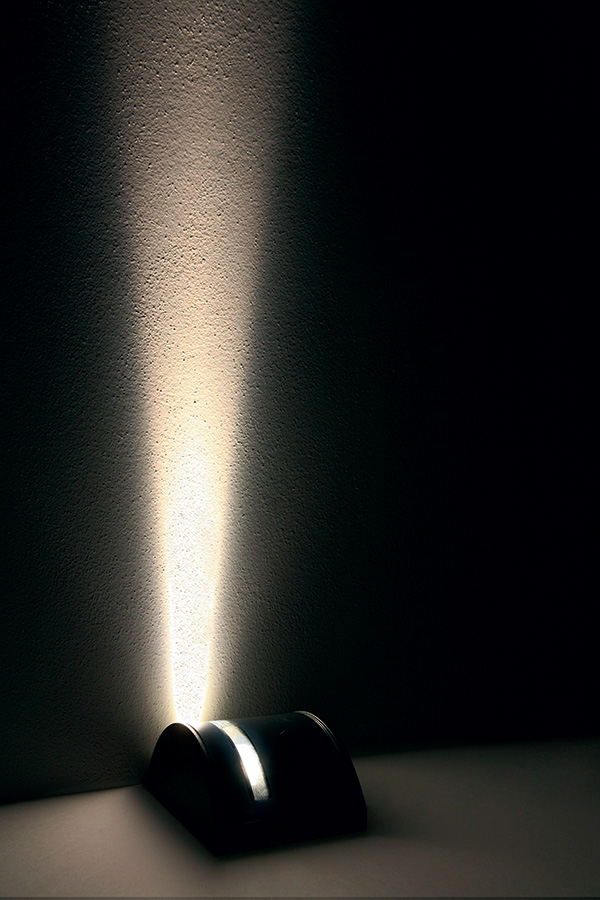

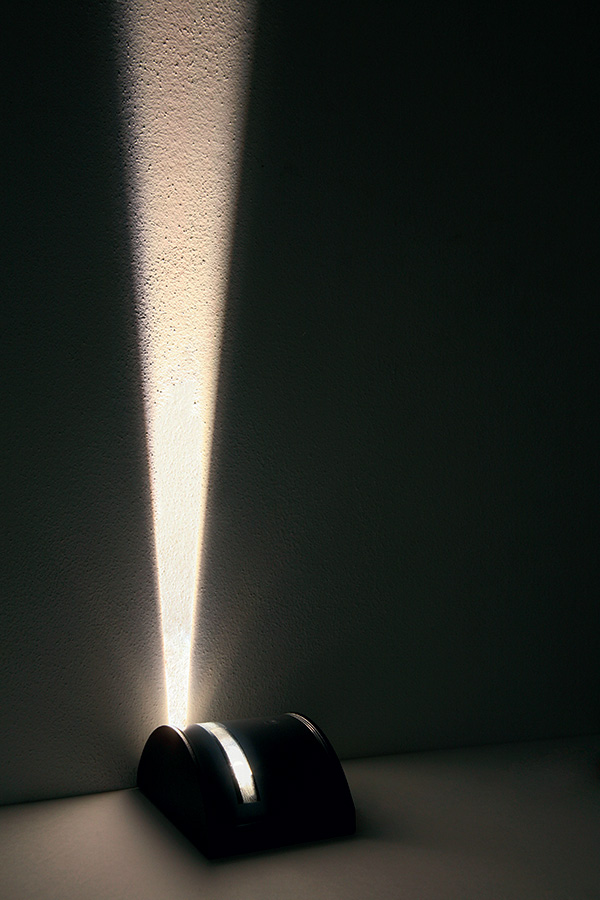

Optics	clear 10°x180°, satin 20°x180°
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed extra-clear glass
Finishes	grey, cor-ten, white, anthracite
Power supply unit	built-in power supply unit
Power cables	includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP65
Impact resistance	IK05
Status	Available

Display all

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (5)

Outer casings

WC0301

Outer casing

Various accessories

WD0500E Connection housing - white	WD0500F Connection housing - grey
WD0500H Connection housing - anthracite	WD0500T Connection housing - cor-ten

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
