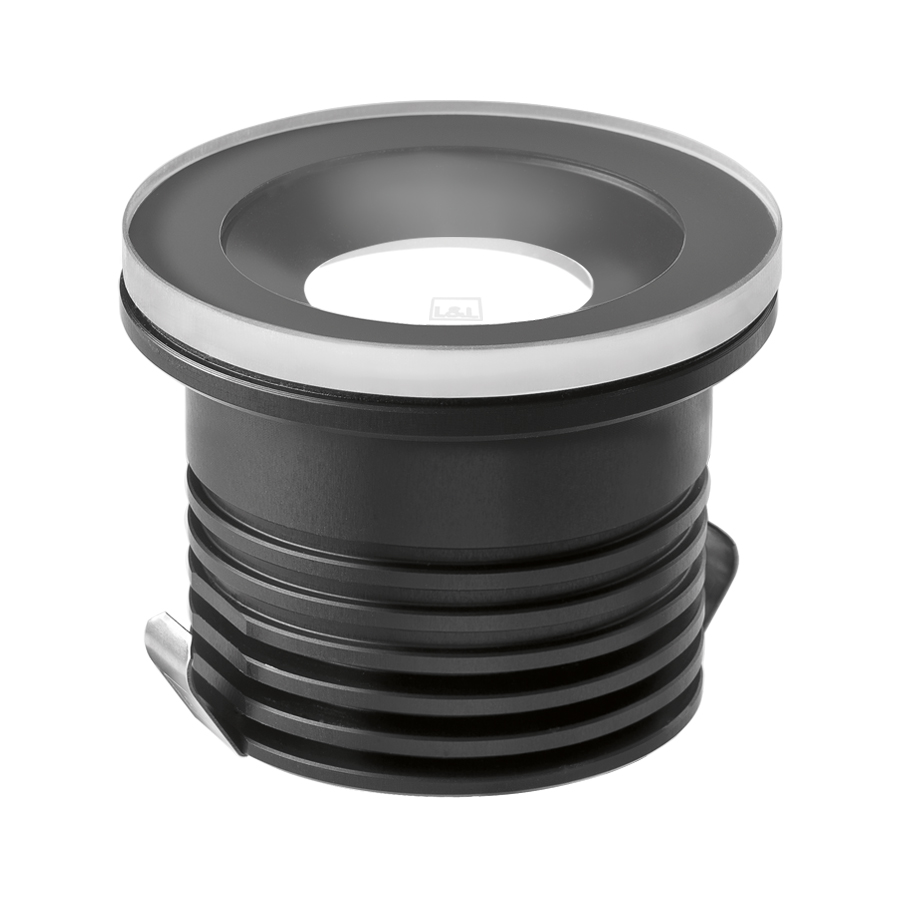

Litus 2.4

Recessed for outdoor applications

recessed for outdoor applications - 3.5W / 5W / 7W 24Vdc, RGB: max 7W, max 700mA - fixed optics - ø72 mm - RGB

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • 2200K LED colour

Technical data

Print technical data
  • RGB
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • drive-over fixture
    kg 1000 - kN 10
  • gross weight
    kg 0,35
  • IP67
  • IK08
  • IPS
  • PID
  • Casambi control
  • maximum device temperature40°C
  • F
Installation recessed for outdoor applications
Power consumption 3.5W (5° optics), 5W, 7W; RGB: max 7W
Power supply 24Vdc; RGB: max 700mA
Lumen output at source 452 lm (3000K, 5W, CRI >90),
488 lm (3000K, 5W, CRI 80),
608 lm (3000K, 7W, CRI >90),
657 lm (3000K, 7W, CRI 80),
RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA)
Delivered lumen output 284 lm (3000K, 34°, 5W, CRI >90),
352 lm (3000K, 34°, 5W, CRI 80),
374 lm (3000K, 34°, 7W, CRI >90),
463 lm (3000K, 34°, 7W, CRI 80),
RGB: 253 lm, R: 98 lm G: 114 lm B: 41 lm (700mA, 34°)
Datasheet

Copied

Mounting recessed (ceiling, wall, floor)
Number and type of LED 1 high-intensity power LED, 3-step MacAdam;
RGB: 3 power LEDs
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGB
Optics 5°, 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, sharp 61°, 13°x52°, 21°x42°, diffuse
CRI Colour Rendering Index 80, >90
Body material body in black-anodized anticorodal aluminium
Screen material screen in serigraphed-grey and transparent, tempered extra-clear glass
Power supply unit power supply unit not included
Wiring parallel; RGB: series
Power cables includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm;
RGB: includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
Ingress protection IP67
Impact resistance IK08
Notes 5° optics and 3.5W version: 4000K only CRI 80,
version with screen in serigraphed-white glass available on request
Status Available

Read more

Close

Accessories and power supply units

Accessories (4)

Power supply units (35)

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ✓
250mA constant current; max 13W ⚠
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W ✓
250mA constant current; max 12W ⚠
350mA constant current; max 17W ⚠
400mA constant current; max 19W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W ⚠
24Vdc; 20W ✓
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ✓
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AR330350TC

Home RGB

Input230Vac 50-60 Hz
Output350mA constant current; max 36W ✓
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AR330500TC

Home RGB

Input230Vac 50-60 Hz
Output500mA constant current; max 36W ✓
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W ✓
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W ✓
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W ✓
Power30W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
Power100W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W ✓
Power200W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W ✓
Power300W
DimmeringDALI-2
Power supply unit IPIP66

AV12020IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output12Vdc; 20W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 40W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 132W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 192W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 8W ✓
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 10W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV48060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV48150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output48Vdc; 150W ✓
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV48150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc; 150W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV48240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc; 240W ✓
DimmeringON/OFF
Power supply unit IPIP67

Control gear (17)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 12Vdc; 144W ⚠
With 24 Vdc input:; 24Vdc; 288W ✓
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AR330350TC

Home RGB

Input230Vac 50-60 Hz
Output350mA constant current; max 36W ✓
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AR330500TC

Home RGB

Input230Vac 50-60 Hz
Output500mA constant current; max 36W ✓
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,5W ✓
With 24 Vdc input:; 350mA constant current; max 25W ✓
With 48 Vdc input:; 350mA constant current; max 50W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 500mA constant current; max 18W ✓
With 24 Vdc input:; 500mA constant current; max 36W ✓
With 48 Vdc input:; 500mA constant current; max 72W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336700D1

Easy RGB - Low-voltage 3-channel controller with 700mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 700mA constant current; max 25W ✓
With 24 Vdc input:; 700mA constant current; max 50W ✓
With 48 Vdc input:; 700mA constant current; max 100W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input24Vdc
48Vdc
Output

1 channel

With 24 Vdc input:; 1050mA constant current; max 20W ⚠
With 24 Vdc input:; 350mA constant current; max 6,7W ⚠
With 24 Vdc input:; 500mA constant current; max 9,5W ⚠
With 24 Vdc input:; 700mA constant current; max 13,3W ⚠
With 48 Vdc input:; 1050mA constant current; max 45W ⚠
With 48 Vdc input:; 350mA constant current; max 15,5W ⚠
With 48 Vdc input:; 500mA constant current; max 21,5W ⚠
With 48 Vdc input:; 700mA constant current; max 30W ⚠

2 channels

With 24 Vdc input:; 1050mA constant current; max 40W ⚠
With 24 Vdc input:; 350mA constant current; max 13,3W ⚠
With 24 Vdc input:; 500mA constant current; max 19W ⚠
With 24 Vdc input:; 700mA constant current; max 26,6W ⚠
With 48 Vdc input:; 1050mA constant current; max 90,3W ⚠
With 48 Vdc input:; 350mA constant current; max 30W ⚠
With 48 Vdc input:; 500mA constant current; max 43W ⚠
With 48 Vdc input:; 700mA constant current; max 60W ⚠

3 channels

With 24 Vdc input:; 1050mA constant current; max 60W ⚠
With 24 Vdc input:; 350mA constant current; max 20W ⚠
With 24 Vdc input:; 500mA constant current; max 28,5W ⚠
With 24 Vdc input:; 700mA constant current; max 40W ⚠
With 48 Vdc input:; 1050mA constant current; max 135W ⚠
With 48 Vdc input:; 350mA constant current; max 45W ⚠
With 48 Vdc input:; 500mA constant current; max 64,5W ⚠
With 48 Vdc input:; 700mA constant current; max 90,3W ✓

4 channels

With 24 Vdc input:; 1050mA constant current; max 80W ⚠
With 24 Vdc input:; 350mA constant current; max 26,6W ⚠
With 24 Vdc input:; 500mA constant current; max 38W ⚠
With 24 Vdc input:; 700mA constant current; max 53,2W ⚠
With 48 Vdc input:; 1050mA constant current; max 180W ⚠
With 48 Vdc input:; 350mA constant current; max 62W ✓
With 48 Vdc input:; 500mA constant current; max 86W ✓
With 48 Vdc input:; 700mA constant current; max 120W ✓
Dimmering0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input24Vdc
12Vdc
Output

1 channel

With 12 Vdc input:; 350mA constant current; max 4,2W ⚠
With 24 Vdc input:; 350mA constant current; max 8,4W ⚠

2 channels

With 12 Vdc input:; 350mA constant current; max 8,4W ⚠
With 24 Vdc input:; 350mA constant current; max 16,8W ⚠

3 channels

With 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 24 Vdc input:; 350mA constant current; max 25,2W ✓

4 channels

With 12 Vdc input:; 350mA constant current; max 16,8W ✓
With 24 Vdc input:; 350mA constant current; max 33,6W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input24Vdc
12Vdc
Output

1 channel

With 12 Vdc input:; 500mA constant current; max 6W ⚠
With 24 Vdc input:; 500mA constant current; max 12W ⚠

2 channels

With 12 Vdc input:; 500mA constant current; max 12W ⚠
With 24 Vdc input:; 500mA constant current; max 24W ⚠

3 channels

With 12 Vdc input:; 500mA constant current; max 18W ✓
With 24 Vdc input:; 500mA constant current; max 36W ✓

4 channels

With 12 Vdc input:; 500mA constant current; max 24W ✓
With 24 Vdc input:; 500mA constant current; max 48W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24-48Vdc
Output1050mA constant current; max 201,6W ⚠
350mA constant current; max 67,2W ✓
700mA constant current; max 134,4W ✓
DimmeringRadio frequency
Power supply unit IPIP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 12 Vdc input:; 500mA constant current; max 18W ✓
With 24 Vdc input:; 350mA constant current; max 25,2W ✓
With 24 Vdc input:; 500mA constant current; max 36W ✓
With 36 Vdc input:; 350mA constant current; max 37,8W ✓
With 36 Vdc input:; 500mA constant current; max 54W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 12 Vdc input:; 700mA constant current; max 25,2W ✓
With 24 Vdc input:; 350mA constant current; max 25,2W ✓
With 24 Vdc input:; 700mA constant current; max 50,4W ✓
With 36 Vdc input:; 350mA constant current; max 37,8W ✓
With 36 Vdc input:; 700mA constant current; max 75,6W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 24 Vdc input:; 350mA constant current; max 25,2W ✓
With 36 Vdc input:; 350mA constant current; max 37,8W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 500mA constant current; max 18W ✓
With 24 Vdc input:; 500mA constant current; max 36W ✓
With 36 Vdc input:; 500mA constant current; max 54W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

Control input (11)

AE01350T1

Emergency module integrated

Input220─240Vac 50─60Hz
Outputmax 350mA 58Vdc max
Ingress protectionIP20
Dimensions35x47x166 mm, 185 g
Cutout dimensionsØ58 mm

EC0TIM12840020

Timer for CASAMBI

Input12-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
