06/09/2018

Litus - Recessed for outdoor applications

Share

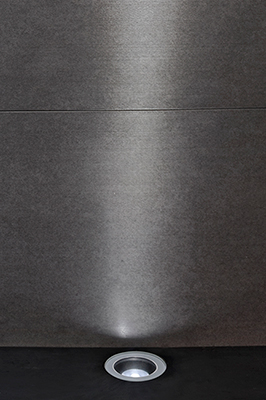

Litus 2.4, 3000K, 5W, 8°
Project by Cyril Durand Behar
Light planning by Distylight
Pernod Ricard University
Domaine de La Voisine, Clairefontaine en Yvelines, France





The Litus family has been revamped with the introduction of new optics, new wattages and new versions.

The different models come with a wide range of optics, including very narrow 5°, narrow 8° and elliptical optics. Sharp optics are also available, to create light beams with pin-sharp edges.

The Litus 5.4 and 5.5 models can be ordered with elliptical optics that are adjustable manually, using the magnet provided (patent pending).

The entire Litus family uses CRI 80 or 90 LEDs, for improved colour rendering, and offers a choice of different wattages.

Anti-glare accessories are also available for the Litus range: a new screen that is half transparent and half serigraphed black, or a honeycomb louvre.
Litus 2.4, 4000K, 7W, 8°, customized version with white, serigraphed screen

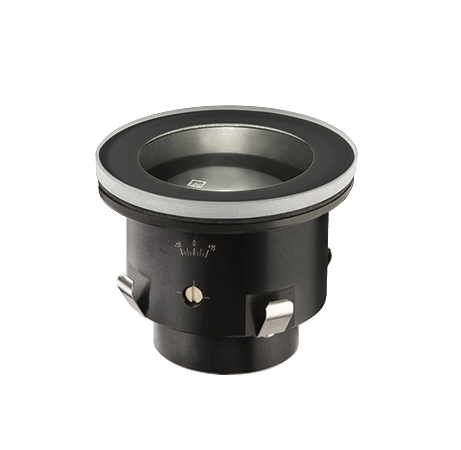

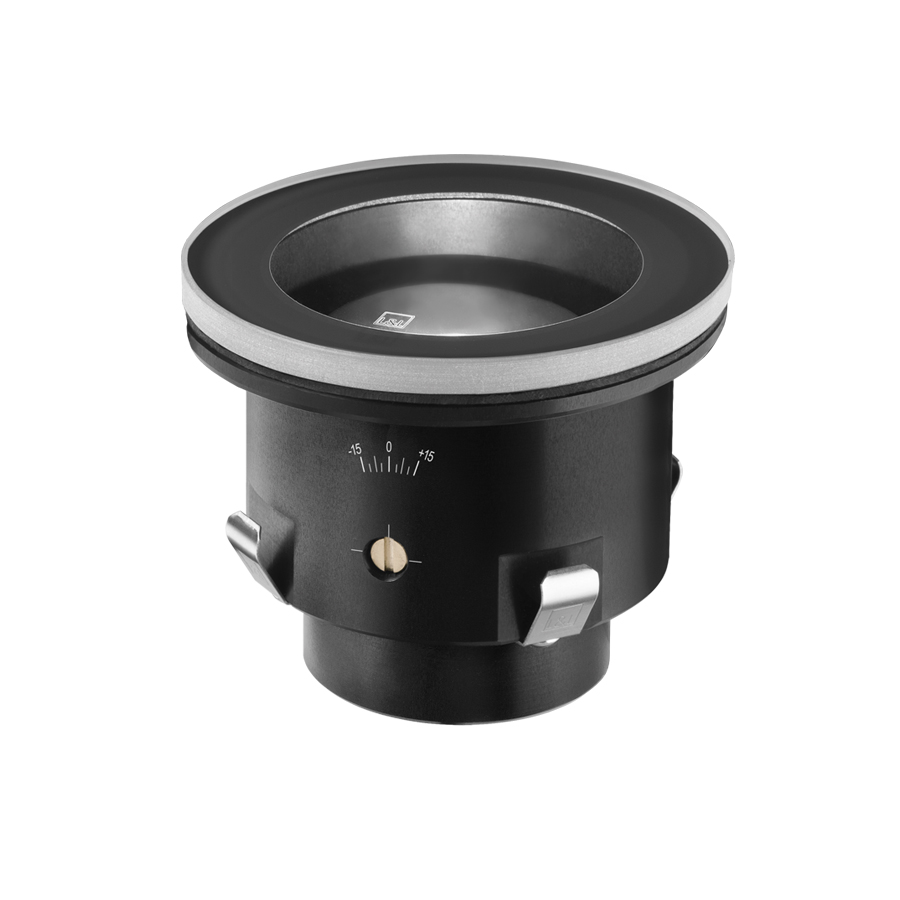

Litus 5.6

Optics:

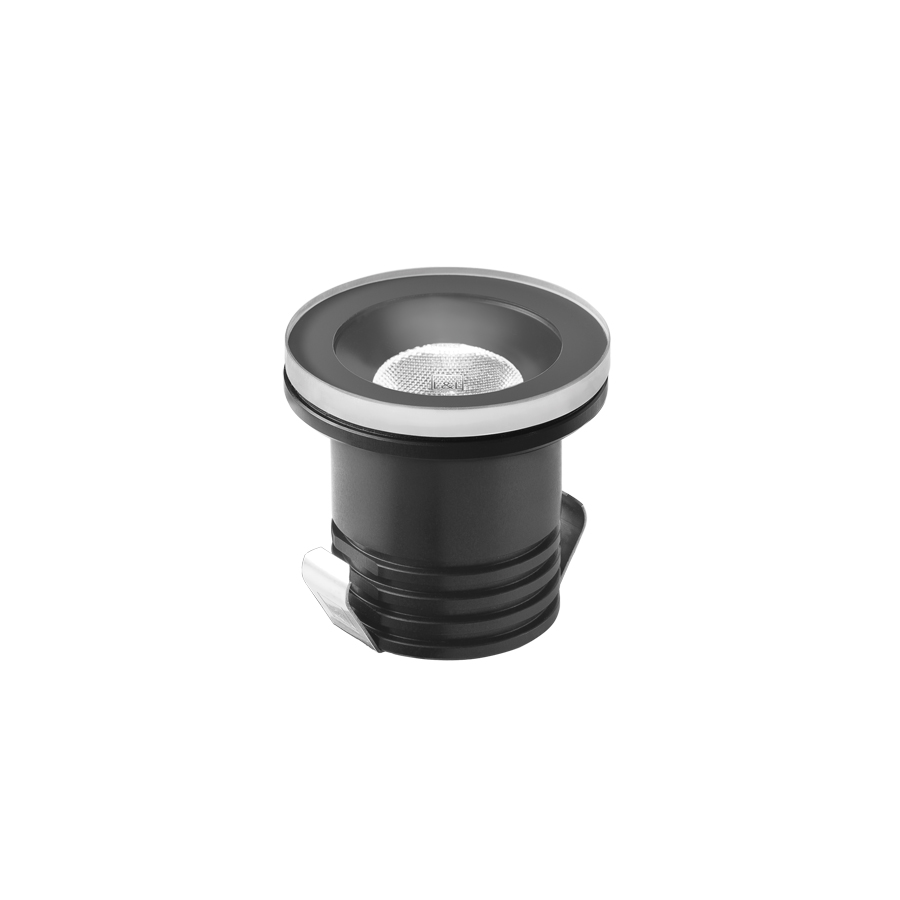

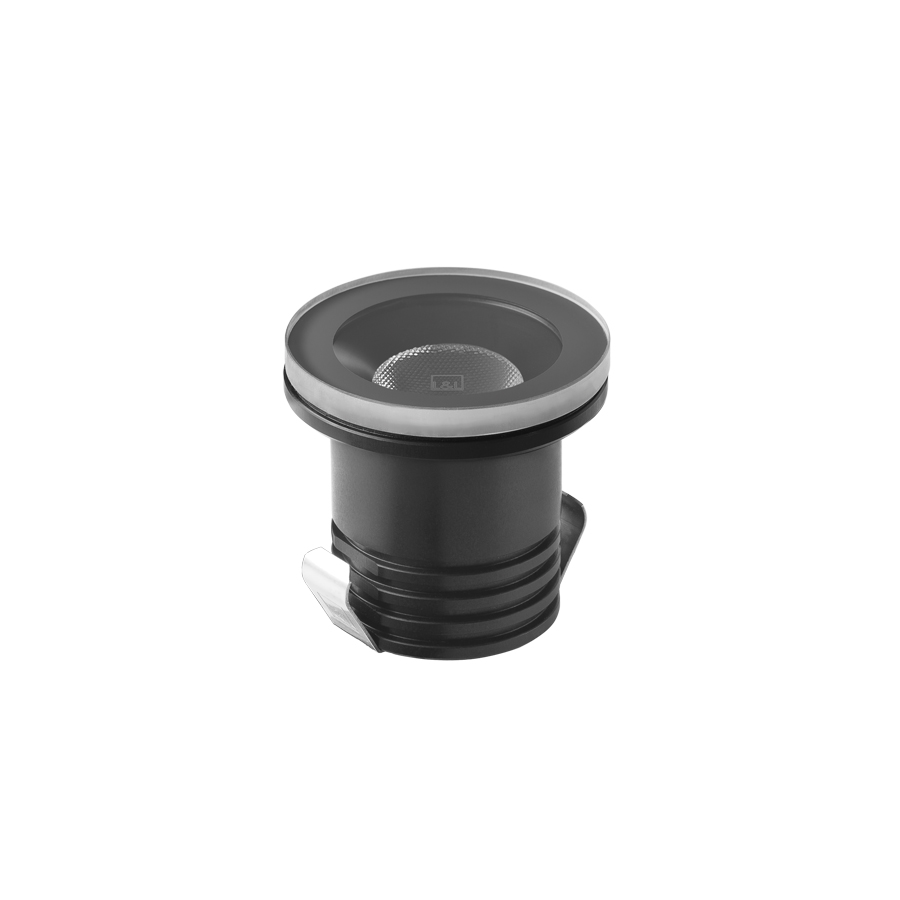

Litus 1.0 / 1.6: 13°, 22°, 30°, 35° sharp, 48°, diffuse

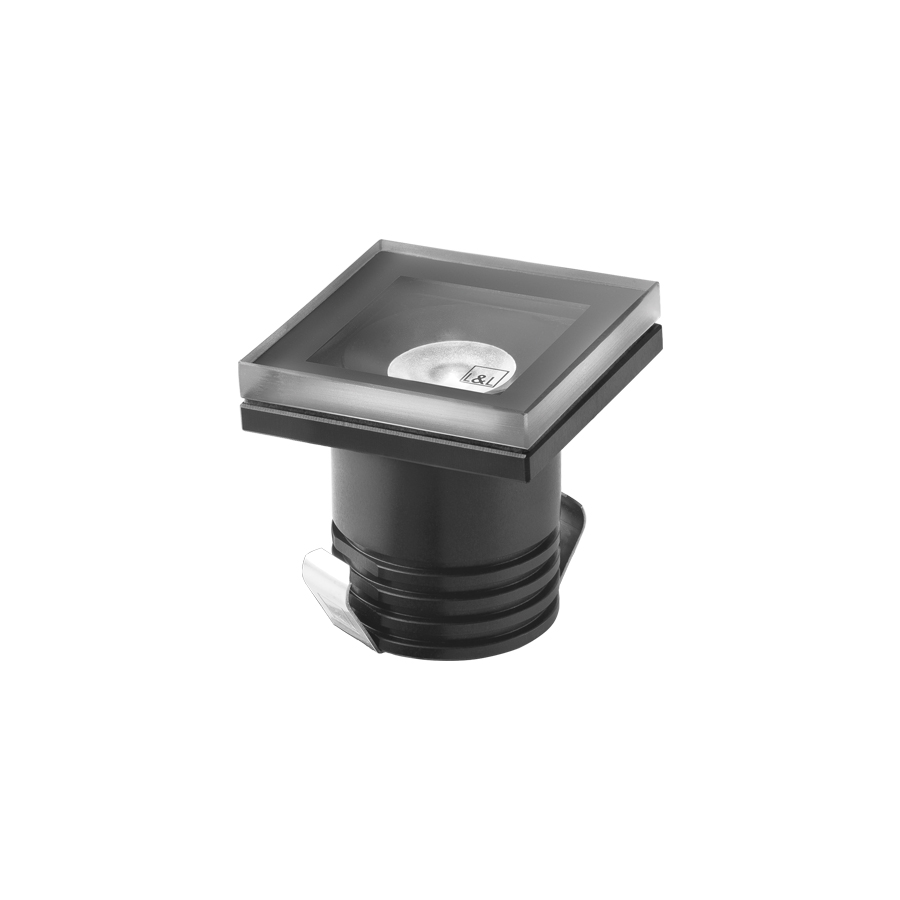

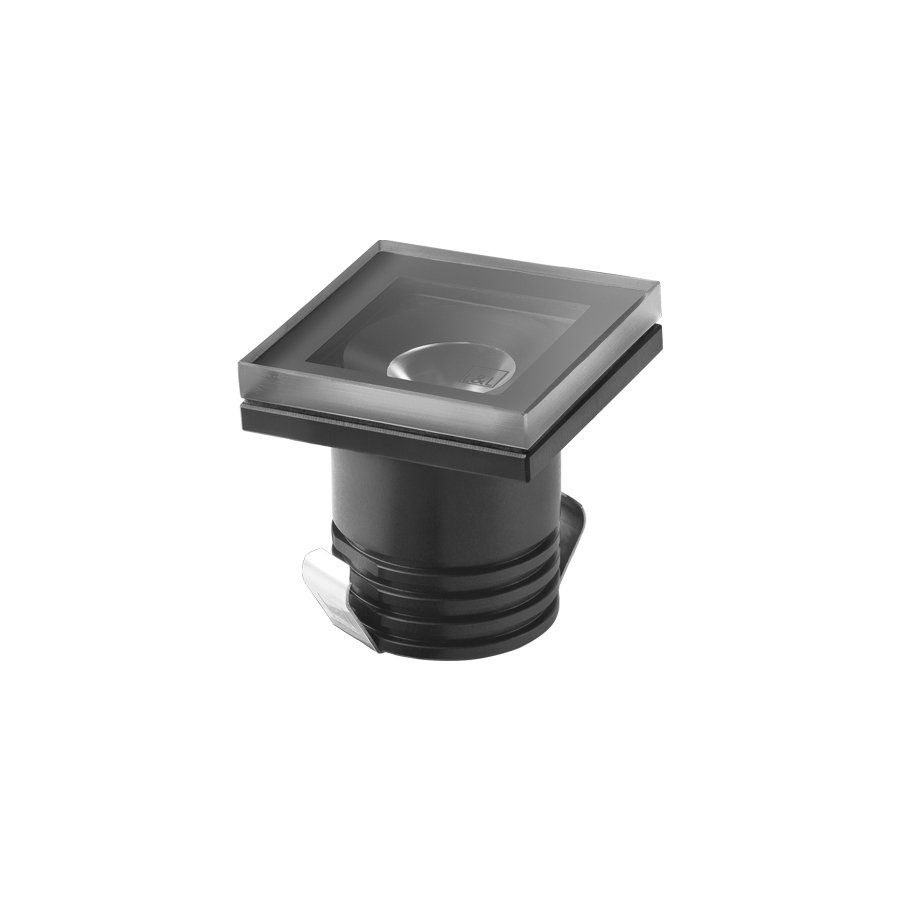

Litus 1.1 / 1.7: 13°, 22°, 30°, 35° sharp, 48°, diffuse

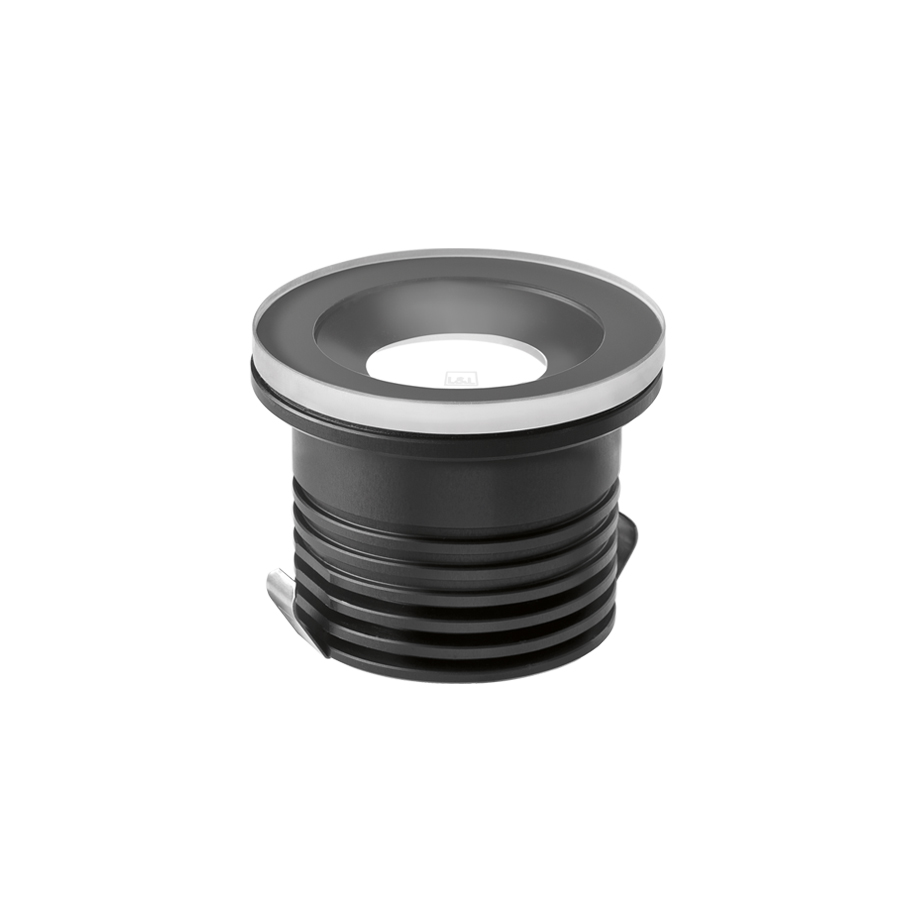

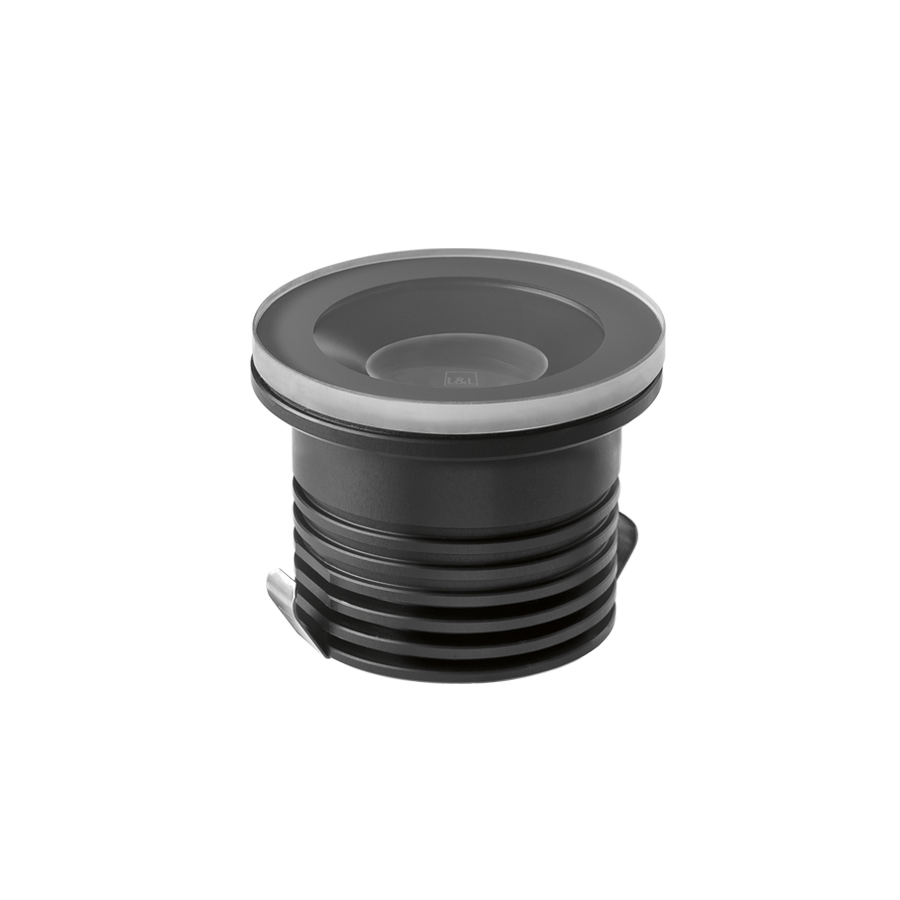

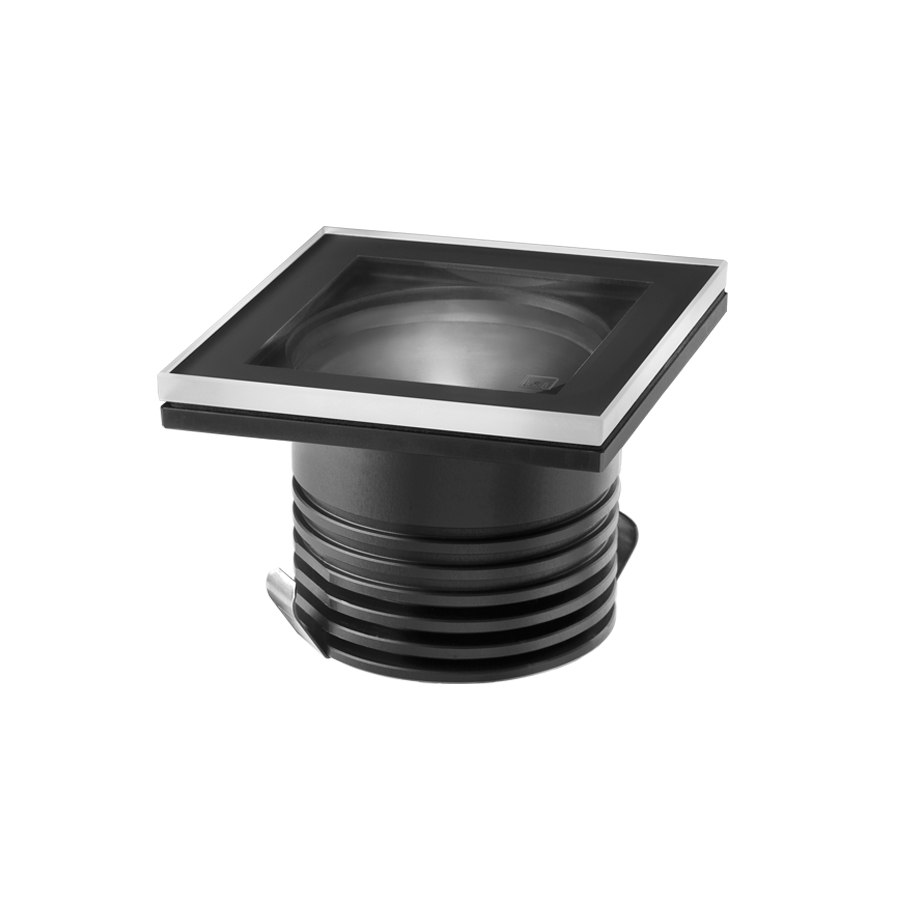

Litus 2.4 / 2.5:
5° (only 3.5W), 8°, 11°, 17°, 21° sharp,  34°, 45°, 61° sharp, 13°x52°, diffuse
20°, 34°, 45°, 21°x42° (RGB version)

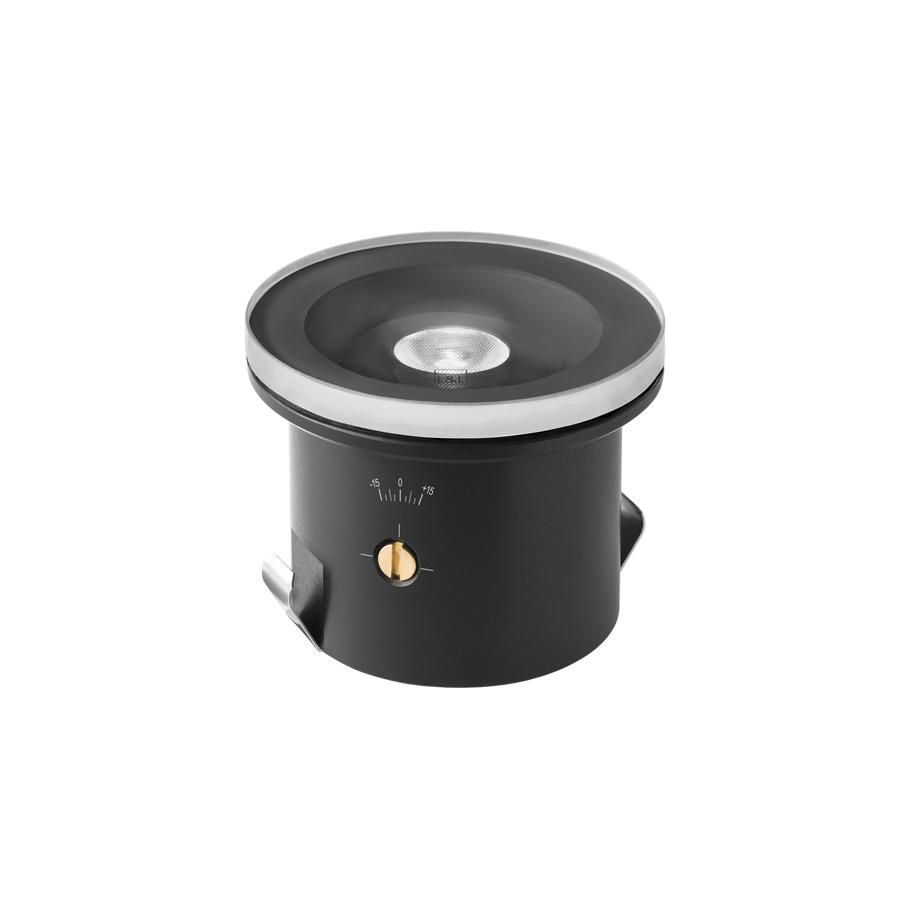

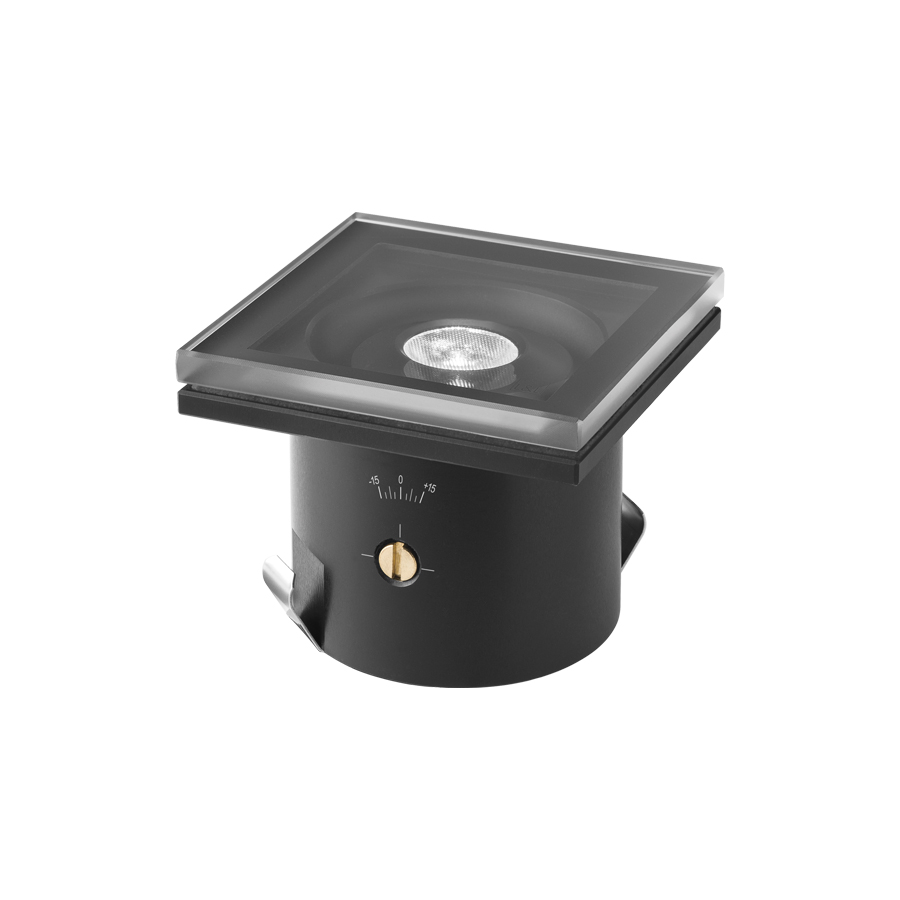

Litus 2.8 / 2.9: 13°, 22°, 30°, 35° sharp, 48° (tiltable ±15°)

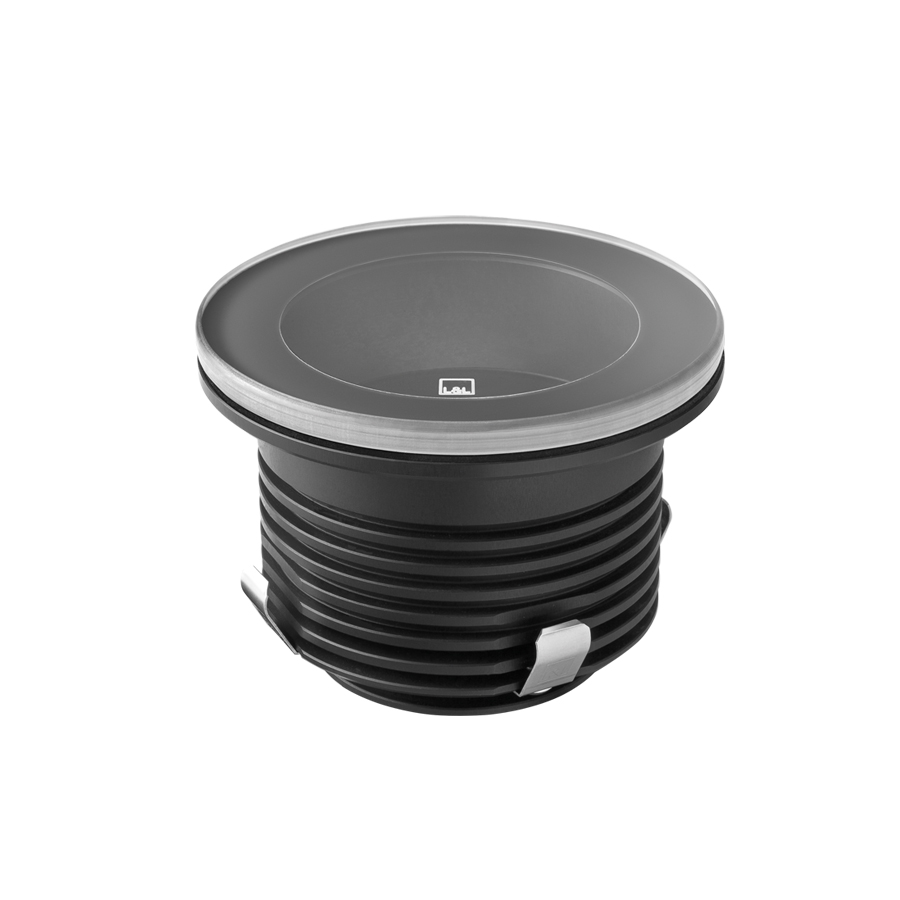

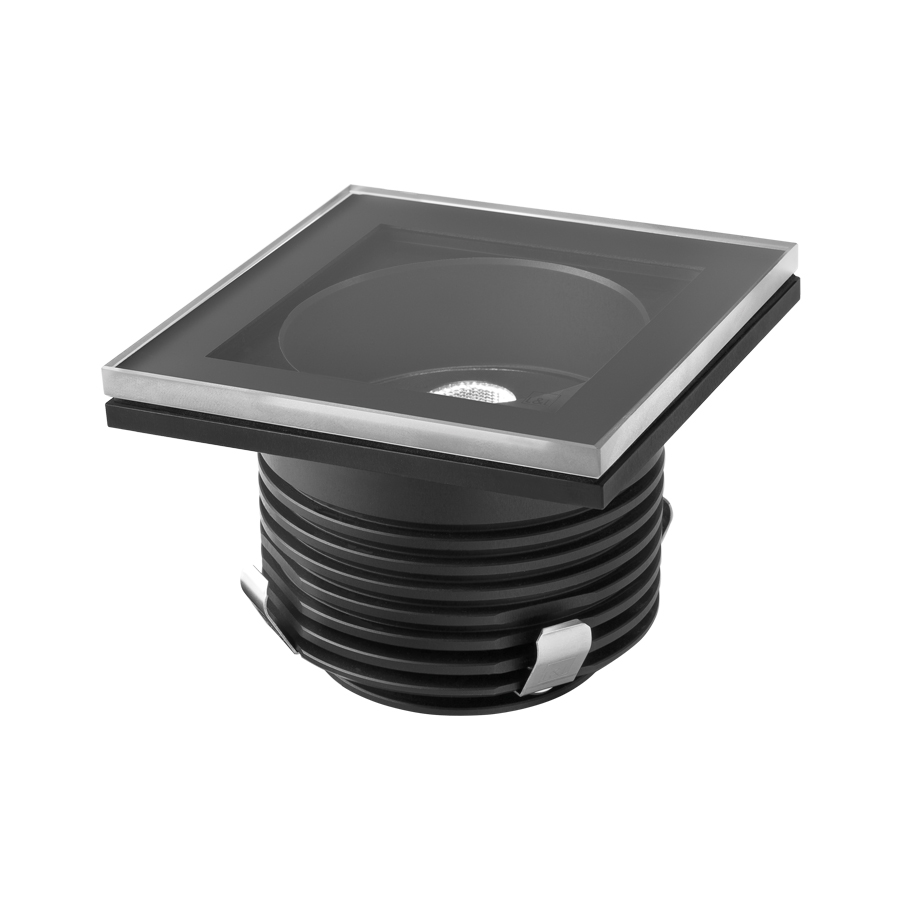

Litus 5.4 / 5.5: 16°, 21°, 38°, 48° sharp, 55°, adjustable 16°x69°, diffuse

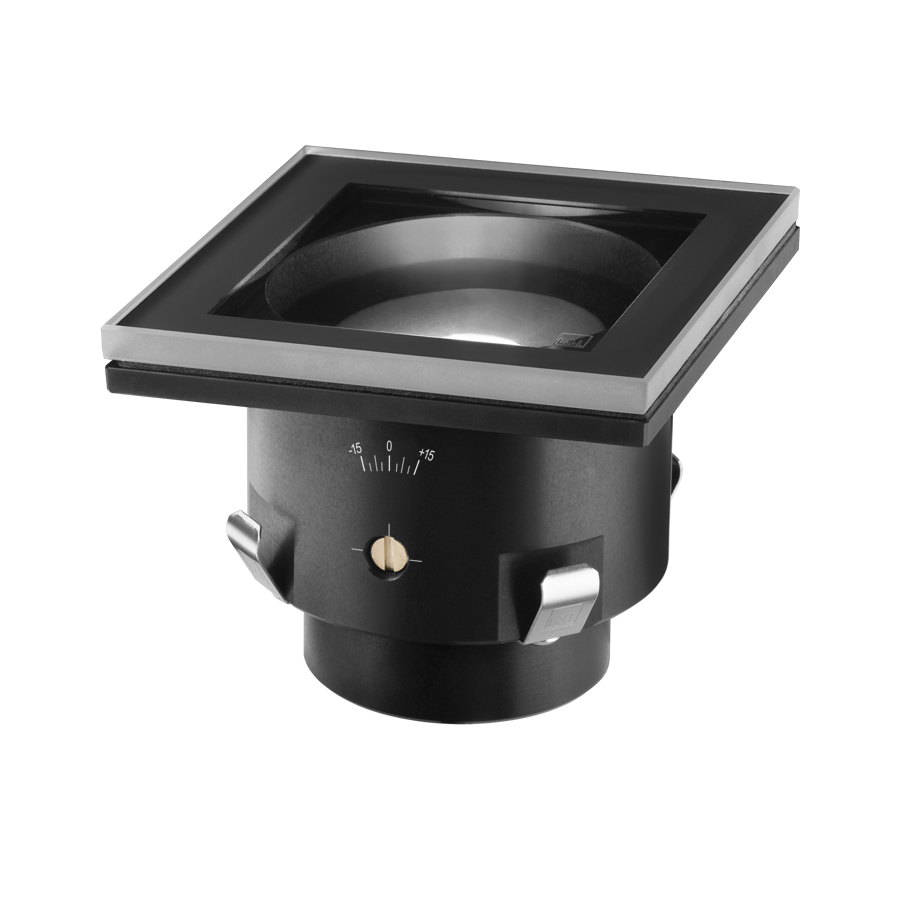

Litus 5.6 / 5.7:
5° (only 3.5W), 8°, 11°, 17°, 21° sharp,  34°, 45°, 61° sharp, 13°x52° (tiltable ±15°)
20°, 34°, 45°, 21°x42° (tiltable ±15° - RGB version)
