Recessed for outdoor applications

Quilatero

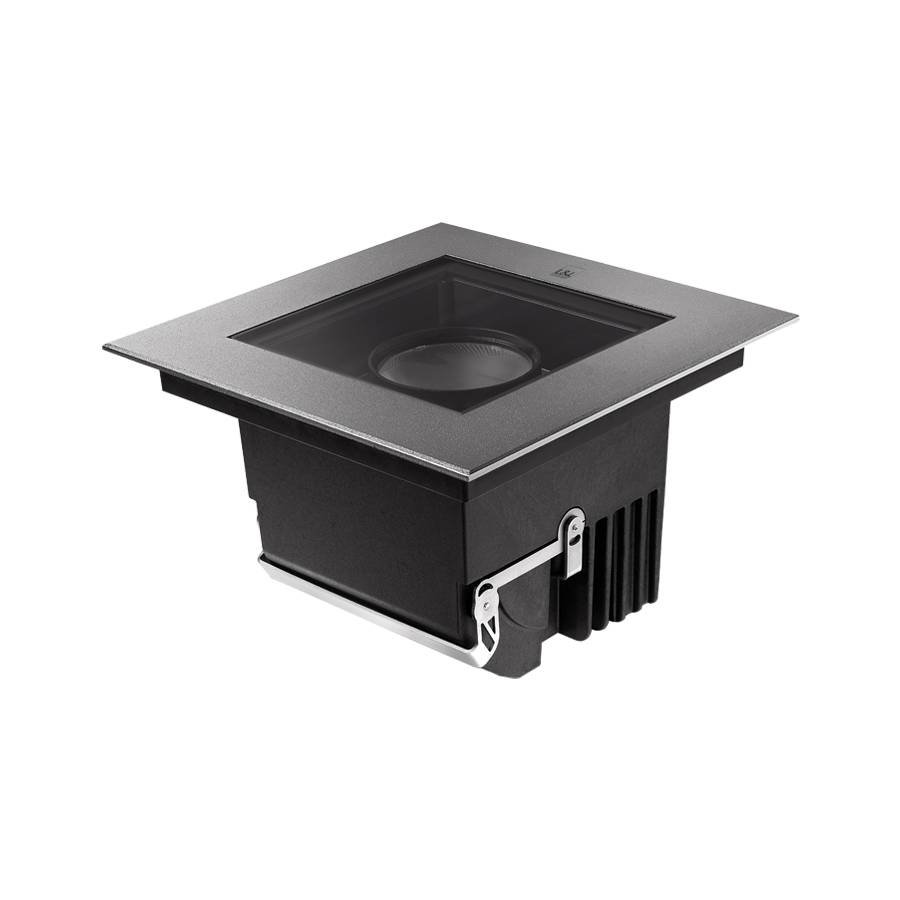

A square fixture with all-round potential

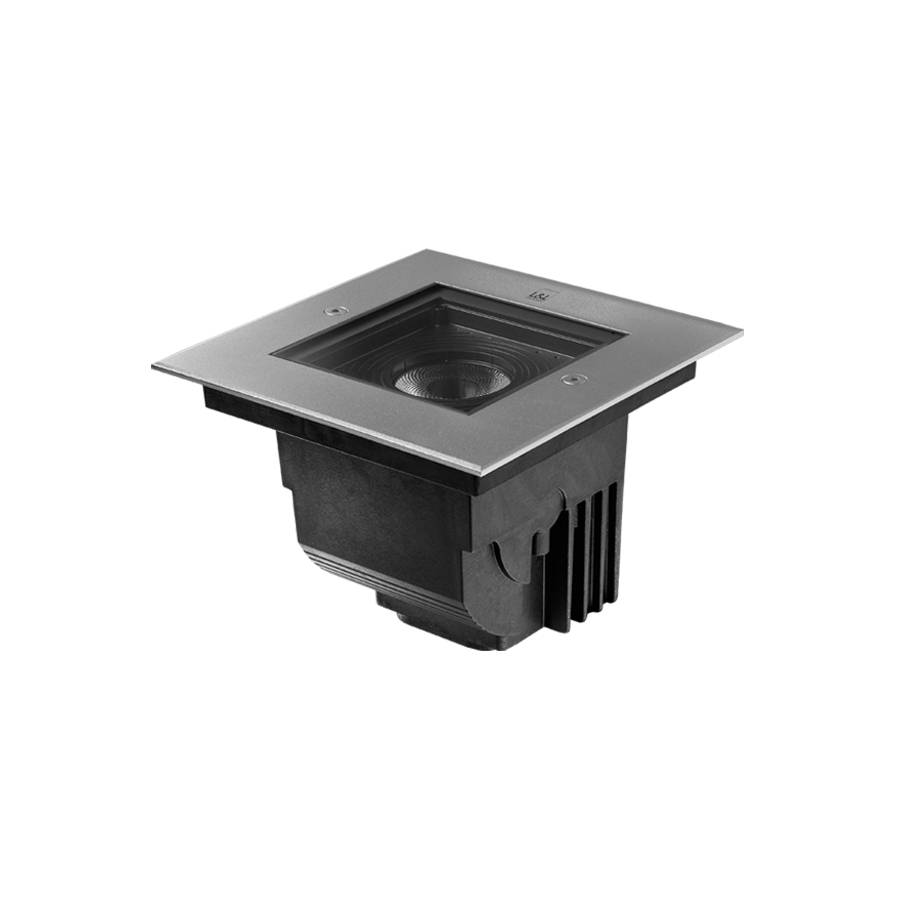

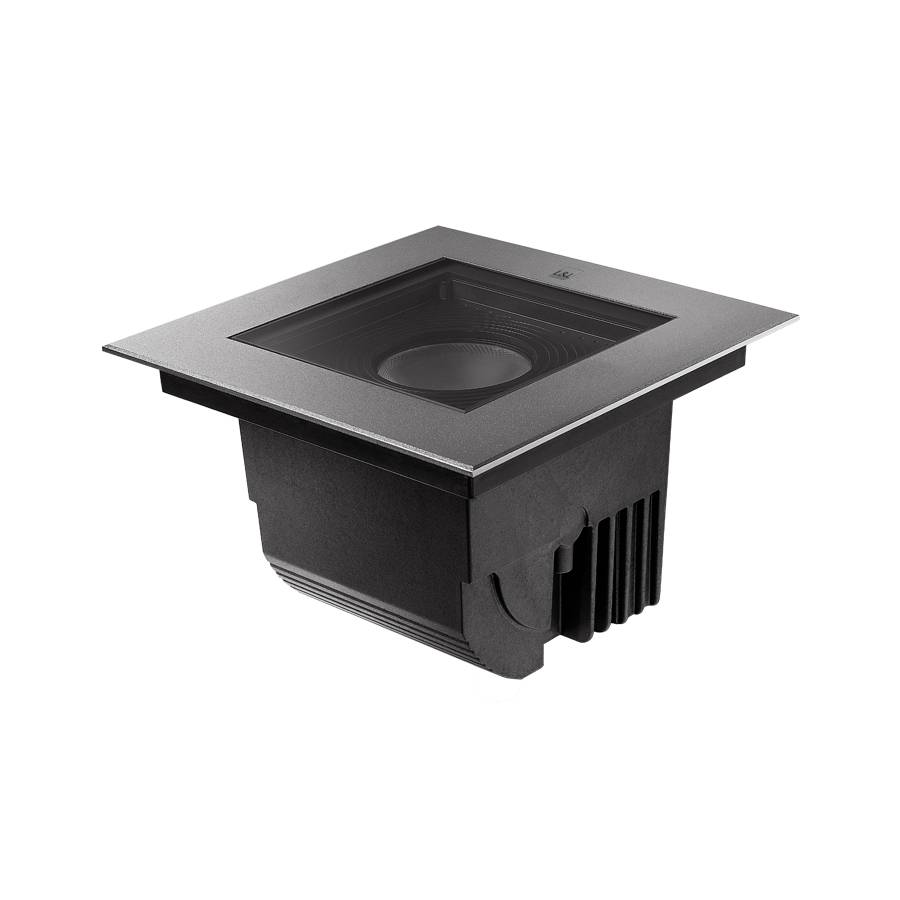

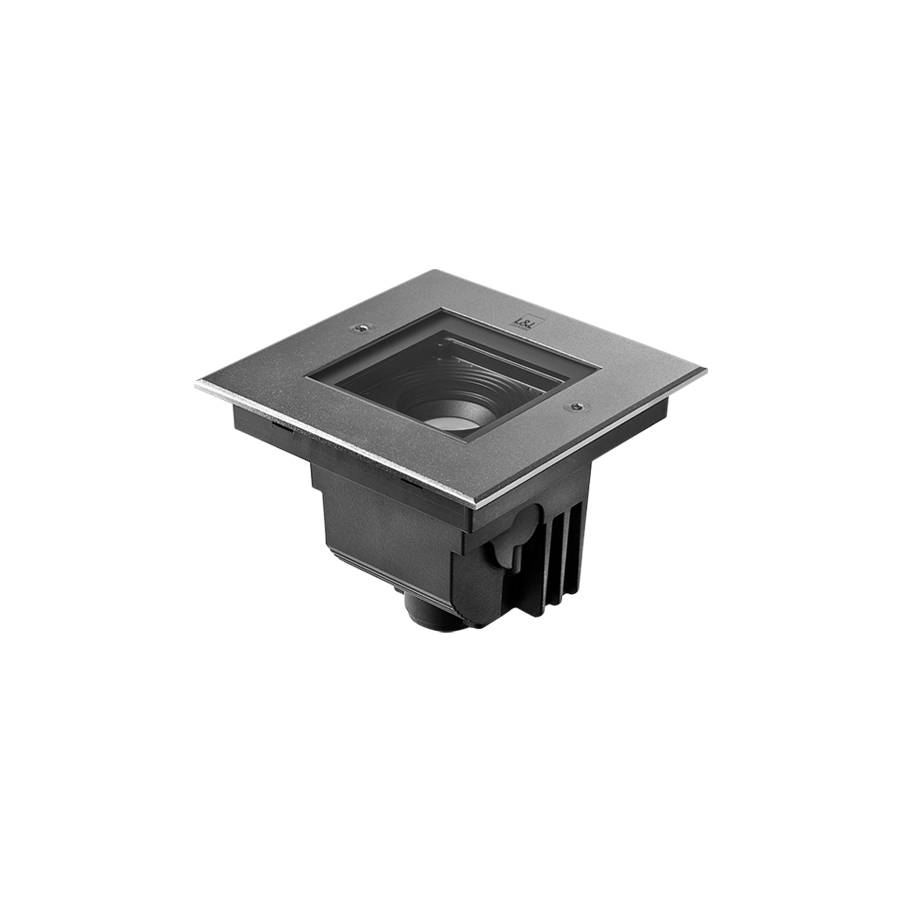

Family of drive-over recessed fixtures, with built-in 230Vac power supply, for architectural facade lighting. They have a distinctive square design and are available in two sizes and power ranges (3.5W and 8W). The more powerful version, Quilatero 2, is available with both fixed (Quilatero 2.0 / 2.1) and tiltable optics (Quilatero 2.4 / 2.5).

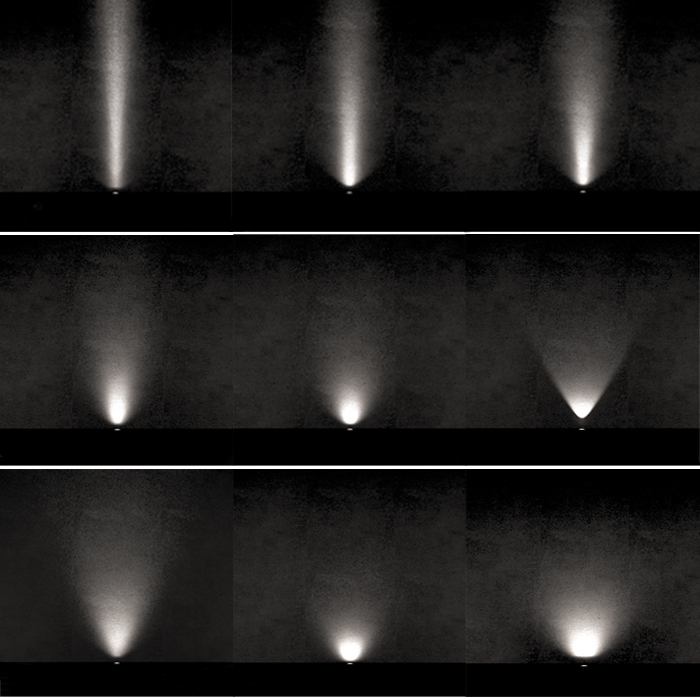

Quilatero’s wide range of optics is designed to meet the multiple needs of lighting professionals and includes outputs that are very narrow (7° and 8°), elliptical, sharp-edged (sharp optics) or wide and soft (diffuse optics). In addition, the wall washer optics, directed at the vertical surface, illuminate facades without contrasting shadows; this also reduces light spill.

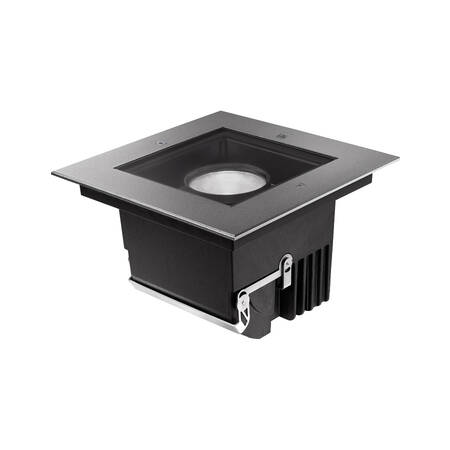

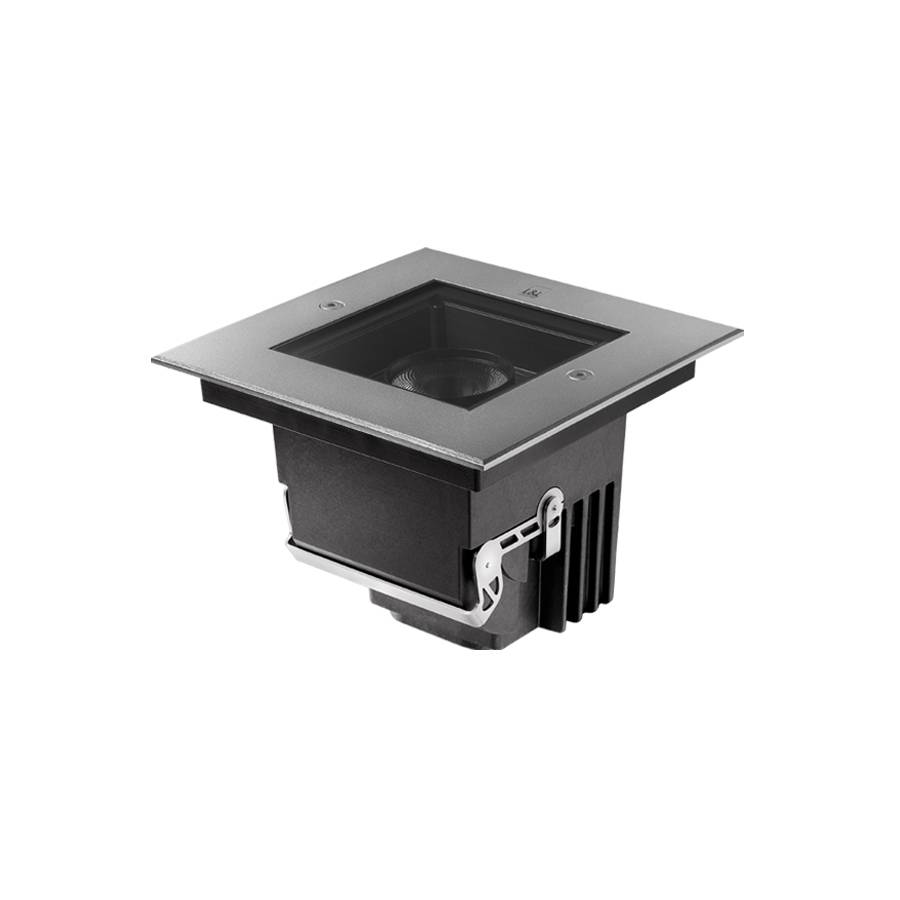

In the versions with optics tiltable by up to 20° (Quilatero 2.4 / 2.5), the magnetic system enables the optical unit to be angled from the outside, guaranteeing the fixture’s watertightness and IP66 / IP68 72h protection level; meanwhile, graduations and a locking screw ensure extreme precision and maintenance of the chosen angle of tilt.

Quilatero uses power LEDs and, in the more powerful versions, high-intensity power LEDs. It is also available with a high colour rendering index of CRI>90, in colour temperatures 2700K, 3000K, 4000K, and in the warm 2200K (Quilatero 1) to better respect the circadian cycles of people and animals in urban, green and public spaces. The optical accessories, a honeycomb louvre and an anti-glare screen, can be built into the fixture.

The heat-dissipating body, made of thermally conductive technopolymer, guarantees excellent resistance to corrosion even in harsh environments, meaning Quilatero can be used in saline conditions such as maritime settings. The screen in transparent, extra-clear glass is tempered for excellent impact and scratch resistance (IK08 and IK10).

The trim in AISI 316L stainless steel is available with or without visible screws – the latter version combines minimalist aesthetics with easy installation: the lighting fixture is simply pressed into place in its outer casing. The trim can be painted with a cor-ten finish or in a RAL colour on request: this versatility means the Quilatero adapts easily to architecture of very different styles and intended uses.

  • Quilatero 1

    Version DimensionsPowerPower supplyDelivered lumen outputOptics
    Quilatero 1.0100x100x111 mm3,5W110-230Vac170 lm (3000K, CRI >90, 14°)
    200 lm (3000K, CRI 80, 14°)
    fixed opticsDetails
    Quilatero 1.1100x100x111 mm3,5W110-230Vac170 lm (3000K, CRI >90, 14°)
    200 lm (3000K, CRI 80, 14°)
    fixed opticsDetails

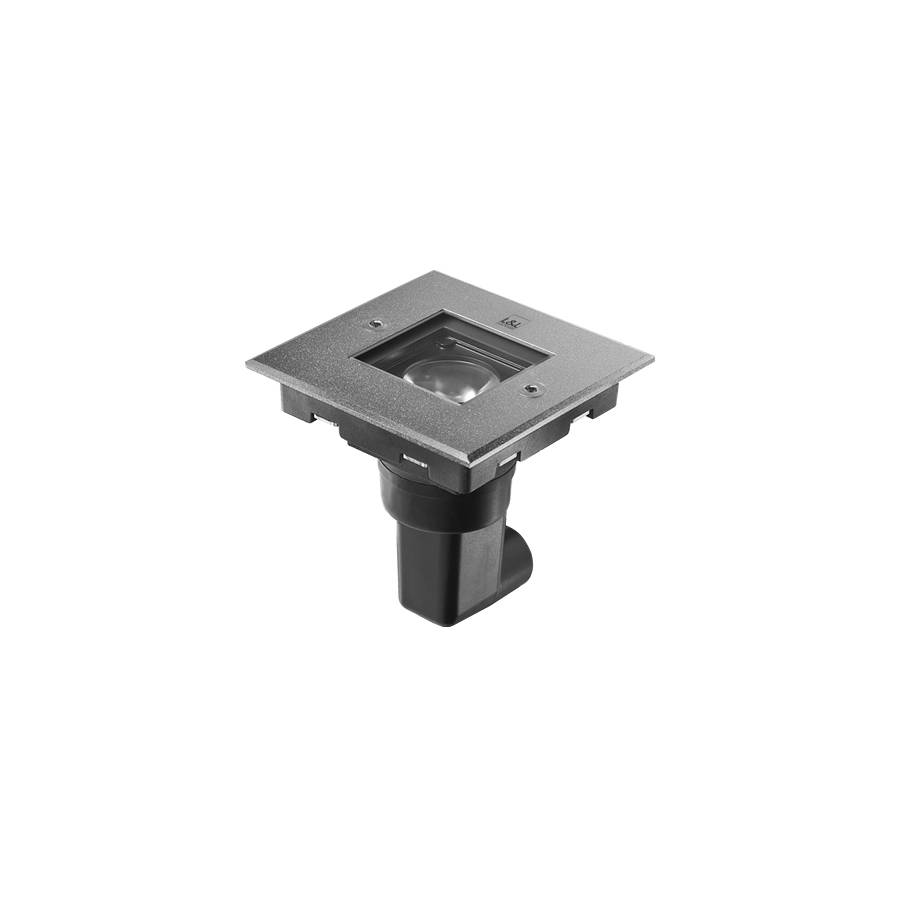

    Quilatero 1

    • VersionQuilatero 1.0
    • Dimensions100x100x111 mm
    • Power3,5W
    • Power supply110-230Vac
    • LED colour2200K, 2700K, 3000K, 4000K
    Details
    • VersionQuilatero 1.1
    • Dimensions100x100x111 mm
    • Power3,5W
    • Power supply110-230Vac
    • LED colour2200K, 2700K, 3000K, 4000K
    Details
  • Quilatero 2

    Version DimensionsPowerPower supplyDelivered lumen outputOptics
    Quilatero 2.0130x130x135 mm6W (wall washer optics), 8W110-230Vac389 lm (3000K, CRI 90, 12°)
    482 lm (3000K, CRI 80, 12°)
    fixed opticsDetails
    Quilatero 2.1130x130x135 mm6W (wall washer optics), 8W110-230Vac389 lm (3000K, CRI >90, 12°)
    482 lm (3000K, CRI 80, 12°)
    fixed opticsDetails
    Quilatero 2.4130x130x135 mm8W110-230Vac389 lm (3000K, CRI >90, 12°)
    482 lm (3000K, CRI 80, 12°)
    tiltable opticsDetails
    Quilatero 2.5130x130x135 mm8W110-230Vac389 lm (3000K, CRI >90, 12°)
    482 lm (3000K, CRI 80, 12°)
    tiltable opticsDetails

    Quilatero 2

    • VersionQuilatero 2.0
    • Dimensions130x130x135 mm
    • Power6W (wall washer optics), 8W
    • Power supply110-230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionQuilatero 2.1
    • Dimensions130x130x135 mm
    • Power6W (wall washer optics), 8W
    • Power supply110-230Vac
    • LED colour2700K, 3000K, 4000K
    Details

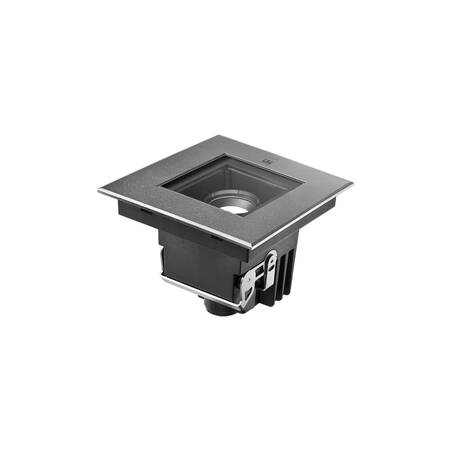

    • VersionQuilatero 2.4
    • Dimensions130x130x135 mm
    • Power8W
    • Power supply110-230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionQuilatero 2.5
    • Dimensions130x130x135 mm
    • Power8W
    • Power supply110-230Vac
    • LED colour2700K, 3000K, 4000K
    Details

Unique Selling Points

Body made of carbon-fibre-reinforced, thermally conductive heat-dissipating semicrystalline technopolymer with high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline)

Trim in AISI 316L stainless steel, laser cut, machined and finished, then micro-blasted, passivated and electropolished to guarantee excellent corrosion resistance

10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance

  • Wide range of optics to meet the needs of lighting professionals: from very narrow to sharp optics, and from wall washer to elliptical optics. Optical accessories – honeycomb louvre and anti-glare screen – can be built into the fixture

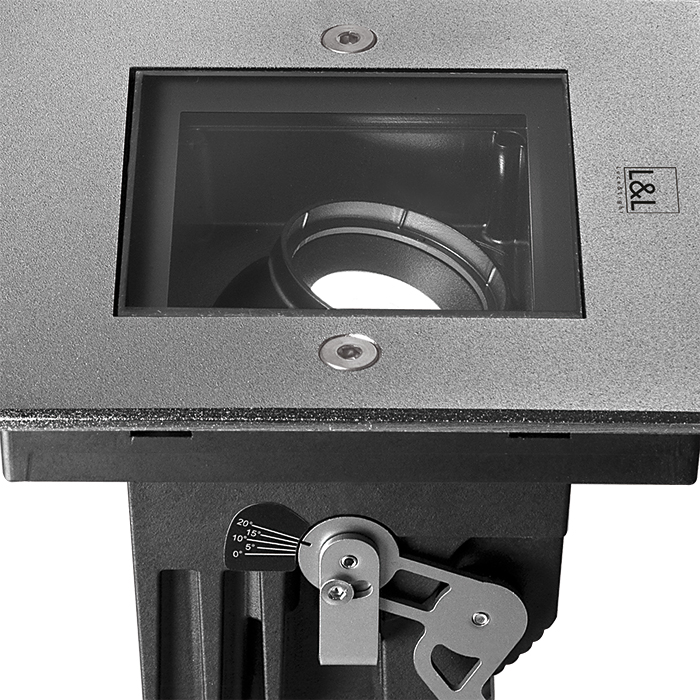

  • Magnetic tilting system allows the optical unit to be angled by up to 20° from the outside, maintaining the product’s watertightness. Furnished with graduations and locking screw to ensure extreme precision and maintenance of the chosen angle of tilt (Quilatero 2.4 / 2.5)

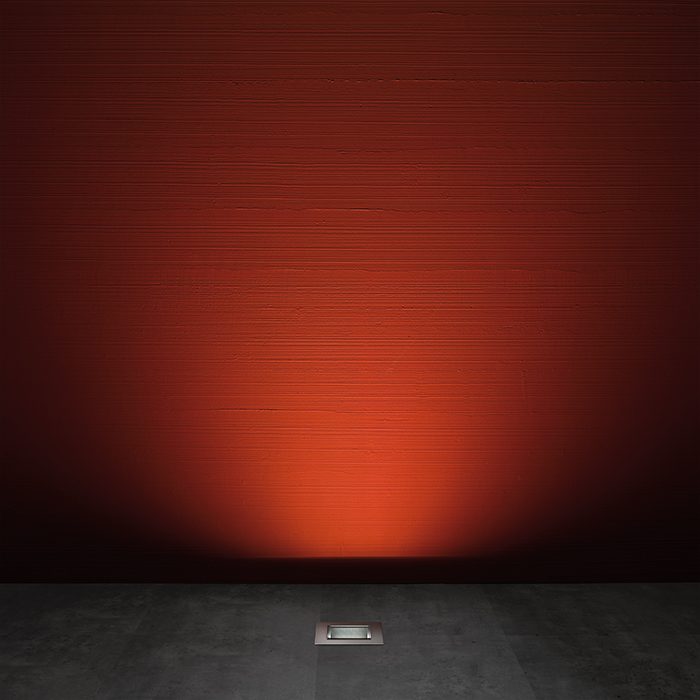

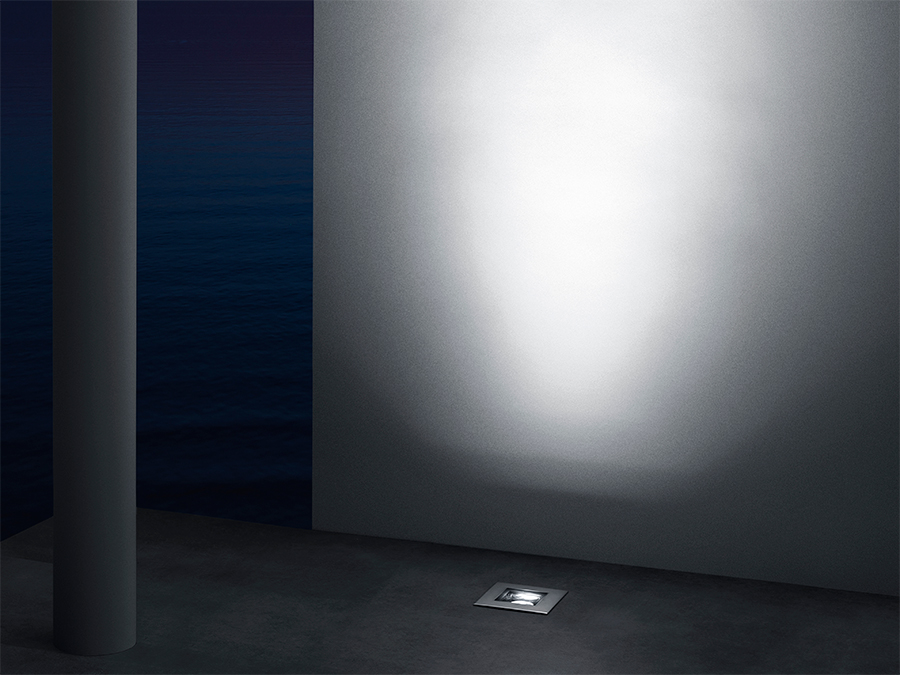

  • Wall washer optics to illuminate walls and facades with the light output directed at the vertical surface, which reduces light spill (Quilatero 1.0 / 1.1 / 2.0 / 2.1)

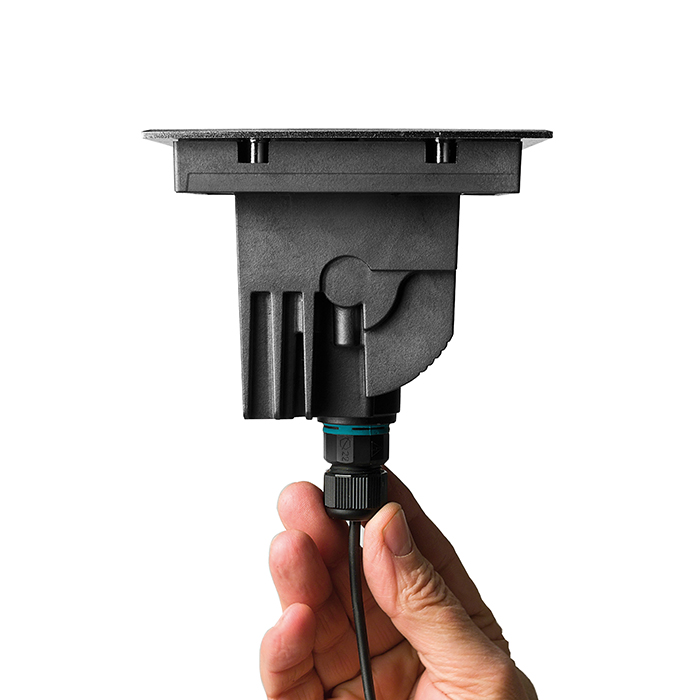

  • Product complete with IP68 connector and built-in IPS system. Quick installation: easy to wire thanks to the possibility of connecting the electrical cables directly to the fixture

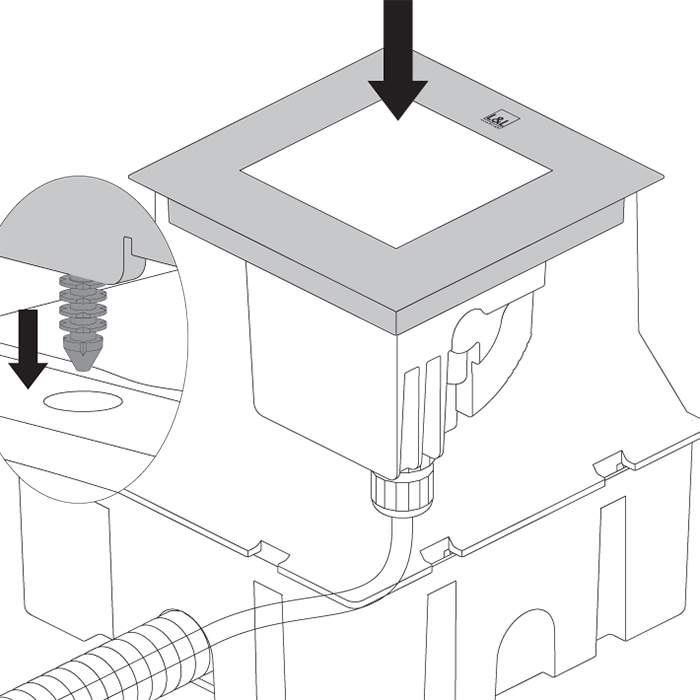

  • Trim in version without visible screws and with mounting clips built into the lighting fixture for easy installation – the fixture is simply pressed into place in its outer casing

  • The trim in AISI 316L stainless steel can be painted with a cor-ten finish or in a RAL colour on request

  • Protection systems

    IPS Intelligent Protection System

    PID Protective Impedance Device

  • Ingress protections

    IP66 / IP68 72h - Suitable for outdoor installations

    IP69K - Resistant to high-pressure, high-temperature spray-downs (ISO-20653 compliant)

  • RAL finish on request

  • Drive-over

    Drive-over for loads of up to 2000 kg (Quilatero 2.0 / 2.1 / 2.4 / 2.5)
    Drive-over for loads of up to 1500 kg (Quilatero 1.0 / 1.1)
