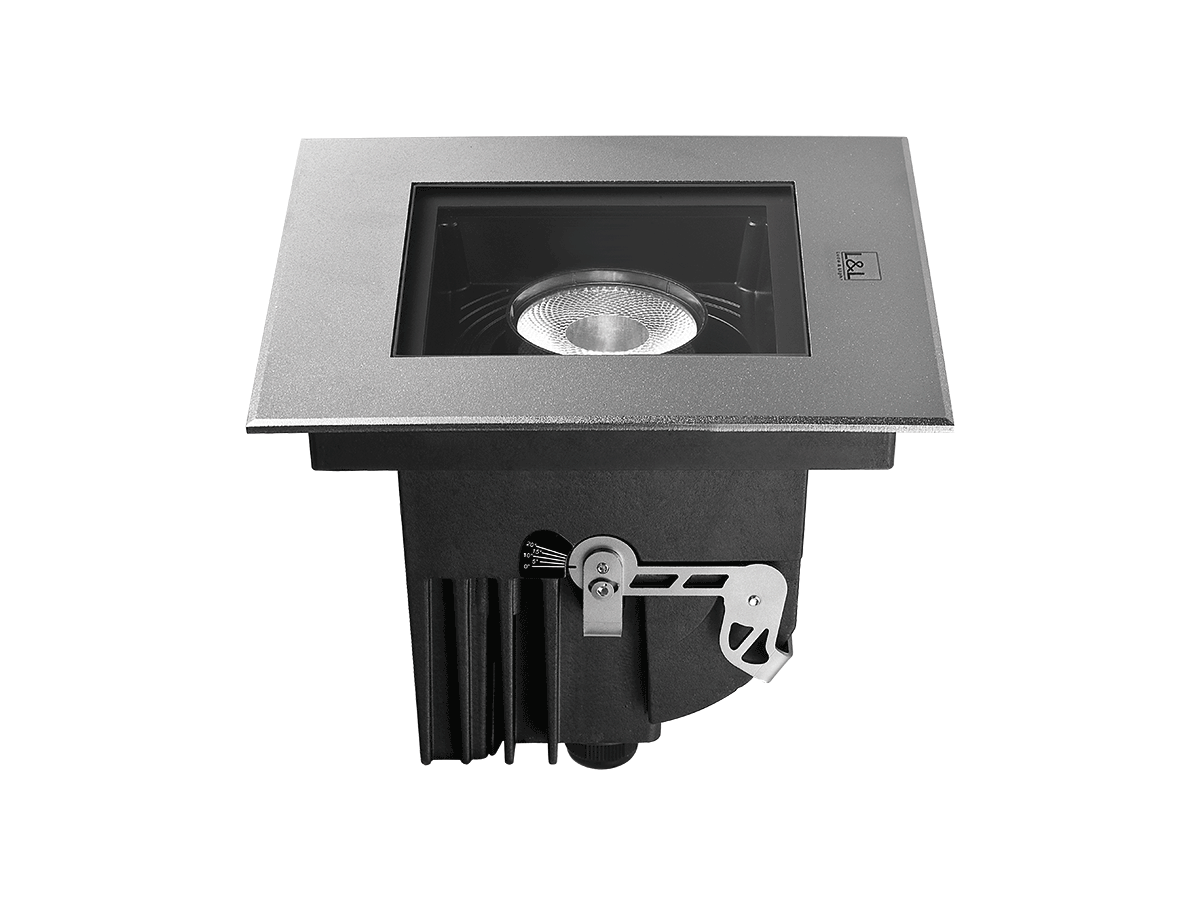

Quilatero 3.4

Recessed for outdoor applications

recessed for outdoor applications - 16W 110-230Vac - tiltable optics +20° - 170x170 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Pre-wired cable in non-standard length
  • RAL finishes

Technical data

Print technical data
Required outer casing not included
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class II
  • drive-over fixture
    kg 2500 - kN 25
  • gross weight
  • IP6872h
  • IP66
  • IP69
  • IK10
  • IPS
  • RAL finish on request
  • maximum device temperature40°C
  • F
Installation recessed for outdoor applications
Power consumption 16W
Power supply 110-230Vac
Lumen output at source 1370 lm (3000K, CRI >90),
1616 lm (3000K, CRI 80)
Delivered lumen output 1039 lm (3000K, CRI >90, 26°),
1226 lm (3000K, CRI 80, 26°)

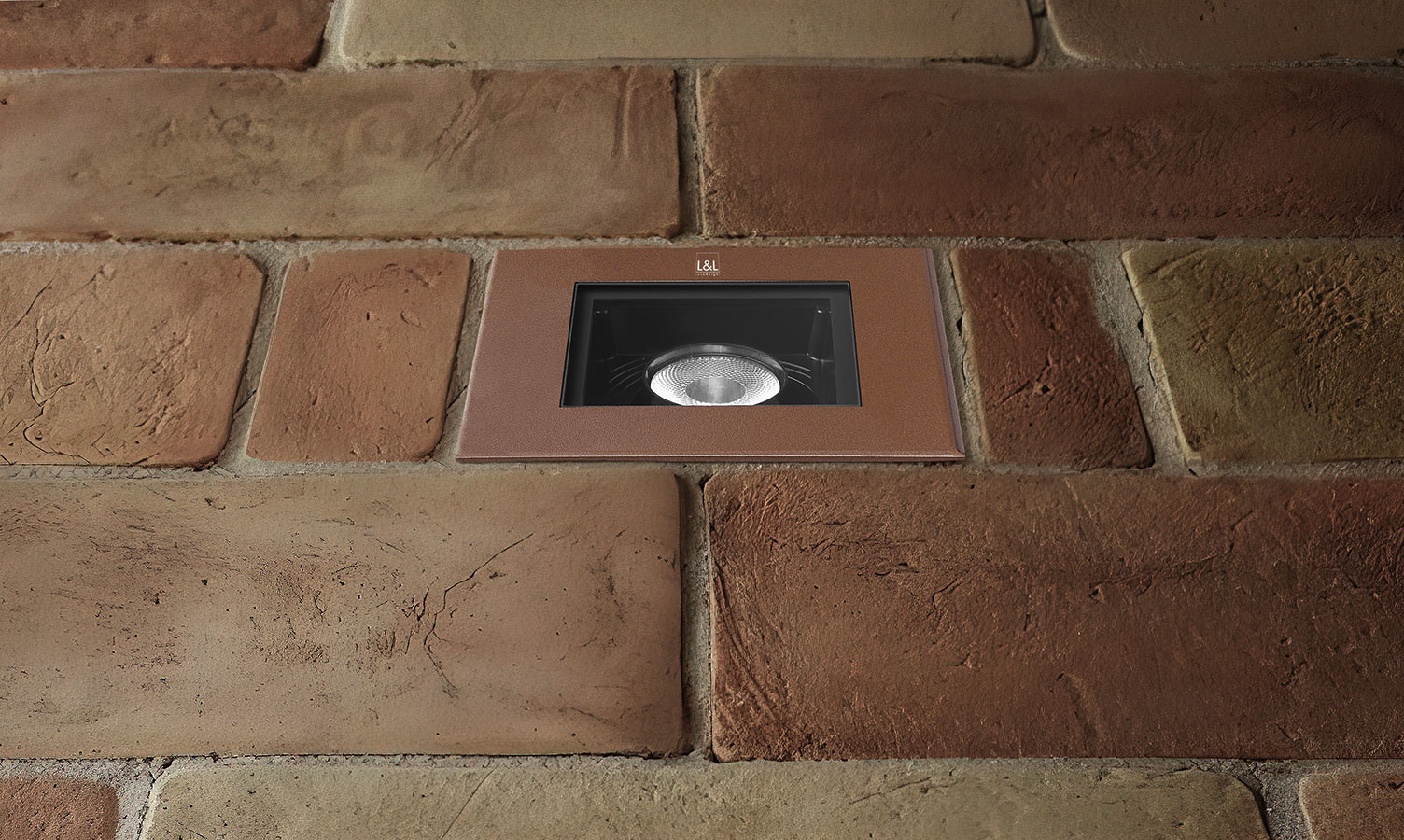

Mounting recessed (wall, floor)
Number and type of LED 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C)
LED colour 2200K, 2700K, 3000K, 4000K
Optics 14° tiltable +20°, 26° tiltable +20°, 39° tiltable +20°, 57° tiltable +20°, sharp 57° tiltable +20°, 14°x67° tiltable +20°, 25°x70° tiltable +20°
CRI Colour Rendering Index 80, >90
Body material body in thermally conductive technopolymer, trim in AISI 316L stainless steel
Screen material screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes stainless steel, cor-ten
Power supply unit built-in power supply unit
Ingress protection IP68 72h, IP66, IP69
Impact resistance IK10
Features optics tiltable by up to 20° by means of a magnetic system with graduations and locking screw.
Fast installation: direct connection between fixture and mains power supply
Notes Casambi-compatible version, controllable with the Casambi app, available on request
Status Available

Read more


Accessories and power supply units

Accessories (3)

Outer casings

Required outer casing not included


Outer casing

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on the 14°, 26°, 39° and 57° optics


Add the optical accessory in the code generator

anti-glare screen

half transparent and half serigraphed black

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
