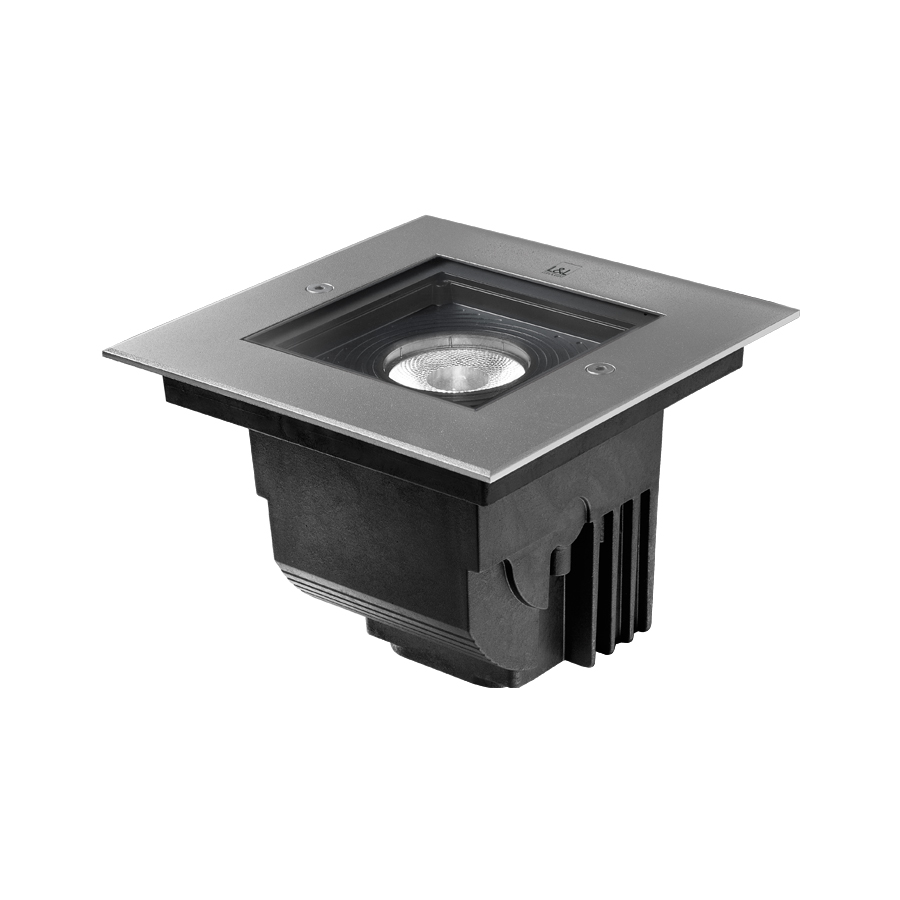

Quilatero 3.1

Recessed for outdoor applications

recessed for outdoor applications - 16W / 18W (wall washer optics) 110-230Vac - 170x170 mm

  • fixed focus

    fixed focus

  • manual zoom lens adjustable using magnet included

    manual zoom lens adjustable using magnet included

Generate code

Technical data

Print technical data
Required outer casing not included
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class II
  • drive-over fixture
    kg 2500 - kN 25
  • gross weight
  • IP6872h
  • IP66
  • IP69
  • IK10
  • IPS
  • RAL finish on request
  • maximum device temperature40°C
  • F
Installation recessed for outdoor applications
Power consumption 16W, 18W (wall washer optics)
Power supply 110-230Vac
Lumen output at source 1370 lm (3000K, CRI >90),
1616 lm (3000K, CRI 80)
Delivered lumen output 1039 lm (3000K, CRI >90, 26°),
1226 lm (3000K, CRI 80, 26°)

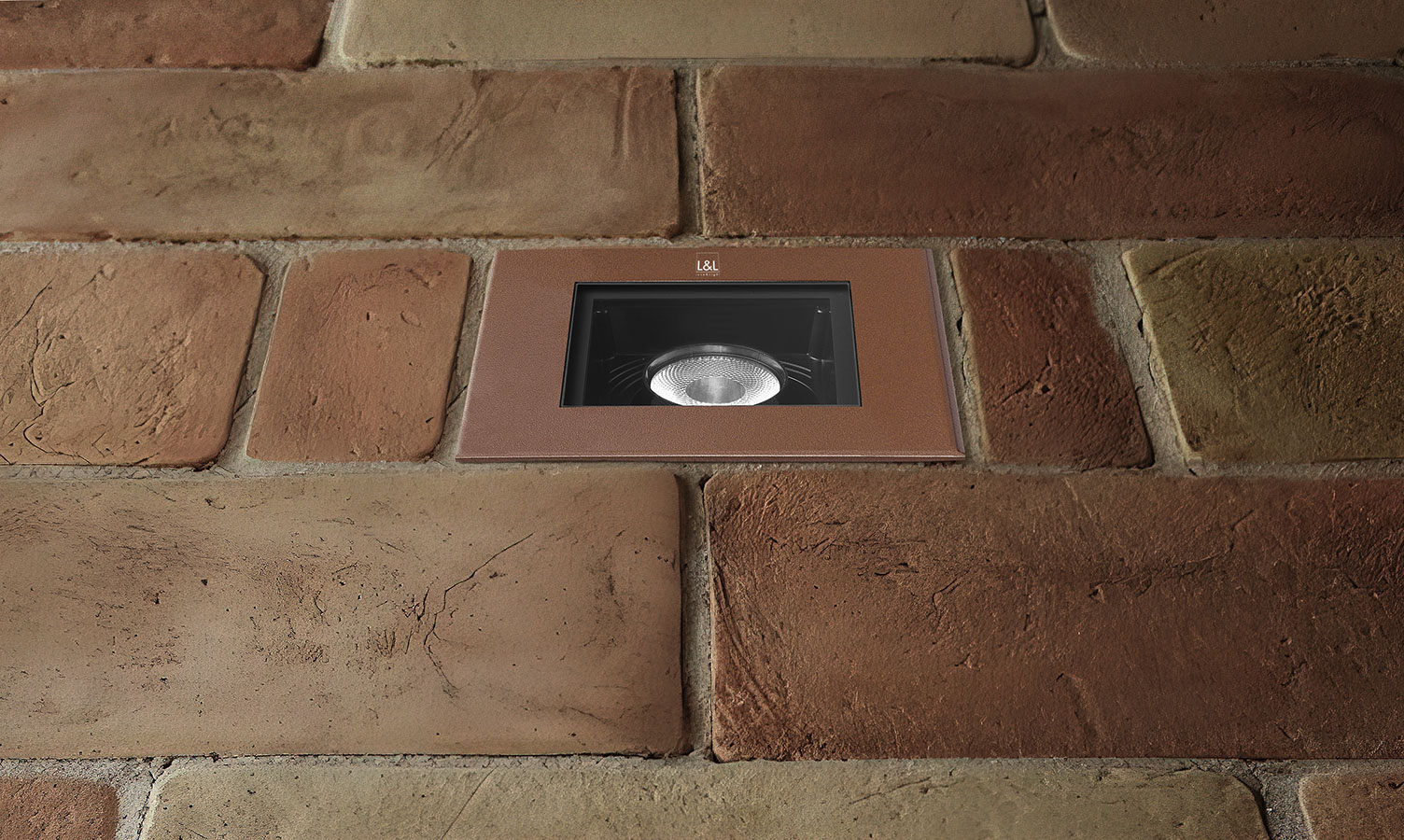

Mounting recessed (wall, floor)
Number and type of LED 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C);
wall washer optics: 14 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 2200K, 2700K, 3000K, 4000K

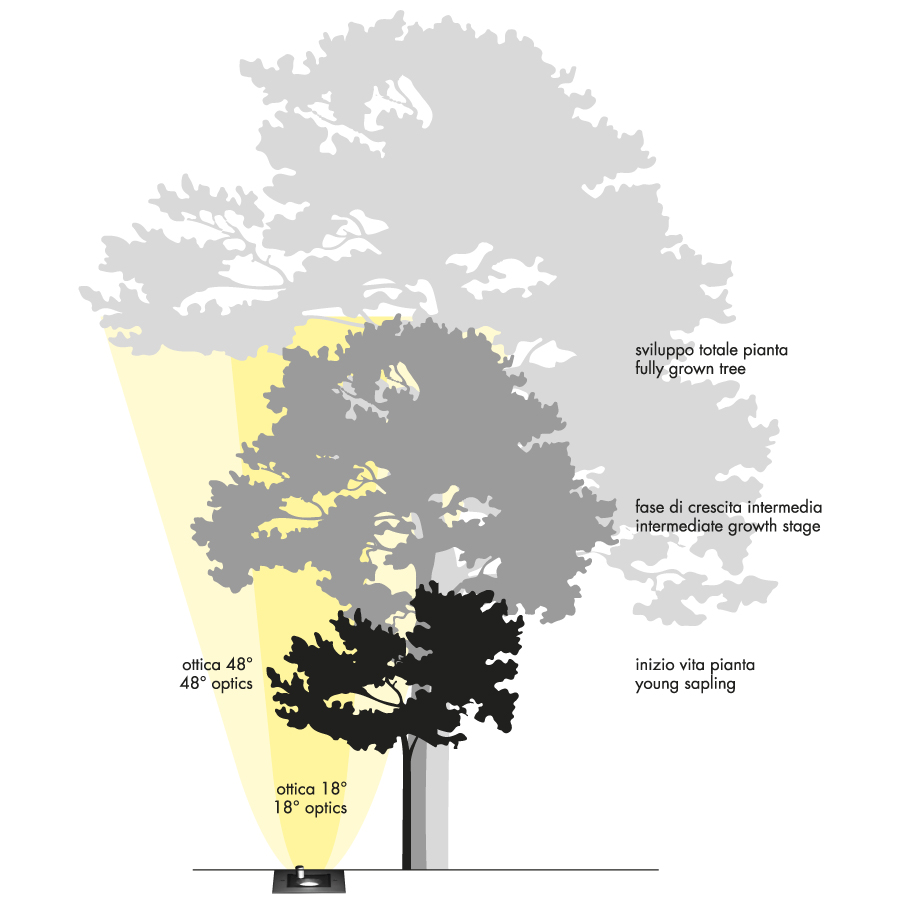

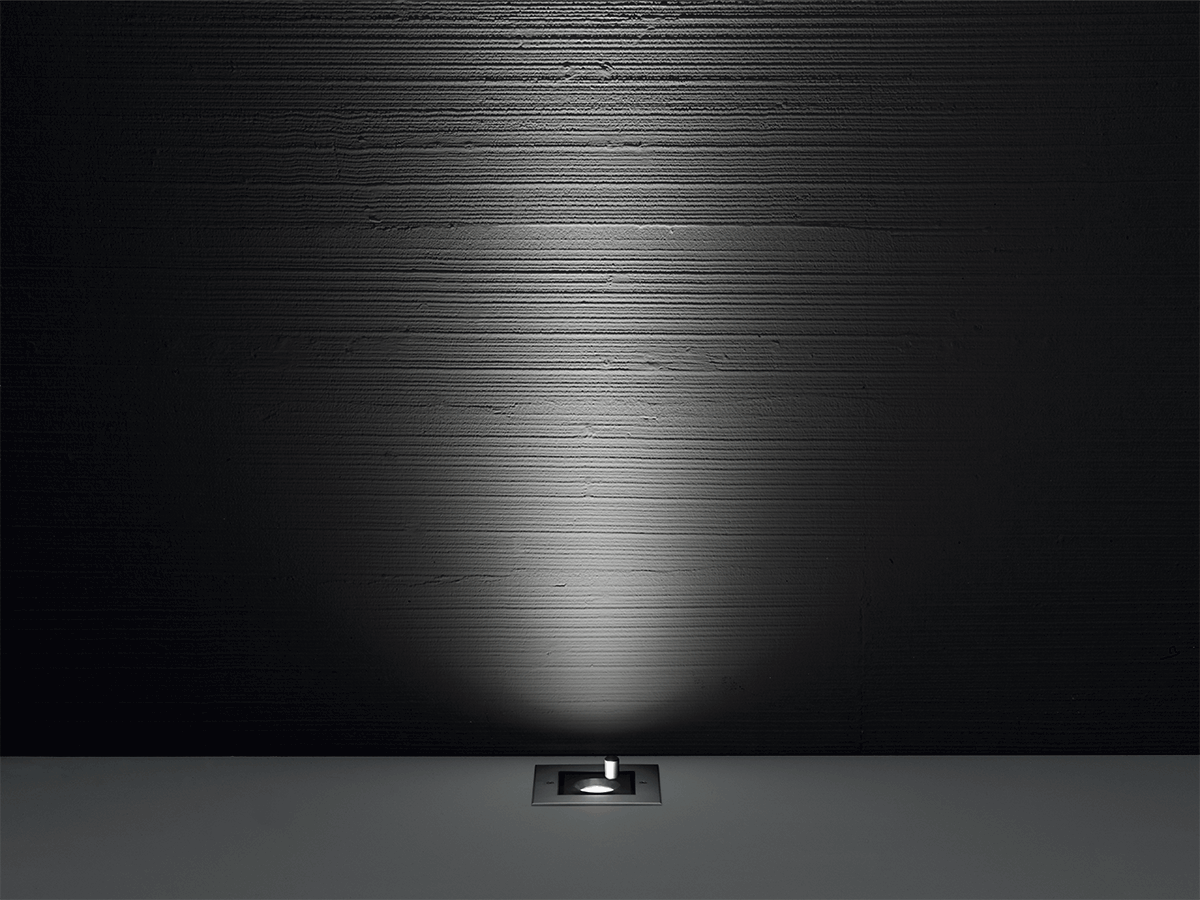

Optics 14°, 26°, 39°, 57°, sharp 57°, 14°x67°, 25°x70°, diffuse, optical range 18°—48°, wall washer
CRI Colour Rendering Index 80, >90
Body material body in thermally conductive technopolymer, trim in AISI 316L stainless steel
Screen material screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes cor-ten, stainless steel
Power supply unit built-in power supply unit
Ingress protection IP68 72h, IP66, IP69
Impact resistance IK10
Features manual zoom lens adjustable using magnet included.

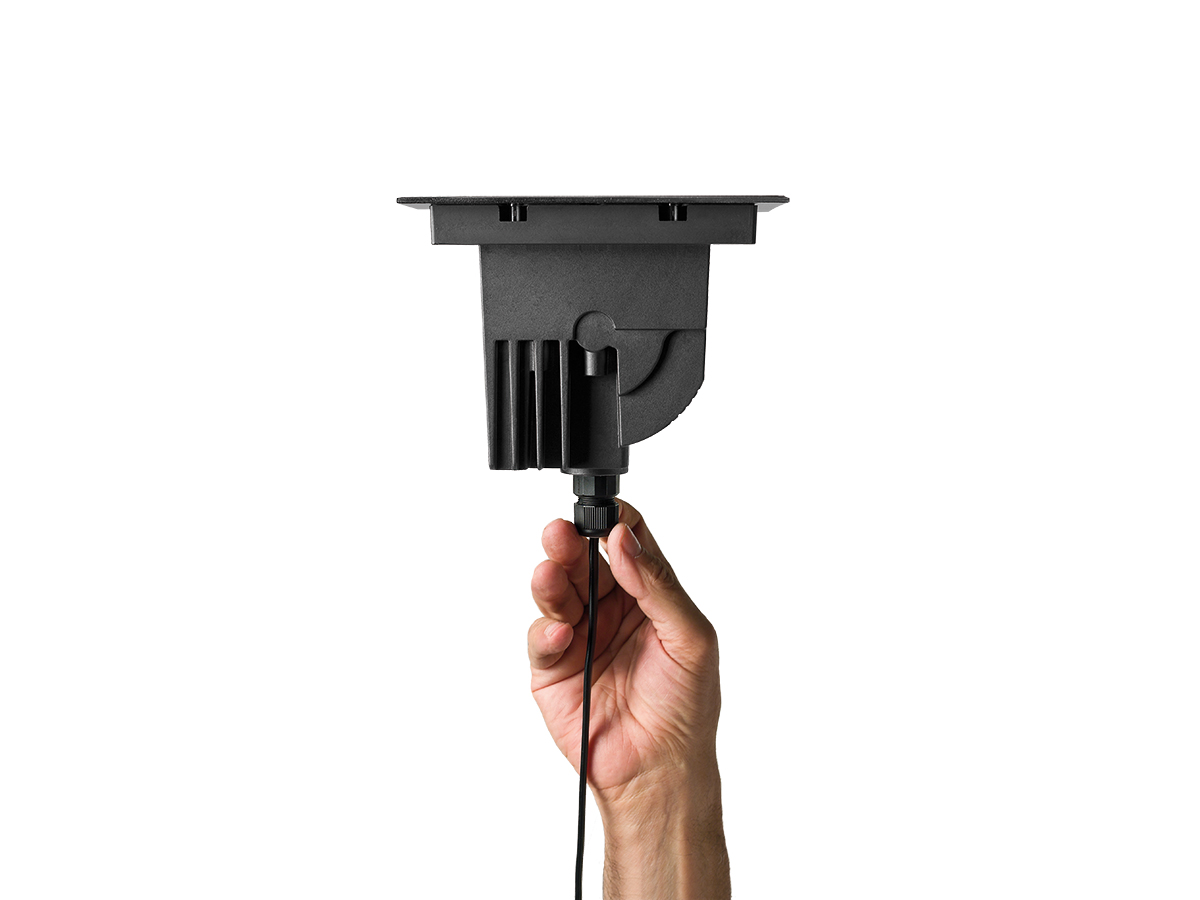

Fast installation: direct connection between fixture and mains power supply
Notes Casambi-compatible version, controllable with the Casambi app, available on request
Status Available

Read more


Customizations on request

This model can be customized, and you can also request a quote for further customizations.

Available customizations:

  • Pre-wired cable in non-standard length
  • RAL finishes
