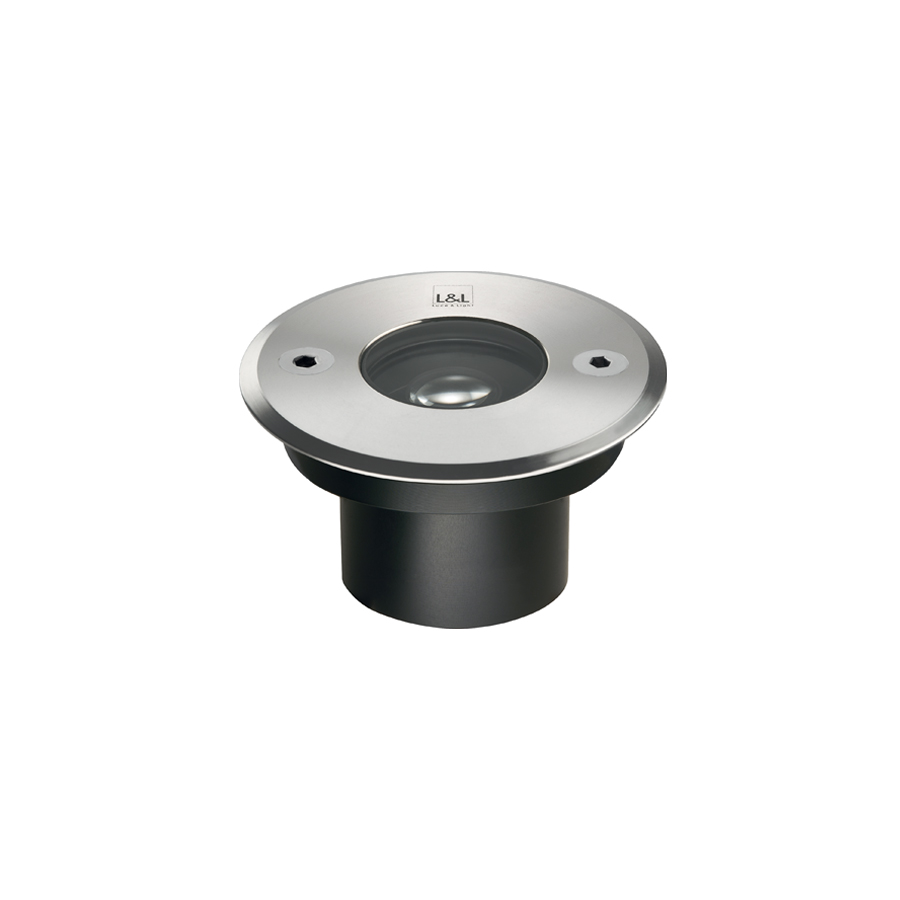

Bright 2.5 Outdoor recessed fixtures for architectural lighting - L&L Luce&Light

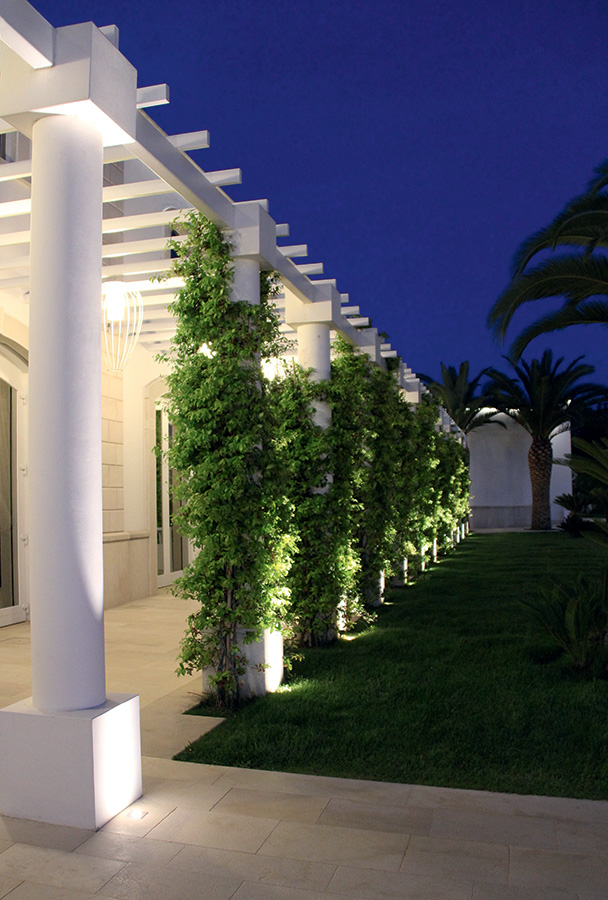

Bright 2.5

recessed for outdoor applications - 5W/7W 24Vdc; RGB: max 5W max 500mA - fixed optics - 85x85 mm

Technical data

Print technical data

kg 2000 - kN 20
kg 0,44
IP68
IP69K
IK10

Installation	recessed for outdoor applications (not suitable for use in swimming pools or fountains)
Power consumption	5W, 7W; RGB: max 5W
Power supply	24Vdc; RGB: max 500mA
Lumen output at source	488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80), RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA)
Delivered lumen output	352 lm (3000K, 34°, 5W, CRI 80), 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80), RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°)
Datasheet	Bright 2.5 recessed for outdoor applications (not suitable for use in swimming pools or fountains); drive-over up to 2000 kg; recessed (ceiling, wall, floor); Power consumption: 5W, 7W; RGB: max 5W; Power supply: 24Vdc; RGB: max 500mA; Lumen output at source: 488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80), RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80), RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°); 1 power LED High Intensity, 3-step MacAdam; RGB: 3 power LEDs 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, RGB; Optics: 8°, asymmetrical 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, 47°, sharp 61°, 68°, 13°x52°, 21°x42°, diffuse; CRI Colour Rendering Index: 80, >90; Body material: body in black-anodized anticorodal aluminium, trim in AISI 316L stainless steel, body and trim in AISI 316L stainless steel; Body: black anodized aluminium, stainless steel; Screen material: screen in sandblasted, tempered extra-clear glass (diffuse version), screen in tempered, transparent extra-clear glass (optics version); Thickness of installation surface: min 0 mm, max 25 mm; power supply unit not included; Wiring: parallel; RGB: series; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm; Ingress protection: IP68, IP69K; Impact resistance: IK10; version with 5° optics (with white LED colour and 3,5W power); available on request version with 9W power (with white LED colour) available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 55°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 440 g; Dimensions: 85x85x63 mm; Cutout dimensions: Ø70 mm; Volume of thermal heatsink: Ø180x120 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WC0100 Outer casing, WC0103 Outer casing, WC0150 Outer casing, WE0400A Semi-diffusing screen, half transparent and half frosted, WE0400S Anti-glare screen, half transparent and half serigraphed black, WG0100 Retaining spring clip Ø70mm, WH0201 Honeycomb louvre ; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBright 2.5 recessed for outdoor applications (not suitable for use in swimming pools or fountains) drive-over up to 2000 kg recessed (ceiling, wall, floor) Power consumption: 5W, 7W; RGB: max 5W Power supply: 24Vdc; RGB: max 500mA Lumen output at source: 488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80), RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA) Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80), RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°) 1 power LED High Intensity, 3-step MacAdam; RGB: 3 power LEDs 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, RGB Optics: 8°, asymmetrical 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, 47°, sharp 61°, 68°, 13°x52°, 21°x42°, diffuse CRI Colour Rendering Index: 80, >90 Body material: body in black-anodized anticorodal aluminium, trim in AISI 316L stainless steel, body and trim in AISI 316L stainless steel Body: black anodized aluminium, stainless steel Screen material: screen in sandblasted, tempered extra-clear glass (diffuse version), screen in tempered, transparent extra-clear glass (optics version) Thickness of installation surface: min 0 mm, max 25 mm power supply unit not included Wiring: parallel; RGB: series includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm Ingress protection: IP68, IP69K Impact resistance: IK10 version with 5° optics (with white LED colour and 3,5W power); available on request version with 9W power (with white LED colour) available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 55°C (Ta 25°C) Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 440 g Dimensions: 85x85x63 mm Cutout dimensions: Ø70 mm Volume of thermal heatsink: Ø180x120 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WC0100 Outer casing, WC0103 Outer casing, WC0150 Outer casing, WE0400A Semi-diffusing screen, half transparent and half frosted, WE0400S Anti-glare screen, half transparent and half serigraphed black, WG0100 Retaining spring clip Ø70mm, WH0201 Honeycomb louvre tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling, wall, floor)
Number and type of LED	1 power LED High Intensity, 3-step MacAdam; RGB: 3 power LEDs 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, RGB

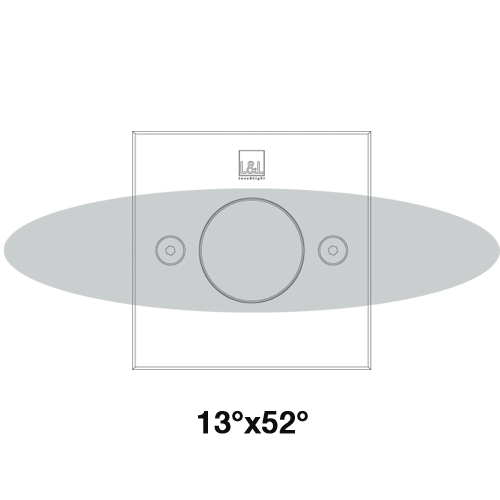

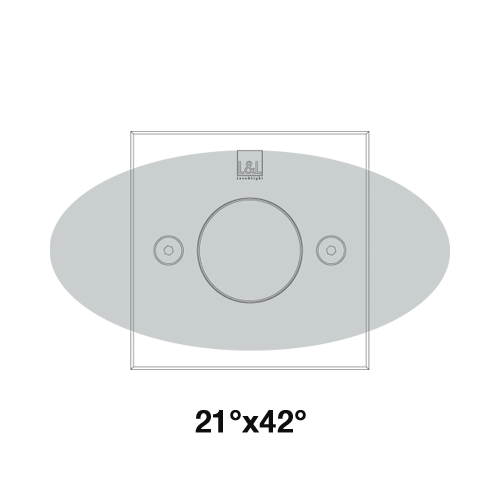

Optics	8°, asymmetrical 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, 47°, sharp 61°, 68°, 13°x52°, 21°x42°, diffuse
CRI Colour Rendering Index	80, >90
Body material	body in black-anodized anticorodal aluminium, trim in AISI 316L stainless steel, body and trim in AISI 316L stainless steel
Screen material	screen in sandblasted, tempered extra-clear glass (diffuse version), screen in tempered, transparent extra-clear glass (optics version)
Body	black anodized aluminium, stainless steel
Power supply unit	power supply unit not included
Wiring	parallel; RGB: series
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
Ingress protection	IP68, IP69K
Impact resistance	IK10
Notes	version with 5° optics (with white LED colour and 3,5W power); available on request version with 9W power (with white LED colour) available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (7)

Outer casings

WC0100 Outer casing	WC0103 Outer casing
WC0150 Outer casing

Retaining spring clips

WG0100

Retaining spring clip Ø70mm

Honeycomb louvre

Order together with the lighting fixture.

WH0201

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all fixed optics except for the sharp, asymmetrical 8°, 8° and diffuse optics

Screens

Order together with the lighting fixture.

WE0400A

Semi-diffusing screen, half transparent and half frosted

built into the lighting fixture

Can be fitted on all optics except for diffuse and asymmetrical 8° optics and for RGB version

Order together with the lighting fixture.

WE0400S

Anti-glare screen, half transparent and half serigraphed black

built into the lighting fixture

Can be fitted on all optics except for diffuse and asymmetrical 8° optics and for RGB version

Cables

Choose the power cable in the code generator

Power supply units (31)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 11W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV36060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	36Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV48150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	48Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV48150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (12)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 24 Vdc input:; 24Vdc; 288W With 12 Vdc input:; 12Vdc; 144W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,5W With 24 Vdc input:; 350mA constant current; max 25W With 48 Vdc input:; 350mA constant current; max 50W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 48 Vdc input:; 500mA constant current; max 72W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARCUNID2

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU
output values apply to 48Vdc

Input	12-24-48Vdc
Output	3 channels 350mA constant current; max 50,4W 500mA constant current; max 72W 4 channels 350mA constant current; max 67,2W 500mA constant current; max 96W 1 channel 350mA constant current; max 16,8W 500mA constant current; max 24W 700mA constant current; max 33,6W 3 channels 700mA constant current; max 100,8W 4 channels 700mA constant current; max 134,4W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

ARVUNID2

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W 2 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input	12-24-48Vdc
Output	350mA constant current; max 67,2W 1050mA constant current; max 201,6W 700mA constant current; max 134,4W
Dimmering	Radio frequency
Power supply unit IP	IP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 350mA constant current; max 25,2W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 350mA constant current; max 37,8W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W With 36 Vdc input:; 350mA constant current; max 37,8W With 12 Vdc input:; 700mA constant current; max 25,2W With 24 Vdc input:; 700mA constant current; max 50,4W With 36 Vdc input:; 700mA constant current; max 75,6W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W With 36 Vdc input:; 350mA constant current; max 37,8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

Control input (4)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

TLC08

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLR01

Receiver required for TLC05 and TLC06 remote control

Input	12─24Vdc
Output	2 clean contacts
Ingress protection	IP20
Dimensions	90x53x28 mm
