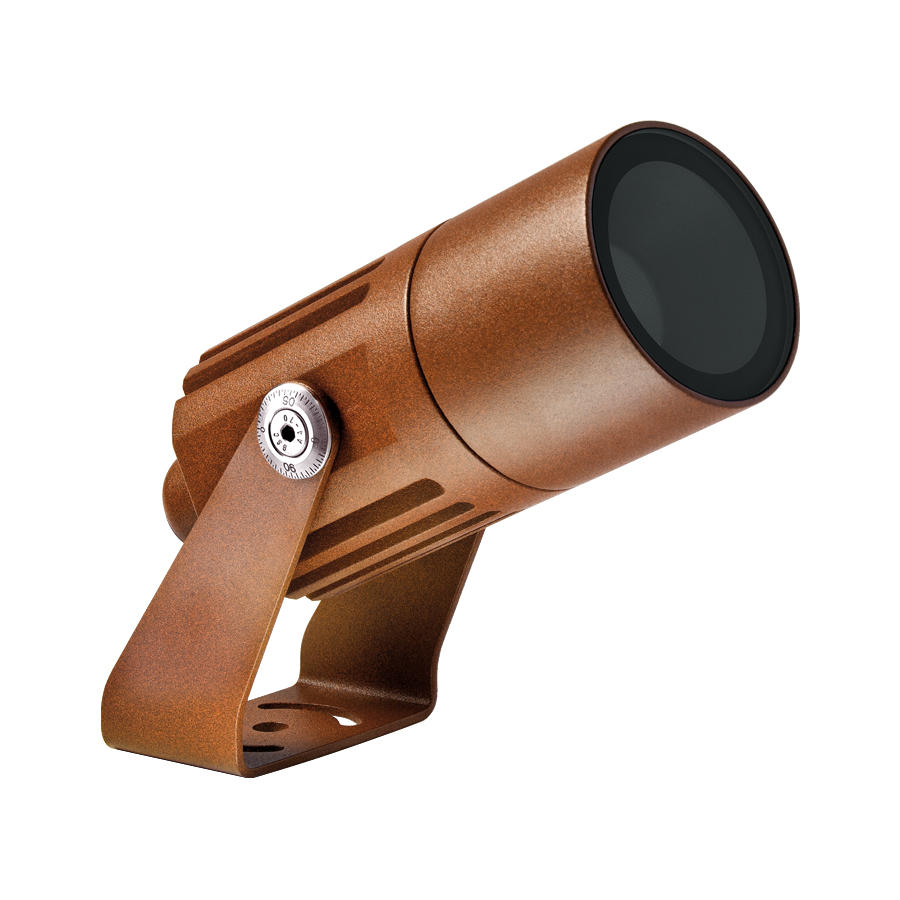

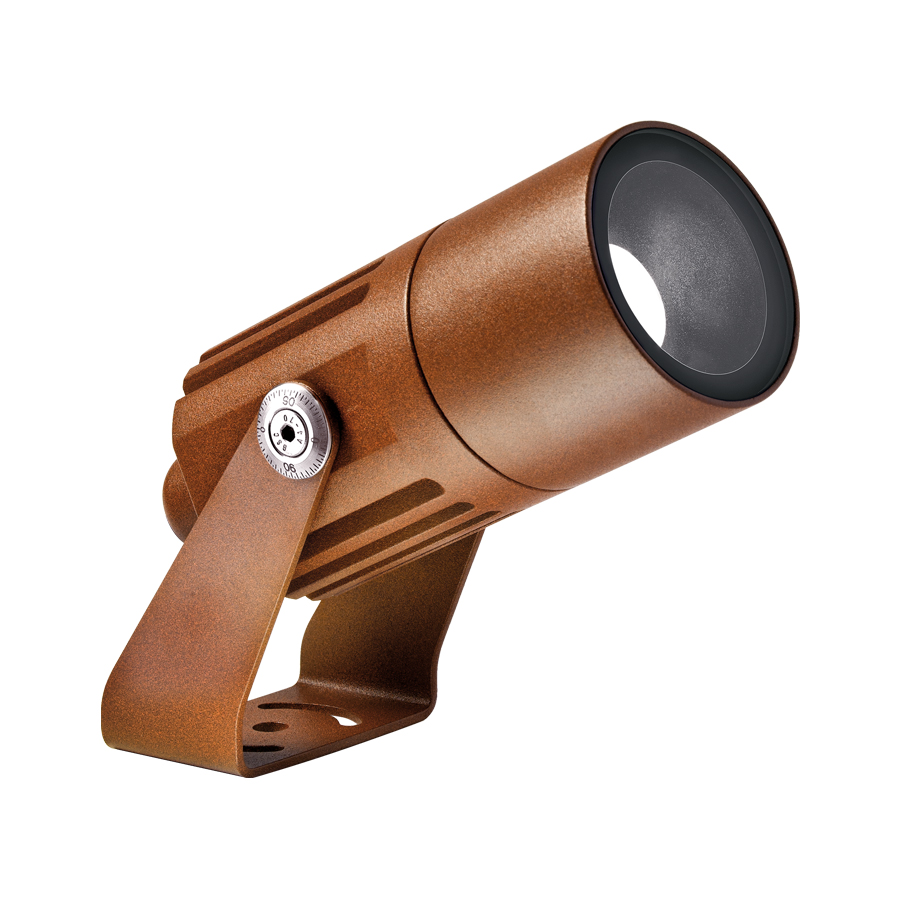

Flori 1.0

Projectors for outdoor applications

projector for outdoor applications - 7W 230Vac - adjustable 250° - CRI 80 and CRI >90

Technical data

Print technical data

Updated to FS10101FMT

kg 0,80
IP66
IK07

Installation	projector for outdoor applications
Power consumption	7W
Power supply	230Vac
Lumen output at source	608 lm (3000K, CRI >90)
Delivered lumen output	296 lm (3000K, 31°, CRI >90)
Datasheet	Flori 1.0 code: FS10101FMT projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 7W; Power supply: 230Vac; Lumen output at source: 608 lm (3000K, CRI >90); Delivered lumen output: 296 lm (3000K, 31°, CRI >90); 1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: 31°; CRI Colour Rendering Index: >90; Body material: body in aluminium; Finishes: cor-ten; RAL finish on request; Screen material: screen in serigraphed, transparent and tempered extra-clear glass; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK07; version with 24Vdc power supply available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 800 g; Dimensions: Ø60x154x147 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB1001T Standard snoot - cor-ten, WB1002T Asymmetrical snoot - cor-ten, WB1003N Barn doors - black, WHA0005 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1001T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP1002T Spike with bracket for in-ground installation - h 800 mm - cor-ten, WP1003T Arm with bracket for wall-mounted installation - h 420 mm - cor-ten, WP1004 Fastener strap - 5 m; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionFlori 1.0 code: FS10101FMT projector for outdoor applications surface mounted (ceiling, wall, ground, spike, strap) Power consumption: 7W Power supply: 230Vac Lumen output at source: 608 lm (3000K, CRI >90) Delivered lumen output: 296 lm (3000K, 31°, CRI >90) 1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K Optics: 31° CRI Colour Rendering Index: >90 Body material: body in aluminium Finishes: cor-ten RAL finish on request Screen material: screen in serigraphed, transparent and tempered extra-clear glass built-in power supply unit includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK07 version with 24Vdc power supply available on request, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 800 g Dimensions: Ø60x154x147 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB1001T Standard snoot - cor-ten, WB1002T Asymmetrical snoot - cor-ten, WB1003N Barn doors - black, WHA0005 Honeycomb louvre , WP0100 Spike for in-ground installation, WP1001T Spike with bracket for in-ground installation - h 500 mm - cor-ten, WP1002T Spike with bracket for in-ground installation - h 800 mm - cor-ten, WP1003T Arm with bracket for wall-mounted installation - h 420 mm - cor-ten, WP1004 Fastener strap - 5 m tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike, strap)
Number and type of LED	1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K
Optics	31°
CRI Colour Rendering Index	>90
Body material	body in aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	cor-ten
Power supply unit	built-in power supply unit
Power cables	includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK07
Notes	version with 24Vdc power supply available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Remote DALI control

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Flori 1.0
- Specific, for code FS10101FMT
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file Type
- Generic, for the product Flori 1.0
- Specific, for code FS10101FMT
IES Photometric file Type
- Generic, for the product Flori 1.0
- Specific, for code FS10101FMT
CB marking
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (9)

Accessories for product code FS10101FMT

Spikes and arms

WP0100 Spike for in-ground installation	WP1001T Spike with bracket for in-ground installation - h 500 mm - cor-ten
WP1002T Spike with bracket for in-ground installation - h 800 mm - cor-ten	WP1003T Arm with bracket for wall-mounted installation - h 420 mm - cor-ten

Honeycomb louvre

Order together with the lighting fixture.

WHA0005

Honeycomb louvre

built into the lighting fixture

Snoots

WB1001T

Standard snoot - cor-ten

WB1002T

Asymmetrical snoot - cor-ten

Barn doors

WB1003N

Barn doors - black

Various accessories

WP1004

Fastener strap - 5 m

Power supply units (0)

Power supply units for product code FS10101FMT

No power supply units

Control gear (0)

Control gear for product code FS10101FMT

No controllers

Control input (0)

No control inputs
