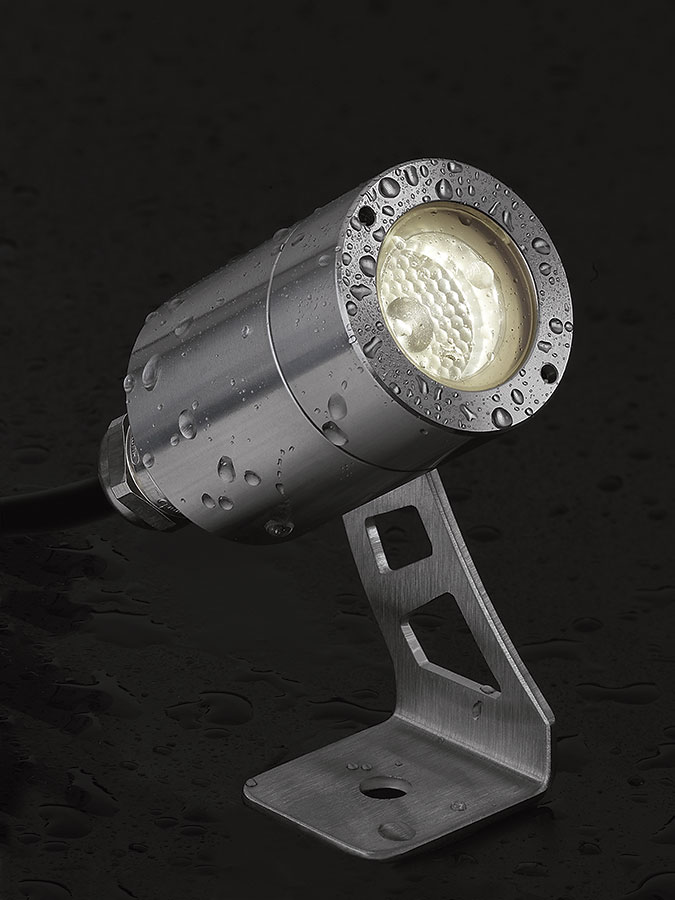

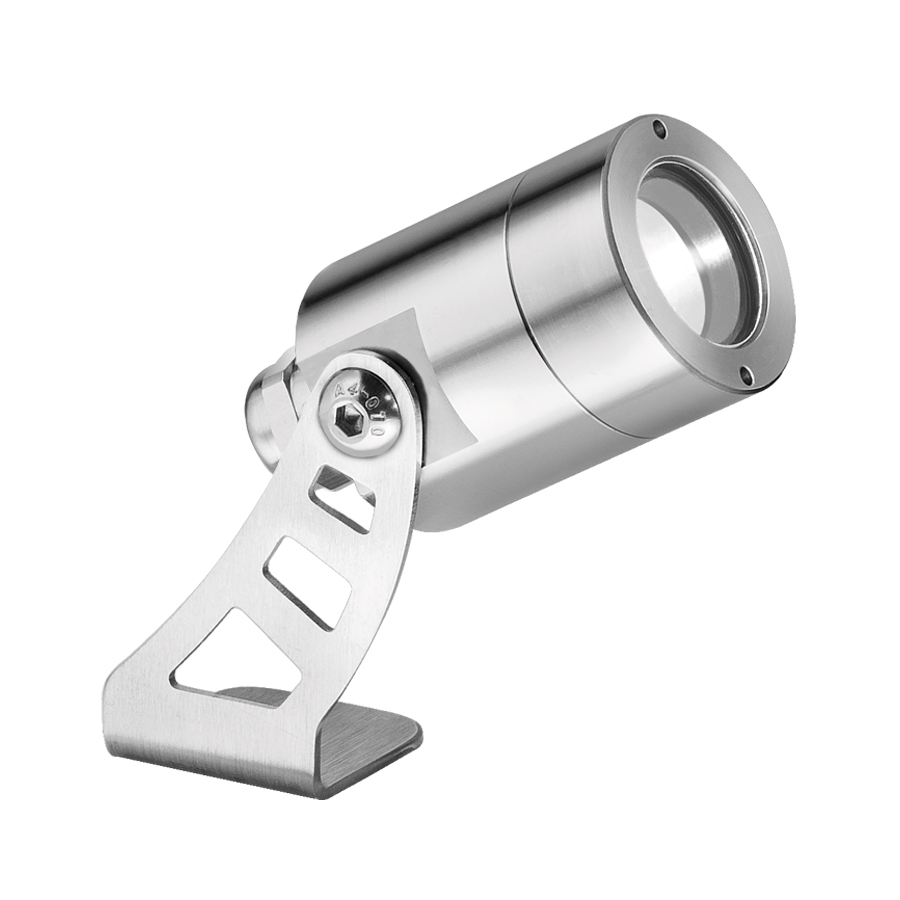

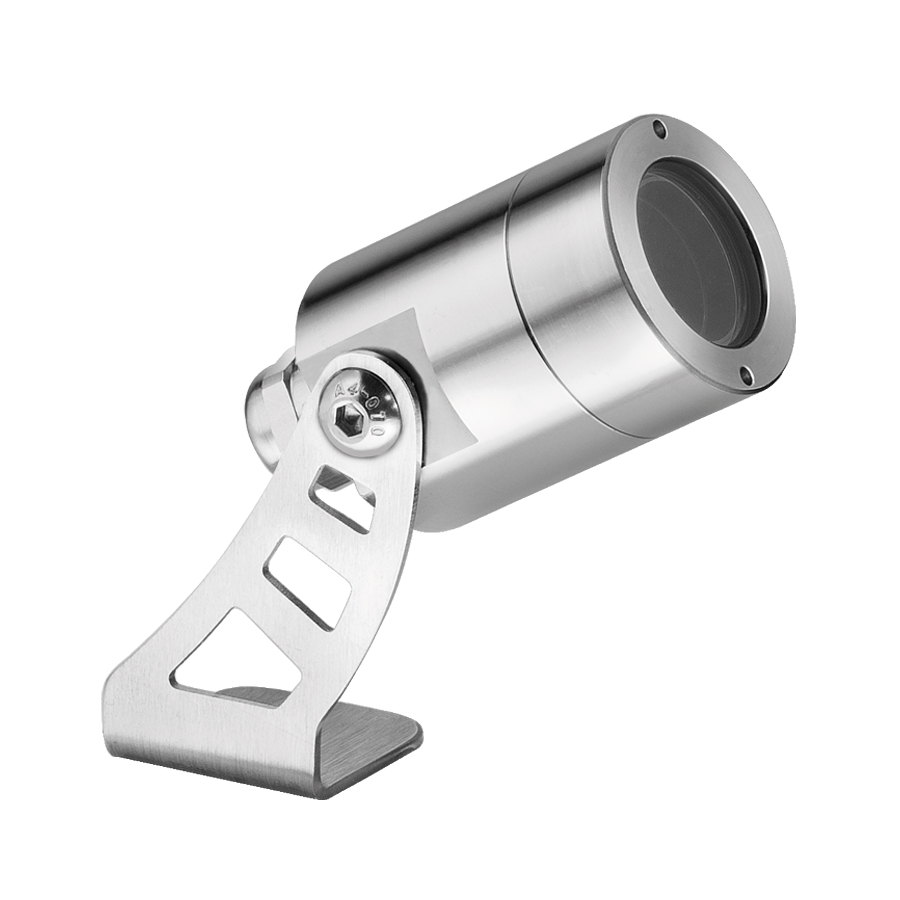

Spot 1.6 316L

projector for underwater applications - 2W 24Vdc - adjustable 220°

Generate code

Technical data

Print technical data
  • complies with the European standard EN 60598-1
  • CB
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 0,48
  • IP68
  • IK10
  • IPS
  • A/A+/A++
Installation projector for outdoor and underwater applications
Power consumption 2W
Power supply 24Vdc
Lumen output at source 145 lm (3000K)
Delivered lumen output 88 lm (3000K, 20°)
Datasheet

Copied

Mounting surface mounted (ceiling, wall, ground, spike), max depth 10 m
Number and type of LED 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, 5000K, blue
Optics 10°, 20°, 40°
CRI Colour Rendering Index 80
Body material body and trim in AISI 316L stainless steel
Screen material screen in tempered, transparent glass
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection IP68
Impact resistance IK10
Notes version with elliptical optics available on request
Status Available

Read more

Close

Accessories and power supply units

Accessories (1)

Spikes and arms

WP0100

Spike for in-ground installation

Cables

Choose the power cable in the code generator

Power supply units (14)

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67
