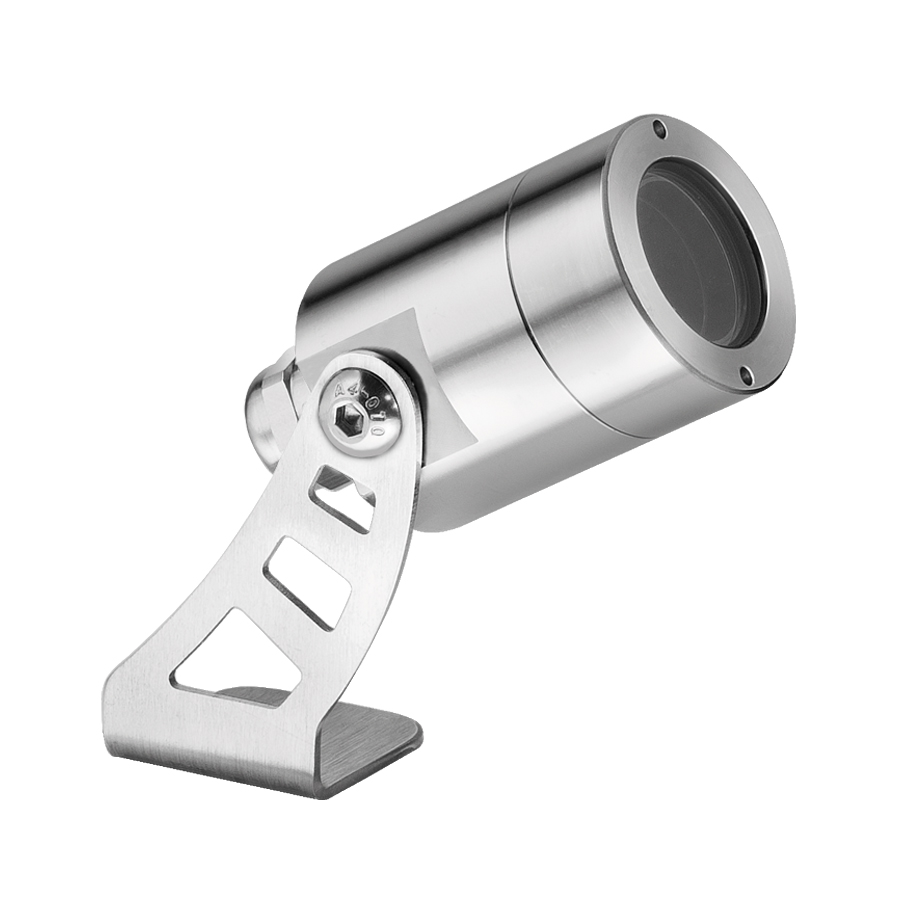

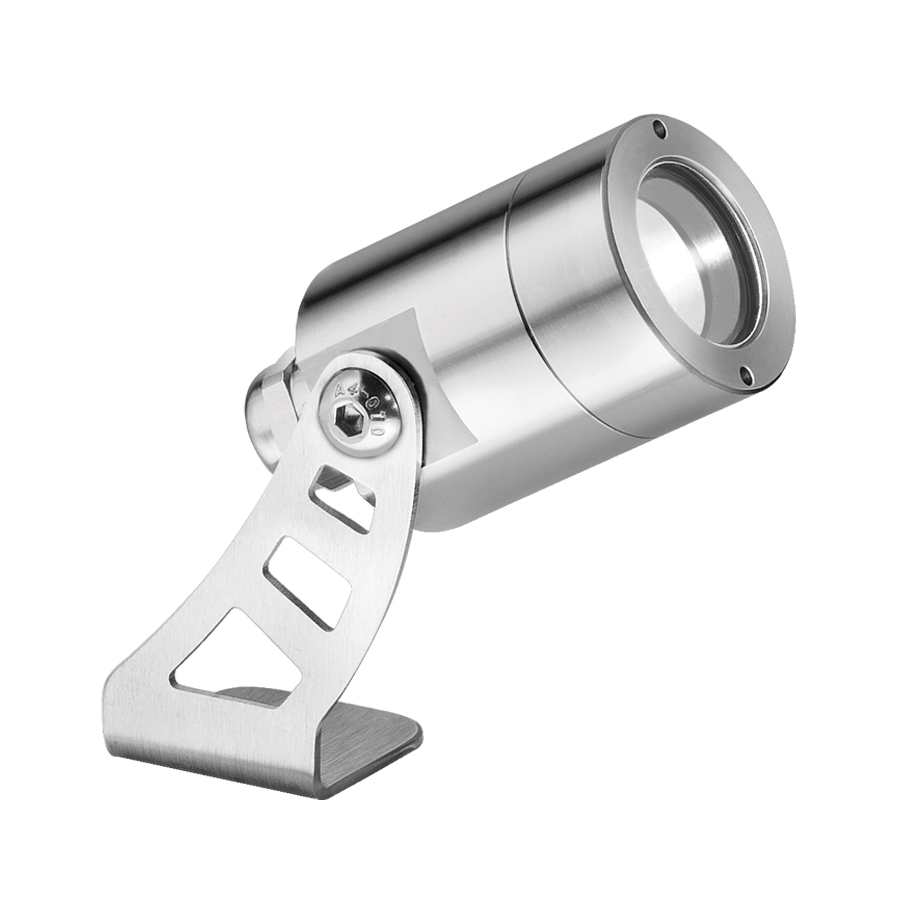

Spot 1.0 316L Projectors for use in fountains or harsh environments

Technical data

kg 0,48
IP68
IK10

Installation	projector for outdoor and underwater applications
Power consumption	max 2W
Power supply	max 500mA
Lumen output at source	145 lm (3000K, 500mA)
Delivered lumen output	88 lm (3000K, 500mA, 20°)
Datasheet	Spot 1.0 316L projector for outdoor and underwater applications; surface mounted (ceiling, wall, ground, spike), max depth 10 m; Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 145 lm (3000K, 500mA); Delivered lumen output: 88 lm (3000K, 500mA, 20°); 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: 10°, 20°, 40°; CRI Colour Rendering Index: 80; Body material: body and trim in AISI 316L stainless steel; Screen material: screen in tempered, transparent glass; power supply unit not included; Wiring: series; includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP68; Impact resistance: IK10; version with elliptical optics available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C (installation outdoors), 0°C — +45°C (installation underwater); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 480 g; Dimensions: Ø30x57mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WP0100 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSpot 1.0 316L projector for outdoor and underwater applications surface mounted (ceiling, wall, ground, spike), max depth 10 m Power consumption: max 2W Power supply: max 500mA Lumen output at source: 145 lm (3000K, 500mA) Delivered lumen output: 88 lm (3000K, 500mA, 20°) 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, blue Optics: 10°, 20°, 40° CRI Colour Rendering Index: 80 Body material: body and trim in AISI 316L stainless steel Screen material: screen in tempered, transparent glass power supply unit not included Wiring: series includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP68 Impact resistance: IK10 version with elliptical optics available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C (installation outdoors), 0°C — +45°C (installation underwater) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 480 g Dimensions: Ø30x57mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WP0100 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike), max depth 10 m
Number and type of LED	1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, blue
Optics	10°, 20°, 40°
CRI Colour Rendering Index	80
Body material	body and trim in AISI 316L stainless steel
Screen material	screen in transparent, tempered glass
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP68
Impact resistance	IK10
Notes	version with elliptical optics available on request
Status	Available

Close

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

350mA constant current; max 4W

Power

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

500mA constant current; max 6W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

500mA constant current; max 12W

Dimmering

Cannot be dimmed

Power supply unit IP

IP67

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

500mA constant current; max 12W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

24-48Vdc

Output

1 channel

350mA constant current; max 15,5W
500mA constant current; max 21,5W
1050mA constant current; max 45W

700mA constant current; max 30W

3 channels

1050mA constant current; max 135W

350mA constant current; max 45W

500mA constant current; max 64,5W

700mA constant current; max 90,3W

4 channels

1050mA constant current; max 180W

350mA constant current; max 62W

500mA constant current; max 86W

700mA constant current; max 120W

Dimmering

0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512+RDM, Stand alone

Power supply unit IP

IP20

Input

12-24Vdc
24Vdc

Output

1 channel

500mA constant current; max 12W
500mA constant current; max 6W

2 channels

500mA constant current; max 12W

500mA constant current; max 24W

3 channels

500mA constant current; max 18W

500mA constant current; max 36W

4 channels

500mA constant current; max 24W

500mA constant current; max 48W

Dimmering

PUSH, Casambi

Power supply unit IP

IP20

Input

24Vdc

Output

350mA constant current; max 8,4W

Dimmering

PWM

Power supply unit IP

IP20

Input

24Vdc

Output

500mA constant current; max 12W

Dimmering

PWM

Power supply unit IP

IP20

Input

220─240Vac 50─60Hz

Output

max 350mA 58Vdc max

Ingress protection

IP20

Dimensions

35x47x166 mm, 185 g

Cutout dimensions

Ø58 mm

Input

12-24-48 Vdc

Ingress protection

IP20

Dimensions

45x58x25 mm

Cutout dimensions

Ø51 mm

Spot 1.0 316L

Generate code

Technical data

Read more

Close

Download

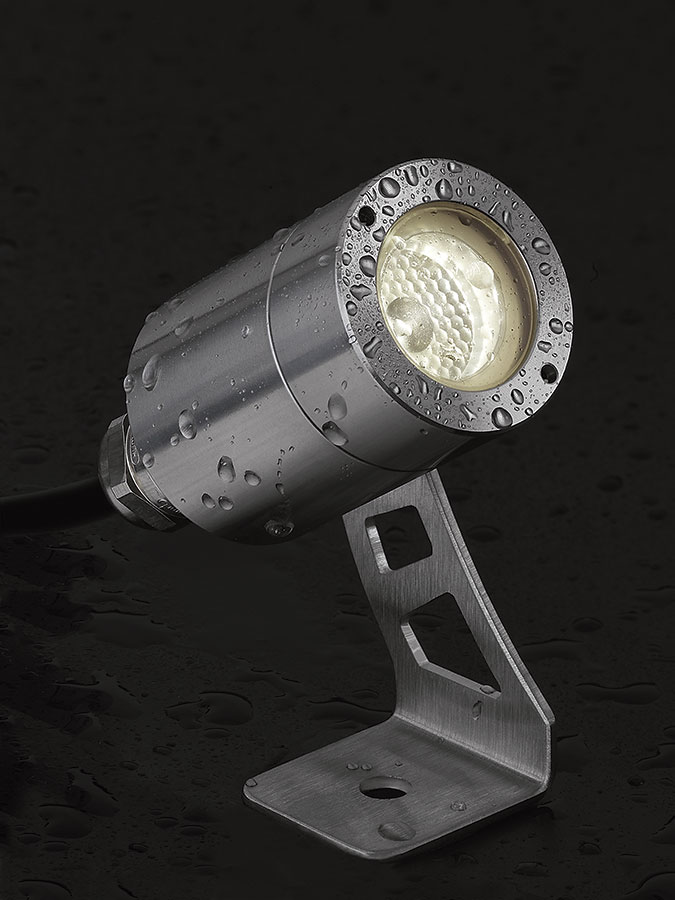

Gallery

Accessories and power supply units

Accessories (1)

Spikes and arms

WP0100

Spike for in-ground installation

Cables

Power supply units (4)

A13350VL

ON/OFF constant-current PSU

A13500TC

ON/OFF constant-current PSU

A14500IP67

ON/OFF constant-current PSU

A15500QL

ON/OFF constant-current PSU

Control gear (4)

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

1 channel

3 channels

4 channels

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA) for CASAMBI

1 channel

2 channels

3 channels

4 channels

WFA024350

Converter with 350 mm cable

WFA024500

Converter with 350 mm cable

Control input (2)

AE01350T1

Emergency module integrated

EC0TIM12840020

Timer for CASAMBI

Projects

Historical buildings & cultural destinations

Otruševec cave

Entertainment

Lights in Alingsås Jubilee project

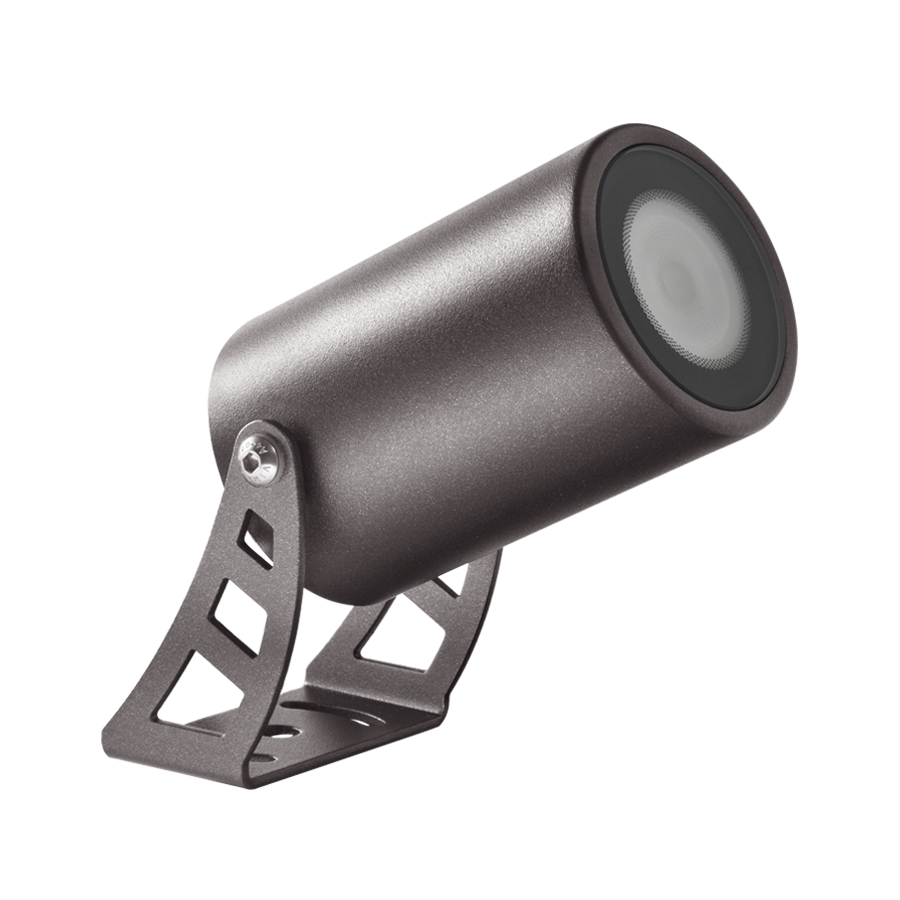

Versions
