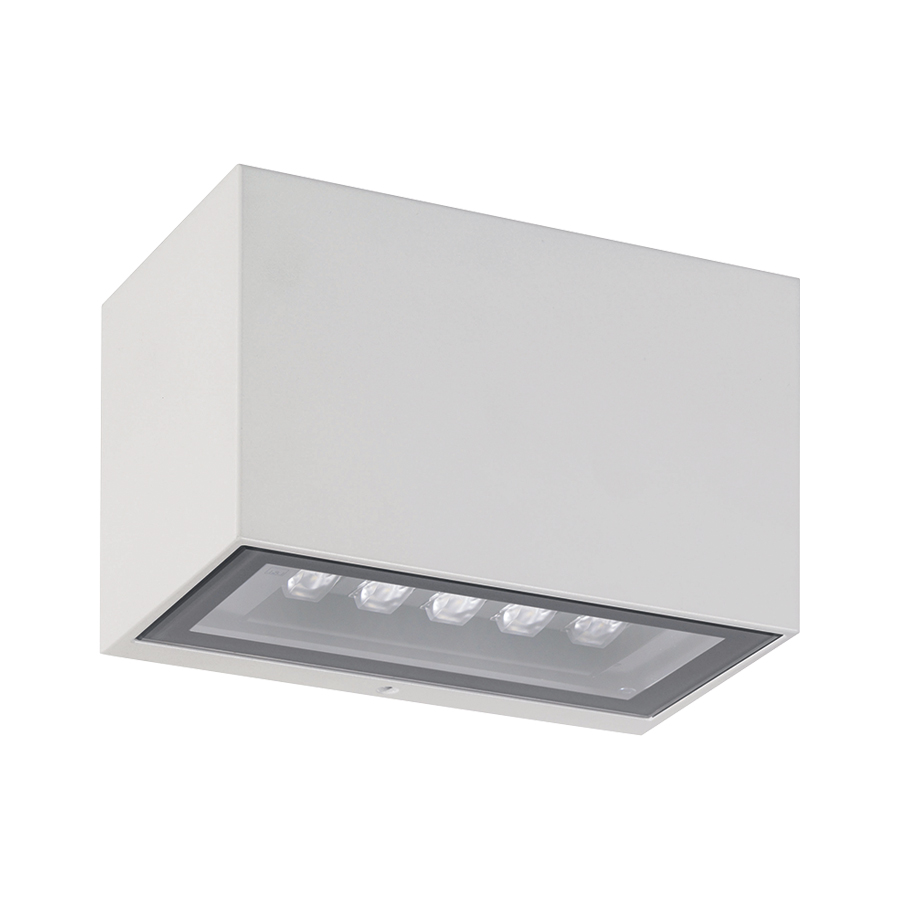

Geko 6.1

Wall mounted for outdoor applications

wall mounted for outdoor applications - with optics, double beam - 20W 230Vac - 100x170x100 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control
Remote emergency light
Casambi-compatible version, controllable with the Casambi app

Technical data

Print technical data

kg 2,20
IP65
IK07

Installation	wall mounted for outdoor applications, double beam
Power consumption	20W
Power supply	230Vac
Lumen output at source	1454 lm (3000K)
Delivered lumen output	1070 lm (3000K, 30°)
Datasheet	Geko 6.1 wall mounted for outdoor applications, double beam; surface mounted (wall); Power consumption: 20W; Power supply: 230Vac; Lumen output at source: 1454 lm (3000K); Delivered lumen output: 1070 lm (3000K, 30°); 10 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K; Optics: 7°, 10°, 30°, 70°, 10°x45°, asymmetrical; CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: grey (RAL 9006), anthracite, white (RAL 9003), cor-ten; RAL finish on request; Screen material: screen in serigraphed, transparent and tempered extra-clear glass; built-in power supply unit; connection box with 0,30 m cable; Ingress protection: IP65; Impact resistance: IK07; spacer with RAL finish available on request; Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 2200 g; Dimensions: 170x100x100 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WD0300E Spacer - white, WD0300F Spacer - grey, WD0300H Spacer - anthracite, WD0300T Spacer - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionGeko 6.1 wall mounted for outdoor applications, double beam surface mounted (wall) Power consumption: 20W Power supply: 230Vac Lumen output at source: 1454 lm (3000K) Delivered lumen output: 1070 lm (3000K, 30°) 10 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K Optics: 7°, 10°, 30°, 70°, 10°x45°, asymmetrical CRI Colour Rendering Index: 80 Body material: body in die-cast aluminium Finishes: grey (RAL 9006), anthracite, white (RAL 9003), cor-ten RAL finish on request Screen material: screen in serigraphed, transparent and tempered extra-clear glass built-in power supply unit connection box with 0,30 m cable Ingress protection: IP65 Impact resistance: IK07 spacer with RAL finish available on request Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 2200 g Dimensions: 170x100x100 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WD0300E Spacer - white, WD0300F Spacer - grey, WD0300H Spacer - anthracite, WD0300T Spacer - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	10 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K

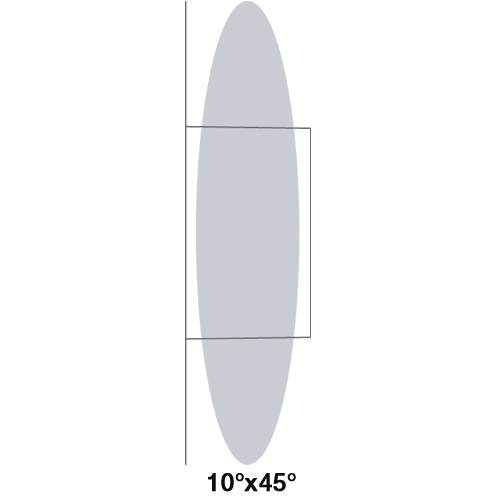

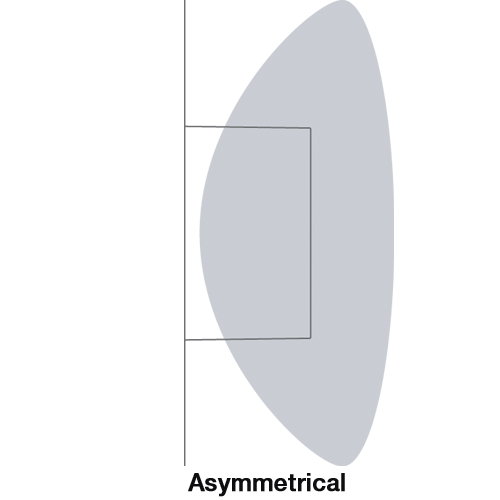

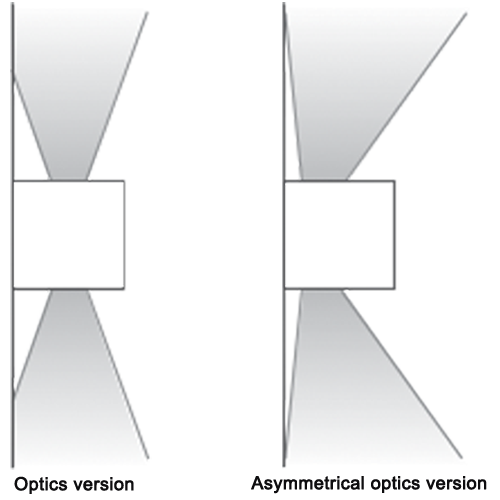

Optics	7°, 10°, 30°, 70°, 10°x45°, asymmetrical
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	grey, anthracite, white, cor-ten
Power supply unit	built-in power supply unit
Power cables	connection box with 0,30 m cable
Ingress protection	IP65
Impact resistance	IK07
Notes	spacer with RAL finish available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (4)

Spacers

WD0300E Spacer - white	WD0300F Spacer - grey
WD0300H Spacer - anthracite	WD0300T Spacer - cor-ten
