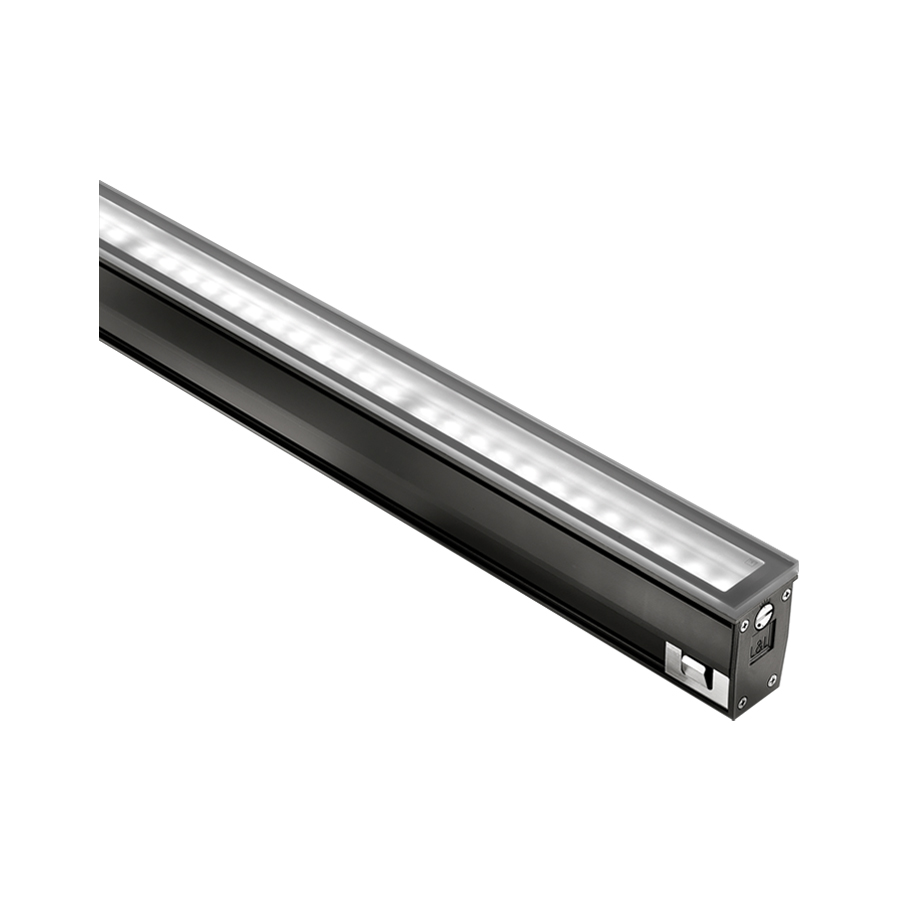

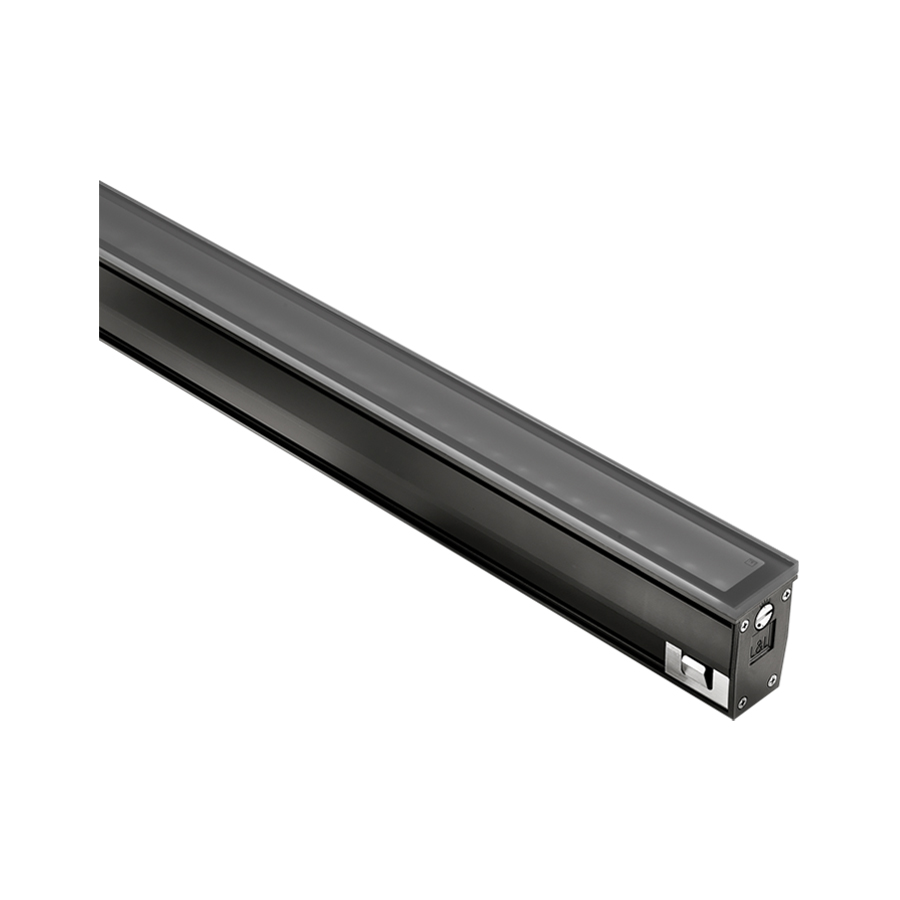

Tago 2.1

Linear profiles for outdoor applications

linear profile for outdoor applications - 24W 230Vac - 529 mm

Technical data

Print technical data

Updated to TG21100000N0AV

kg 2000 - kN 20
kg 1,848
IP65
IP67
IP69
IK09

Installation	linear profile for outdoor applications
Power consumption	24W
Power supply	230Vac
Lumen output at source	2984 lm (3000K)
Delivered lumen output	1864 lm (3000K, 29°)
Datasheet	Tago 2.1 code: TG21100000N0AV linear profile for outdoor applications; drive-over up to 2000 kg; recessed (floor); Power consumption: 24W; Power supply: 230Vac; Lumen output at source: 2984 lm (3000K); Delivered lumen output: 1864 lm (3000K, 29°); 24 SMD LEDs, 3-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2200K; Optics: wall washer tiltable ±20°: optical system composed of a series of equidistant tiltable light sources, 20 mm apart. Fitted with locking screw. The deep-set asymmetrical PMMA lens guarantees high-quality light emission and visual comfort.; CRI Colour Rendering Index: 80; Body material: body made of Anticorodal® low-copper-content aluminium EN AW 6060 T5 for excellent heat dissipation, manufactured from an extruded profile and subjected to a deep black electro-colouring process (between 10 and 15 microns) for excellent corrosion resistance. Caps made of technopolymer for greater resistance to corrosion and atmospheric agents; Screen material: 8-mm-thick acid-etched, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations; Seals: black Santoprene™ O-rings guarantee lasting resistance to UV rays; Installation: On/off version: one IP68 4-way connector for power supply. Dimmable version: one IP68 4-way connector for power supply and two IP68 3-way connectors for DALI and 0/1–10V signal; built-in power supply unit; on/off: includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm DALI, 0/1-10V: includes 1 x 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm and 2 x 0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm; Control system: ON/OFF; Ingress protection: IP65, IP67, IP69; Impact resistance: IK09; optical accessories of honeycomb louvre and anti-glare shield built into the lighting fixture and tiltable together with the optics. In/out connection and easy wiring with quick connectors designed to connect the profiles one after the other in the dimmable versions; Casambi-compatible version, controllable with the Casambi app, available on request; GORE-TEX valve to relieve the internal pressure; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class I; Weight: 1848 g; Dimensions: 56x116x529 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WCTG21A0F Outer casing, WFA02 IP68 “h”-type three-way connector (82x53.3x28 mm), WN6005 Alignment kit for outer casing, WN6006 Pair of extractors for outer casings; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionTago 2.1 code: TG21100000N0AV linear profile for outdoor applications drive-over up to 2000 kg recessed (floor) Power consumption: 24W Power supply: 230Vac Lumen output at source: 2984 lm (3000K) Delivered lumen output: 1864 lm (3000K, 29°) 24 SMD LEDs, 3-step MacAdam, 60 000h L80 B10 (Ta 25°C) LED colour: 2200K Optics: wall washer tiltable ±20°: optical system composed of a series of equidistant tiltable light sources, 20 mm apart. Fitted with locking screw. The deep-set asymmetrical PMMA lens guarantees high-quality light emission and visual comfort. CRI Colour Rendering Index: 80 Body material: body made of Anticorodal® low-copper-content aluminium EN AW 6060 T5 for excellent heat dissipation, manufactured from an extruded profile and subjected to a deep black electro-colouring process (between 10 and 15 microns) for excellent corrosion resistance. Caps made of technopolymer for greater resistance to corrosion and atmospheric agents Screen material: 8-mm-thick acid-etched, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations Seals: black Santoprene™ O-rings guarantee lasting resistance to UV rays Installation: On/off version: one IP68 4-way connector for power supply. Dimmable version: one IP68 4-way connector for power supply and two IP68 3-way connectors for DALI and 0/1–10V signal built-in power supply unit on/off: includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm DALI, 0/1-10V: includes 1 x 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm and 2 x 0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm Control system: ON/OFF Ingress protection: IP65, IP67, IP69 Impact resistance: IK09 optical accessories of honeycomb louvre and anti-glare shield built into the lighting fixture and tiltable together with the optics. In/out connection and easy wiring with quick connectors designed to connect the profiles one after the other in the dimmable versions Casambi-compatible version, controllable with the Casambi app, available on request; GORE-TEX valve to relieve the internal pressure Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class I Weight: 1848 g Dimensions: 56x116x529 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WCTG21A0F Outer casing, WFA02 IP68 “h”-type three-way connector (82x53.3x28 mm), WN6005 Alignment kit for outer casing, WN6006 Pair of extractors for outer casings tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (floor)
Number and type of LED	24 SMD LEDs, 3-step MacAdam, 60 000h L80 B10 (Ta 25°C)
LED colour	2200K
Optics	wall washer tiltable ±20°
CRI Colour Rendering Index	80
Body material	body in black-anodized anticorodal aluminium, caps in technopolymer
Screen material	screen in grey-serigraphed, acid-etched, tempered extra-clear glass
Power supply unit	built-in power supply unit
Power cables	on/off: includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm DALI, 0/1-10V: includes 1 x 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm and 2 x 0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm
Control system	ON/OFF
Ingress protection	IP65, IP67, IP69
Impact resistance	IK09
Features	optical accessories of honeycomb louvre and anti-glare shield built into the lighting fixture and tiltable together with the optics. In/out connection and easy wiring with quick connectors designed to connect the profiles one after the other in the dimmable versions
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Tago 2.1
- Specific, for code TG21100000N0AV
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product Tago 2.1
- Specific, for code TG21100000N0AV
IES Photometric file Type
- Generic, for the product Tago 2.1
- Specific, for code TG21100000N0AV
CB marking
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (4)

Accessories for product code TG21100000N0AV

Outer casings

WCTG21A0F

Outer casing

Various accessories

WN6005

Alignment kit for outer casing

Spare parts

WN6006

Pair of extractors for outer casings

Wiring materials

WFA02

IP68 “h”-type three-way connector (82x53.3x28 mm)

4-pin

Power supply units (0)

Power supply units for product code TG21100000N0AV

No power supply units

Control gear (0)

Control gear for product code TG21100000N0AV

No controllers

Control input (0)

No control inputs
