Cube W 1.1

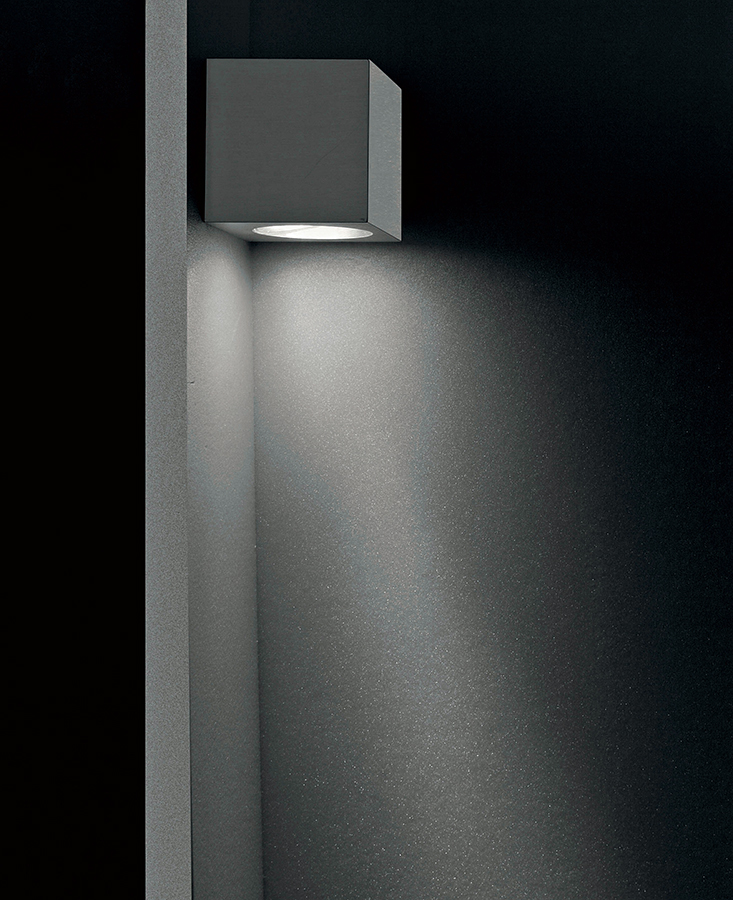

Wall mounted for outdoor applications

wall mounted for outdoor applications - max 6W max 500mA, RGB: max 3W max 350mA - tilted optics 20° - 55x55x55 mm - RGB

Generate code

Technical data

Print technical data
  • RGB
  • complies with the European standard EN 60598-1
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 0,40
  • IP54
  • RAL finish on request
  • A/A+/A++
Installation wall mounted for outdoor applications
Power consumption max 6W (3 power LEDs x 2W); RGB: max 3W (3 power LEDs x 1W)
Power supply max 500mA; RGB: max 350mA
Lumen output at source 410 lm (3000K, 500mA),
RGB: 197 lm, R: 62 lm G: 100 lm B: 35 lm (350mA)
Delivered lumen output 295 lm (3000K, 500mA, 28°),
RGB: 141 lm, R: 44 lm G: 72 lm B: 25 lm (350mA, 28°)
Datasheet

Copied

Mounting surface mounted (wall)
Number and type of LED 3 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, 5000K, RGB, blue
Optics 18°, 28°, 36°
CRI Colour Rendering Index 80
Body material body in anodized aluminium
Screen material screen in frosted plexiglass
Finishes cor-ten, anthracite, white
Power supply unit power supply unit not included
Wiring series
Power cables includes 0.30 m two-core cable;
RGB: includes 1,5 m PVC cable FROR 6x0.25 Ø5.0 mm
Ingress protection IP54
Status Available

Read more

Close

Accessories and power supply units

Accessories (0)

No accessories

Power supply units (47)

A13350VL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 4W
Power4W
DimmeringCannot be dimmed
Power supply unit IPIP20

A14500IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA constant current; max 12W
DimmeringCannot be dimmed
Power supply unit IPIP67

A15500QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA constant current; max 12W
DimmeringCannot be dimmed
Power supply unit IPIP20

A16350IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 11W
DimmeringCannot be dimmed
Power supply unit IPIP67

A19220TC

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output100mA constant current; max 4,1W
120mA constant current; max 5W
140mA constant current; max 5,8W
160mA constant current; max 6,6W
180mA constant current; max 7,4W
200mA constant current; max 8,3W
220mA constant current; max 9,1W
240mA constant current; max 10W
260mA constant current; max 10,8W
280mA constant current; max 11,6W
300mA constant current; max 12,4W
320mA constant current; max 13,2W
340mA constant current; max 14,1W
360mA constant current; max 15W
60mA constant current; max 2,5W
80mA constant current; max 3,3W
DimmeringON/OFF
Power supply unit IPIP20

A19350QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 15W
DimmeringON/OFF
Power supply unit IPIP20

A310500IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA constant current; max 20W
DimmeringON/OFF
Power supply unit IPIP67

A310500QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output500mA constant current; max 20W
DimmeringON/OFF
Power supply unit IPIP20

A312350IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 17W
DimmeringON/OFF
Power supply unit IPIP67

A312350QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 17W
DimmeringON/OFF
Power supply unit IPIP20

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output350mA constant current; max 19W
400mA constant current; max 20W
450mA constant current; max 20W
500mA constant current; max 20W
250mA constant current; max 13W ⚠
24Vdc; 16W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output350mA constant current; max 17W
500mA constant current; max 24W
12Vdc; 10W ⚠
24Vdc; 20W ⚠
28Vdc; 22W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNI039T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output350mA constant current; max 15W
500mA constant current; max 21W
1050mA constant current; max 39W ⚠
550mA constant current; max 23W ⚠
650mA constant current; max 27W ⚠
700mA constant current; max 29W ⚠
750mA constant current; max 31W ⚠
850mA constant current; max 35W ⚠
900mA constant current; max 37W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNI042T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output300mA constant current; max 13W
350mA constant current; max 15W
400mA constant current; max 18W
450mA constant current; max 20W
500mA constant current; max 22W
1000mA constant current; max 42W ⚠
1050mA constant current; max 42W ⚠
550mA constant current; max 24W ⚠
600mA constant current; max 27W ⚠
650mA constant current; max 29W ⚠
700mA constant current; max 31W ⚠
750mA constant current; max 32W ⚠
800mA constant current; max 33W ⚠
850mA constant current; max 35W ⚠
900mA constant current; max 38W ⚠
950mA constant current; max 40W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNIC30T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output340mA constant current; max 18W
370mA constant current; max 19,5W
400mA constant current; max 21W
430mA constant current; max 22,5W
460mA constant current; max 24W
490mA constant current; max 26W
250mA constant current; max 13W ⚠
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ⚠
520mA constant current; max 27,5W ⚠
550mA constant current; max 29W ⚠
580mA constant current; max 30W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input230Vac 50-60 Hz
Output350mA constant current; max 18W ⚠
DimmeringMains dimming, ON/OFF
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output250mA constant current; max 10W
350mA constant current; max 15W
400mA constant current; max 17W
450mA constant current; max 19W
500mA constant current; max 20W
24Vdc; 16W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output340mA constant current; max 18W
370mA constant current; max 20W
400mA constant current; max 21W
430mA constant current; max 23W
460mA constant current; max 25W
490mA constant current; max 26W
250mA constant current; max 13W ⚠
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ⚠
520mA constant current; max 26W ⚠
550mA constant current; max 27W ⚠
580mA constant current; max 29W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringPUSH, DALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W
24Vdc; 20W
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 25W
500mA constant current; max 35W
1050mA constant current; max 50W ⚠
550mA constant current; max 39W ⚠
650mA constant current; max 46W ⚠
700mA constant current; max 50W ⚠
750mA constant current; max 50W ⚠
850mA constant current; max 50W ⚠
900mA constant current; max 50W ⚠
Dimmering0/1-10V, PUSH, DALI, ON/OFF
Power supply unit IPIP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 25W
500mA constant current; max 35W
1050mA constant current; max 50W ⚠
550mA constant current; max 39W ⚠
650mA constant current; max 46W ⚠
700mA constant current; max 50W ⚠
750mA constant current; max 50W ⚠
850mA constant current; max 50W ⚠
900mA constant current; max 50W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output450mA constant current; max 23W
500mA constant current; max 25W
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
12Vdc; 11W ⚠
24Vdc; 20W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AR330350TC

Home RGB

Input230Vac 50-60 Hz
Output350mA constant current; max 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV12020IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output12Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP20

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 132W
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 192W
DimmeringON/OFF
Power supply unit IPIP67

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67

AV36060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output36Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV48060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc; 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV48150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output48Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV48150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV48240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output48Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (10)

A13350VL12/24

Low-voltage converter

to be used with a constant-voltage power supply unit

Input12-24Vdc
9-24Vdc
9-18Vac 50-60 Hz
Output350mA constant current; max 3,7W
350mA constant current; max 8W
DimmeringCannot be dimmed
Power supply unit IPIP20

AR330350TC

Home RGB

Input230Vac 50-60 Hz
Output350mA constant current; max 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,5W
With 24 Vdc input:; 350mA constant current; max 25W
With 48 Vdc input:; 350mA constant current; max 50W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARCUNID2

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU
output values apply to 48Vdc

Input12-24-48Vdc
Output

1 channel

350mA constant current; max 16,8W
500mA constant current; max 24W

3 channels

350mA constant current; max 50,4W

4 channels

350mA constant current; max 67,2W

1 channel

700mA constant current; max 33,6W ⚠

3 channels

500mA constant current; max 72W ⚠
700mA constant current; max 100,8W ⚠

4 channels

500mA constant current; max 96W ⚠
700mA constant current; max 134,4W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IPIP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24-48Vdc
Output350mA constant current; max 67,2W
1050mA constant current; max 201,6W ⚠
700mA constant current; max 134,4W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W
With 24 Vdc input:; 350mA constant current; max 25,2W
With 36 Vdc input:; 350mA constant current; max 37,8W
With 12 Vdc input:; 500mA constant current; max 18W ⚠
With 24 Vdc input:; 500mA constant current; max 36W ⚠
With 36 Vdc input:; 500mA constant current; max 54W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W
With 24 Vdc input:; 350mA constant current; max 25,2W
With 36 Vdc input:; 350mA constant current; max 37,8W
With 12 Vdc input:; 700mA constant current; max 25,2W ⚠
With 24 Vdc input:; 700mA constant current; max 50,4W ⚠
With 36 Vdc input:; 700mA constant current; max 75,6W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W
With 24 Vdc input:; 350mA constant current; max 25,2W
With 36 Vdc input:; 350mA constant current; max 37,8W
DimmeringCannot be dimmed
Power supply unit IPIP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input24Vdc
Output350mA constant current; max 8,4W ⚠
DimmeringPWM
Power supply unit IPIP20

WFA024500

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input24Vdc
Output500mA constant current; max 12W ⚠
DimmeringPWM
Power supply unit IPIP20

Control input (10)

AE01350T1

Emergency module integrated

Input220─240Vac 50─60Hz
Outputmax 350mA 58Vdc max
Ingress protectionIP20
Dimensions35x47x166 mm, 185 g
Cutout dimensionsØ58 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

Touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
