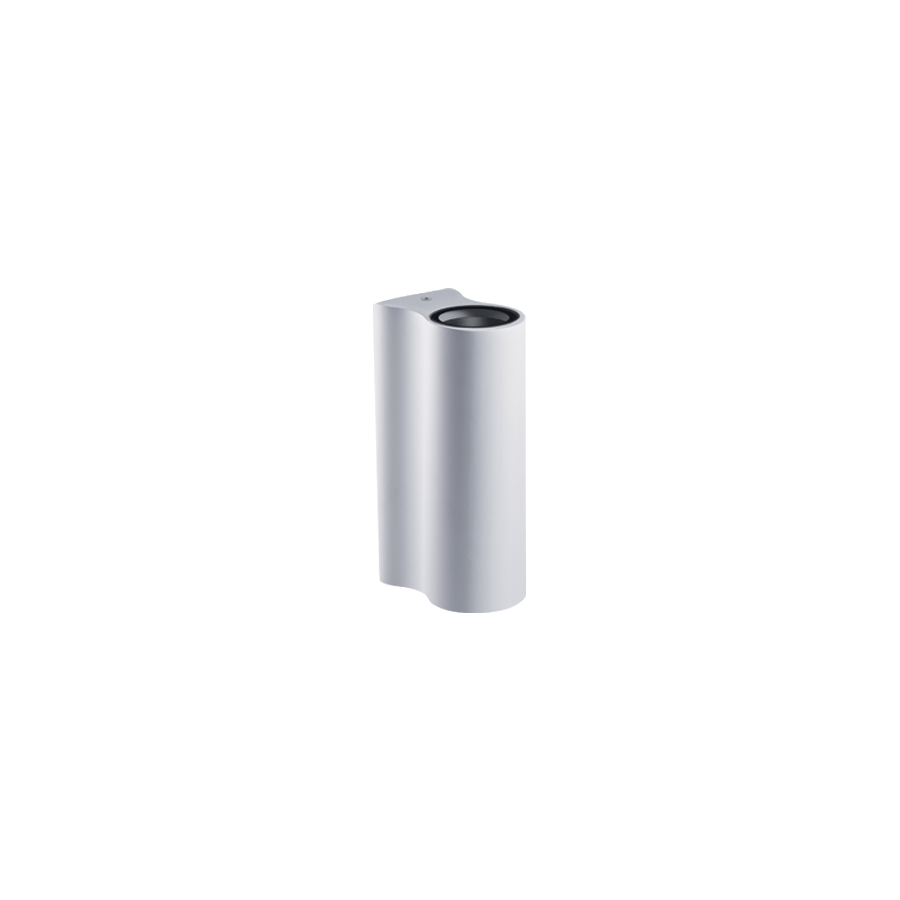

Intono 2.1

Wall mounted for outdoor applications

wall mounted for outdoor applications - 6W 230Vac - single beam - 76x50x150 mm

Customize this product

Grazie a una produzione interna flessibile, è possibile personalizzare questo prodotto. Qui a fianco ti suggeriamo delle possibili versioni speciali, ma se hai delle richieste differenti, possiamo valutarle insieme.

Personalizzazioni possibili:

Remote DALI control
2200K LED colour
Casambi-compatible version, controllable with the Casambi app

Technical data

Print technical data

Aggiornato a NT2110000050TE

kg 0,63
IP65
IK06

Installation	wall mounted for outdoor applications, single beam
Power consumption	6W
Power supply	230Vac
Lumen output at source	488 lm (3000K, CRI 80)
Delivered lumen output	352 lm (3000K, 34°, CRI 80)
Datasheet	Intono 2.1 code: NT2110000050TE wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 6W; Power supply: 230Vac; Lumen output at source: 488 lm (3000K, CRI 80); Delivered lumen output: 352 lm (3000K, 34°, CRI 80); 1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 11°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion; Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003); RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border; Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device; built-in power supply unit; Ingress protection: IP65; Impact resistance: IK06; version compatible with Google Home or Amazon Echo available on request for voice command control; Operating temperature: -20°C — +45°C; Glow wire test: 960°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 630 g; Dimensions: 76x50x150 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionIntono 2.1 code: NT2110000050TE wall mounted for outdoor applications, single beam surface mounted (wall) Power consumption: 6W Power supply: 230Vac Lumen output at source: 488 lm (3000K, CRI 80) Delivered lumen output: 352 lm (3000K, 34°, CRI 80) 1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 3000K Optics: 11°: optical system consisting of a high-efficiency TIR lens CRI Colour Rendering Index: 80 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003) RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device built-in power supply unit Ingress protection: IP65 Impact resistance: IK06 version compatible with Google Home or Amazon Echo available on request for voice command control Operating temperature: -20°C — +45°C Glow wire test: 960°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 630 g Dimensions: 76x50x150 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	3000K
Optics	11°
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in black-serigraphed, tempered, transparent extra-clear glass
Finishes	white
Power supply unit	built-in power supply unit
Ingress protection	IP65
Impact resistance	IK06

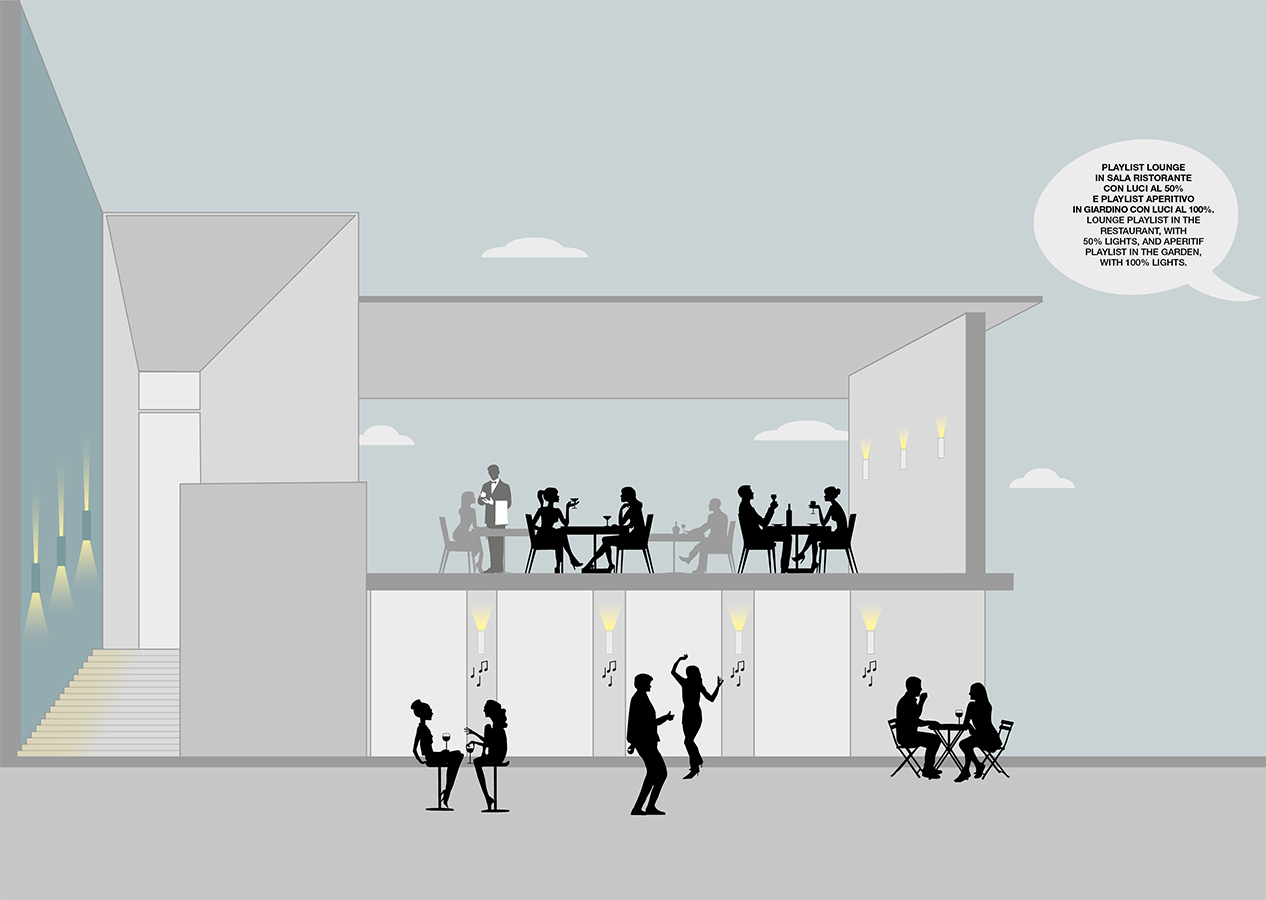

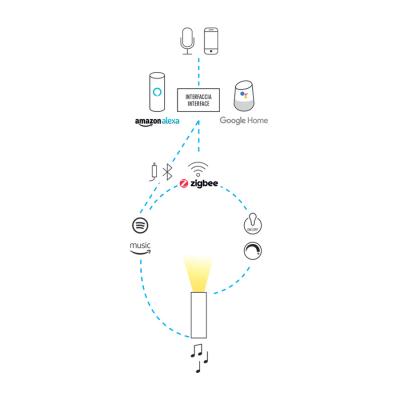

Notes	version compatible with Google Home or Amazon Echo available on request for voice command control
Status	Available
