Intono 4.2

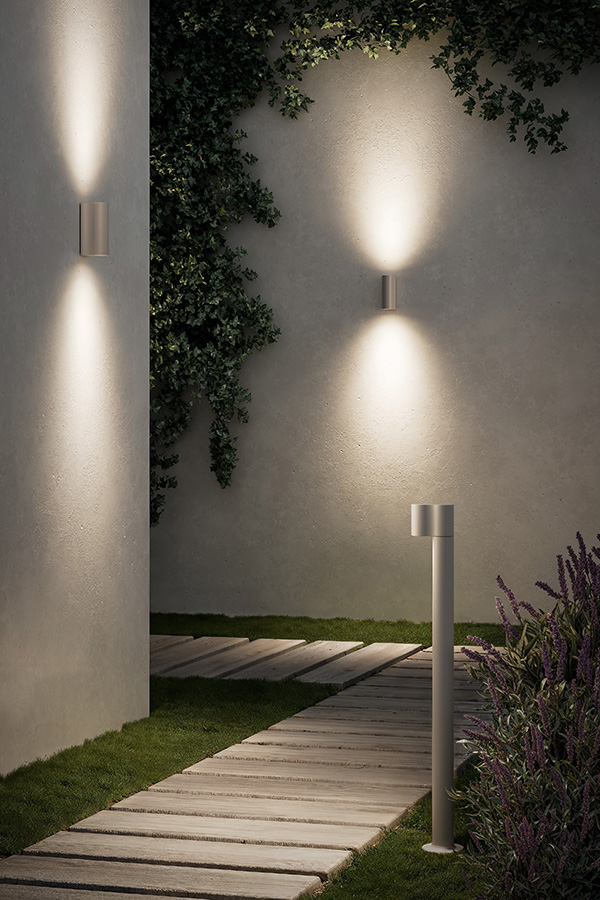

Wall mounted for outdoor applications

wall mounted for outdoor applications - 38W 230Vac - double beam - 166x110x330 mm

Technical data

Print technical data

kg 4,80
IP65
IK06
0/1-10V

Installation	wall mounted for outdoor applications, double beam
Power consumption	38W
Power supply	230Vac
Lumen output at source	2736 lm (3000K, CRI >90), 3292 lm (3000K, CRI 80)
Delivered lumen output	2304 lm (3000K, 12°, CRI >90), 2772 lm (3000K, 12°, CRI 80)
Datasheet	Intono 4.2 wall mounted for outdoor applications, double beam; Awards: German Design Award 2021, IDA International Design Awards 2019 - Gold, LIT Lighting Design Awards 2019, Red Dot Award 2020; surface mounted (wall); Power consumption: 38W; Power supply: 230Vac; Lumen output at source: 2736 lm (3000K, CRI >90), 3292 lm (3000K, CRI 80); Delivered lumen output: 2304 lm (3000K, 12°, CRI >90), 2772 lm (3000K, 12°, CRI 80); 2 high power density COB LEDs, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 12°+12°, 12°+57°, 23°+23°, 57°+57°: double-beam optical system consisting of a high-efficiency metallized technopolymer reflector, sharp 12° + 57°: double-beam optical system, each consisting of a shaped screen in black, anti-glare PMMA and high-efficiency metallized technopolymer reflector, wall grazing + asymmetrical: double-beam optical system consisting of a high-efficiency metallized technopolymer reflector, technical filter, black anti-glare technopolymer holder and asymmetrical technopolymer lens, wall grazing + wall grazing: double-beam optical system consisting of a high-efficiency metallized technopolymer reflector and technical filter. An anti-glare black technopolymer holder completes the optical system; CRI Colour Rendering Index: 80, >90; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion; Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border; Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device; built-in power supply unit; Control system: ON/OFF, 0/1-10V; Ingress protection: IP65; Impact resistance: IK06; version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 4800 g; Dimensions: 166x110x330 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionIntono 4.2 wall mounted for outdoor applications, double beam Awards: German Design Award 2021, IDA International Design Awards 2019 - Gold, LIT Lighting Design Awards 2019, Red Dot Award 2020 surface mounted (wall) Power consumption: 38W Power supply: 230Vac Lumen output at source: 2736 lm (3000K, CRI >90), 3292 lm (3000K, CRI 80) Delivered lumen output: 2304 lm (3000K, 12°, CRI >90), 2772 lm (3000K, 12°, CRI 80) 2 high power density COB LEDs, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 12°+12°, 12°+57°, 23°+23°, 57°+57°: double-beam optical system consisting of a high-efficiency metallized technopolymer reflector, sharp 12° + 57°: double-beam optical system, each consisting of a shaped screen in black, anti-glare PMMA and high-efficiency metallized technopolymer reflector, wall grazing + asymmetrical: double-beam optical system consisting of a high-efficiency metallized technopolymer reflector, technical filter, black anti-glare technopolymer holder and asymmetrical technopolymer lens, wall grazing + wall grazing: double-beam optical system consisting of a high-efficiency metallized technopolymer reflector and technical filter. An anti-glare black technopolymer holder completes the optical system CRI Colour Rendering Index: 80, >90 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device built-in power supply unit Control system: ON/OFF, 0/1-10V Ingress protection: IP65 Impact resistance: IK06 version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 4800 g Dimensions: 166x110x330 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	2 high power density COB LEDs, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	12°+12°, 12°+57°, 23°+23°, 57°+57°, sharp 12° + 57°, wall grazing + asymmetrical, wall grazing + wall grazing
CRI Colour Rendering Index	80, >90
Body material	body in die-cast aluminium
Screen material	screen in black-serigraphed, tempered, transparent extra-clear glass
Finishes	white, grey, anthracite, cor-ten, primer
Power supply unit	built-in power supply unit
Control system	ON/OFF, 0/1-10V
Ingress protection	IP65
Impact resistance	IK06
Notes	version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control
2200K LED colour
RGBW LED colour

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (1)

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics except for the sharp 12° + 57°, wall grazing + asymmetrical, wall grazing + wall grazing optics

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
