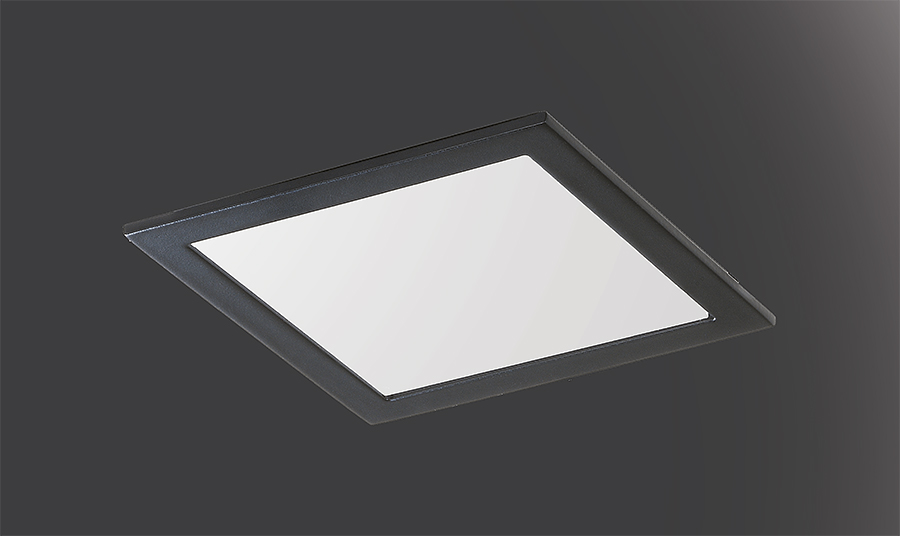

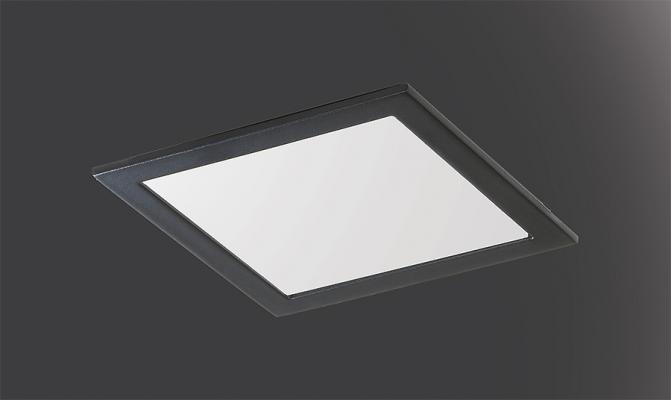

Turis 1.0

Recessed for indoor applications

recessed for indoor applications - 5.5W/11W 230Vac - 61x61 mm - with trim

Technical data

Print technical data

Updated to TU10109DBT

on request
kg 0,37
56x56 mm
IP40

Installation	recessed downlight for indoor applications
Power consumption	11W
Power supply	230Vac
Lumen output at source	1251 lm (3000K, 11W)
Delivered lumen output	1003 lm (3000K, 11W)
Datasheet	Turis 1.0 code: TU10109DBT recessed downlight for indoor applications; recessed (ceiling); Power consumption: 11W; Power supply: 230Vac; Lumen output at source: 1251 lm (3000K, 11W); Delivered lumen output: 1003 lm (3000K, 11W); 4 power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 4000K; Optics: diffuse; CRI Colour Rendering Index: >90; Body material: body in black-anodized aluminium, trim in steel; Finishes: white (RAL 9003); RAL finish on request; Screen material: screen in one-side-frosted, transparent plexiglass; Thickness of installation surface: min 5 mm, max 25 mm; power supply unit included; includes 0.30 m cable; Control system: Mains dimming; Ingress protection: IP40; version with LED colour RGB available on request; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 370 g; Dimensions: 61x61x78 mm; Cutout dimensions: 56x56 mm; Volume of thermal heatsink: 140x140x130 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC3101 Outer casing for solid walls; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionTuris 1.0 code: TU10109DBT recessed downlight for indoor applications recessed (ceiling) Power consumption: 11W Power supply: 230Vac Lumen output at source: 1251 lm (3000K, 11W) Delivered lumen output: 1003 lm (3000K, 11W) 4 power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 4000K Optics: diffuse CRI Colour Rendering Index: >90 Body material: body in black-anodized aluminium, trim in steel Finishes: white (RAL 9003) RAL finish on request Screen material: screen in one-side-frosted, transparent plexiglass Thickness of installation surface: min 5 mm, max 25 mm power supply unit included includes 0.30 m cable Control system: Mains dimming Ingress protection: IP40 version with LED colour RGB available on request Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 370 g Dimensions: 61x61x78 mm Cutout dimensions: 56x56 mm Volume of thermal heatsink: 140x140x130 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC3101 Outer casing for solid walls tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	4 power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	4000K
Optics	diffuse
CRI Colour Rendering Index	>90
Body material	body in black-anodized aluminium, trim in steel
Screen material	screen in one-side-frosted, transparent plexiglass
Finishes	white
Power supply unit	power supply unit included
Power cables	includes 0.30 m cable
Control system	Mains dimming
Ingress protection	IP40
Notes	version with LED colour RGB available on request
Status	Available

Display all

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
TXT Specifications Type
- Generic, for the product Turis 1.0
- Specific, for code TU10109DBT
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file Type
- Generic, for the product Turis 1.0
- Specific, for code TU10109DBT
IES Photometric file Type
- Generic, for the product Turis 1.0
- Specific, for code TU10109DBT
CB certification
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (1)

Accessories related to product code TU10109DBT

Outer casings

WC3101

Outer casing for solid walls

Power supply units (0)

Power supply units for product code TU10109DBT

No power supply units

Control gear (0)

Control gear for product code TU10109DBT

No controllers

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
