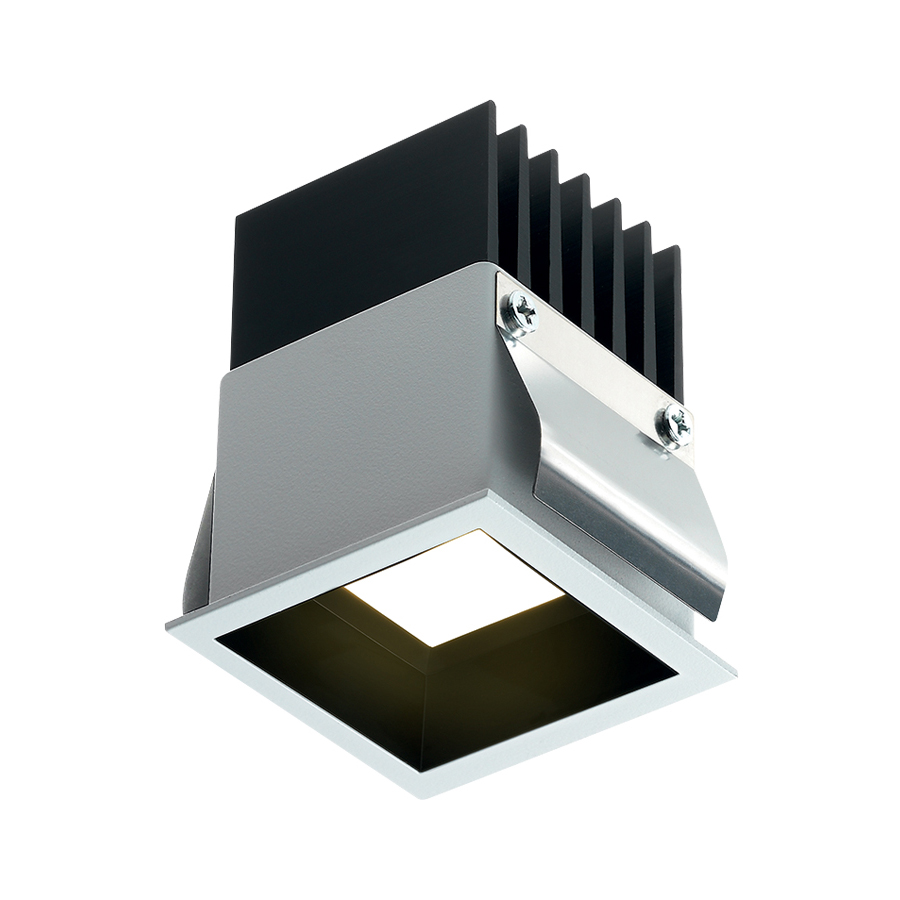

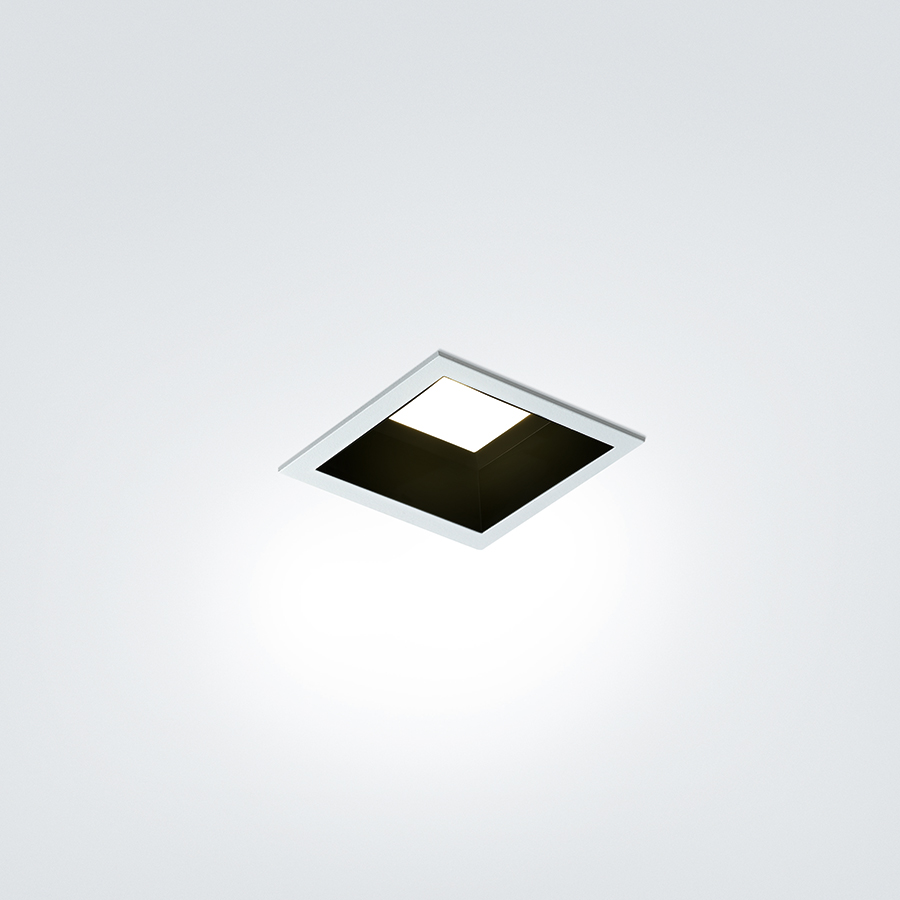

Turis 1.2

Recessed for indoor applications

5.5W/11W 230Vac - 61x61 mm - recessed optics

Generate code


Update data and PSUsUpdate data and PSUs

Technical data

Print technical data
  • complies with the European standard EN 60598-1
  • device with LED technology
  • appliance class II
  • product’s gross weight including power cable
    kg 0,37
  • IP40
  • IP44 installed
  • energy efficiency class
  • DALI
  • PUSH
  • 1--10V
  • RAL finish on request
Installation recessed downlight for indoor applications
Power 5,5W, 11W
Power supply 230Vac
Lumen output at source 644 lm (3000K, 5,5W), 1251 lm (3000K, 11W)
Delivered lumen output 303 lm (3000K, 5,5W), 631 lm (3000K, 11W)
Mounting recessed (ceiling)
Number and type of LED 1 power LED, 4 power LEDs
LED colour 2700K, 3000K, 4000K
Optics diffuse
Material body in black anodized aluminium, trim in steel, screen in one-side-frosted polycarbonate
Finishes white, black, grey
Power supply unit power supply unit included
Power cables includes 0,30 m cable
Control system DALI, 1-10V + PUSH, on / off, Mains dimming
Ingress protection IP40
Ingress protection mounted IP44
Notes version with LED colour RGB available on request
Status Available
