Brenta. Indoor linear profiles for continuous lines of light - L&L Luce&Light

Brenta 2 Custom

linear profile for indoor applications - 27W/m - 54W/m - 230Vac - width 70 mm

Two ways to install

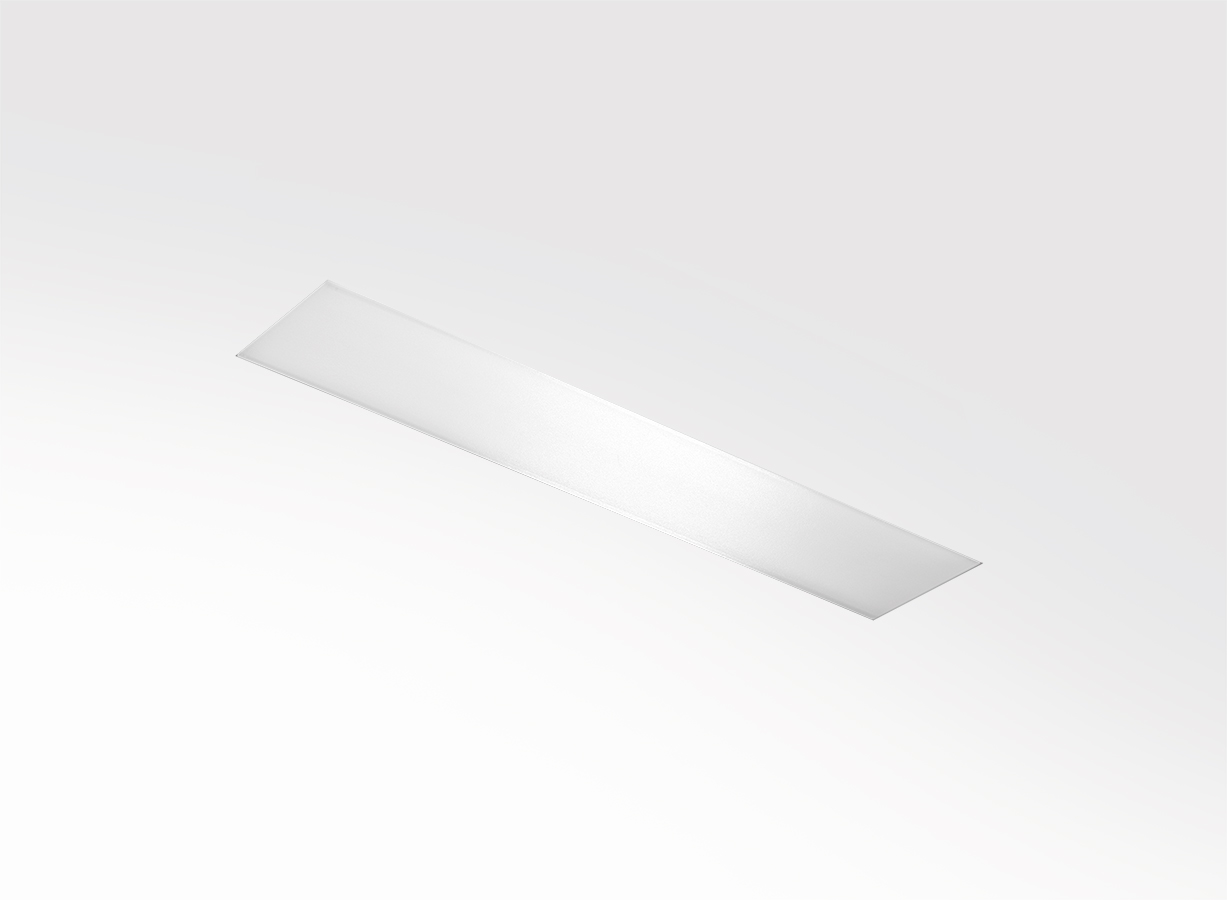

flush with the ceiling

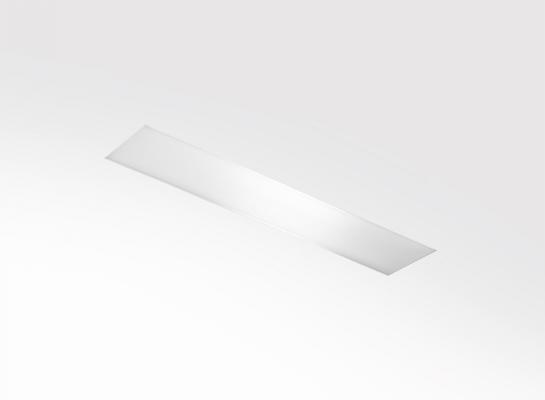

deep set

Generate code

Technical data

Print technical data

Required outer casing, not included
Required screen, not included

kg/m 3.25 (flush) kg/m 3.38 (deep set)
IP40
DALI

Installation	linear profile for indoor applications
Power consumption	27W/m, 54W/m
Power supply	230Vac
Lumen output at source	27W/m, 3000K: 1405 lm (562 mm), 2107 lm (842 mm), 2810 lm (1122 mm), 4213 lm (1682 mm), 5620 lm (2242 mm), 7022 lm (2802 mm) 54W/m, 3000K: 2810 lm (562 mm), 4214 lm (842 mm), 5620 lm (1122 mm), 8426 lm (1682 mm), 11275 lm (2242 mm), 14044 lm (2802 mm)
Delivered lumen output	27W/m, 3000K diffuse optics, flush installation: 1550 lm/m; 27W/m, 3000K, diffuse optics, deep-set installation: 1200 lm/m; 27W/m, 3000K, microprismatic optics, flush installation: 1500 lm/m; 27W/m, 3000K, microprismatic optics, deep-set installation: 1350 lm/m; 54W/m, 3000K, diffuse optics, flush installation: 3100 lm/m; 54W/m, 3000K, diffuse optics, deep-set installation: 2450 lm/m; 54W/m, 3000K, microprismatic optics, flush installation: 3000 lm/m; 54W/m, 3000K, microprismatic optics, deep-set installation: 2700 lm/m
Datasheet	Brenta 2 Custom linear profile for indoor applications; recessed (ceiling, wall), deep-set installation – 2810-mm outer casing, flush installation - 2810-mm outer casing, deep-set installation – 2250-mm outer casing, flush installation - 2250-mm outer casing; Power consumption: 27W/m, 54W/m; Power supply: 230Vac; Lumen output at source: 27W/m, 3000K: 1405 lm (562 mm), 2107 lm (842 mm), 2810 lm (1122 mm), 4213 lm (1682 mm), 5620 lm (2242 mm), 7022 lm (2802 mm) 54W/m, 3000K: 2810 lm (562 mm), 4214 lm (842 mm), 5620 lm (1122 mm), 8426 lm (1682 mm), 11275 lm (2242 mm), 14044 lm (2802 mm); Delivered lumen output: 27W/m, 3000K diffuse optics, flush installation: 1550 lm/m; 27W/m, 3000K, diffuse optics, deep-set installation: 1200 lm/m; 27W/m, 3000K, microprismatic optics, flush installation: 1500 lm/m; 27W/m, 3000K, microprismatic optics, deep-set installation: 1350 lm/m; 54W/m, 3000K, diffuse optics, flush installation: 3100 lm/m; 54W/m, 3000K, diffuse optics, deep-set installation: 2450 lm/m; 54W/m, 3000K, microprismatic optics, flush installation: 3000 lm/m; 54W/m, 3000K, microprismatic optics, deep-set installation: 2700 lm/m; 96/ 144/ 192/ 288/ 384/ 480 mid-power LEDs, 3 MacAdam steps, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: diffuse - 10000 mm, diffuse - 15000 mm, diffuse - 5000 mm, microprismatic - 10000 mm, microprismatic - 15000 mm, microprismatic - 5000 mm; CRI Colour Rendering Index: >90; Body material: lighting fixture in aluminium, outer casing in glossy black machined, extruded anodized aluminium (deep-set installation), lighting fixture in aluminium, outer casing in grey machined, extruded anodized aluminium (flush installation); Screen material: diffuser in opal polycarbonate, set 15 mm back from the installation surface (diffuse version), diffuser in opal polycarbonate, installed flush with the surface (diffuse version), glare-reducing microprismatic diffuser, set 15 mm back from the installation surface (microprismatic version), glare-reducing microprismatic diffuser, installed flush with the surface (microprismatic version); Length (lighting fixture): 2802 mm, 562 mm, 842 mm, 1122 mm, 1682 mm, 2242 mm; W/m: 54W/m, 27W/m; built-in power supply unit; terminal block; Control system: ON/OFF, DALI; Ingress protection: IP40; CRI >90; required outer casing, not included; required screen, not included. If necessary, see the standard outer casings (Brenta 2) to achieve the desired length; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 3.25 kg/m (flush); 3.38 kg/m (deep set); Dimensions: flush: 110x76x567 / 847 / 1127 / 1689 / 2250 / 2810 mm; deep set: 110x91x567 / 847 / 1127 / 1689 / 2250 / 2810 mm; Cutout dimensions: 73x570/850/1130/1692/2253/2813 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WABR200A Pair of end caps for outer casings, WABR200F Pair of end caps for outer casings, WABR201A Alignment kit for outer casing, WCBR21A Outer casing for deep-set installation – black – h 91 mm, WCBR21F Outer casing for flush installation - h 76 mm, WCBR22A Outer casing for deep-set installation – black – h 91 mm, WCBR22F Outer casing for flush installation - h 76 mm, WCBR23A Outer casing for deep-set installation – black – h 91 mm, WCBR23F Outer casing for flush installation - h 76 mm, WCBR25A Outer casing for deep-set installation – black – h 91 mm, WCBR25F Outer casing for flush installation - h 76 mm, WCBR27A Outer casing for deep-set installation – black – h 91 mm, WCBR27AC Outer casing for deep-set installation – black - h 91 mm, WCBR27F Outer casing for flush installation - h 76 mm, WCBR27FC Outer casing for flush installation - h 76 mm, WCBR290PA Horizontal L-shaped outer casing, WCBR290PF Horizontal L-shaped outer casing, WCBR290SA Vertical L-shaped outer casing, WCBR290SF Vertical L-shaped outer casing, WCBR29A Outer casing for deep-set installation – black – h 91 mm, WCBR29AC Outer casing for deep-set installation – black - h 91 mm, WCBR29F Outer casing for flush installation - h 76 mm, WCBR29FC Outer casing for flush installation - h 76 mm, WF0320 3-pin female connector, WF0321 5-pin female connector, WHBR2000 Honeycomb louvre, WNBR000A Pair of extractors for outer casings, WNBR001A Anti-fall kit, WRBR205D Screen, WRBR205P Screen, WRBR210D Screen, WRBR210P Screen, WRBR215D Screen, WRBR215P Screen, WUBR2000 Casing filler kit; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBrenta 2 Custom linear profile for indoor applications recessed (ceiling, wall), deep-set installation – 2810-mm outer casing, flush installation - 2810-mm outer casing, deep-set installation – 2250-mm outer casing, flush installation - 2250-mm outer casing Power consumption: 27W/m, 54W/m Power supply: 230Vac Lumen output at source: 27W/m, 3000K: 1405 lm (562 mm), 2107 lm (842 mm), 2810 lm (1122 mm), 4213 lm (1682 mm), 5620 lm (2242 mm), 7022 lm (2802 mm) 54W/m, 3000K: 2810 lm (562 mm), 4214 lm (842 mm), 5620 lm (1122 mm), 8426 lm (1682 mm), 11275 lm (2242 mm), 14044 lm (2802 mm) Delivered lumen output: 27W/m, 3000K diffuse optics, flush installation: 1550 lm/m; 27W/m, 3000K, diffuse optics, deep-set installation: 1200 lm/m; 27W/m, 3000K, microprismatic optics, flush installation: 1500 lm/m; 27W/m, 3000K, microprismatic optics, deep-set installation: 1350 lm/m; 54W/m, 3000K, diffuse optics, flush installation: 3100 lm/m; 54W/m, 3000K, diffuse optics, deep-set installation: 2450 lm/m; 54W/m, 3000K, microprismatic optics, flush installation: 3000 lm/m; 54W/m, 3000K, microprismatic optics, deep-set installation: 2700 lm/m 96/ 144/ 192/ 288/ 384/ 480 mid-power LEDs, 3 MacAdam steps, 50000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: diffuse - 10000 mm, diffuse - 15000 mm, diffuse - 5000 mm, microprismatic - 10000 mm, microprismatic - 15000 mm, microprismatic - 5000 mm CRI Colour Rendering Index: >90 Body material: lighting fixture in aluminium, outer casing in glossy black machined, extruded anodized aluminium (deep-set installation), lighting fixture in aluminium, outer casing in grey machined, extruded anodized aluminium (flush installation) Screen material: diffuser in opal polycarbonate, set 15 mm back from the installation surface (diffuse version), diffuser in opal polycarbonate, installed flush with the surface (diffuse version), glare-reducing microprismatic diffuser, set 15 mm back from the installation surface (microprismatic version), glare-reducing microprismatic diffuser, installed flush with the surface (microprismatic version) Length (lighting fixture): 2802 mm, 562 mm, 842 mm, 1122 mm, 1682 mm, 2242 mm W/m: 54W/m, 27W/m built-in power supply unit terminal block Control system: ON/OFF, DALI Ingress protection: IP40 CRI >90 required outer casing, not included; required screen, not included. If necessary, see the standard outer casings (Brenta 2) to achieve the desired length Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 3.25 kg/m (flush); 3.38 kg/m (deep set) Dimensions: flush: 110x76x567 / 847 / 1127 / 1689 / 2250 / 2810 mm; deep set: 110x91x567 / 847 / 1127 / 1689 / 2250 / 2810 mm Cutout dimensions: 73x570/850/1130/1692/2253/2813 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WABR200A Pair of end caps for outer casings, WABR200F Pair of end caps for outer casings, WABR201A Alignment kit for outer casing, WCBR21A Outer casing for deep-set installation – black – h 91 mm, WCBR21F Outer casing for flush installation - h 76 mm, WCBR22A Outer casing for deep-set installation – black – h 91 mm, WCBR22F Outer casing for flush installation - h 76 mm, WCBR23A Outer casing for deep-set installation – black – h 91 mm, WCBR23F Outer casing for flush installation - h 76 mm, WCBR25A Outer casing for deep-set installation – black – h 91 mm, WCBR25F Outer casing for flush installation - h 76 mm, WCBR27A Outer casing for deep-set installation – black – h 91 mm, WCBR27AC Outer casing for deep-set installation – black - h 91 mm, WCBR27F Outer casing for flush installation - h 76 mm, WCBR27FC Outer casing for flush installation - h 76 mm, WCBR290PA Horizontal L-shaped outer casing, WCBR290PF Horizontal L-shaped outer casing, WCBR290SA Vertical L-shaped outer casing, WCBR290SF Vertical L-shaped outer casing, WCBR29A Outer casing for deep-set installation – black – h 91 mm, WCBR29AC Outer casing for deep-set installation – black - h 91 mm, WCBR29F Outer casing for flush installation - h 76 mm, WCBR29FC Outer casing for flush installation - h 76 mm, WF0320 3-pin female connector, WF0321 5-pin female connector, WHBR2000 Honeycomb louvre, WNBR000A Pair of extractors for outer casings, WNBR001A Anti-fall kit, WRBR205D Screen, WRBR205P Screen, WRBR210D Screen, WRBR210P Screen, WRBR215D Screen, WRBR215P Screen, WUBR2000 Casing filler kit tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling, wall), deep-set installation – 2810-mm outer casing, flush installation - 2810-mm outer casing, deep-set installation – 2250-mm outer casing, flush installation - 2250-mm outer casing
Number and type of LED	96/ 144/ 192/ 288/ 384/ 480 mid-power LEDs, 3 MacAdam steps, 50000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	diffuse - 10000 mm, diffuse - 15000 mm, diffuse - 5000 mm, microprismatic - 10000 mm, microprismatic - 15000 mm, microprismatic - 5000 mm
CRI Colour Rendering Index	>90
Material	body in aluminium, screen in opal polycarbonate (diffuse version), screen in microprismatic polycarbonate (microprismatic version)
Length (lighting fixture)	2802 mm, 562 mm, 842 mm, 1122 mm, 1682 mm, 2242 mm
W/m	54W/m, 27W/m
Power supply unit	built-in power supply unit
Power cables	terminal block
Control system	ON/OFF, DALI
Ingress protection	IP40
Features	CRI >90
Notes	required outer casing, not included; required screen, not included. If necessary, see the standard outer casings (Brenta 2) to achieve the desired length
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT
DXF Technical drawing
LDT Photometric file
IES Photometric file
Energy label Language
- Italiano
- English
- Deutsch
- Español
- Russian
- Polski
- Nederlands
- Czech
- Slovak
- Portugues
- Français

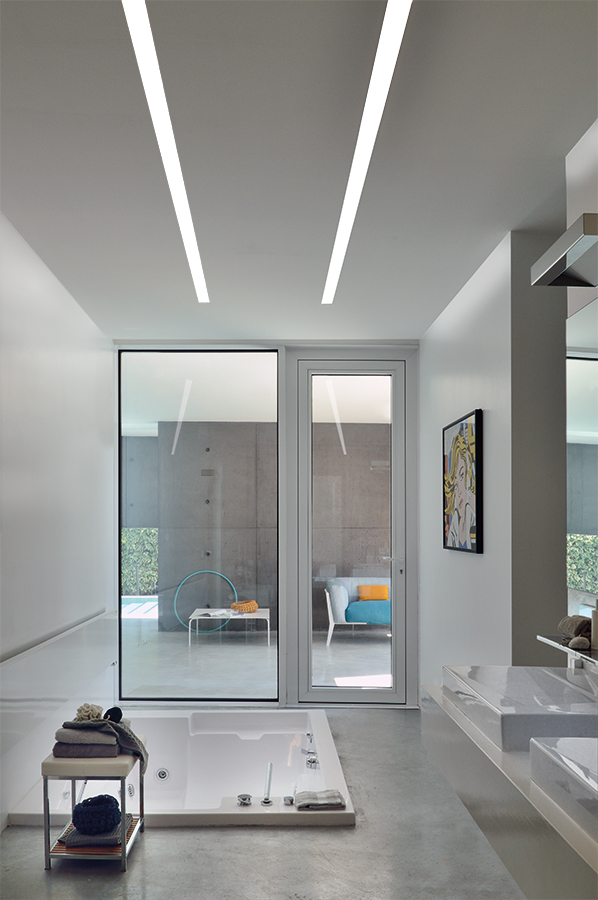

Gallery

Accessories and power supply units

Accessories (35)

Outer casings

Required outer casing not included WCBR21A Outer casing for deep-set installation – black – h 91 mm 567 mm	Required outer casing not included WCBR21F Outer casing for flush installation - h 76 mm 567 mm
Required outer casing not included WCBR22A Outer casing for deep-set installation – black – h 91 mm 847 mm	Required outer casing not included WCBR22F Outer casing for flush installation - h 76 mm 847 mm
Required outer casing not included WCBR23A Outer casing for deep-set installation – black – h 91 mm 1127 mm	Required outer casing not included WCBR23F Outer casing for flush installation - h 76 mm 1127 mm
Required outer casing not included WCBR25A Outer casing for deep-set installation – black – h 91 mm 1689 mm	Required outer casing not included WCBR25F Outer casing for flush installation - h 76 mm 1689 mm
Required outer casing not included WCBR27A Outer casing for deep-set installation – black – h 91 mm 2250 mm	Required outer casing not included WCBR27AC Outer casing for deep-set installation – black - h 91 mm 2247 mm If necessary, see the standard outer casings (Brenta 2) to achieve the desired length
Required outer casing not included WCBR27F Outer casing for flush installation - h 76 mm 2250 mm	Required outer casing not included WCBR27FC Outer casing for flush installation - h 76 mm 2247 mm If necessary, see the standard outer casings (Brenta 2) to achieve the desired length

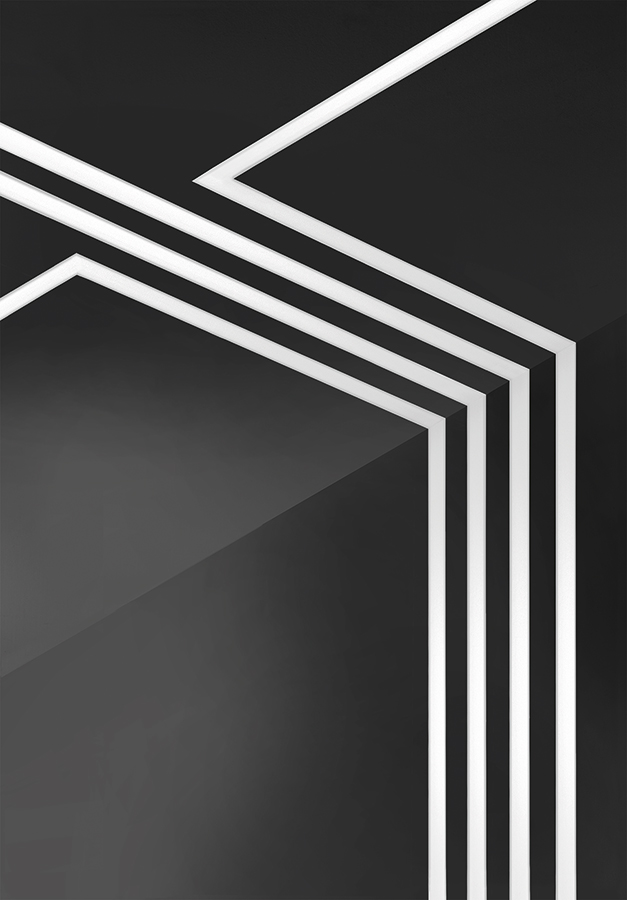

WCBR290PA Horizontal L-shaped outer casing deep-set installation - 588x648 mm	WCBR290PF Horizontal L-shaped outer casing flush installation - 588x648 mm
WCBR290SA Vertical L-shaped outer casing deep-set installation - 634x634 mm	WCBR290SF Vertical L-shaped outer casing flush installation - 634x634 mm
Required outer casing not included WCBR29A Outer casing for deep-set installation – black – h 91 mm 2810 mm	Required outer casing not included WCBR29AC Outer casing for deep-set installation – black - h 91 mm 2807 mm If necessary, see the standard outer casings (Brenta 2) to achieve the desired length
Required outer casing not included WCBR29F Outer casing for flush installation - h 76 mm 2810 mm	Required outer casing not included WCBR29FC Outer casing for flush installation - h 76 mm 2807 mm If necessary, see the standard outer casings (Brenta 2) to achieve the desired length

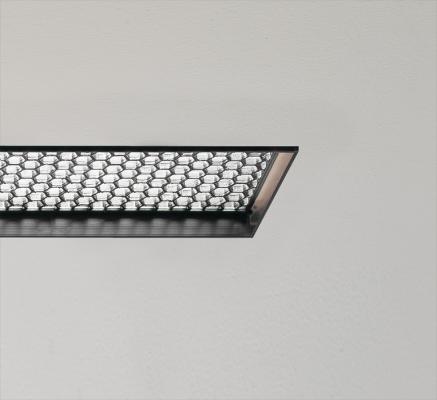

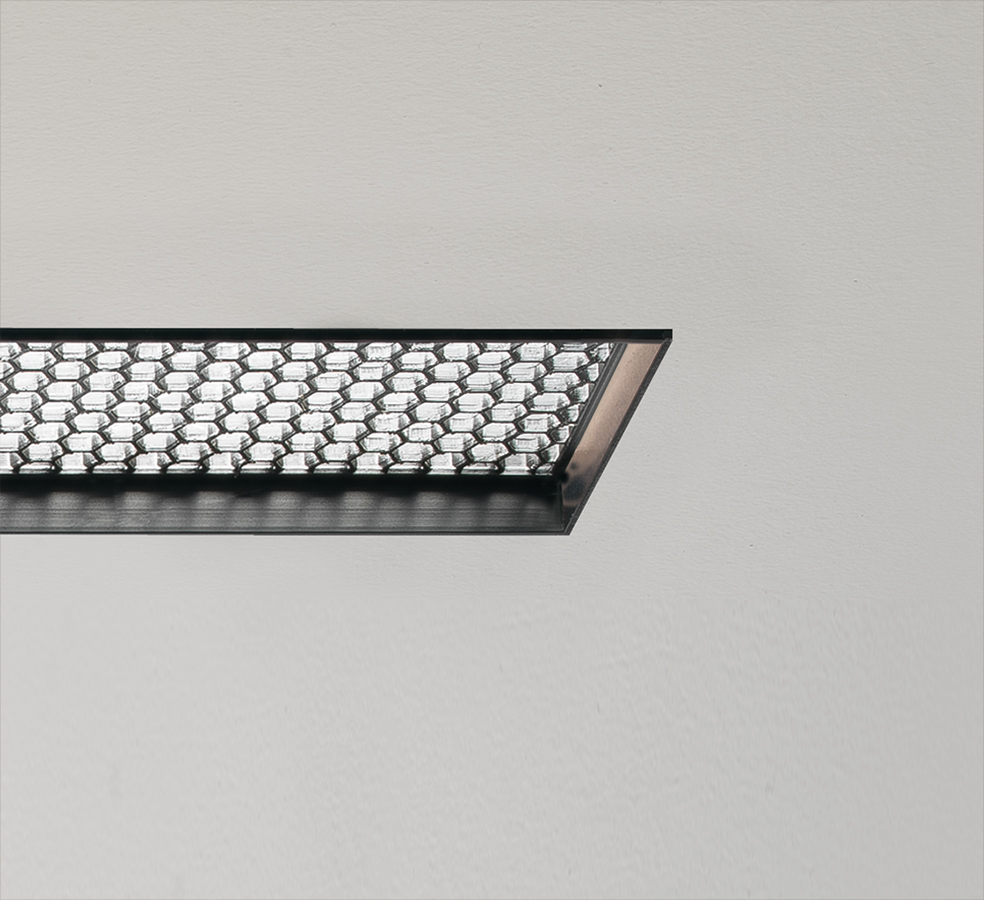

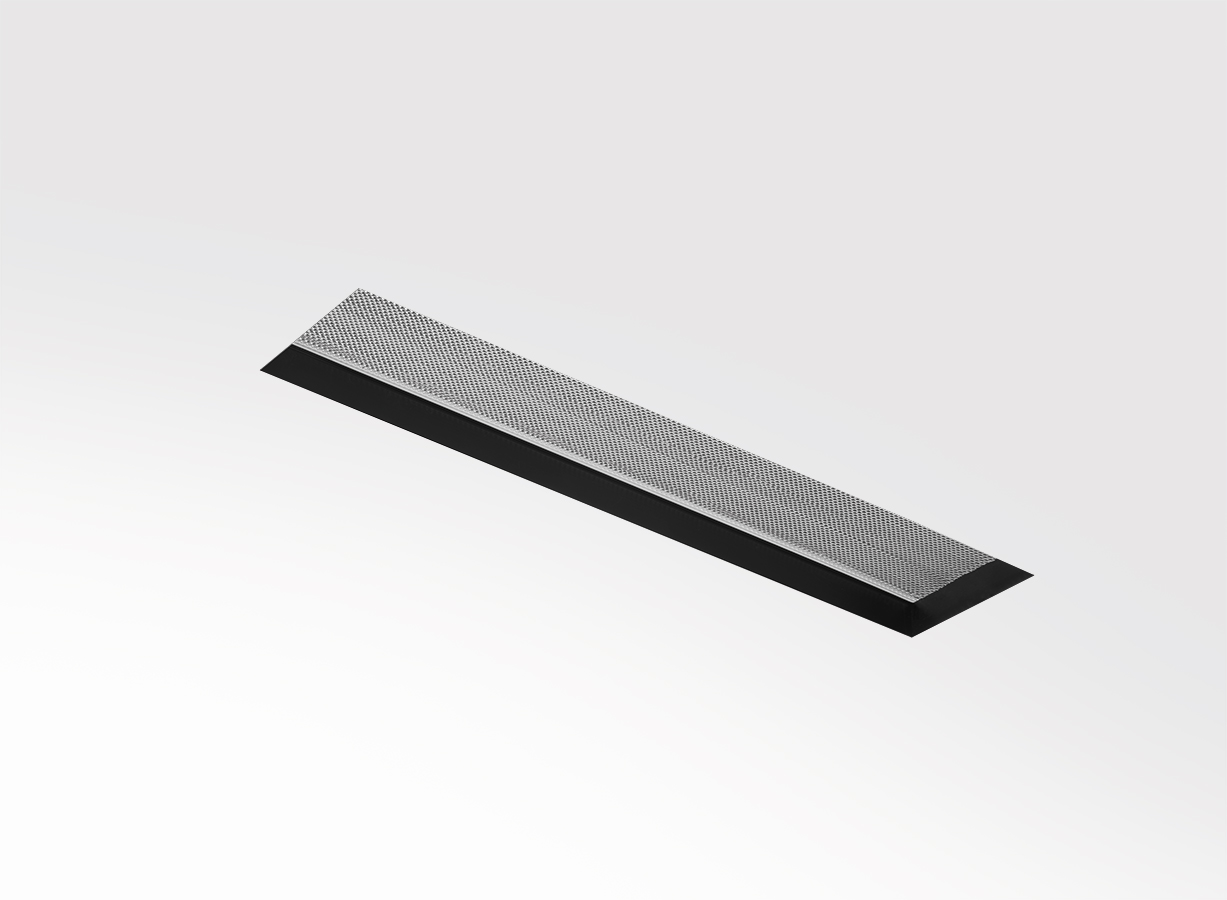

Honeycomb louvre
