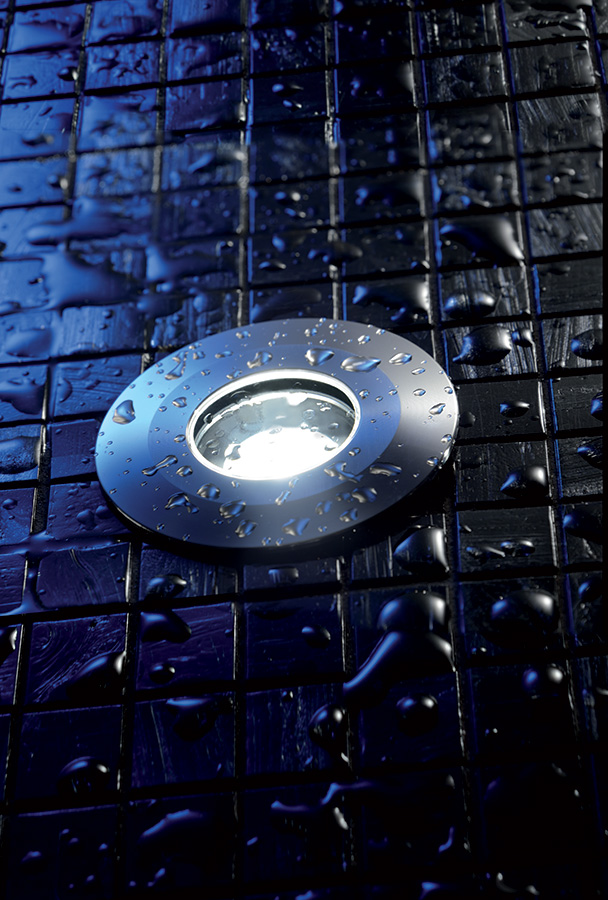

Bright 3.0 316L

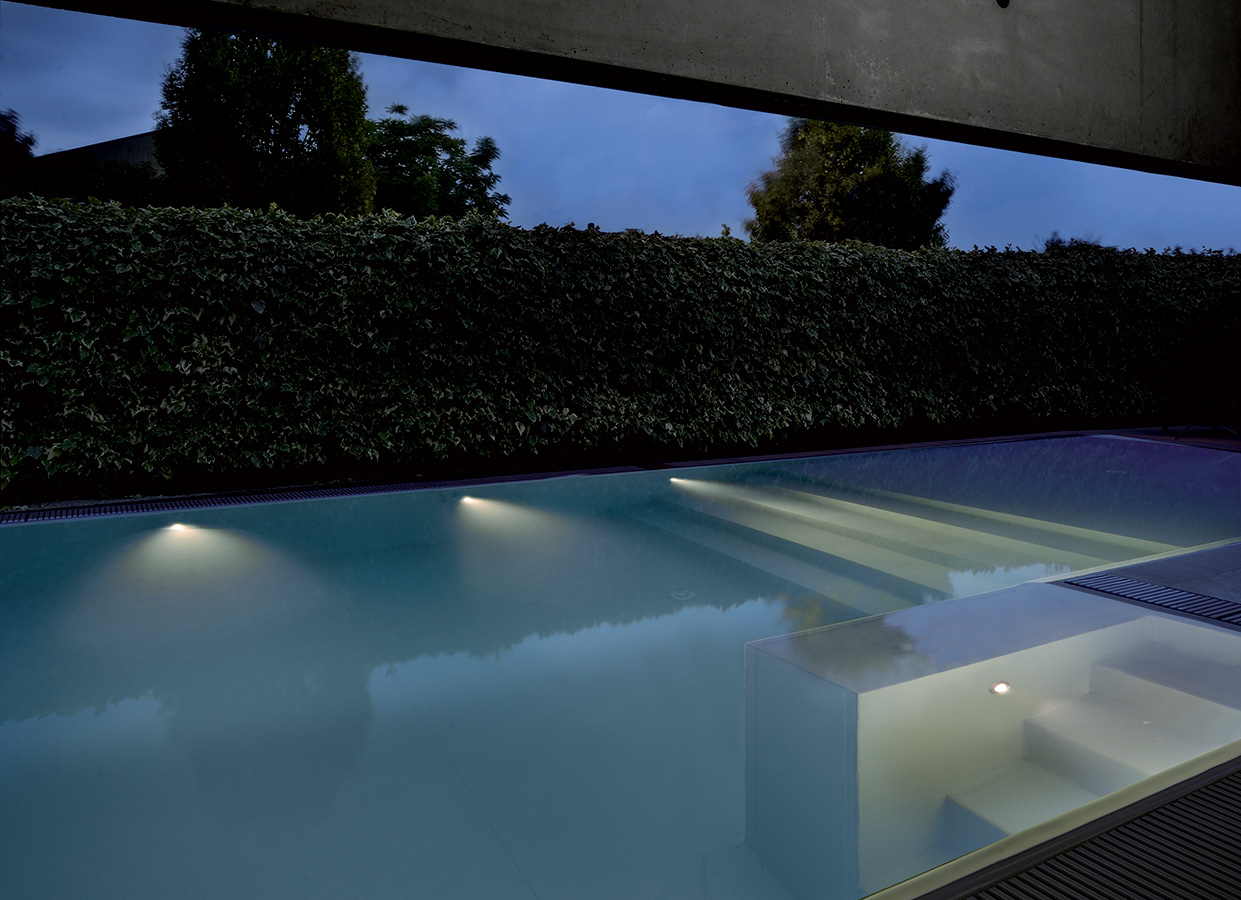

Recessed for underwater applications

recessed for underwater applications - 7W / 9W 24Vdc; RGB: max 5W max 500mA - Ø80 mm

Generate code

Technical data

Print technical data
  • RGB
  • conforme alla normativa Europea EN 60598-1
  • EAC
  • BIS R-41105201
  • lighting fixture with LED technology
  • appliance class III
  • walkover fixture
  • gross weight
    kg 1,15
  • IP68
  • IK10
  • IPS
  • Casambi control
  • maximum device temperature50°C
  • A/A+/A++
Installation recessed for underwater applications (suitable for use in seawater)
Power consumption 7W, 9W; RGB: max 5W
Power supply 24Vdc; RGB: max 500mA
Lumen output at source 683 lm (3000K, 7W),
845 lm (3000K, 9W),
RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA)
Delivered lumen output 463 lm (3000K, 34°, 7W),
602 lm (3000K, 34°, 9W),
RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°)
Datasheet

Copied

Mounting recessed (wall, ground), max depth 10 m
Number and type of LED 1 high-intensity power LED, 3 MacAdam steps (white LED colour);
RGB: 3 power LEDs
50000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGB
Optics 11°, 20°, 34°, 45°, 68°, 13°x52°, 21°x42°
CRI Colour Rendering Index 80
Body material body and trim in AISI 316L stainless steel
Screen material screen in tempered, transparent extra-clear glass
Power supply unit power supply unit not included
Wiring parallel; RGB: series
Power cables includes 5 m neoprene cable H05RN-F 2x1.00/1.00 Ø7.00 mm,
RGB: includes 5 m FEP+RUB cable (equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
Ingress protection IP68
Impact resistance IK10
Notes suitable for use in sea water,
the 7W version and the RGB version can also be used out of the water
Status Available

Read more

Close

Accessories and power supply units

Accessories (4)

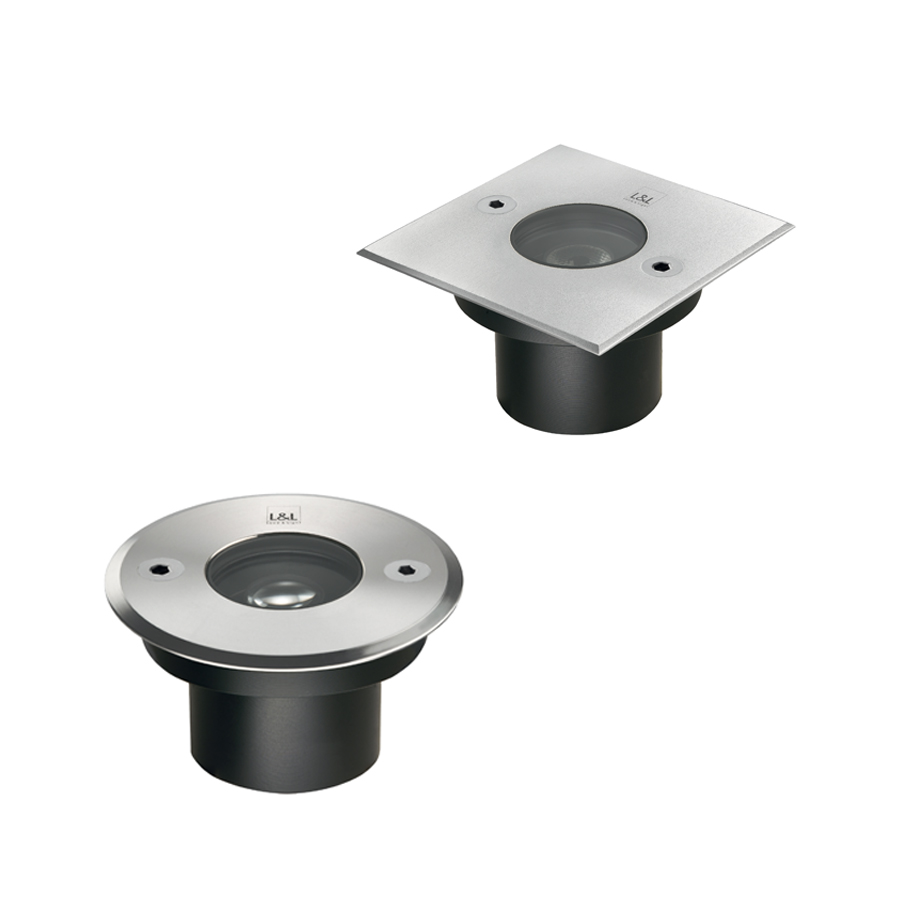

Outer casings

WC5004

Outer casing

WC5006

Outer casing

Honeycomb louvre

Order together with the lighting fixture.

WH0201

Honeycomb louvre

built into the lighting fixture

Spare parts

WN7001

Pair of extractors for outer casings

Cables

Choose the power cable in the code generator

Power supply units (20)

AR330500TC

Home RGB

Input230Vac 50-60 Hz
Output500mA constant current; max 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV12020IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output12Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP20

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 132W
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 192W
DimmeringON/OFF
Power supply unit IPIP67

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (14)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 24 Vdc input:; 24Vdc; 288W
With 12 Vdc input:; 12Vdc; 144W ⚠
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AR330500TC

Home RGB

Input230Vac 50-60 Hz
Output500mA constant current; max 36W
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,5W
With 24 Vdc input:; 350mA constant current; max 25W
With 48 Vdc input:; 350mA constant current; max 50W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 500mA constant current; max 18W
With 24 Vdc input:; 500mA constant current; max 36W
With 48 Vdc input:; 500mA constant current; max 72W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARCUNID2

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU
output values apply to 48Vdc

Input12-24-48Vdc
Output

3 channels

350mA constant current; max 50,4W
500mA constant current; max 72W

4 channels

350mA constant current; max 67,2W
500mA constant current; max 96W

1 channel

350mA constant current; max 16,8W ⚠
500mA constant current; max 24W ⚠
700mA constant current; max 33,6W ⚠

3 channels

700mA constant current; max 100,8W ⚠

4 channels

700mA constant current; max 134,4W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IPIP20

ARVUNID2

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W
With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
Dimmering0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA)

for CASAMBI. White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

3 channels

500mA constant current; max 18W
500mA constant current; max 36W

4 channels

500mA constant current; max 24W
500mA constant current; max 48W

1 channel

500mA constant current; max 12W ⚠
500mA constant current; max 6W ⚠

2 channels

500mA constant current; max 12W ⚠
500mA constant current; max 24W ⚠
DimmeringPUSH
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output

for CASAMBI. White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W
With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer

for CASAMBI
order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 24 Vdc input:; 24Vdc; 240W
With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringPUSH
Power supply unit IPIP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24-48Vdc
Output350mA constant current; max 67,2W
1050mA constant current; max 201,6W ⚠
700mA constant current; max 134,4W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W
With 12 Vdc input:; 500mA constant current; max 18W
With 24 Vdc input:; 350mA constant current; max 25,2W
With 24 Vdc input:; 500mA constant current; max 36W
With 36 Vdc input:; 350mA constant current; max 37,8W
With 36 Vdc input:; 500mA constant current; max 54W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W
With 24 Vdc input:; 350mA constant current; max 25,2W
With 36 Vdc input:; 350mA constant current; max 37,8W
With 12 Vdc input:; 700mA constant current; max 25,2W ⚠
With 24 Vdc input:; 700mA constant current; max 50,4W ⚠
With 36 Vdc input:; 700mA constant current; max 75,6W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W
With 24 Vdc input:; 350mA constant current; max 25,2W
With 36 Vdc input:; 350mA constant current; max 37,8W
DimmeringCannot be dimmed
Power supply unit IPIP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 500mA constant current; max 18W
With 24 Vdc input:; 500mA constant current; max 36W
With 36 Vdc input:; 500mA constant current; max 54W
DimmeringCannot be dimmed
Power supply unit IPIP20

Control input (11)

AE01350T1

Emergency module integrated

Input220─240Vac 50─60Hz
Outputmax 350mA 58Vdc max
Ingress protectionIP20
Dimensions35x47x166 mm, 185 g
Cutout dimensionsØ58 mm

EC0TIM12840020

Timer

for CASAMBI

Input12-24-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm
Cutout dimensionsØ51 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

Touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
