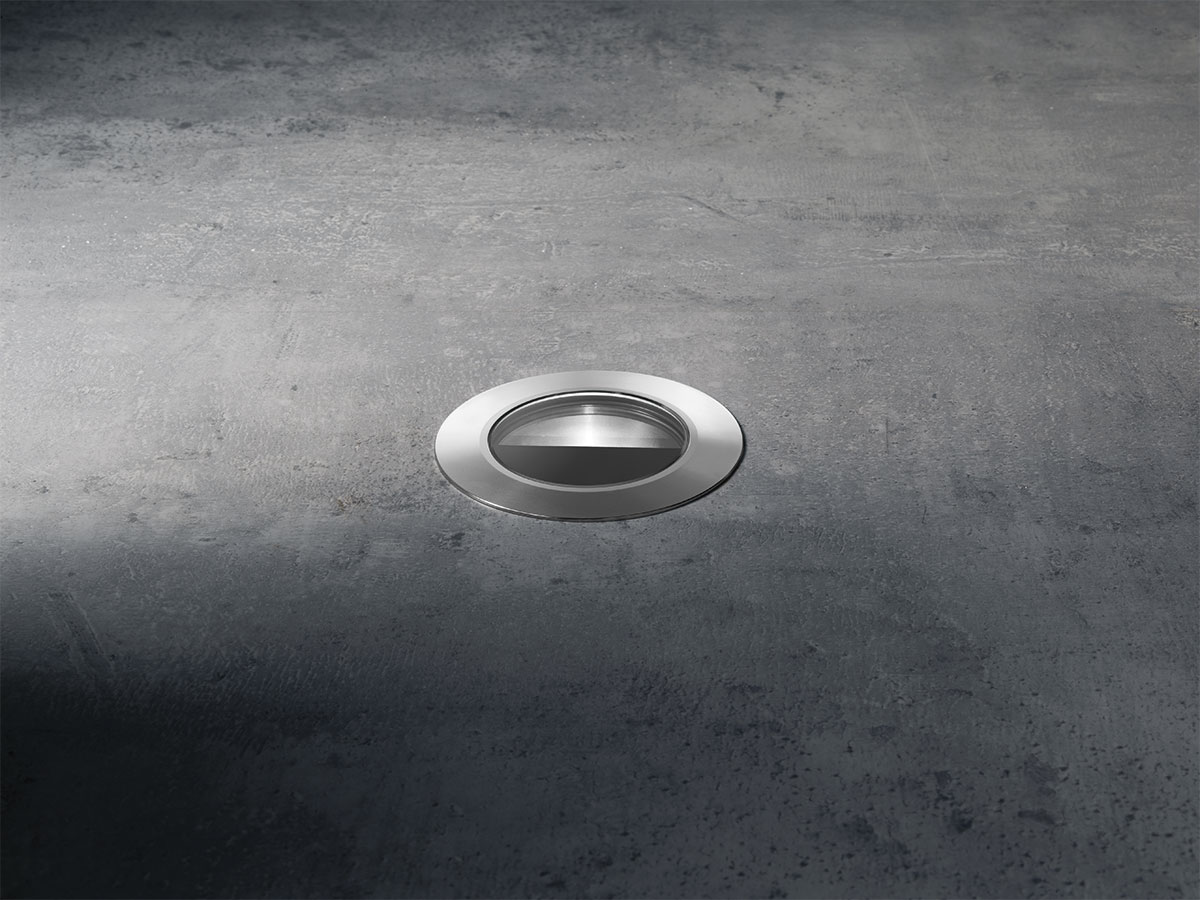

Smoothy 2.4

3.5W / 5W / 7W 24Vdc, RGB: max 7W, max 700mA - fixed optics - Ø84 mm - RGB

Generate code

Technical data

Print technical data

Updated to SY240209VI

  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • drive-over fixture
    kg 1000
  • gross weight
    kg 0,43
  • IP67
  • IK08
  • IPS
  • PID
  • RAL finish on request
  • T max 50°C
  • A/A+/A++
Installation recessed for outdoor applications
Power 7W
Power supply 24Vdc
Lumen output at source 657 lm (3000K, 7W, CRI 80)
Delivered lumen output 463 lm (3000K, 34°, 7W, CRI 80)
Datasheet

Copied

Mounting recessed (ceiling, wall, floor)
Number and type of LED 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour 4000K
Optics
CRI 80
Body material body in black-anodized anticorodal aluminium,
trim in AISI 316L stainless steel
Screen material screen in tempered, transparent extra-clear glass
Power supply unit power supply unit not included
Power cables includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
Ingress protection IP67
Impact resistance IK08
Notes 5° optics and 3.5W version: 4000K only CRI 80
Status Available

Read more

Close

Accessories and power supply units

Accessories (9)

Power supply units (17)

Power supply units for product code SY240209VI

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc 16W
350mA 19W 1-15 LEDs
500mA 20W 1-10 LEDs
700mA 20W 1-7 LEDs
Power16W
DimmeringON/OFF
Power supply unit IPIP20

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-13 LEDs
500mA 24W 1-13 LEDs
700mA 32W 1-13 LEDs
DimmeringON/OFF
Power supply unit IPIP20

AD020DALIT1

dimmable power supply unit

Output24Vdc 16W
350mA 15W 1-10 LEDs
500mA 20W 1-9 LEDs
700mA 20W 1-6 LEDs
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-11 LEDs
500mA 24W 1-11 LEDs
700mA 32W 1-11 LEDs
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 15W 1-12 LEDs
500mA 22W 1-12 LEDs
700mA 25W 1-8 LEDs
Dimmering1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input12-24-48Vdc
Output12Vdc 144W
24Vdc 288W
48Vdc 576W
Dimmering1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 320W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (8)
