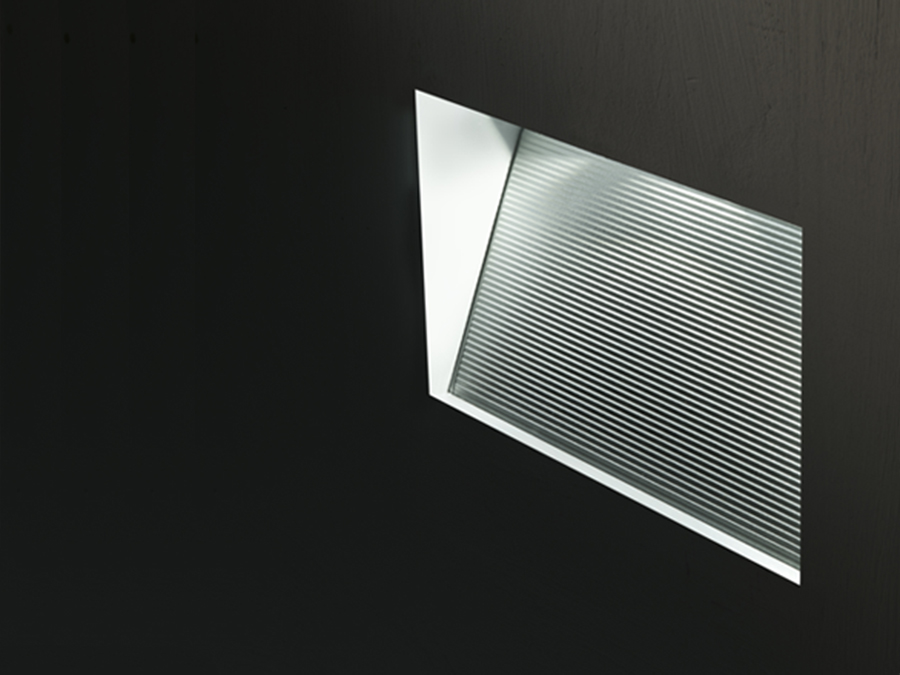

• Pared-down, "concealed” design: Pasito is a recessed spotlight that disappears into the wall when installed, focussing attention completely on the light it emits
• Downward-facing light beam, no glare
• CRI 80 and CRI 90 versions
Technical data
• Application: outdoor
• Mounting: recessed (wall)
• Power / Power supply: 10W, 230Vac; 8.5W, 24Vdc
• Power supply unit: included
• Optics: 60°, asymmetrical 150°x90°
• LED colour: white: 2700K, 3000K, 4000K
• CRI 80 and CRI 90 versions
• Finishes: anthracite, white, cor-ten, grey
Lumen output at source:
• 851 lm (3000K, CRI 80)
• 788 lm (3000K, CRI 90)
Delivered lumen output:
• 154 lm (3000K, asymmetrical 150°x90°, CRI 80); 304 lm (3000K, 60°, CRI 80)
• 142 lm (3000K, asymmetrical 150°x90°, CRI 90); 280 lm (3000K, 60°, CRI 90)
Pasito 1.0, 3000K, 10W, 60°, grey, distance between the devices: 3.5 m Find out more about the product
Pasito 1.0, 3000K, 10W, asymmetrical 150°x90°, grey, distance between the devices: 3.5 m Find out more about the product
