14/06/2017

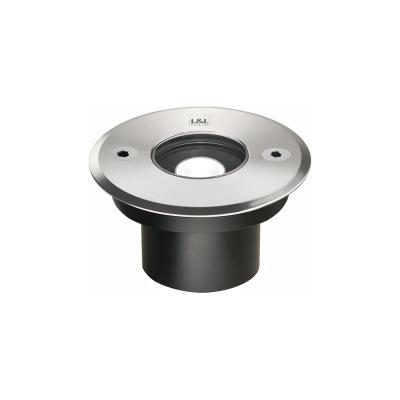

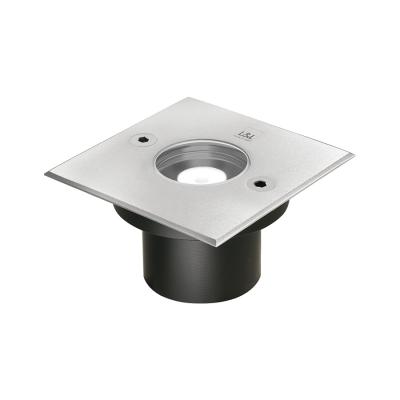

Bright 2.8 / 2.9 | Outdoor recessed

Share
  • updated design
  • new sharp optics: 36° and 68°
  • two powers: 2.5W and 3.5W
  • greater resistance to environmental influences thanks to the black anodization process used on the body

Materials

  • Body in EN AW 6082 Anticorodal®  aluminium alloy, which guarantees an excellent natural  resistance to corrosion
  • The black anodization process used on the body increases the heat dissipation capacity, and protects the device’s look and functioning from environmental influences
  • Trim in AISI 316L stainless steel or in EN AW 6082 Anticorodal® aluminium alloy (only Bright 2.8)
  • Screen in 10-mm-thick extra-clear, tempered, transparent glass

Technical data

  • Power: 2,5W, 3,5W
  • Power supply: 24Vdc
  • Tilted optics ±15°: 8°, 20°, 36° sharp, 41°, 68° sharp, 10°x44°
  • Drive-over up to 2000 kg
  • Ingress protection: IP68



Source lumen output 145 lm (3000K, 20°, 2,5W)
184 lm (3000K, 20°, 3,5W)
Delivered lumen output 112 lm (3000K, 20°, 2,5W)
143 lm (3000K, 20°, 3,5W)
