14/06/2018

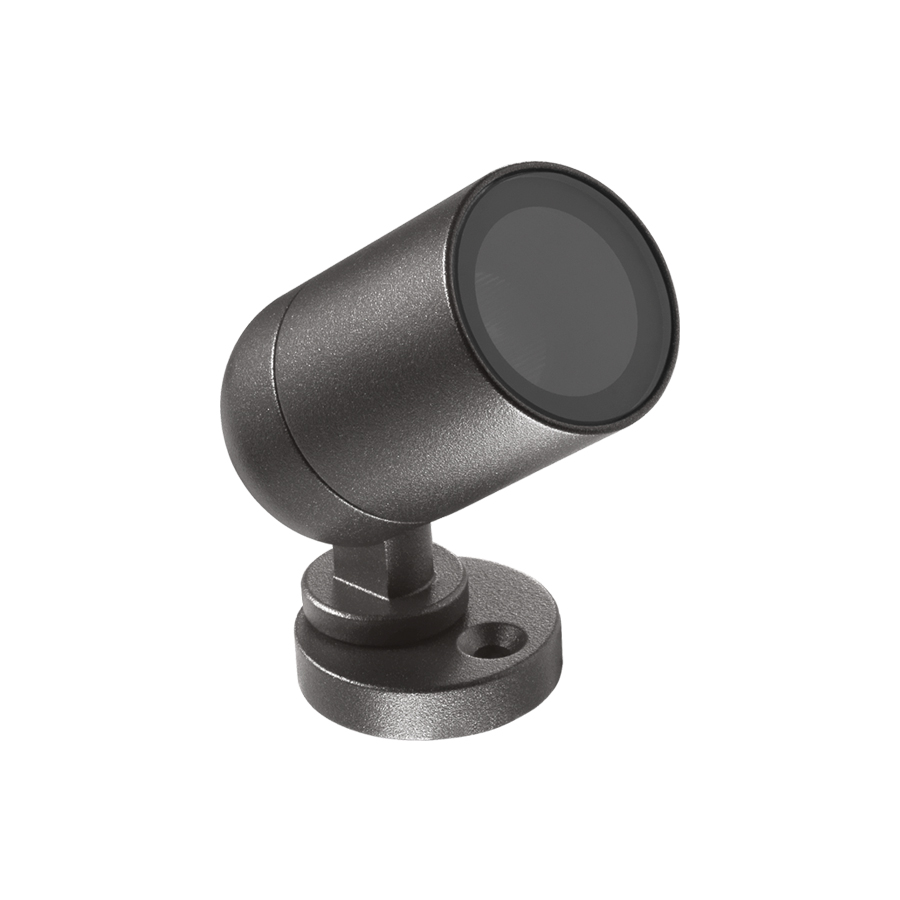

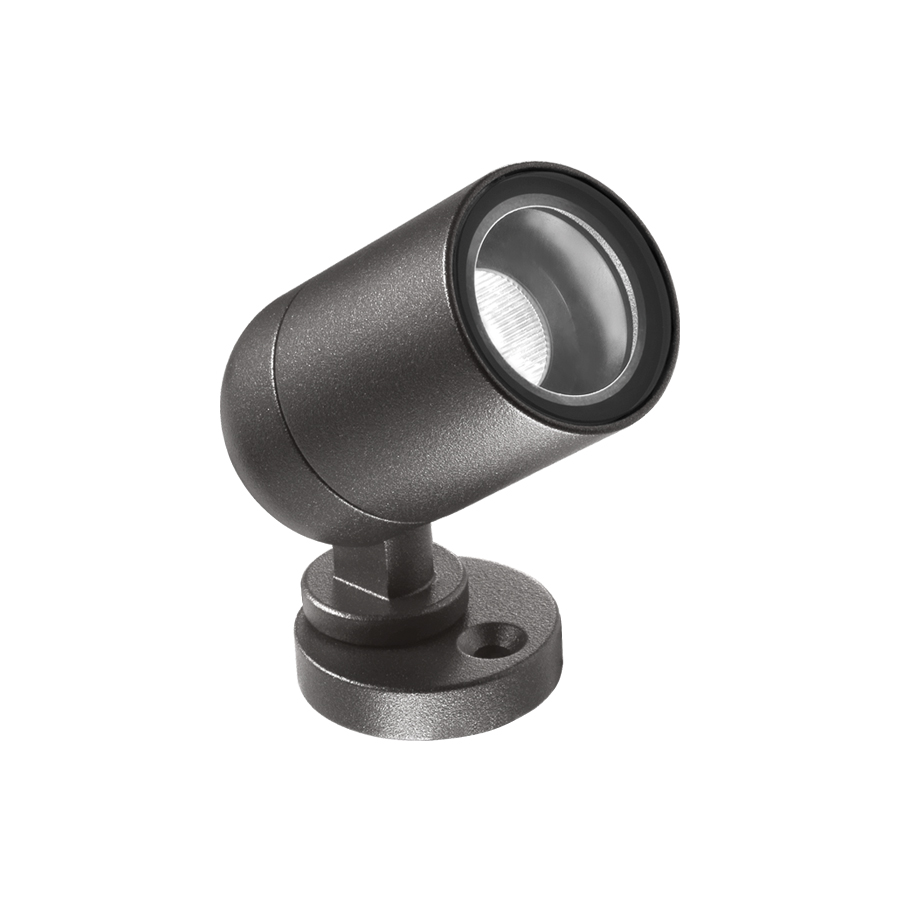

Pivot 1.7 - Outdoor projectors

Share

News

New version of the Pivot projector with an updated range of optics

12 optics now available, including 5°, 8°, 15°x47° and 46°x16° elliptical optics and two sharp optics, which create light beams with pin-sharp edges.


Two wattages available:

- 5W
- 7W


Pivot 1.7 is available in the finishes:

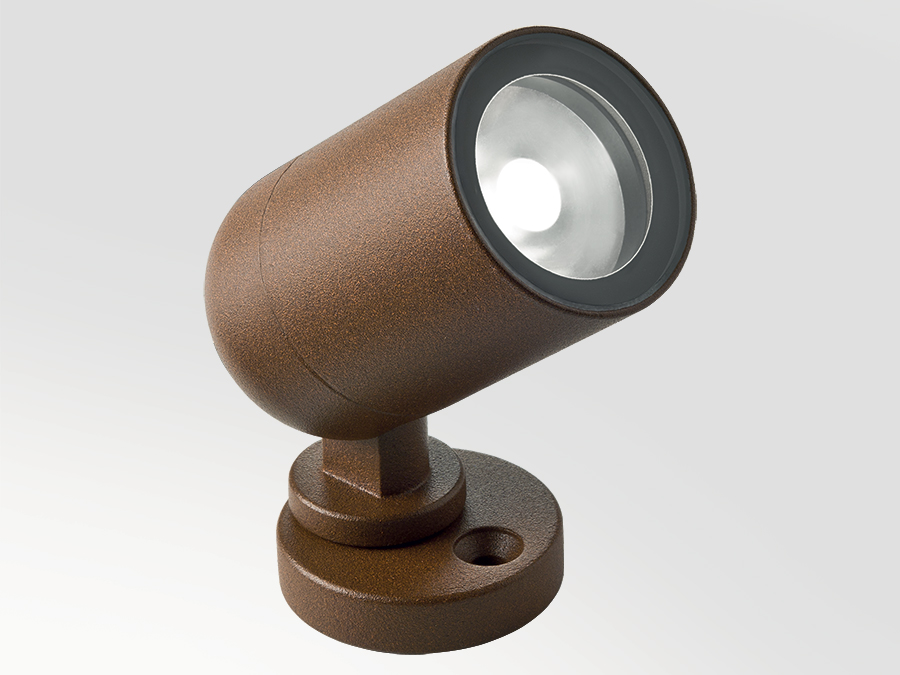

white, black anodized, anodized aluminium, anthracite, cor-ten and copper, as well as the new jasper green finish developed specifically for use in landscape design

Technical data

Power:
5W / 7W

Power supply:

24Vdc

LED colour:
2700K, 3000K, 4000K

Lumen output at source:

488 lm (3000K, 34°, 5W, CRI 80)
452 lm (3000K, 34°, 5W, CRI 90)
657 lm (3000K, 34°, 7W, CRI 80)
608 lm (3000K, 34°, 7W, CRI 90)

Delivered lumen output:

352 lm (3000K, 34°, 5W, CRI 80)
284 lm (3000K, 34°, 5W, CRI 90)
463 lm (3000K, 34°, 7W, CRI 80)
374 lm (3000K, 34°, 7W, CRI 90)

Optics
: 5° (only 3.5W), 8°, 11°, 17°, 21° sharp, 34°, 43°, 45°, 51° sharp, 54°, 15°x47°, 46°x16°

Ingress protection:
IP67
Impact resistance:
IK07

Body in anticorodal aluminium
Screen in tempered, transparent extra-clear glass

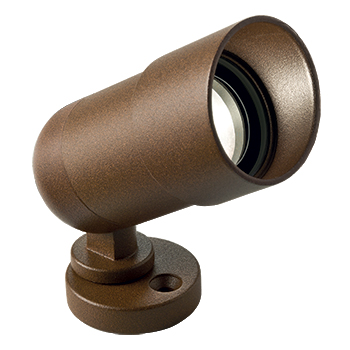

Pivot 1.7, cor-ten, with asymmetrical snoot
