Ginko 3.3 / 4.3 - Projectors for outdoor applications

Share
Author L&L Communication Team
Category Product news
Read time:

min

The Ginko family has been extended with an RGBW version: the light-mixing option enables different coloured lighting scenes to be created in outdoor and landscape settings.

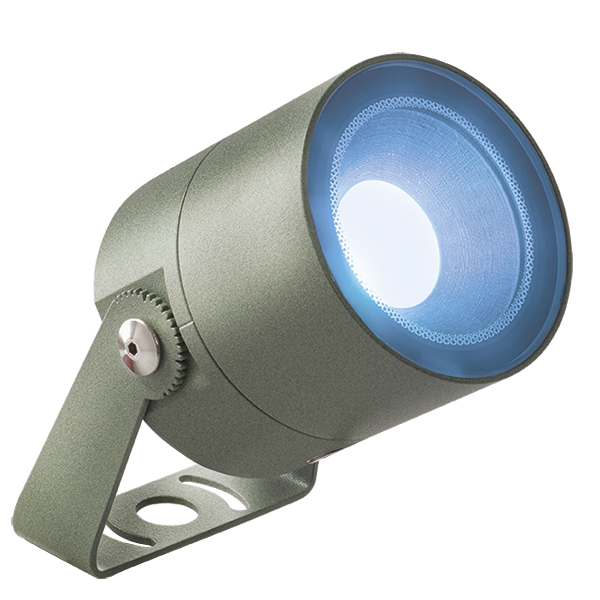

Ginko 4.3, RGBW, 20W, 61°, jasper green

  • Ginko 3.3 and 4.3 use anti-glare recessed optics: these include 32°x73° elliptical optics adjustable manually through 360° with a magnet (patented)

  • Up to seven different finishes, including the jasper green colour conceived specifically for landscape design: the ideal solution when the fixture needs to blend into vegetation

Technical data

Power and power supply

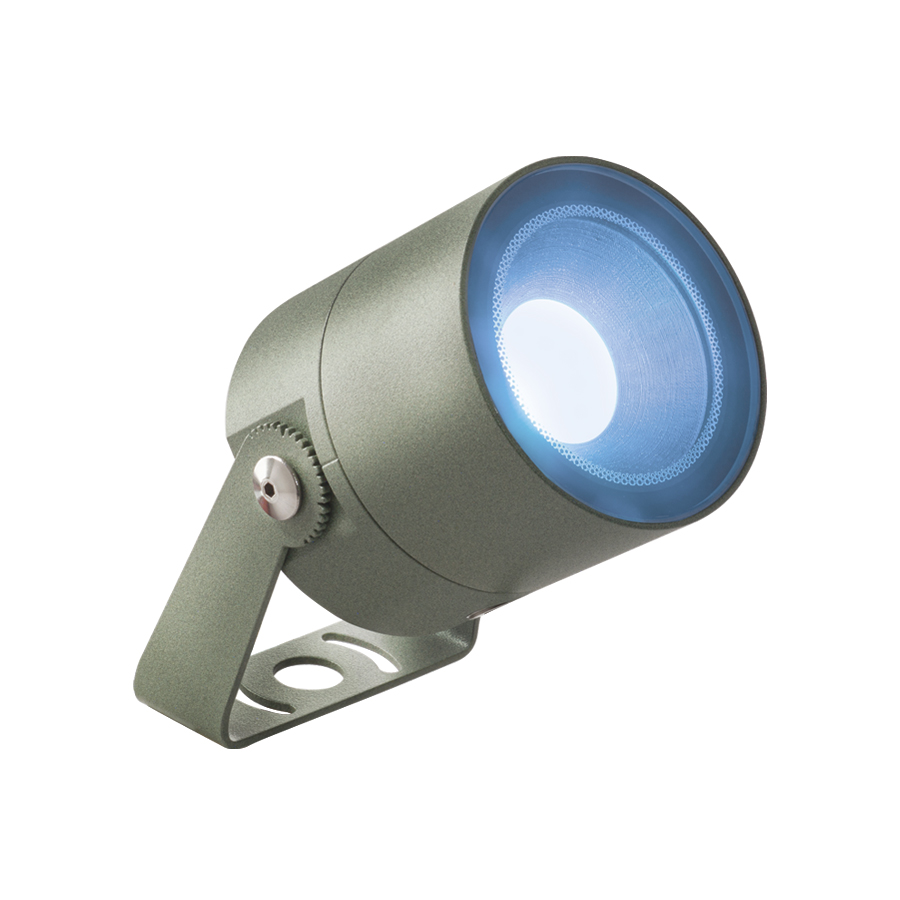

Ginko 3.3: 11W 24Vdc

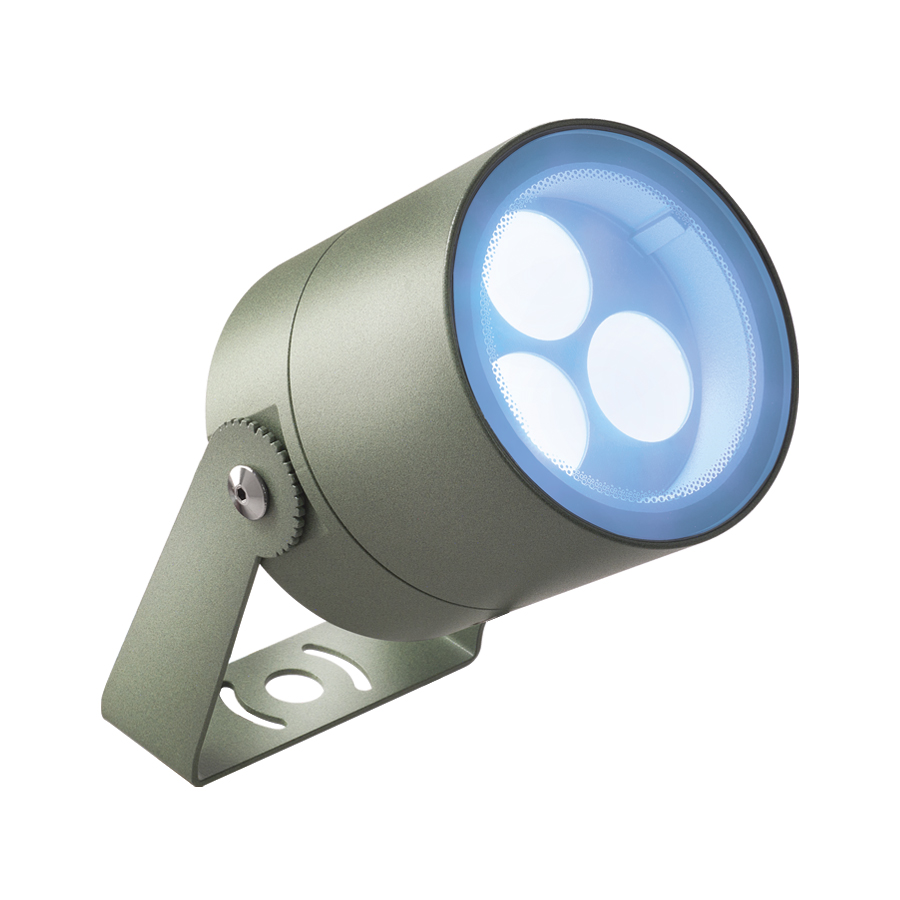

Ginko 4.3: 20W 24Vdc
LED colour
RGBW
Optics
Ginko 3.3: 19°, 33°, 56°, 32°x73° adjustable
Ginko 4.3: 20°, 34°, 61°, 32°x73° adjustable
IP66 / IP69K
IK09 (Ginko 3.3) / IK08 (Ginko 4.3)
Built-in protection systems
Ginko 3.3: IPS (Intelligent Protection System)
Ginko 4.3: IPS (Intelligent Protection System), PID (Protective Impedance Device), NTC

DISCOVER THE ENTIRE FAMILY
