12/02/2021

Ginko 4.0 - Projectors for outdoor applications

Share

The Ginko range of projectors has grown again with the addition of version 4.0, the largest in both size and performance.



Unique Selling Points

•  Minimalist design coordinated with the other fixtures in the Ginko family.

•  Ginko 4.0 uses anti-glare recessed optics: these include sharp 38° optics for a light beam with pin-sharp edges, and two elliptical optics adjustable by hand with a magnet (patented).

•  Choice of CRI 80 or CRI >90 LED source for better colour rendering of the objects being lit.

•  Up to six different finishes, including the jasper green colour developed specially for use in landscape design. The fixture can also be painted in a specific RAL finish on request.

Technical Data

Power
25W
Power supply
24Vdc
LED colour
2700K, 3000K, 4000K
Lumen output at source
  2302 lm (3000K, CRI 80)
  1860 lm (3000K, CRI >90)
Delivered lumen output:
  2133 lm (3000K, 12°, CRI 80)
  1724 lm (3000K, 12°, CRI >90)
Optics
12°, 26°, 34°, 38° sharp, 55°, 13°x65° adjustable, 24°x69° adjustable
Ingress protection
IP66
Impact resistance
IK08

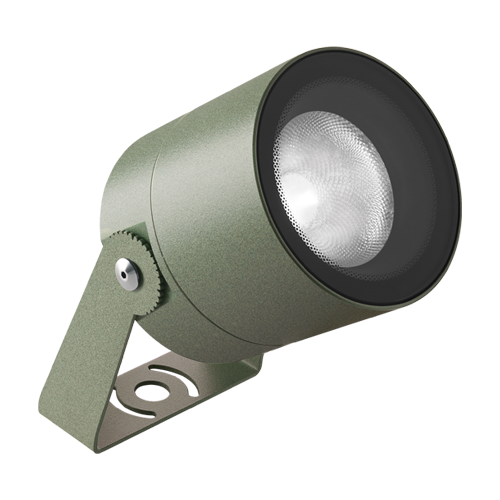

Ginko 4.0, jasper green
