Beam 2.6

Step lights for outdoor applications

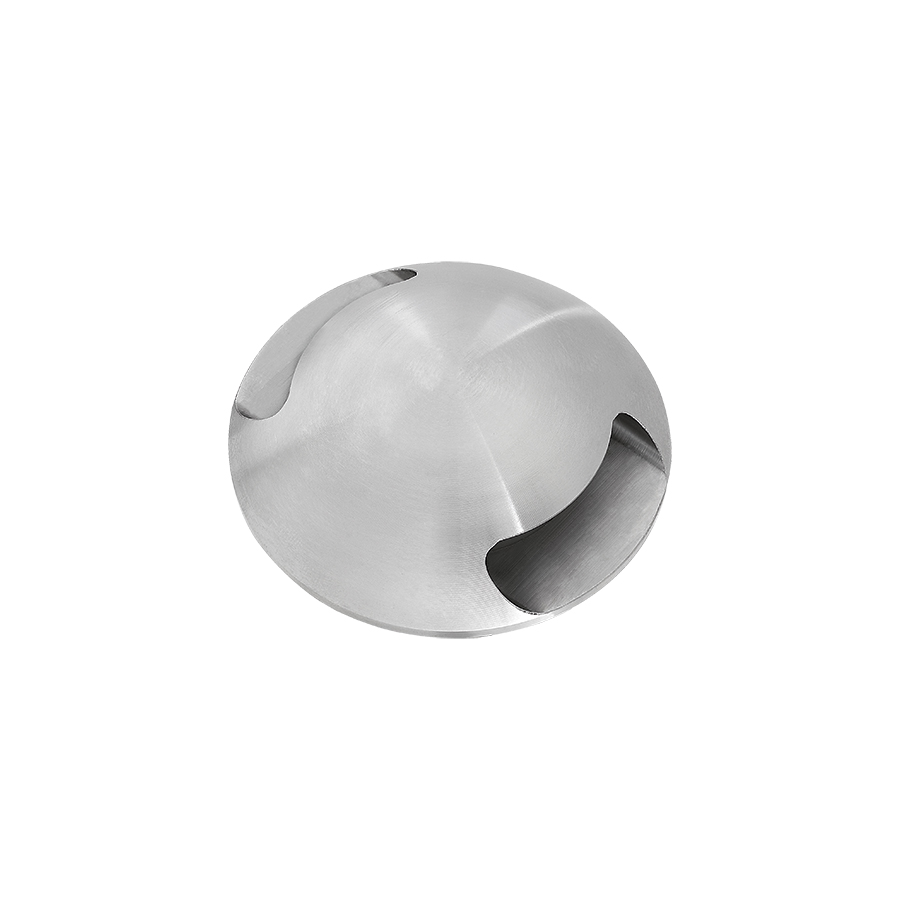

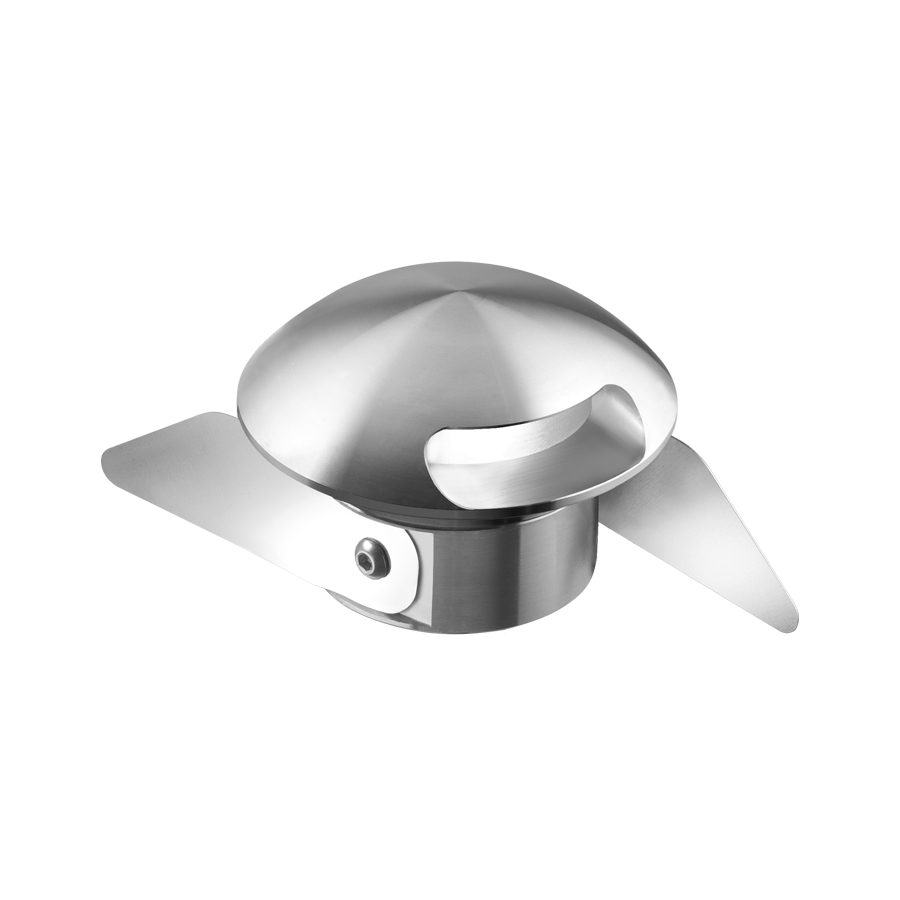

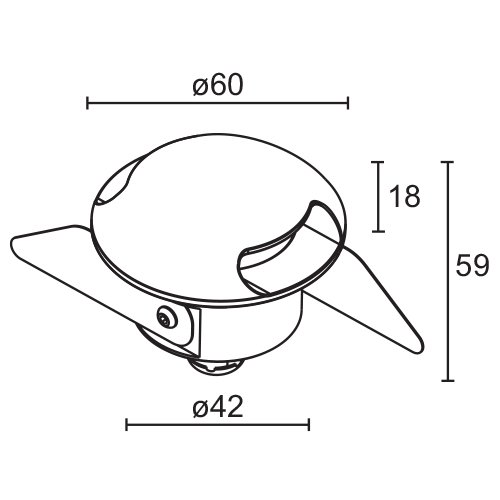

step light for outdoor applications - 2W 24Vdc - radial optics, single or double beam - ø60 mm

Technical data

Print technical data

on request
kg 0,25 - kg 0,47
IP67
IK09

Installation	step light for outdoor applications, single or double beam
Power consumption	single beam: 2W; double beam: 2W (1W+1W)
Power supply	24Vdc
Lumen output at source	double beam: 224 lm (3000K), single beam: 145 lm (3000K)
Delivered lumen output	double beam: 102 lm (3000K), single beam: 70 lm (3000K)
Datasheet	Beam 2.6 step light for outdoor applications, single or double beam; walkover; recessed (wall, floor); Power consumption: single beam: 2W; double beam: 2W (1W+1W); Power supply: 24Vdc; Lumen output at source: double beam: 224 lm (3000K), single beam: 145 lm (3000K); Delivered lumen output: double beam: 102 lm (3000K), single beam: 70 lm (3000K); single beam: 1 power LED, double beam: 2 power LEDs 1/4 ANSI BIN (white LED colour) 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: radial; CRI Colour Rendering Index: 80; Body material: body and trim in stainless steel (stainless steel version), body in anodized aluminium, trim in aluminium (aluminium version); Finishes: stainless steel, grey (RAL 9006), anthracite; RAL finish on request; Screen material: screen in sandblasted plexiglass; Emission: single beam, double beam; power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP67; Impact resistance: IK09; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Maximum device temperature: 60°C (Ta 25°C); Glow wire test: 730°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: stainless steel trim: 470 g, aluminium trim: 250 g; Dimensions: Ø60x59 mm; Cutout dimensions: Ø45 mm; Volume of thermal heatsink: Ø80x100 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC1501 Outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBeam 2.6 step light for outdoor applications, single or double beam walkover recessed (wall, floor) Power consumption: single beam: 2W; double beam: 2W (1W+1W) Power supply: 24Vdc Lumen output at source: double beam: 224 lm (3000K), single beam: 145 lm (3000K) Delivered lumen output: double beam: 102 lm (3000K), single beam: 70 lm (3000K) single beam: 1 power LED, double beam: 2 power LEDs 1/4 ANSI BIN (white LED colour) 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, blue Optics: radial CRI Colour Rendering Index: 80 Body material: body and trim in stainless steel (stainless steel version), body in anodized aluminium, trim in aluminium (aluminium version) Finishes: stainless steel, grey (RAL 9006), anthracite RAL finish on request Screen material: screen in sandblasted plexiglass Emission: single beam, double beam power supply unit not included includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP67 Impact resistance: IK09 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Maximum device temperature: 60°C (Ta 25°C) Glow wire test: 730° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: stainless steel trim: 470 g, aluminium trim: 250 g Dimensions: Ø60x59 mm Cutout dimensions: Ø45 mm Volume of thermal heatsink: Ø80x100 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC1501 Outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor)
Number and type of LED	single beam: 1 power LED, double beam: 2 power LEDs 1/4 ANSI BIN (white LED colour) 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, blue
Optics	radial
CRI Colour Rendering Index	80
Body material	body and trim in stainless steel, body in anodized aluminium, trim in aluminium
Screen material	screen in sandblasted plexiglass
Finishes	stainless steel, grey, anthracite
Emission	single beam, double beam
Power supply unit	power supply unit not included
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP67
Impact resistance	IK09
Status	Available

Read more

Close

Download

See all downloads

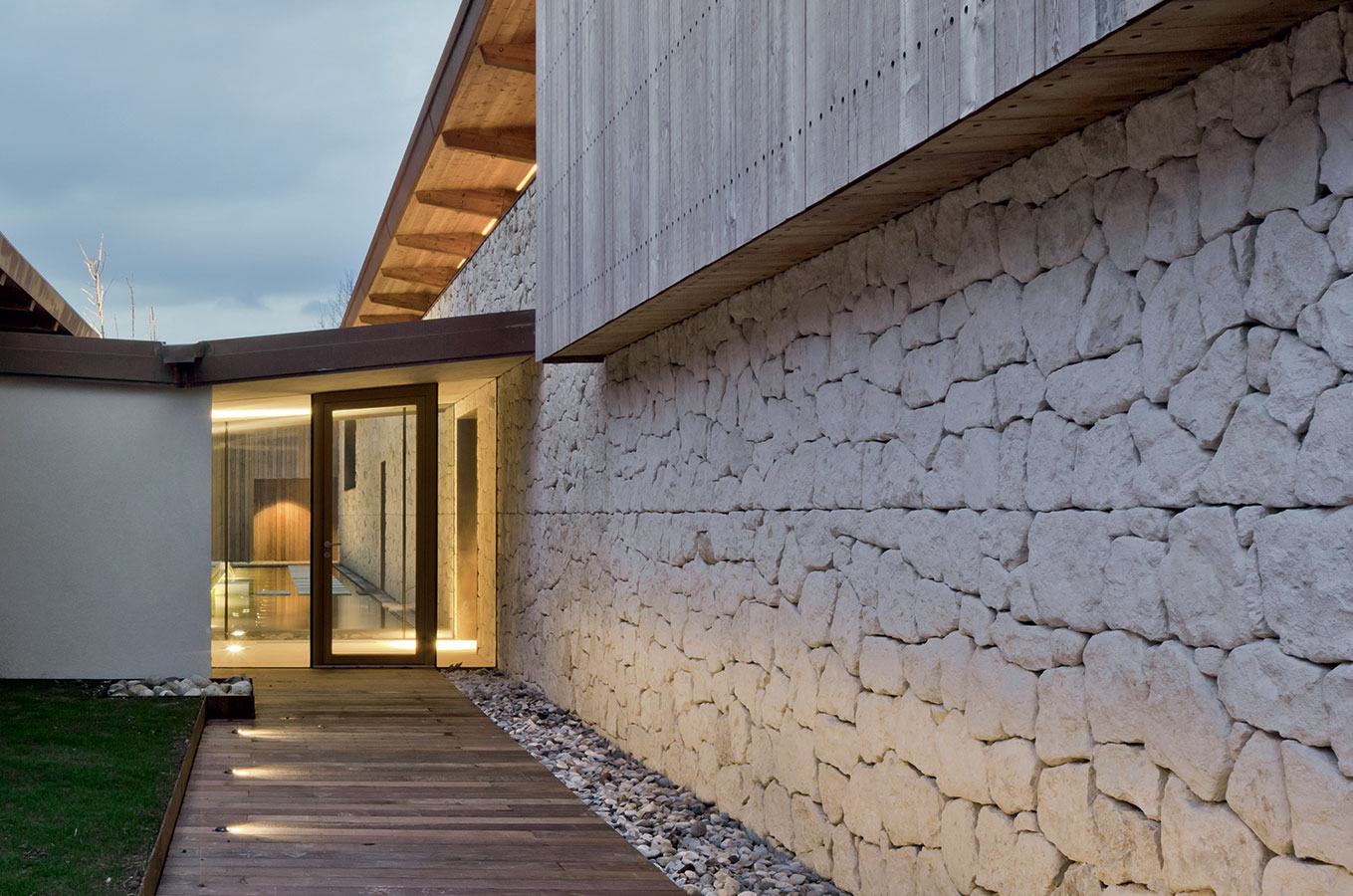

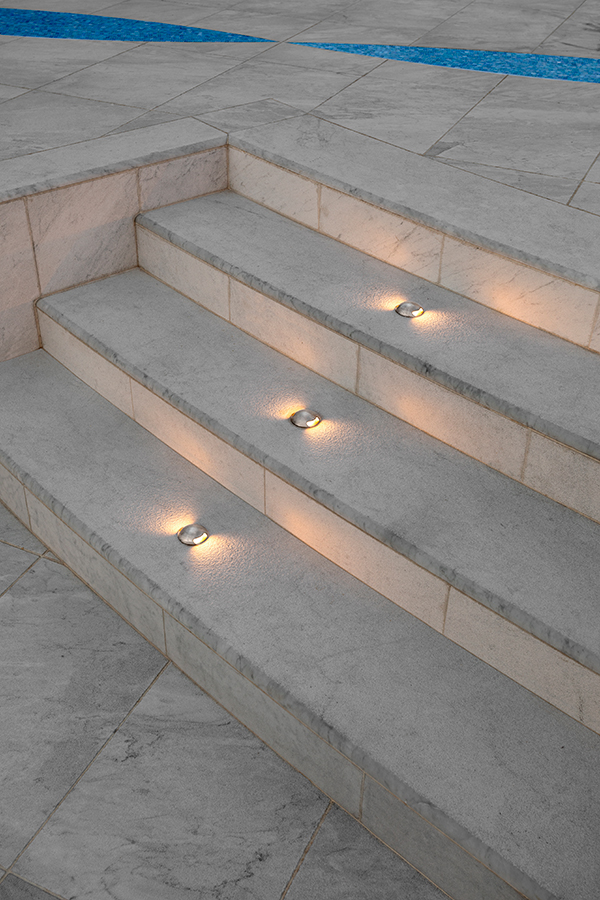

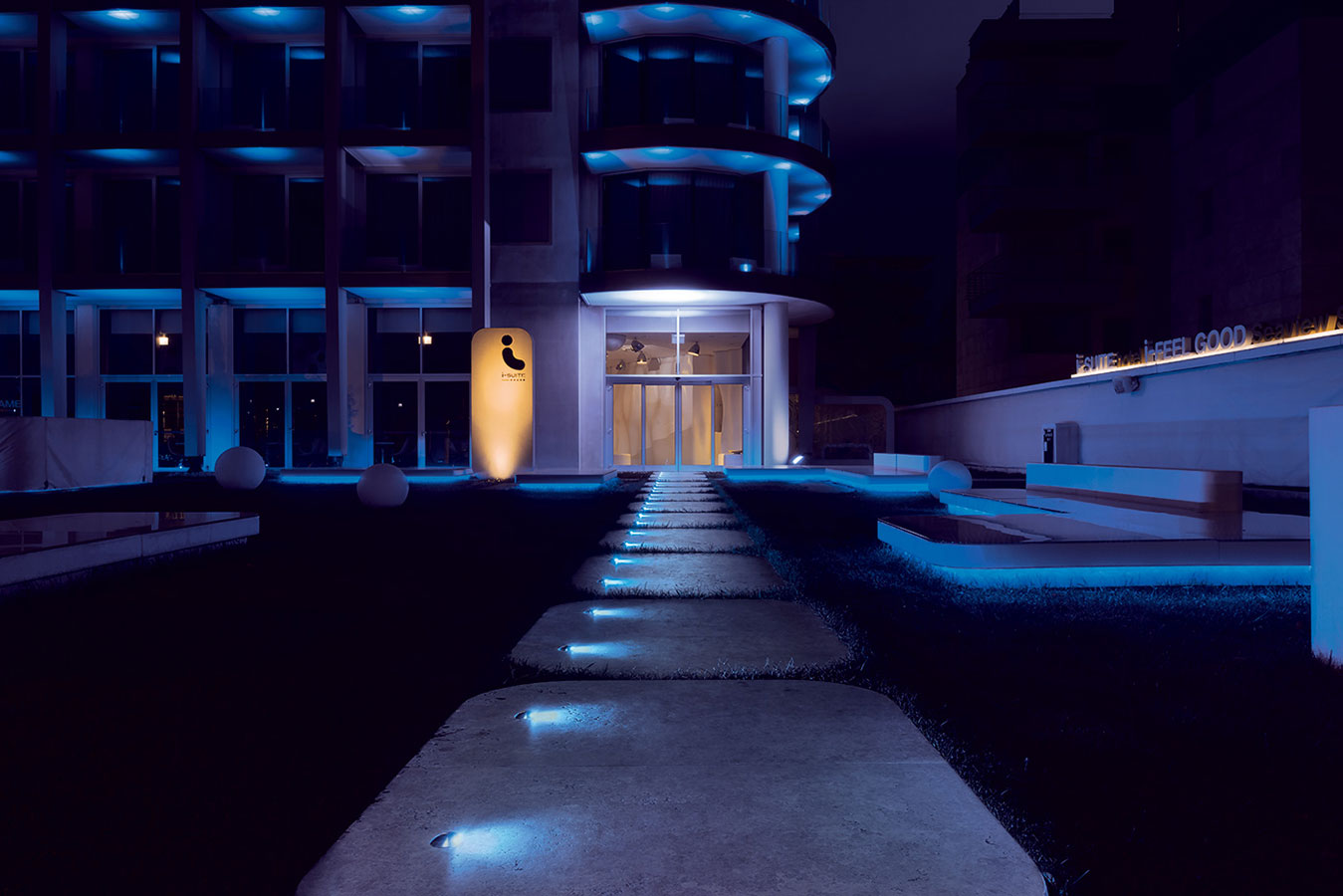

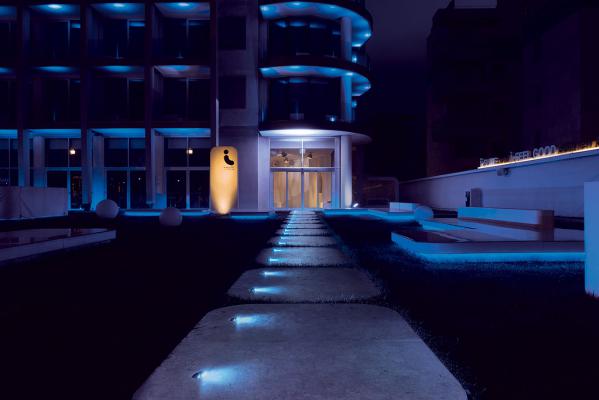

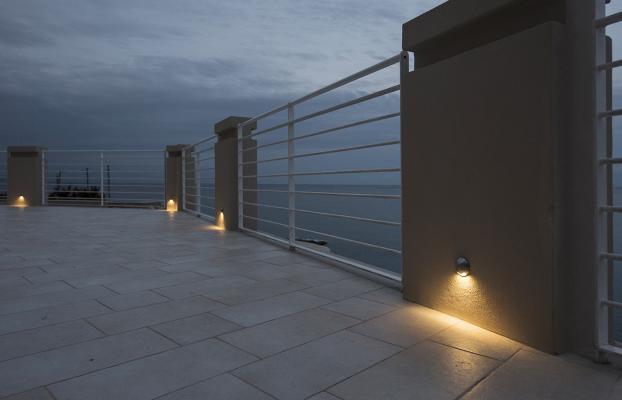

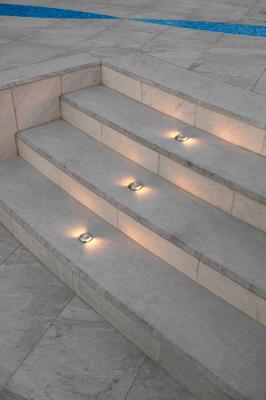

Gallery

Accessories and power supply units

Accessories (1)

Outer casings

WC1501

Outer casing

Cables

Choose the power cable in the code generator

Power supply units (19)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 11W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 24 Vdc input:; 24Vdc; 288W With 12 Vdc input:; 12Vdc; 144W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 24 Vdc input:; 24Vdc; 240W With 12 Vdc input:; 12Vdc; 120W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (3)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer for CASAMBI

Input	12-24-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm
Cutout dimensions	Ø51 mm

TLR01

Receiver required for TLC05 and TLC06 remote control

Input	12─24Vdc
Output	2 clean contacts
Ingress protection	IP20
Dimensions	90x53x28 mm
