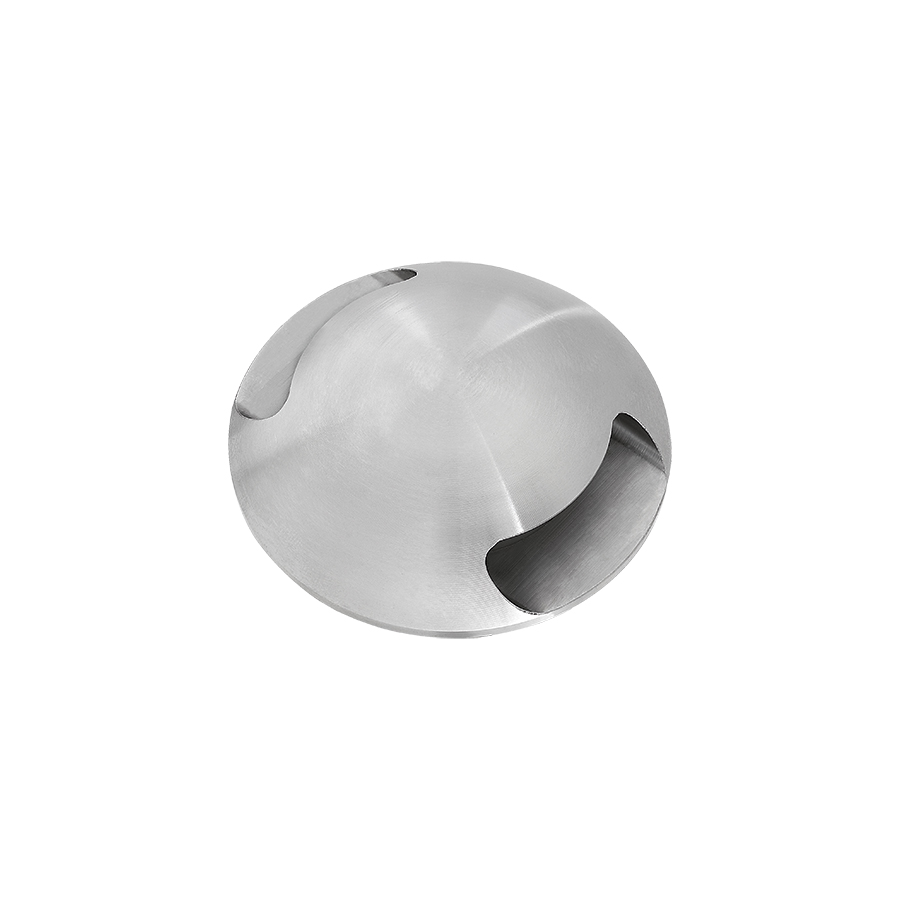

Beam 2.0

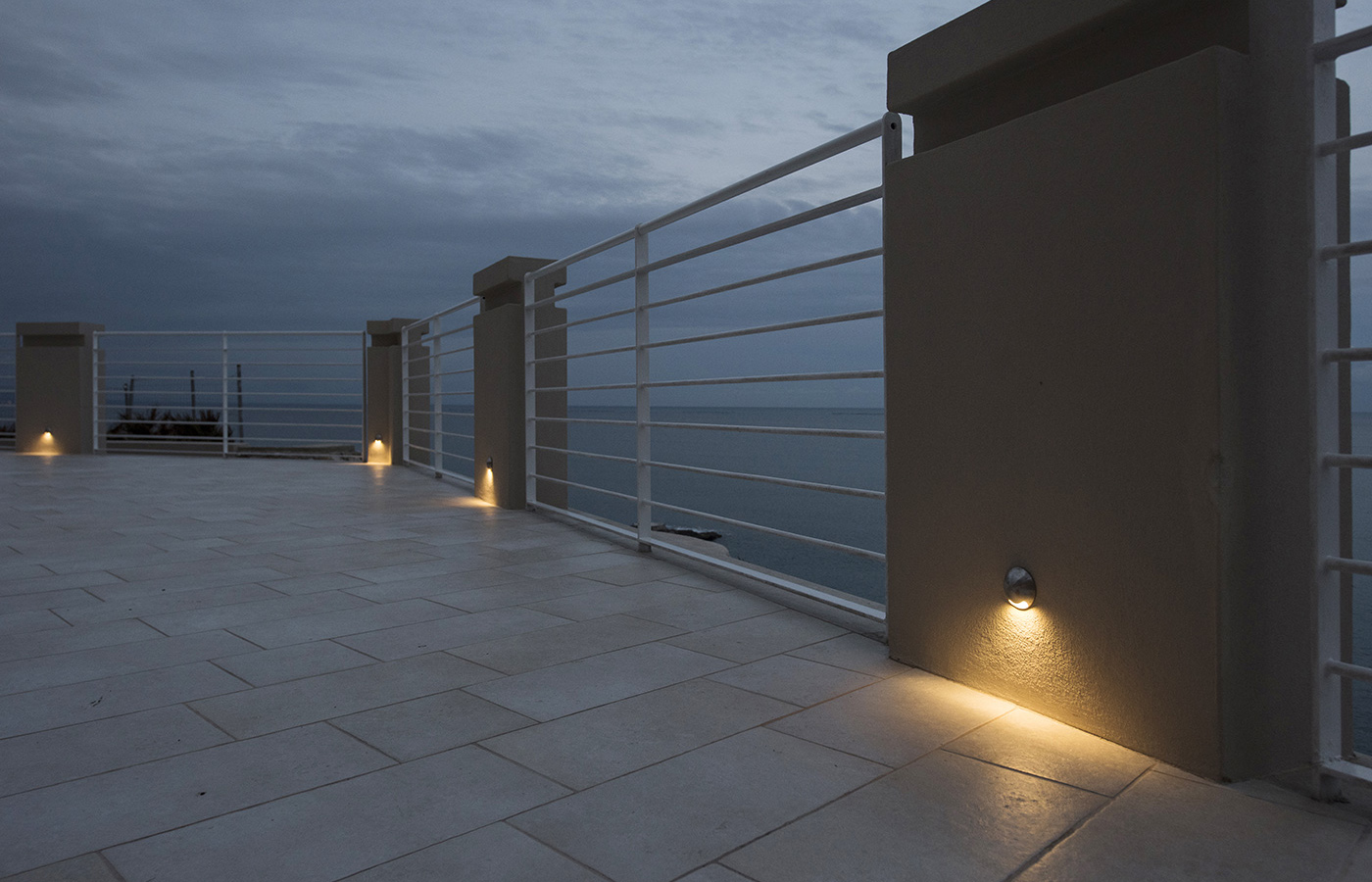

Step lights for outdoor applications

step light for outdoor applications - max 2W max 500mA - radial optics, single or double beam - ø60 mm

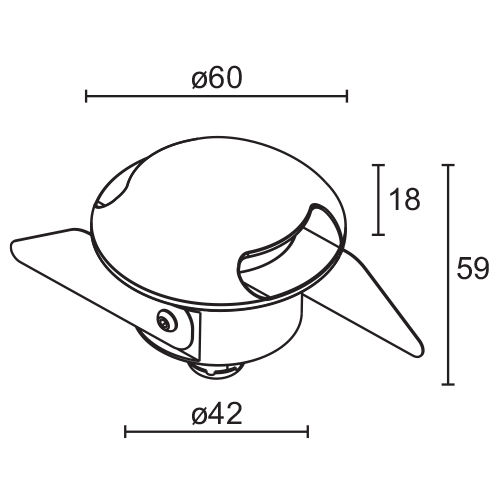

Technical data

Print technical data

on request
kg 0,25 - kg 0,47
IP67
IK09

Installation	step light for outdoor applications, single or double beam
Power consumption	single beam: max 2W; double beam: max 2W (1W+1W)
Power supply	double beam: max 350mA; single beam: max 500mA
Lumen output at source	double beam: 112 lm (3000K, 350mA) per beam, single beam: 145 lm (3000K, 500mA)
Delivered lumen output	double beam: 51 lm (3000K, 350mA) per beam, single beam: 70 lm (3000K, 500mA)
Datasheet	Beam 2.0 step light for outdoor applications, single or double beam; walkover; recessed (wall, floor); Power consumption: single beam: max 2W; double beam: max 2W (1W+1W); Power supply: double beam: max 350mA; single beam: max 500mA; Lumen output at source: double beam: 112 lm (3000K, 350mA) per beam, single beam: 145 lm (3000K, 500mA); Delivered lumen output: double beam: 51 lm (3000K, 350mA) per beam, single beam: 70 lm (3000K, 500mA); single beam: 1 power LED, double beam: 2 power LEDs 1/4 ANSI BIN (white LED colour) 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: radial; Upward flux fraction: 81,07%; CRI Colour Rendering Index: 80; Body material: body in anodized aluminium, trim in aluminium (aluminium version), body and trim in stainless steel (stainless steel version); Finishes: anthracite, grey (RAL 9006), stainless steel; RAL finish on request; Screen material: screen in sandblasted plexiglass; Emission: single beam, double beam; power supply unit not included; Wiring: series; includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP67; Impact resistance: IK09; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Maximum device temperature: 60°C (Ta 25°C); Glow wire test: 730°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: stainless steel trim: 470 g, aluminium trim: 250 g; Dimensions: Ø60x59 mm; Cutout dimensions: Ø45 mm; Volume of thermal heatsink: Ø80x100 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WC1501 Outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBeam 2.0 step light for outdoor applications, single or double beam walkover recessed (wall, floor) Power consumption: single beam: max 2W; double beam: max 2W (1W+1W) Power supply: double beam: max 350mA; single beam: max 500mA Lumen output at source: double beam: 112 lm (3000K, 350mA) per beam, single beam: 145 lm (3000K, 500mA) Delivered lumen output: double beam: 51 lm (3000K, 350mA) per beam, single beam: 70 lm (3000K, 500mA) single beam: 1 power LED, double beam: 2 power LEDs 1/4 ANSI BIN (white LED colour) 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, blue Optics: radial Upward flux fraction: 81,07% CRI Colour Rendering Index: 80 Body material: body in anodized aluminium, trim in aluminium (aluminium version), body and trim in stainless steel (stainless steel version) Finishes: anthracite, grey (RAL 9006), stainless steel RAL finish on request Screen material: screen in sandblasted plexiglass Emission: single beam, double beam power supply unit not included Wiring: series includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP67 Impact resistance: IK09 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Maximum device temperature: 60°C (Ta 25°C) Glow wire test: 730° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: stainless steel trim: 470 g, aluminium trim: 250 g Dimensions: Ø60x59 mm Cutout dimensions: Ø45 mm Volume of thermal heatsink: Ø80x100 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WC1501 Outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor)
Number and type of LED	single beam: 1 power LED, double beam: 2 power LEDs 1/4 ANSI BIN (white LED colour) 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, blue
Optics	radial
CRI Colour Rendering Index	80
Body material	body in anodized aluminium, trim in aluminium, body and trim in stainless steel
Screen material	screen in sandblasted plexiglass
Finishes	anthracite, grey, stainless steel
Emission	single beam, double beam
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP67
Impact resistance	IK09
Status	Available

Read more

Close

Download

See all downloads

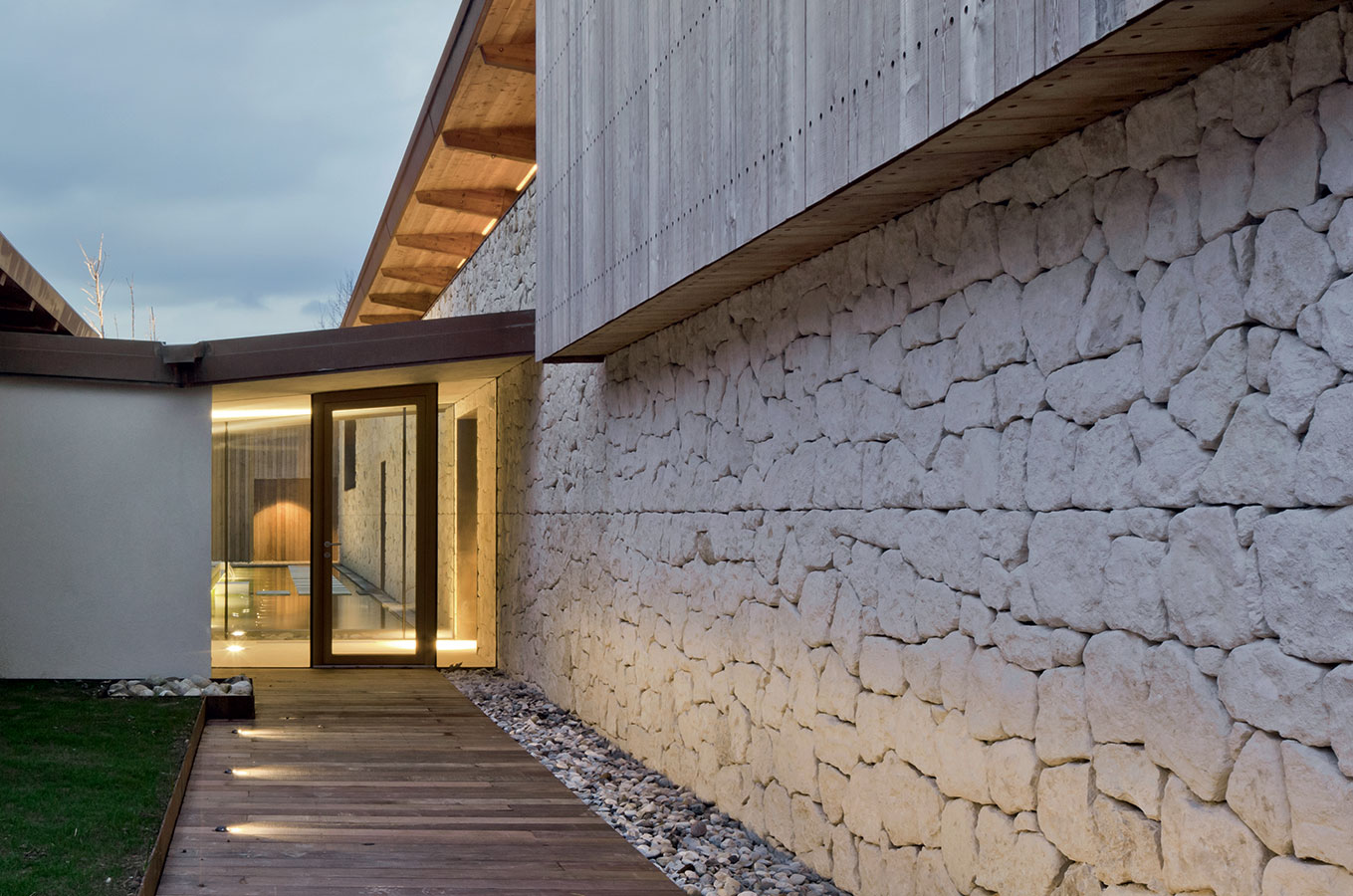

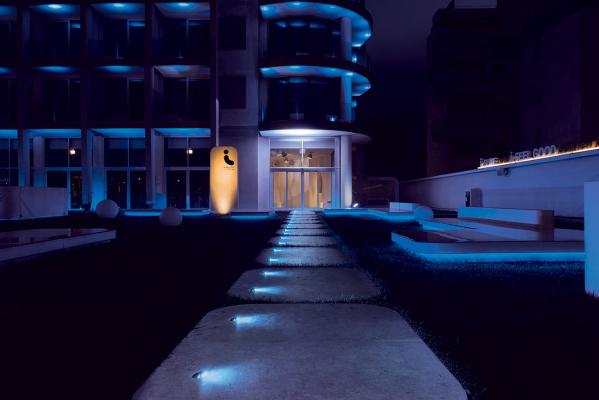

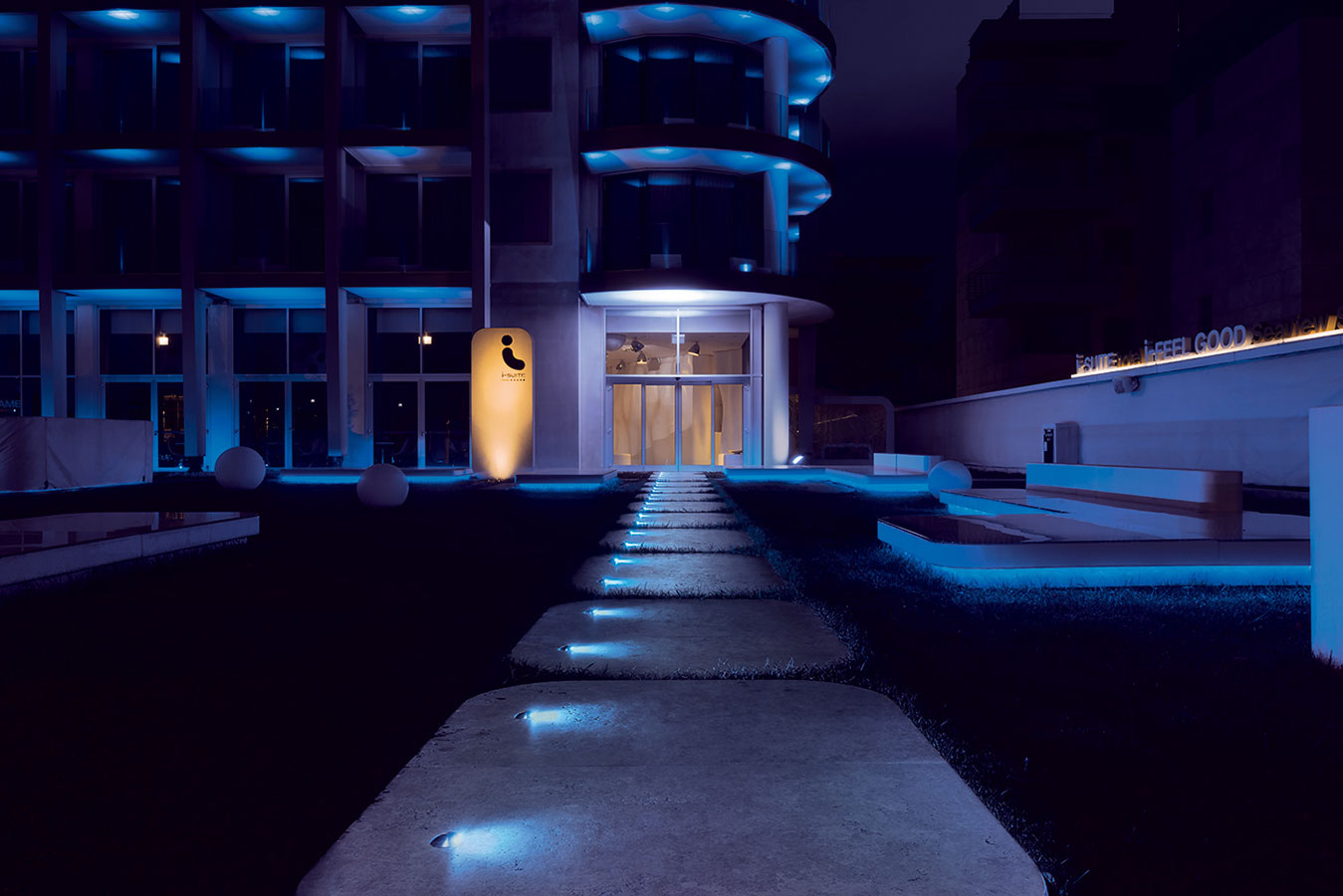

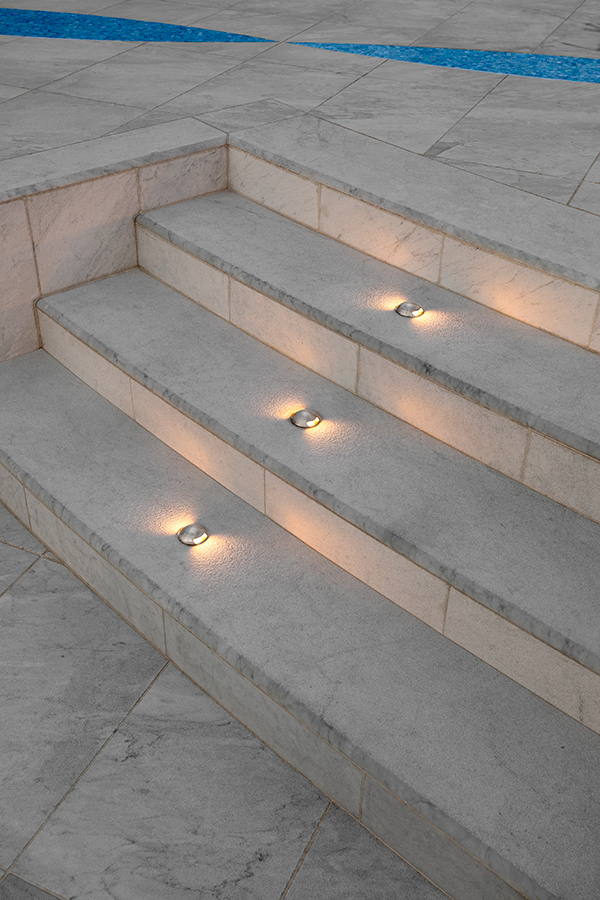

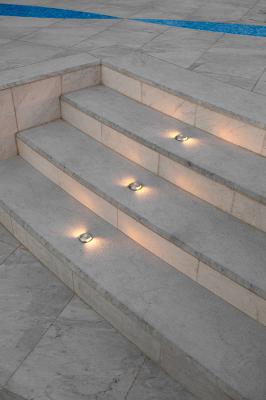

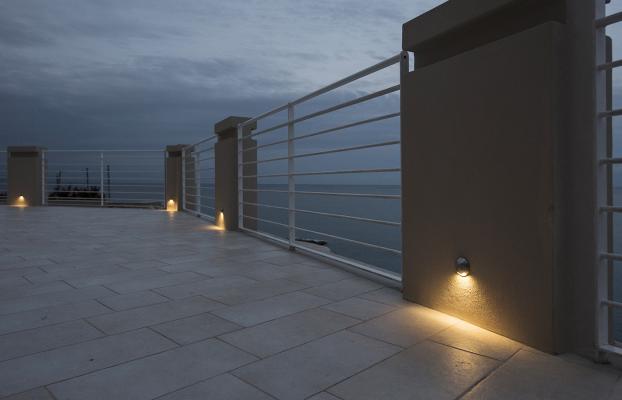

Gallery

Accessories and power supply units

Accessories (1)

Outer casings

WC1501

Outer casing

Cables

Choose the power cable in the code generator

Power supply units (46)

A13350VL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 4W
Power	4W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A13500TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 6W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A14500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A15500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A16350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 11W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A19220TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	100mA constant current; max 4,1W 120mA constant current; max 5W 140mA constant current; max 5,8W 160mA constant current; max 6,6W 180mA constant current; max 7,4W 200mA constant current; max 8,3W 220mA constant current; max 9,1W 240mA constant current; max 10W 260mA constant current; max 10,8W 280mA constant current; max 11,6W 300mA constant current; max 12,4W 320mA constant current; max 13,2W 340mA constant current; max 14,1W 360mA constant current; max 15W 60mA constant current; max 2,5W 80mA constant current; max 3,3W
Dimmering	ON/OFF
Power supply unit IP	IP20

A19350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 15W
Dimmering	ON/OFF
Power supply unit IP	IP20

A310500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

A310500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

A312350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP67

A312350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP20

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 250mA constant current; max 13W 24Vdc; 16W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI032T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	350mA constant current; max 17W 500mA constant current; max 24W 12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 550mA constant current; max 25W 700mA constant current; max 32W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI039T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	350mA constant current; max 15W 500mA constant current; max 21W 1050mA constant current; max 39W 550mA constant current; max 23W 650mA constant current; max 27W 700mA constant current; max 29W 750mA constant current; max 31W 850mA constant current; max 35W 900mA constant current; max 37W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI042T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	300mA constant current; max 13W 350mA constant current; max 15W 400mA constant current; max 18W 450mA constant current; max 20W 500mA constant current; max 22W 1000mA constant current; max 42W 1050mA constant current; max 42W 550mA constant current; max 24W 600mA constant current; max 27W 650mA constant current; max 29W 700mA constant current; max 31W 750mA constant current; max 32W 800mA constant current; max 33W 850mA constant current; max 35W 900mA constant current; max 38W 950mA constant current; max 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNIC30T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	340mA constant current; max 18W 370mA constant current; max 19,5W 400mA constant current; max 21W 430mA constant current; max 22,5W 460mA constant current; max 24W 490mA constant current; max 26W 250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 520mA constant current; max 27,5W 550mA constant current; max 29W 580mA constant current; max 30W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	350mA constant current; max 18W
Dimmering	Mains dimming, ON/OFF
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 24Vdc; 16W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	340mA constant current; max 18W 370mA constant current; max 20W 400mA constant current; max 21W 430mA constant current; max 23W 460mA constant current; max 25W 490mA constant current; max 26W 250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 520mA constant current; max 26W 550mA constant current; max 27W 580mA constant current; max 29W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 25W 500mA constant current; max 35W 1050mA constant current; max 50W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 25W 500mA constant current; max 35W 1050mA constant current; max 50W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 25W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 12Vdc; 11W 24Vdc; 20W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV48150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	48Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV48150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

A13350VL12/24

Low-voltage converter

to be used with a constant-voltage power supply unit

Input	12-24Vdc 9-24Vdc 9-18Vac 50-60 Hz
Output	350mA constant current; max 3,7W 350mA constant current; max 8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ARCUNID2

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU
output values apply to 48Vdc

Input	12-24-48Vdc
Output	1 channel 350mA constant current; max 16,8W 500mA constant current; max 24W 700mA constant current; max 33,6W 3 channels 350mA constant current; max 50,4W 500mA constant current; max 72W 700mA constant current; max 100,8W 4 channels 350mA constant current; max 67,2W 500mA constant current; max 96W 700mA constant current; max 134,4W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	350mA constant current; max 8,4W
Dimmering	PWM
Power supply unit IP	IP20

WFA024500

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	500mA constant current; max 12W
Dimmering	PWM
Power supply unit IP	IP20

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
