Ello IN 3.0

Ceiling mounted for indoor applications

ceiling mounted for indoor applications - 19W 230Vac - 294 mm

Technical data

Print technical data

kg 1,20
IP40
IK08

Installation	ceiling mounted for indoor applications
Power consumption	19W
Power supply	230Vac
Lumen output at source	2862 lm (3000K)
Delivered lumen output	1478 lm (3000K)

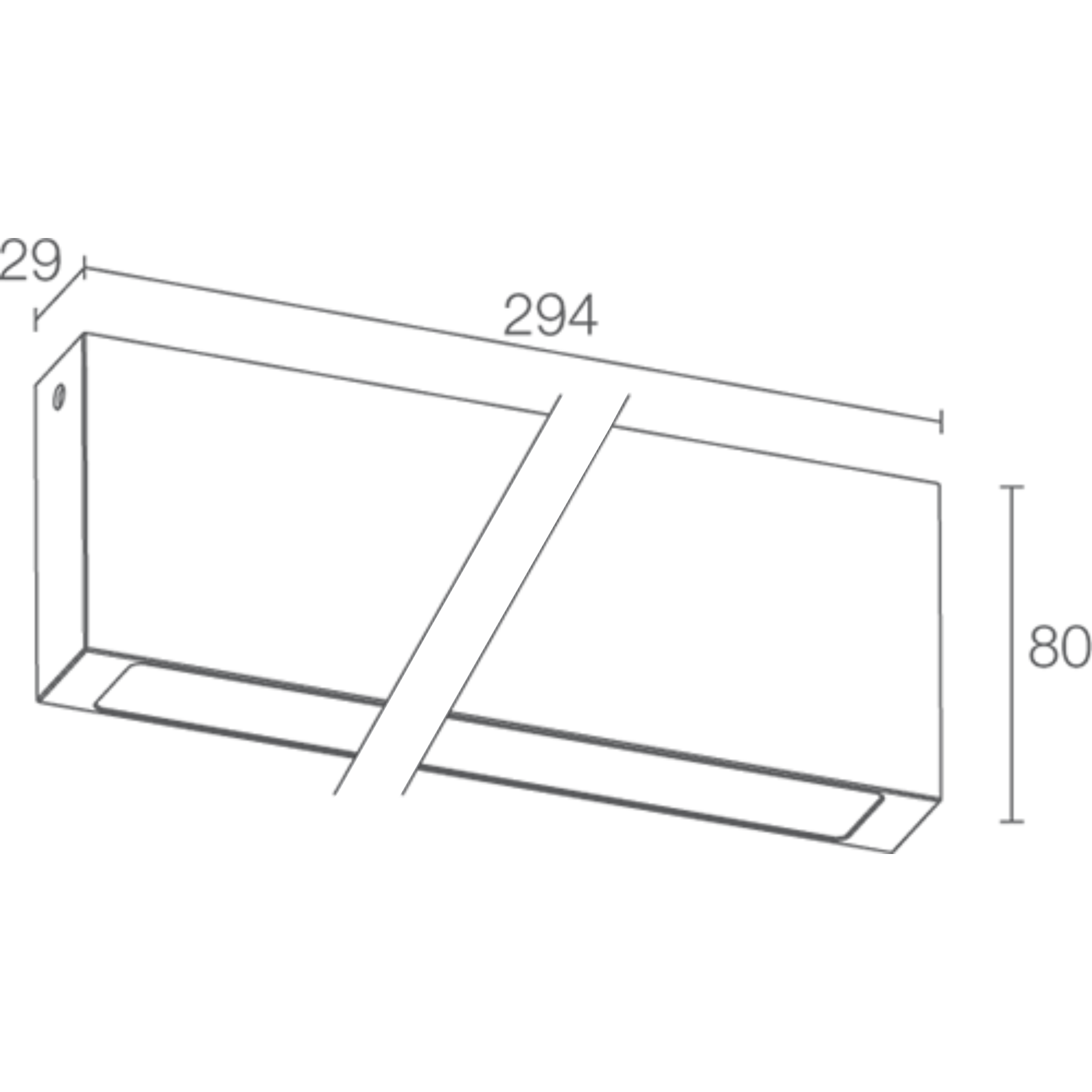

Datasheet	Ello IN 3.0 ceiling mounted for indoor applications; surface mounted (ceiling); Power consumption: 19W; Power supply: 230Vac; Lumen output at source: 2862 lm (3000K); Delivered lumen output: 1478 lm (3000K); 54 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: diffuse; CRI Colour Rendering Index: 80; Body material: body in anticorodal aluminium; Finishes: reseda green (RAL 6011), white (RAL 9003), pure orange (RAL 2004), capri blue (RAL 5019), light ivory (RAL 1015), chrome; RAL finish on request; Screen material: screen in serigraphed extra-clear microprismatic glass; built-in power supply unit; Ingress protection: IP40; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1200 g; Dimensions: 294x80x29 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WD06031 Spacer - pure orange, WD06032 Spacer - reseda green, WD06033 Spacer - capri blue, WD06034 Spacer - light ivory, WD0603B Spacer - white, WD0603C Spacer - chrome; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionEllo IN 3.0 ceiling mounted for indoor applications surface mounted (ceiling) Power consumption: 19W Power supply: 230Vac Lumen output at source: 2862 lm (3000K) Delivered lumen output: 1478 lm (3000K) 54 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: diffuse CRI Colour Rendering Index: 80 Body material: body in anticorodal aluminium Finishes: reseda green (RAL 6011), white (RAL 9003), pure orange (RAL 2004), capri blue (RAL 5019), light ivory (RAL 1015), chrome RAL finish on request Screen material: screen in serigraphed extra-clear microprismatic glass built-in power supply unit Ingress protection: IP40 Impact resistance: IK08 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1200 g Dimensions: 294x80x29 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WD06031 Spacer - pure orange, WD06032 Spacer - reseda green, WD06033 Spacer - capri blue, WD06034 Spacer - light ivory, WD0603B Spacer - white, WD0603C Spacer - chrome tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling)
Number and type of LED	54 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	diffuse
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium
Screen material	screen in serigraphed extra-clear microprismatic glass
Finishes	reseda green, white, pure orange, capri blue, light ivory, chrome
Power supply unit	built-in power supply unit
Ingress protection	IP40
Impact resistance	IK08
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finish: black
Remote DALI control

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (6)

Spacers

WD06031 Spacer - pure orange	WD06032 Spacer - reseda green
WD06033 Spacer - capri blue	WD06034 Spacer - light ivory
WD0603B Spacer - white	WD0603C Spacer - chrome

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
