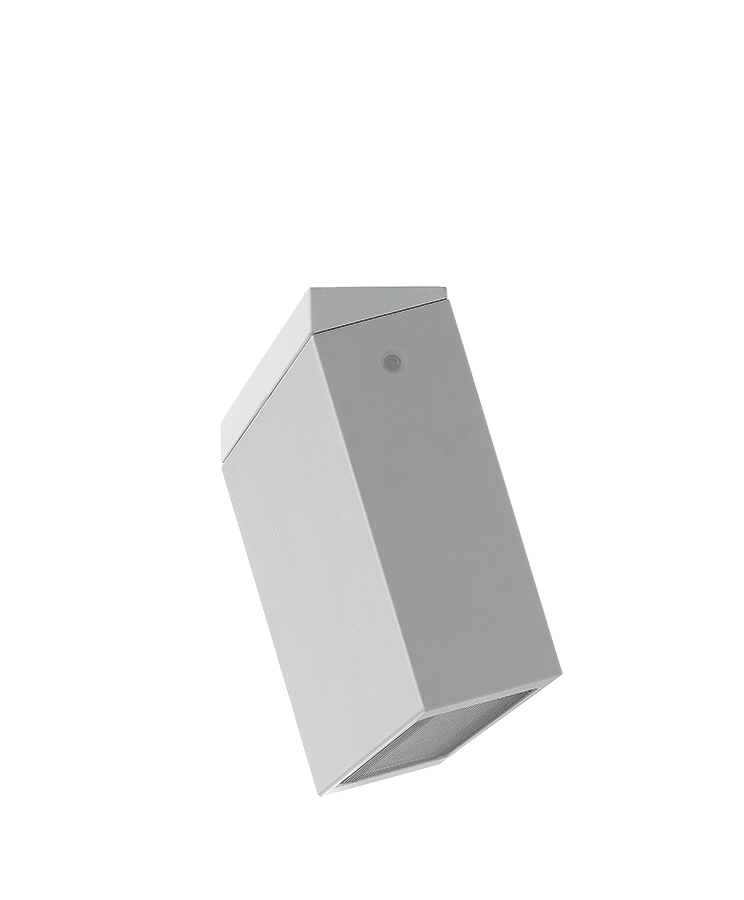

Ello IN 1.0

Ceiling mounted for indoor applications

ceiling mounted for indoor applications - 7W 230Vac - 123 mm

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • gross weight
    kg 0,40
  • IP40
  • IK08
  • RAL finish on request
  • F
Installation ceiling mounted for indoor applications
Power consumption 7W
Power supply 230Vac
Lumen output at source 954 lm (3000K)
Delivered lumen output 493 lm (3000K)


Mounting surface mounted (ceiling)
Number and type of LED 18 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics diffuse
CRI Colour Rendering Index 80
Body material body in aluminium
Screen material screen in serigraphed extra-clear microprismatic glass
Finishes chrome, pure orange, white, reseda green, light ivory, capri blue
Power supply unit built-in power supply unit
Ingress protection IP40
Impact resistance IK08
Notes Casambi-compatible version, controllable with the Casambi app, available on request
Status Available
