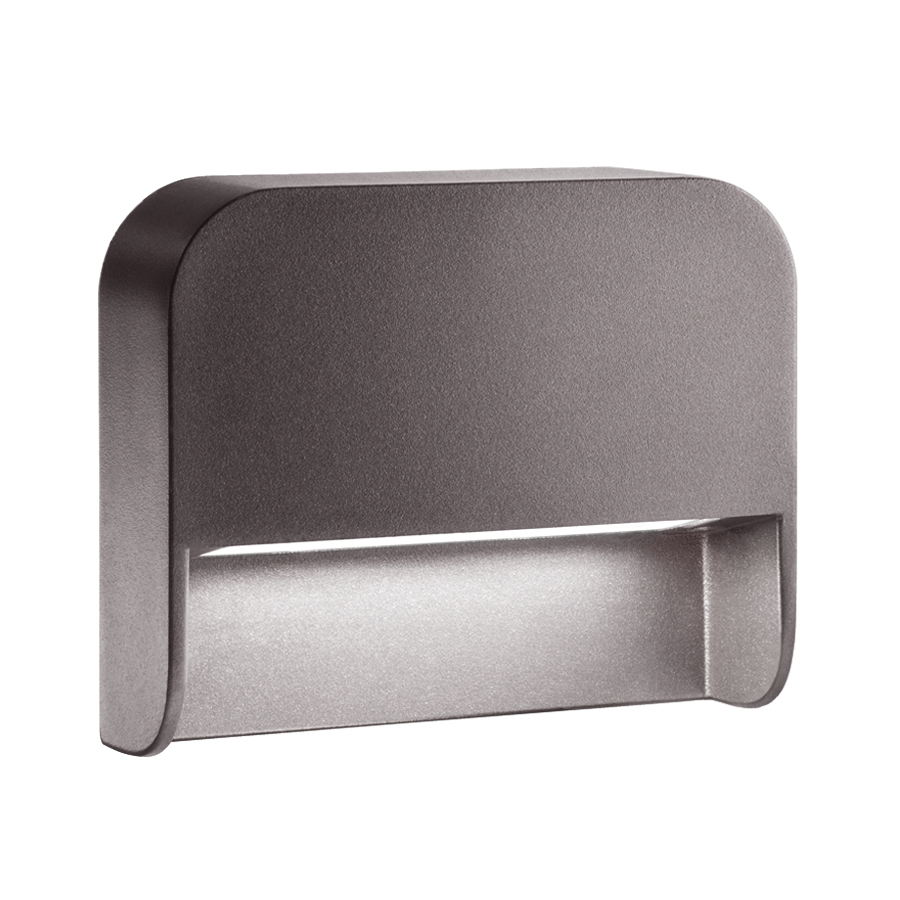

Lira 1.0

Step lights for outdoor applications

step light for outdoor applications - 6W 230Vac - asymmetrical optics

Generate code

Technical data

Print technical data

0,53 kg
IP65
IK08

Installation	step light for outdoor applications
Power consumption	6W
Power supply	230Vac
Lumen output at source	756 lm (3000K)
Delivered lumen output	368 lm (3000K, white finish)
Datasheet	Lira 1.0 step light for outdoor applications; surface mounted (wall); Power consumption: 6W; Power supply: 230Vac; Lumen output at source: 756 lm (3000K); Delivered lumen output: 368 lm (3000K, white finish); 18 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: asymmetrical; Upward flux fraction: 5,32% (white, grey finish); 0,14 % (cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: grey (RAL 9006), cor-ten, white (RAL 9003), anthracite; RAL finish on request; Screen material: screen in serigraphed extra-clear microprismatic glass; built-in power supply unit; includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP65; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 530 g; Dimensions: 124x101x32 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC0301 Outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionLira 1.0 step light for outdoor applications surface mounted (wall) Power consumption: 6W Power supply: 230Vac Lumen output at source: 756 lm (3000K) Delivered lumen output: 368 lm (3000K, white finish) 18 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: asymmetrical Upward flux fraction: 5,32% (white, grey finish); 0,14 % (cor-ten, anthracite finish) CRI Colour Rendering Index: 80 Body material: body in die-cast aluminium Finishes: grey (RAL 9006), cor-ten, white (RAL 9003), anthracite RAL finish on request Screen material: screen in serigraphed extra-clear microprismatic glass built-in power supply unit includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm Ingress protection: IP65 Impact resistance: IK08 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: -20°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 530 g Dimensions: 124x101x32 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC0301 Outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	18 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	asymmetrical
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed extra-clear microprismatic glass
Finishes	grey, cor-ten, white, anthracite
Power supply unit	built-in power supply unit
Power cables	includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP65
Impact resistance	IK08
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available
