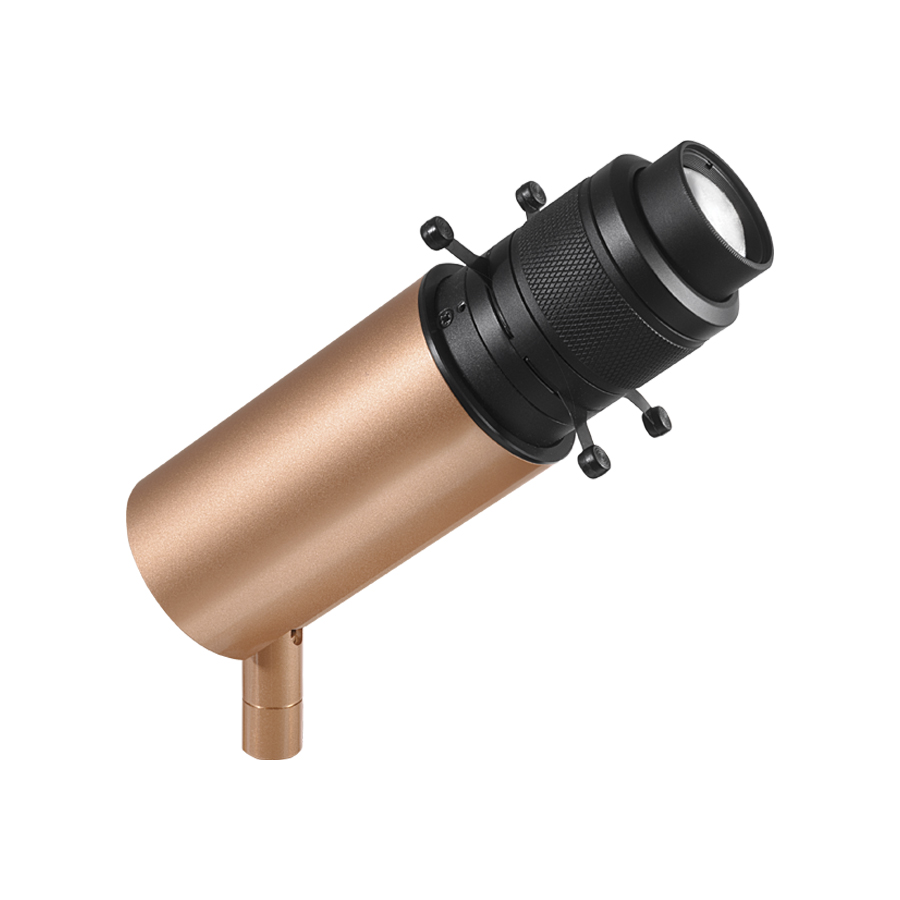

Krill 4.5 Indoor projectors for display windows in museums and retail

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Version with customized gobo

Technical data

Print technical data

Required installation accessories, not included

0,400 g
IP40

Installation	projector for indoor applications
Power consumption	max 9W
Power supply	max 250mA
Lumen output at source	893 lm
Delivered lumen output	315lm (3000K, 54°)
Datasheet	Krill 4.5 projector for indoor applications; surface mounted (shop windows, display cabinets, shelves, ceiling, wall); Power consumption: max 9W; Power supply: max 250mA; Lumen output at source: 893 lm; Delivered lumen output: 315lm (3000K, 54°); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: Light Shaper; CRI Colour Rendering Index: >90; Body material: body made of ANTICORODAL EN AW 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Joint made of brass and produced entirely on a CNC lathe.; Finishes: cylindrical cover and joint painted rose gold, radiator electro-coloured black, cylindrical cover and joint painted antique bronze, radiator electro-coloured black, cylindrical cover and joint painted white, radiator electro-coloured black (RAL 9003), Cylindrical cover and joint painted black, radiator electro-coloured black (RAL 9005); RAL finish on request; Installation: versatile installation thanks to its accessories: arm with fixing base, nipple coupler, magnetic plate, fixing springs and ceiling rose; power supply unit not included; Wiring: series; includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m; Control system: ON/OFF; Ingress protection: IP40; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Glow wire test: 960°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 400 g; Dimensions: ø45x146 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WDA06B Fixing base, WDA06N Fixing base, WDA06Y Fixing base, WDA06Z Fixing base, WDA07B Magnetic plate, WDA07N Magnetic plate, WDA07Y Magnetic plate, WDA07Z Magnetic plate, WDA08B Rigid arm - h 150 mm, WDA08N Rigid arm - h 150 mm, WDA08Y Rigid arm - h 150 mm, WDA08Z Rigid arm - h 150 mm, WDA09B Rigid arm - h 300 mm, WDA09N Rigid arm - h 300 mm, WDA09Y Rigid arm - h 300 mm, WDA09Z Rigid arm - h 300 mm, WDA10B Ceiling rose, WDA10N Ceiling rose, WDA10Y Ceiling rose, WDA10Z Ceiling rose, WF0110 PVC cable FROR 2x0,35 Ø3,5 mm, WGA01 Nipple coupler, WGA09B Retaining spring clip Ø45mm, WGA09N Retaining spring clip Ø45mm, WGA09Y Retaining spring clip Ø45mm, WGA09Z Retaining spring clip Ø45mm; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionKrill 4.5 projector for indoor applications surface mounted (shop windows, display cabinets, shelves, ceiling, wall) Power consumption: max 9W Power supply: max 250mA Lumen output at source: 893 lm Delivered lumen output: 315lm (3000K, 54°) 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: Light Shaper CRI Colour Rendering Index: >90 Body material: body made of ANTICORODAL EN AW 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Joint made of brass and produced entirely on a CNC lathe. Finishes: cylindrical cover and joint painted rose gold, radiator electro-coloured black, cylindrical cover and joint painted antique bronze, radiator electro-coloured black, cylindrical cover and joint painted white, radiator electro-coloured black (RAL 9003), Cylindrical cover and joint painted black, radiator electro-coloured black (RAL 9005) RAL finish on request Installation: versatile installation thanks to its accessories: arm with fixing base, nipple coupler, magnetic plate, fixing springs and ceiling rose power supply unit not included Wiring: series includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m Control system: ON/OFF Ingress protection: IP40 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Glow wire test: 960°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 400 g Dimensions: ø45x146 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WDA06B Fixing base, WDA06N Fixing base, WDA06Y Fixing base, WDA06Z Fixing base, WDA07B Magnetic plate, WDA07N Magnetic plate, WDA07Y Magnetic plate, WDA07Z Magnetic plate, WDA08B Rigid arm - h 150 mm, WDA08N Rigid arm - h 150 mm, WDA08Y Rigid arm - h 150 mm, WDA08Z Rigid arm - h 150 mm, WDA09B Rigid arm - h 300 mm, WDA09N Rigid arm - h 300 mm, WDA09Y Rigid arm - h 300 mm, WDA09Z Rigid arm - h 300 mm, WDA10B Ceiling rose, WDA10N Ceiling rose, WDA10Y Ceiling rose, WDA10Z Ceiling rose, WF0110 PVC cable FROR 2x0,35 Ø3,5 mm, WGA01 Nipple coupler, WGA09B Retaining spring clip Ø45mm, WGA09N Retaining spring clip Ø45mm, WGA09Y Retaining spring clip Ø45mm, WGA09Z Retaining spring clip Ø45mm tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (shop windows, display cabinets, shelves, ceiling, wall)
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	Light Shaper
CRI Colour Rendering Index	>90
Body material	body in anticorodal aluminium, joint in brass
Finishes	rose gold, antique bronze, white, black
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m
Control system	ON/OFF
Ingress protection	IP40
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Display all

Close

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

100mA constant current; max 4,1W

120mA constant current; max 5W

140mA constant current; max 5,8W

160mA constant current; max 6,6W

180mA constant current; max 7,4W

200mA constant current; max 8,3W

220mA constant current; max 9,1W

240mA constant current; max 10W

260mA constant current; max 10,8W

280mA constant current; max 11,6W

300mA constant current; max 12,4W

320mA constant current; max 13,2W

340mA constant current; max 14,1W

360mA constant current; max 15W

60mA constant current; max 2,5W

80mA constant current; max 3,3W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

24Vdc; 16W

250mA constant current; max 13W

350mA constant current; max 19W

400mA constant current; max 20W

450mA constant current; max 20W

500mA constant current; max 20W

550mA constant current; max 20W

600mA constant current; max 20W

700mA constant current; max 20W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

250mA constant current; max 13W

280mA constant current; max 15W

310mA constant current; max 16,5W

340mA constant current; max 18W

370mA constant current; max 19,5W

400mA constant current; max 21W

430mA constant current; max 22,5W

460mA constant current; max 24W

490mA constant current; max 26W

520mA constant current; max 27,5W

550mA constant current; max 29W

580mA constant current; max 30W

610mA constant current; max 30W

640mA constant current; max 30W

670mA constant current; max 30W

700mA constant current; max 30W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Output

24Vdc; 16W

250mA constant current; max 12W

350mA constant current; max 17W

400mA constant current; max 19W

450mA constant current; max 20W

500mA constant current; max 20W

550mA constant current; max 20W

600mA constant current; max 20W

700mA constant current; max 20W

Dimmering

DALI-2

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

250mA constant current; max 13W

280mA constant current; max 15W

310mA constant current; max 16,5W

340mA constant current; max 18W

370mA constant current; max 20W

400mA constant current; max 21W

430mA constant current; max 23W

460mA constant current; max 25W

490mA constant current; max 26W

520mA constant current; max 26W

550mA constant current; max 27W

580mA constant current; max 29W

610mA constant current; max 30W

640mA constant current; max 30W

670mA constant current; max 30W

700mA constant current; max 30W

Dimmering

PUSH, DALI-2

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

12Vdc; 11W

24Vdc; 20W

250mA constant current; max 13W

300mA constant current; max 16W

350mA constant current; max 18W

400mA constant current; max 21W

450mA constant current; max 23W

500mA constant current; max 25W

550mA constant current; max 27W

600mA constant current; max 30W

650mA constant current; max 32W

700mA constant current; max 32W

750mA constant current; max 20W

800mA constant current; max 20W

850mA constant current; max 20W

900mA constant current; max 20W

Dimmering

0/1-10V, PUSH

Power supply unit IP

IP20

Required installation accessories, not included WDA06B Fixing base white	Required installation accessories, not included WDA06N Fixing base black
Required installation accessories, not included WDA06Y Fixing base rose gold	Required installation accessories, not included WDA06Z Fixing base antique bronze
Required installation accessories, not included WDA07B Magnetic plate white	Required installation accessories, not included WDA07N Magnetic plate black
Required installation accessories, not included WDA07Y Magnetic plate rose gold	Required installation accessories, not included WDA07Z Magnetic plate antique bronze
Required installation accessories, not included WDA10B Ceiling rose white	Required installation accessories, not included WDA10N Ceiling rose black
Required installation accessories, not included WDA10Y Ceiling rose rose gold	Required installation accessories, not included WDA10Z Ceiling rose antique bronze

Required installation accessories, not included WGA09B Retaining spring clip Ø45mm white	Required installation accessories, not included WGA09N Retaining spring clip Ø45mm black
Required installation accessories, not included WGA09Y Retaining spring clip Ø45mm rose gold	Required installation accessories, not included WGA09Z Retaining spring clip Ø45mm antique bronze

WDA08B Rigid arm - h 150 mm white Order together with the fixing base or the nipple	WDA08N Rigid arm - h 150 mm black Order together with the fixing base or the nipple
WDA08Y Rigid arm - h 150 mm rose gold Order together with the fixing base or the nipple	WDA08Z Rigid arm - h 150 mm antique bronze Order together with the fixing base or the nipple
WDA09B Rigid arm - h 300 mm white Order together with the fixing base or the nipple	WDA09N Rigid arm - h 300 mm black Order together with the fixing base or the nipple
WDA09Y Rigid arm - h 300 mm rose gold Order together with the fixing base or the nipple	WDA09Z Rigid arm - h 300 mm antique bronze Order together with the fixing base or the nipple
