Krill 4.0

Projectors for indoor applications

projector for indoor applications - max 9W max 250mA - max 9W max 700mA (optics 8°) - ø45x94 mm

Technical data

Print technical data

Required installation accessories, not included

0,300 g
IP40

Installation	projector for indoor applications
Power consumption	max 9W
Power supply	max 250mA, max 700mA
Lumen output at source	893 lm
Delivered lumen output	725 lm (3000K, 48°)
Datasheet	Krill 4.0 projector for indoor applications; surface mounted (shop windows, display cabinets, shelves, ceiling, wall); Power consumption: max 9W; Power supply: max 250mA, max 700mA; Lumen output at source: 893 lm; Delivered lumen output: 725 lm (3000K, 48°); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C), 1 power LED, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 8°, 14°, 23°, 36°, 48°, 21°x55°, 55°x21°; CRI Colour Rendering Index: >90; Body material: body made of ANTICORODAL EN AW 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Joint made of brass and produced entirely on a CNC lathe.; Finishes: cylindrical cover and joint painted white, radiator electro-coloured black (RAL 9003), cylindrical cover and joint painted antique bronze, radiator electro-coloured black, cylindrical cover and joint painted rose gold, radiator electro-coloured black, Cylindrical cover and joint painted black, radiator electro-coloured black (RAL 9005); RAL finish on request; Installation: versatile installation thanks to its accessories: arm with fixing base, nipple coupler, magnetic plate, fixing springs and ceiling rose; power supply unit not included; Wiring: series; includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m; Control system: ON/OFF; Ingress protection: IP40; Operating temperature: 0°C — +45°C; Glow wire test: 960°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 300 g; Dimensions: ø45x94 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WBA000 Standard snoot, WDA06B Fixing base, WDA06N Fixing base, WDA06Y Fixing base, WDA06Z Fixing base, WDA07B Magnetic plate, WDA07N Magnetic plate, WDA07Y Magnetic plate, WDA07Z Magnetic plate, WDA08B Rigid arm - h 150 mm, WDA08N Rigid arm - h 150 mm, WDA08Y Rigid arm - h 150 mm, WDA08Z Rigid arm - h 150 mm, WDA09B Rigid arm - h 300 mm, WDA09N Rigid arm - h 300 mm, WDA09Y Rigid arm - h 300 mm, WDA09Z Rigid arm - h 300 mm, WDA10B Ceiling rose, WDA10N Ceiling rose, WDA10Y Ceiling rose, WDA10Z Ceiling rose, WF0110 PVC cable FROR 2x0,35 Ø3,5 mm, WGA01 Nipple coupler, WGA09B Retaining spring clip Ø45mm, WGA09N Retaining spring clip Ø45mm, WGA09Y Retaining spring clip Ø45mm, WGA09Z Retaining spring clip Ø45mm, WHKI40A0 Honeycomb louvre; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionKrill 4.0 projector for indoor applications surface mounted (shop windows, display cabinets, shelves, ceiling, wall) Power consumption: max 9W Power supply: max 250mA, max 700mA Lumen output at source: 893 lm Delivered lumen output: 725 lm (3000K, 48°) 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C), 1 power LED, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 8°, 14°, 23°, 36°, 48°, 21°x55°, 55°x21° CRI Colour Rendering Index: >90 Body material: body made of ANTICORODAL EN AW 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Joint made of brass and produced entirely on a CNC lathe. Finishes: cylindrical cover and joint painted white, radiator electro-coloured black (RAL 9003), cylindrical cover and joint painted antique bronze, radiator electro-coloured black, cylindrical cover and joint painted rose gold, radiator electro-coloured black, Cylindrical cover and joint painted black, radiator electro-coloured black (RAL 9005) RAL finish on request Installation: versatile installation thanks to its accessories: arm with fixing base, nipple coupler, magnetic plate, fixing springs and ceiling rose power supply unit not included Wiring: series includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m Control system: ON/OFF Ingress protection: IP40 Operating temperature: 0°C — +45°C Glow wire test: 960°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 300 g Dimensions: ø45x94 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WBA000 Standard snoot, WDA06B Fixing base, WDA06N Fixing base, WDA06Y Fixing base, WDA06Z Fixing base, WDA07B Magnetic plate, WDA07N Magnetic plate, WDA07Y Magnetic plate, WDA07Z Magnetic plate, WDA08B Rigid arm - h 150 mm, WDA08N Rigid arm - h 150 mm, WDA08Y Rigid arm - h 150 mm, WDA08Z Rigid arm - h 150 mm, WDA09B Rigid arm - h 300 mm, WDA09N Rigid arm - h 300 mm, WDA09Y Rigid arm - h 300 mm, WDA09Z Rigid arm - h 300 mm, WDA10B Ceiling rose, WDA10N Ceiling rose, WDA10Y Ceiling rose, WDA10Z Ceiling rose, WF0110 PVC cable FROR 2x0,35 Ø3,5 mm, WGA01 Nipple coupler, WGA09B Retaining spring clip Ø45mm, WGA09N Retaining spring clip Ø45mm, WGA09Y Retaining spring clip Ø45mm, WGA09Z Retaining spring clip Ø45mm, WHKI40A0 Honeycomb louvre tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (shop windows, display cabinets, shelves, ceiling, wall)
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C), 1 power LED, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

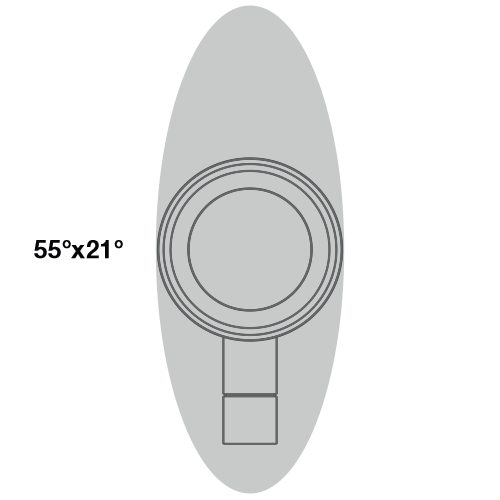

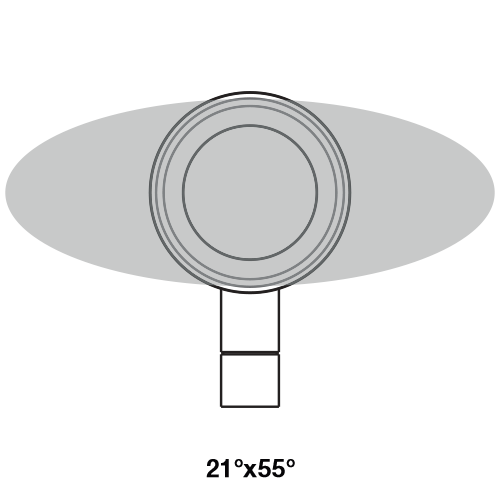

Optics	8°, 14°, 23°, 36°, 48°, 21°x55°, 55°x21°
CRI Colour Rendering Index	>90
Body material	body in anticorodal aluminium, joint in brass
Finishes	white, antique bronze, rose gold, black
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m
Control system	ON/OFF
Ingress protection	IP40
Status	Available

Display all

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (28)

Plates

Required installation accessories, not included WDA06B Fixing base white	Required installation accessories, not included WDA06N Fixing base black
Required installation accessories, not included WDA06Y Fixing base rose gold	Required installation accessories, not included WDA06Z Fixing base antique bronze
Required installation accessories, not included WDA07B Magnetic plate white	Required installation accessories, not included WDA07N Magnetic plate black
Required installation accessories, not included WDA07Y Magnetic plate rose gold	Required installation accessories, not included WDA07Z Magnetic plate antique bronze
Required installation accessories, not included WDA10B Ceiling rose white	Required installation accessories, not included WDA10N Ceiling rose black
Required installation accessories, not included WDA10Y Ceiling rose rose gold	Required installation accessories, not included WDA10Z Ceiling rose antique bronze

Retaining spring clips

Required installation accessories, not included WGA09B Retaining spring clip Ø45mm white	Required installation accessories, not included WGA09N Retaining spring clip Ø45mm black
Required installation accessories, not included WGA09Y Retaining spring clip Ø45mm rose gold	Required installation accessories, not included WGA09Z Retaining spring clip Ø45mm antique bronze

Spikes and arms

WDA08B Rigid arm - h 150 mm white Order together with the fixing base or the nipple	WDA08N Rigid arm - h 150 mm black Order together with the fixing base or the nipple
WDA08Y Rigid arm - h 150 mm rose gold Order together with the fixing base or the nipple	WDA08Z Rigid arm - h 150 mm antique bronze Order together with the fixing base or the nipple
WDA09B Rigid arm - h 300 mm white Order together with the fixing base or the nipple	WDA09N Rigid arm - h 300 mm black Order together with the fixing base or the nipple
WDA09Y Rigid arm - h 300 mm rose gold Order together with the fixing base or the nipple	WDA09Z Rigid arm - h 300 mm antique bronze Order together with the fixing base or the nipple

Honeycomb louvre

WHKI40A0

Honeycomb louvre

Can be fitted on all optics except for 8° and elliptical optics

Snoots

WBA000

Standard snoot

Various accessories

Required installation accessories, not included

WGA01

Nipple coupler

Cables

Order together with the lighting fixture

WF0110

PVC cable FROR 2x0,35 Ø3,5 mm

your choice of length

Power supply units (19)

A19220TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	100mA constant current; max 4,1W 120mA constant current; max 5W 140mA constant current; max 5,8W 160mA constant current; max 6,6W 180mA constant current; max 7,4W 200mA constant current; max 8,3W 220mA constant current; max 9,1W 240mA constant current; max 10W 260mA constant current; max 10,8W 280mA constant current; max 11,6W 300mA constant current; max 12,4W 320mA constant current; max 13,2W 340mA constant current; max 14,1W 360mA constant current; max 15W 60mA constant current; max 2,5W 80mA constant current; max 3,3W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A19350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 15W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A310500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A310500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A312350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A312350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A39700IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI039T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1050mA constant current; max 39W 350mA constant current; max 15W 500mA constant current; max 21W 550mA constant current; max 23W 650mA constant current; max 27W 700mA constant current; max 29W 750mA constant current; max 31W 850mA constant current; max 35W 900mA constant current; max 37W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI042T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1000mA constant current; max 42W 1050mA constant current; max 42W 300mA constant current; max 13W 350mA constant current; max 15W 400mA constant current; max 18W 450mA constant current; max 20W 500mA constant current; max 22W 550mA constant current; max 24W 600mA constant current; max 27W 650mA constant current; max 29W 700mA constant current; max 31W 750mA constant current; max 32W 800mA constant current; max 33W 850mA constant current; max 35W 900mA constant current; max 38W 950mA constant current; max 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNIC30T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 19,5W 400mA constant current; max 21W 430mA constant current; max 22,5W 460mA constant current; max 24W 490mA constant current; max 26W 520mA constant current; max 27,5W 550mA constant current; max 29W 580mA constant current; max 30W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	350mA constant current; max 18W
Dimmering	Mains dimming
Power supply unit IP	IP20

AD020500TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	500mA constant current; max 21W
Dimmering	Mains dimming
Power supply unit IP	IP20

AD020DALIT1

DALI-2 dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 12W 350mA constant current; max 17W 400mA constant current; max 19W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI-2
Power supply unit IP	IP20

AD030DALIT1AM

DALI-2+PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 20W 400mA constant current; max 21W 430mA constant current; max 23W 460mA constant current; max 25W 490mA constant current; max 26W 520mA constant current; max 26W 550mA constant current; max 27W 580mA constant current; max 29W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming
Power supply unit IP	IP20

AD050DALIT1

DALI-2+PUSH+1-10V dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, DALI-2
Power supply unit IP	IP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

Control gear (1)

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input	24Vdc 48Vdc
Output	1 channel With 24 Vdc input:; 1050mA constant current; max 20W With 24 Vdc input:; 350mA constant current; max 6,7W With 24 Vdc input:; 500mA constant current; max 9,5W With 24 Vdc input:; 700mA constant current; max 13,3W With 48 Vdc input:; 1050mA constant current; max 45W With 48 Vdc input:; 350mA constant current; max 15,5W With 48 Vdc input:; 500mA constant current; max 21,5W With 48 Vdc input:; 700mA constant current; max 30W 2 channels With 24 Vdc input:; 1050mA constant current; max 40W With 24 Vdc input:; 350mA constant current; max 13,3W With 24 Vdc input:; 500mA constant current; max 19W With 24 Vdc input:; 700mA constant current; max 26,6W With 48 Vdc input:; 1050mA constant current; max 90,3W With 48 Vdc input:; 350mA constant current; max 30W With 48 Vdc input:; 500mA constant current; max 43W With 48 Vdc input:; 700mA constant current; max 60W 3 channels With 24 Vdc input:; 1050mA constant current; max 60W With 24 Vdc input:; 350mA constant current; max 20W With 24 Vdc input:; 500mA constant current; max 28,5W With 24 Vdc input:; 700mA constant current; max 40W With 48 Vdc input:; 1050mA constant current; max 135W With 48 Vdc input:; 350mA constant current; max 45W With 48 Vdc input:; 500mA constant current; max 64,5W With 48 Vdc input:; 700mA constant current; max 90,3W 4 channels With 24 Vdc input:; 1050mA constant current; max 80W With 24 Vdc input:; 350mA constant current; max 26,6W With 24 Vdc input:; 500mA constant current; max 38W With 24 Vdc input:; 700mA constant current; max 53,2W With 48 Vdc input:; 1050mA constant current; max 180W With 48 Vdc input:; 350mA constant current; max 62W With 48 Vdc input:; 500mA constant current; max 86W With 48 Vdc input:; 700mA constant current; max 120W
Dimmering	0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

Control input (0)

No control inputs
