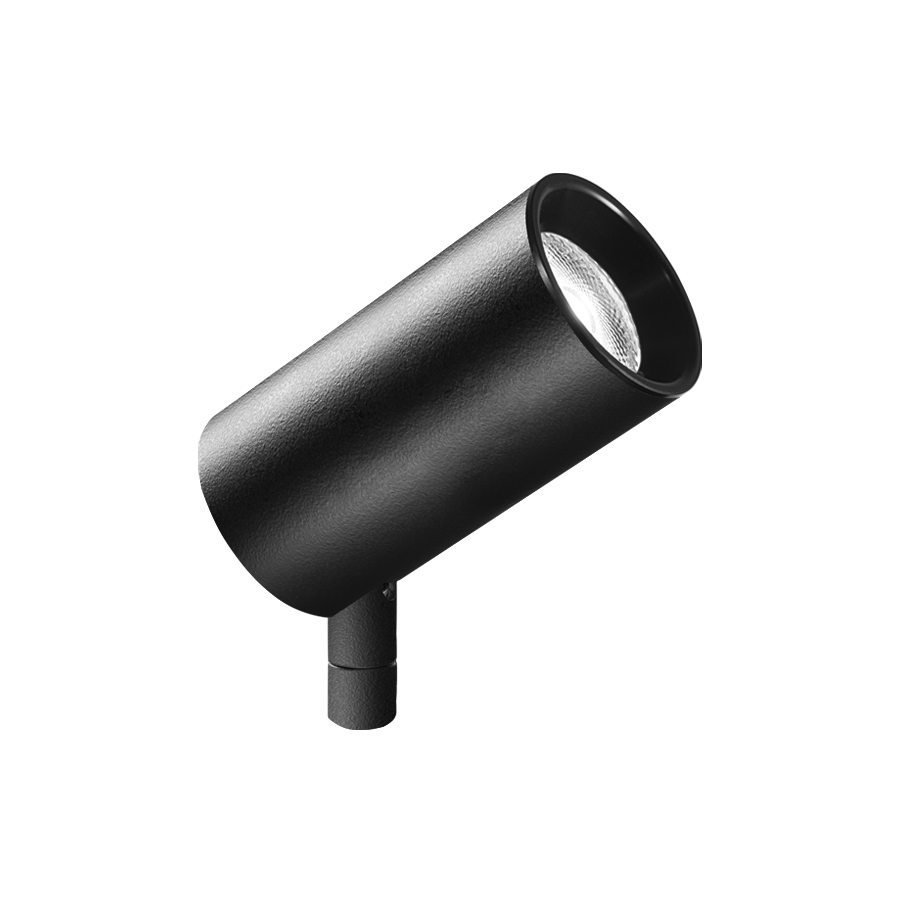

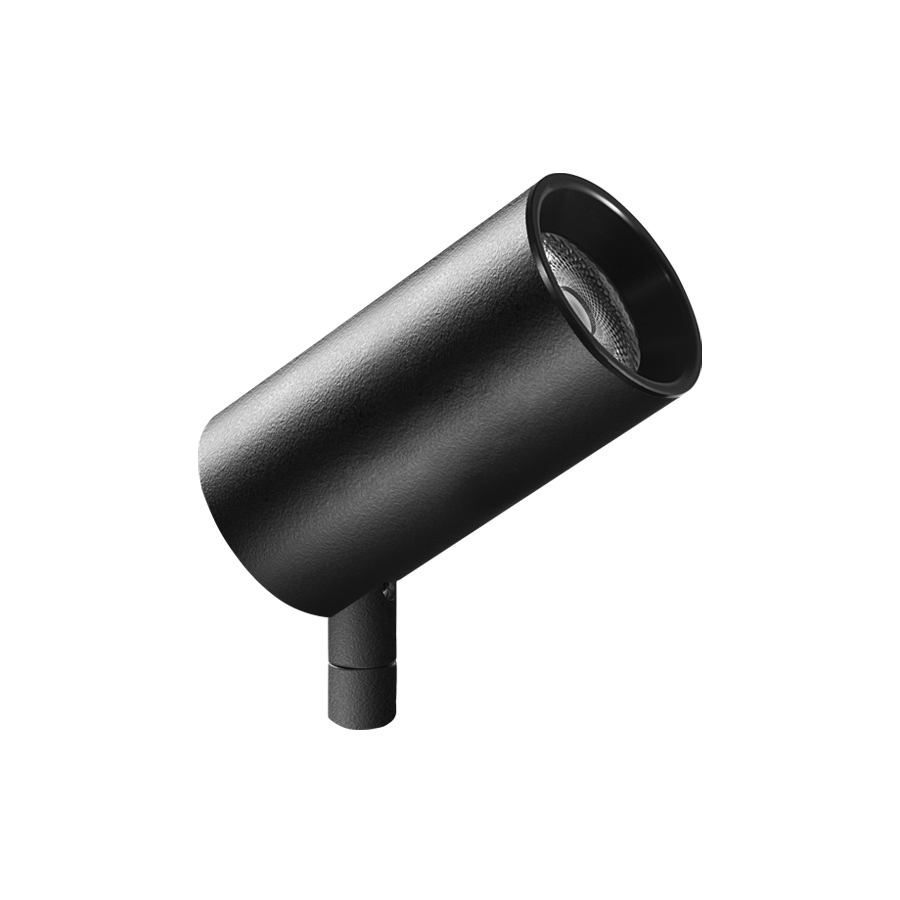

Krill 4.0

Projectors for indoor applications

projector for indoor applications - max 9W max 250mA - max 9W max 700mA (optics 8°) - ø45x94 mm

Generate code

Technical data

Print technical data

Updated to KI4020100050WN

Required installation accessories, not included
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    0,300 g
  • IP40
  • RAL finish on request
  • F
  • Maximum inclination: 90° upwards, 0° downwards
Installation projector for indoor applications
Power consumption max 9W
Power supply max 250mA
Lumen output at source 893 lm
Delivered lumen output 725 lm (3000K, 48°)
Datasheet

Copied
Mounting surface mounted (shop windows, display cabinets, shelves, ceiling, wall)
Number and type of LED 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour 3000K
Optics 21°x55°
CRI Colour Rendering Index >90
Body material body in anticorodal aluminium, joint in brass
Finishes black
Power supply unit power supply unit not included
Wiring series
Power cables includes 1.50 m PVC cable FROR 2x0.35 Ø3.5 m
Control system ON/OFF
Ingress protection IP40
Status Available

Display all

Close

Accessories and power supply units

Accessories (8)

Accessories related to product code KI4020100050WN

Plates

Required installation accessories, not included

WDA06N

Fixing base

black
Required installation accessories, not included

WDA07N

Magnetic plate

black
Required installation accessories, not included

WDA10N

Ceiling rose

black

Retaining spring clips

Required installation accessories, not included

WGA09N

Retaining spring clip Ø45mm

black

Spikes and arms

WDA08N

Rigid arm - h 150 mm

black

Order together with the fixing base or the nipple

WDA09N

Rigid arm - h 300 mm

black

Order together with the fixing base or the nipple

Various accessories

Required installation accessories, not included

WGA01

Nipple coupler

Cables

Order together with the lighting fixture

WF0110

PVC cable FROR 2x0,35 Ø3,5 mm

your choice of length
Display more

Power supply units (6)

Power supply units for product code KI4020100050WN

A19220TC

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output100mA constant current; max 4,1W ✓
120mA constant current; max 5W ✓
140mA constant current; max 5,8W ✓
160mA constant current; max 6,6W ✓
180mA constant current; max 7,4W ✓
200mA constant current; max 8,3W ✓
220mA constant current; max 9,1W ✓
240mA constant current; max 10W ✓
260mA constant current; max 10,8W ⚠
280mA constant current; max 11,6W ⚠
300mA constant current; max 12,4W ⚠
320mA constant current; max 13,2W ⚠
340mA constant current; max 14,1W ⚠
360mA constant current; max 15W ⚠
60mA constant current; max 2,5W ✓
80mA constant current; max 3,3W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ⚠
250mA constant current; max 13W ✓
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNIC30T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output250mA constant current; max 13W ✓
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ⚠
340mA constant current; max 18W ⚠
370mA constant current; max 19,5W ⚠
400mA constant current; max 21W ⚠
430mA constant current; max 22,5W ⚠
460mA constant current; max 24W ⚠
490mA constant current; max 26W ⚠
520mA constant current; max 27,5W ⚠
550mA constant current; max 29W ⚠
580mA constant current; max 30W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI-2 dimmable power supply unit

Output24Vdc; 16W ⚠
250mA constant current; max 12W ✓
350mA constant current; max 17W ⚠
400mA constant current; max 19W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI-2
Power supply unit IPIP20

AD030DALIT1AM

DALI-2+PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output250mA constant current; max 13W ✓
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ⚠
340mA constant current; max 18W ⚠
370mA constant current; max 20W ⚠
400mA constant current; max 21W ⚠
430mA constant current; max 23W ⚠
460mA constant current; max 25W ⚠
490mA constant current; max 26W ⚠
520mA constant current; max 26W ⚠
550mA constant current; max 27W ⚠
580mA constant current; max 29W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringPUSH, DALI-2
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ⚠
250mA constant current; max 13W ✓
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH
Power supply unit IPIP20
Display more

Control gear (0)

Control gear for product code KI4020100050WN

No controllers

Control input (0)

No control inputs
